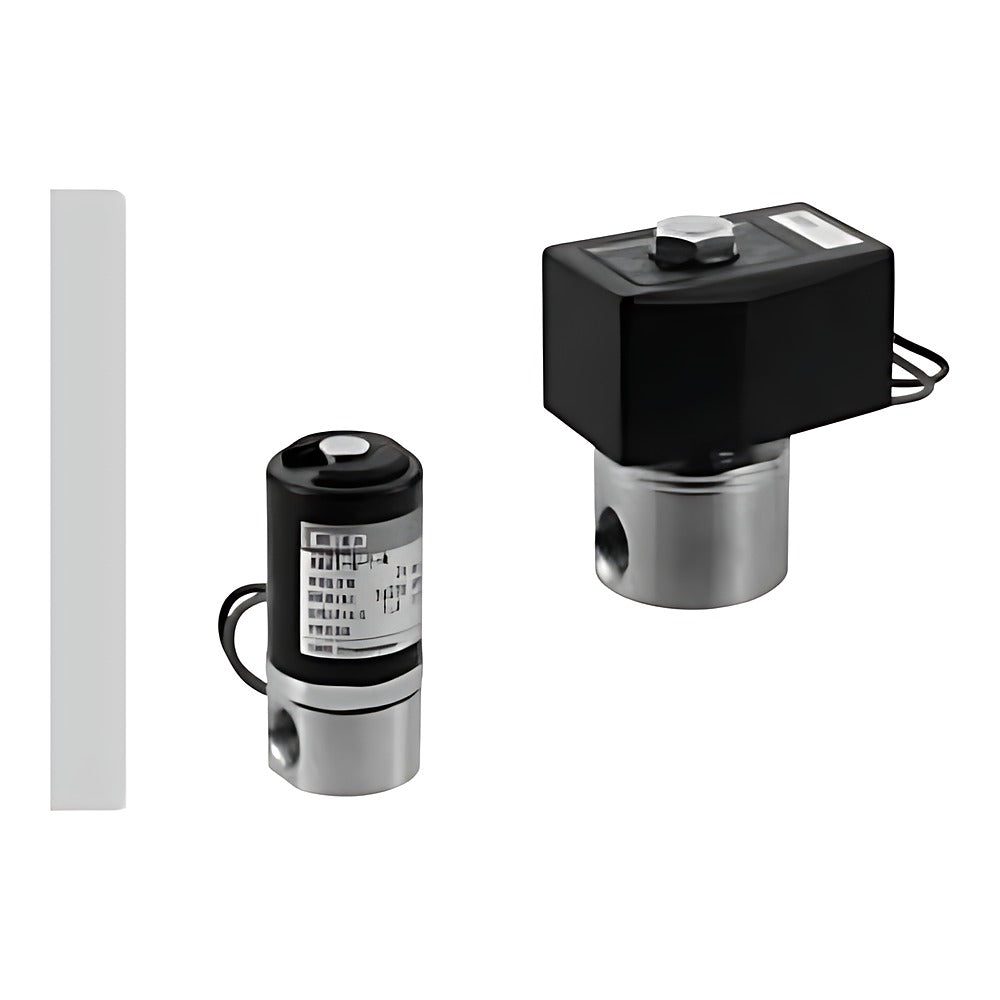

CKD UMB1/UMG1 Ultra-Compact Direct Acting 2/3-Port Solenoid Valve

CKD UMB1/UMG1 Ultra-Compact Direct Acting 2/3-Port Solenoid Valve

Ultra-compact direct-acting 2/3-port solenoid valve with stainless pipe connections for water and pure water.

Key features

  • Connection: stainless pipe OD 1.26 x ID 0.9 mm (T1)
  • Orifice 0.9 mm, Cv 0.01, internal volume 80 uL
  • Response time 8 ms or less
  • 1.5 W coil, DC12V or DC24V
  • Mass 0.03 kg; CE and RoHS

Specifications

Media Water, pure water
Connection T1 (pipe OD 1.26 x ID 0.9)
Proof pressure 0.6 MPa (water)
Operating pressure 0 to 0.2 MPa
Fluid temperature 5 to 55 C
Mounting Vertical, coil downward
Source CKD Korea catalog CB-03-1SK-9, p. 1035-1036
UMB1-T1-DC12V Function: 2-port NC | Voltage: DC12V
UMB1-T1-DC24V Function: 2-port NC | Voltage: DC24V
UMG1-T1-DC12V Function: 3-port universal | Voltage: DC12V
UMG1-T1-DC24V Function: 3-port universal | Voltage: DC24V
Solenoid ValvesCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD UMB1/UMG1 Ultra-Compact Direct Acting 2/3-Port Solenoid Valve

Brand CKD·Solenoid Valves

Available part numbers (4)

UMB1-T1-DC12V, UMB1-T1-DC24V, UMG1-T1-DC12V, UMG1-T1-DC24V

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UMB1-T1-DC12VFunction: 2-port NC | Voltage: DC12V
UMB1-T1-DC24VFunction: 2-port NC | Voltage: DC24V
UMG1-T1-DC12VFunction: 3-port universal | Voltage: DC12V
UMG1-T1-DC24VFunction: 3-port universal | Voltage: DC24V
