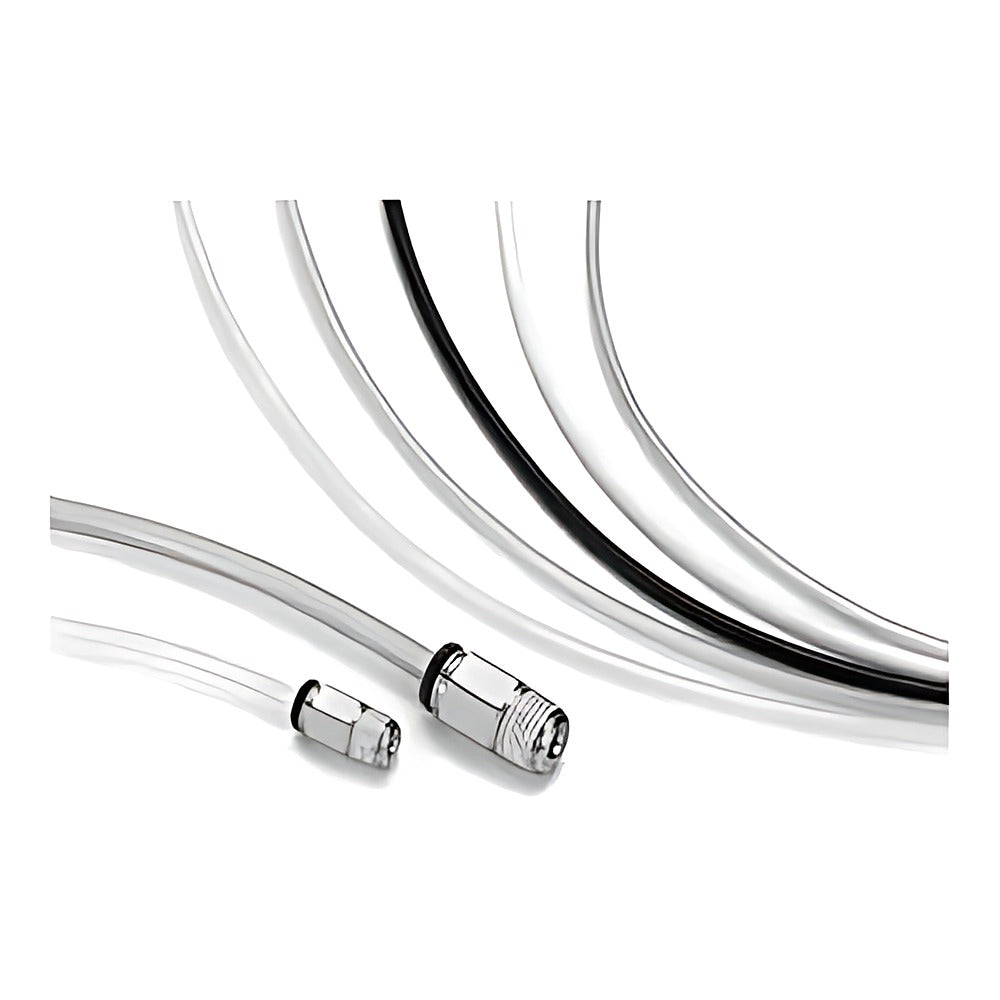

CKD UP Antistatic Urethane Tube (OD 3.2 to 12 mm, 20 m)

CKD UP Antistatic Urethane Tube (OD 3.2 to 12 mm, 20 m)

CKD UP-F2 and UP-F1 antistatic urethane air tubes in 20 m rolls that prevent static charge and dust adhesion, OD 3.2 to 12 mm.

Key features

  • Antistatic urethane: black 10^4-10^6 ohm-cm, other colors 10^8-10^12 ohm-cm (reference)
  • UP-F2 (3.2, 4, 6 mm, hardness HDA94, standard grease spec) and UP-F1 (8, 10, 12 mm, HDA92)
  • Colors black, white, clear, clear blue, clear green; clear red for F2 (all 3.2 mm colors and clear red are made to order)
  • Dedicated antistatic GW fittings and SC3W speed controllers (-F1 suffix) available to order; insert rings INS-UP
  • Clean P80 version in catalog CB-033S

Specifications

Fluid Compressed air
Max. working pressure 0.7 MPa (20 C)
Burst pressure 2.1 MPa (20 C)
Ambient temperature 0 to 60 C (no freezing)
Roll length 20 m
Material Antistatic urethane
Source CKD Korea catalog CB-024SK-9, p. 973-975
UP-9132-20-F2 Series: UP-F2 (hardness 94) | Size: 3.2 x 1.8 mm | Color: Black
UP-9132-20-W-F2 Series: UP-F2 (hardness 94) | Size: 3.2 x 1.8 mm | Color: White
UP-9132-20-C-F2 Series: UP-F2 (hardness 94) | Size: 3.2 x 1.8 mm | Color: Clear
UP-9132-20-CB-F2 Series: UP-F2 (hardness 94) | Size: 3.2 x 1.8 mm | Color: Clear blue
UP-9132-20-CG-F2 Series: UP-F2 (hardness 94) | Size: 3.2 x 1.8 mm | Color: Clear green
UP-9132-20-CR-F2 Series: UP-F2 (hardness 94) | Size: 3.2 x 1.8 mm | Color: Clear red
UP-9104-20-F2 Series: UP-F2 (hardness 94) | Size: 4 x 2.5 mm | Color: Black
UP-9104-20-W-F2 Series: UP-F2 (hardness 94) | Size: 4 x 2.5 mm | Color: White
UP-9104-20-C-F2 Series: UP-F2 (hardness 94) | Size: 4 x 2.5 mm | Color: Clear
UP-9104-20-CB-F2 Series: UP-F2 (hardness 94) | Size: 4 x 2.5 mm | Color: Clear blue
UP-9104-20-CG-F2 Series: UP-F2 (hardness 94) | Size: 4 x 2.5 mm | Color: Clear green
UP-9104-20-CR-F2 Series: UP-F2 (hardness 94) | Size: 4 x 2.5 mm | Color: Clear red
UP-9106-20-F2 Series: UP-F2 (hardness 94) | Size: 6 x 4 mm | Color: Black
UP-9106-20-W-F2 Series: UP-F2 (hardness 94) | Size: 6 x 4 mm | Color: White
UP-9106-20-C-F2 Series: UP-F2 (hardness 94) | Size: 6 x 4 mm | Color: Clear
UP-9106-20-CB-F2 Series: UP-F2 (hardness 94) | Size: 6 x 4 mm | Color: Clear blue
UP-9106-20-CG-F2 Series: UP-F2 (hardness 94) | Size: 6 x 4 mm | Color: Clear green
UP-9106-20-CR-F2 Series: UP-F2 (hardness 94) | Size: 6 x 4 mm | Color: Clear red
UP-9208-20-F1 Series: UP-F1 (hardness 92) | Size: 8 x 5 mm | Color: Black
UP-9208-20-W-F1 Series: UP-F1 (hardness 92) | Size: 8 x 5 mm | Color: White
UP-9208-20-C-F1 Series: UP-F1 (hardness 92) | Size: 8 x 5 mm | Color: Clear
UP-9208-20-CB-F1 Series: UP-F1 (hardness 92) | Size: 8 x 5 mm | Color: Clear blue
UP-9208-20-CG-F1 Series: UP-F1 (hardness 92) | Size: 8 x 5 mm | Color: Clear green
UP-9210-20-F1 Series: UP-F1 (hardness 92) | Size: 10 x 6.5 mm | Color: Black
UP-9210-20-W-F1 Series: UP-F1 (hardness 92) | Size: 10 x 6.5 mm | Color: White
UP-9210-20-C-F1 Series: UP-F1 (hardness 92) | Size: 10 x 6.5 mm | Color: Clear
UP-9210-20-CB-F1 Series: UP-F1 (hardness 92) | Size: 10 x 6.5 mm | Color: Clear blue
UP-9210-20-CG-F1 Series: UP-F1 (hardness 92) | Size: 10 x 6.5 mm | Color: Clear green
UP-9212-20-F1 Series: UP-F1 (hardness 92) | Size: 12 x 8 mm | Color: Black
UP-9212-20-W-F1 Series: UP-F1 (hardness 92) | Size: 12 x 8 mm | Color: White
UP-9212-20-C-F1 Series: UP-F1 (hardness 92) | Size: 12 x 8 mm | Color: Clear
UP-9212-20-CB-F1 Series: UP-F1 (hardness 92) | Size: 12 x 8 mm | Color: Clear blue
UP-9212-20-CG-F1 Series: UP-F1 (hardness 92) | Size: 12 x 8 mm | Color: Clear green
INS-UP32-1 Series: Insert ring (made to order) | Size: For UP-9132 | Color: -
INS-UP04-1 Series: Insert ring (made to order) | Size: For UP-9104 | Color: -
INS-UP06-1 Series: Insert ring (made to order) | Size: For UP-9106 | Color: -
TubesCKD
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD UP Antistatic Urethane Tube (OD 3.2 to 12 mm, 20 m)

Brand CKD·Tubes

Available part numbers (36)

UP-9132-20-F2, UP-9132-20-W-F2, UP-9132-20-C-F2, UP-9132-20-CB-F2, UP-9132-20-CG-F2, UP-9132-20-CR-F2, UP-9104-20-F2, UP-9104-20-W-F2, UP-9104-20-C-F2, UP-9104-20-CB-F2 + 26 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UP-9132-20-F2Series: UP-F2 (hardness 94) | Size: 3.2 x 1.8 mm | Color: Black
UP-9132-20-W-F2Series: UP-F2 (hardness 94) | Size: 3.2 x 1.8 mm | Color: White
UP-9132-20-C-F2Series: UP-F2 (hardness 94) | Size: 3.2 x 1.8 mm | Color: Clear
UP-9132-20-CB-F2Series: UP-F2 (hardness 94) | Size: 3.2 x 1.8 mm | Color: Clear blue
UP-9132-20-CG-F2Series: UP-F2 (hardness 94) | Size: 3.2 x 1.8 mm | Color: Clear green
UP-9132-20-CR-F2Series: UP-F2 (hardness 94) | Size: 3.2 x 1.8 mm | Color: Clear red
UP-9104-20-F2Series: UP-F2 (hardness 94) | Size: 4 x 2.5 mm | Color: Black
UP-9104-20-W-F2Series: UP-F2 (hardness 94) | Size: 4 x 2.5 mm | Color: White
UP-9104-20-C-F2Series: UP-F2 (hardness 94) | Size: 4 x 2.5 mm | Color: Clear
UP-9104-20-CB-F2Series: UP-F2 (hardness 94) | Size: 4 x 2.5 mm | Color: Clear blue
UP-9104-20-CG-F2Series: UP-F2 (hardness 94) | Size: 4 x 2.5 mm | Color: Clear green
UP-9104-20-CR-F2Series: UP-F2 (hardness 94) | Size: 4 x 2.5 mm | Color: Clear red
UP-9106-20-F2Series: UP-F2 (hardness 94) | Size: 6 x 4 mm | Color: Black
UP-9106-20-W-F2Series: UP-F2 (hardness 94) | Size: 6 x 4 mm | Color: White
UP-9106-20-C-F2Series: UP-F2 (hardness 94) | Size: 6 x 4 mm | Color: Clear
UP-9106-20-CB-F2Series: UP-F2 (hardness 94) | Size: 6 x 4 mm | Color: Clear blue
UP-9106-20-CG-F2Series: UP-F2 (hardness 94) | Size: 6 x 4 mm | Color: Clear green
UP-9106-20-CR-F2Series: UP-F2 (hardness 94) | Size: 6 x 4 mm | Color: Clear red
UP-9208-20-F1Series: UP-F1 (hardness 92) | Size: 8 x 5 mm | Color: Black
UP-9208-20-W-F1Series: UP-F1 (hardness 92) | Size: 8 x 5 mm | Color: White
UP-9208-20-C-F1Series: UP-F1 (hardness 92) | Size: 8 x 5 mm | Color: Clear
UP-9208-20-CB-F1Series: UP-F1 (hardness 92) | Size: 8 x 5 mm | Color: Clear blue
UP-9208-20-CG-F1Series: UP-F1 (hardness 92) | Size: 8 x 5 mm | Color: Clear green
UP-9210-20-F1Series: UP-F1 (hardness 92) | Size: 10 x 6.5 mm | Color: Black
UP-9210-20-W-F1Series: UP-F1 (hardness 92) | Size: 10 x 6.5 mm | Color: White
UP-9210-20-C-F1Series: UP-F1 (hardness 92) | Size: 10 x 6.5 mm | Color: Clear
UP-9210-20-CB-F1Series: UP-F1 (hardness 92) | Size: 10 x 6.5 mm | Color: Clear blue
UP-9210-20-CG-F1Series: UP-F1 (hardness 92) | Size: 10 x 6.5 mm | Color: Clear green
UP-9212-20-F1Series: UP-F1 (hardness 92) | Size: 12 x 8 mm | Color: Black
UP-9212-20-W-F1Series: UP-F1 (hardness 92) | Size: 12 x 8 mm | Color: White
UP-9212-20-C-F1Series: UP-F1 (hardness 92) | Size: 12 x 8 mm | Color: Clear
UP-9212-20-CB-F1Series: UP-F1 (hardness 92) | Size: 12 x 8 mm | Color: Clear blue
UP-9212-20-CG-F1Series: UP-F1 (hardness 92) | Size: 12 x 8 mm | Color: Clear green
INS-UP32-1Series: Insert ring (made to order) | Size: For UP-9132 | Color: -
INS-UP04-1Series: Insert ring (made to order) | Size: For UP-9104 | Color: -
INS-UP06-1Series: Insert ring (made to order) | Size: For UP-9106 | Color: -
