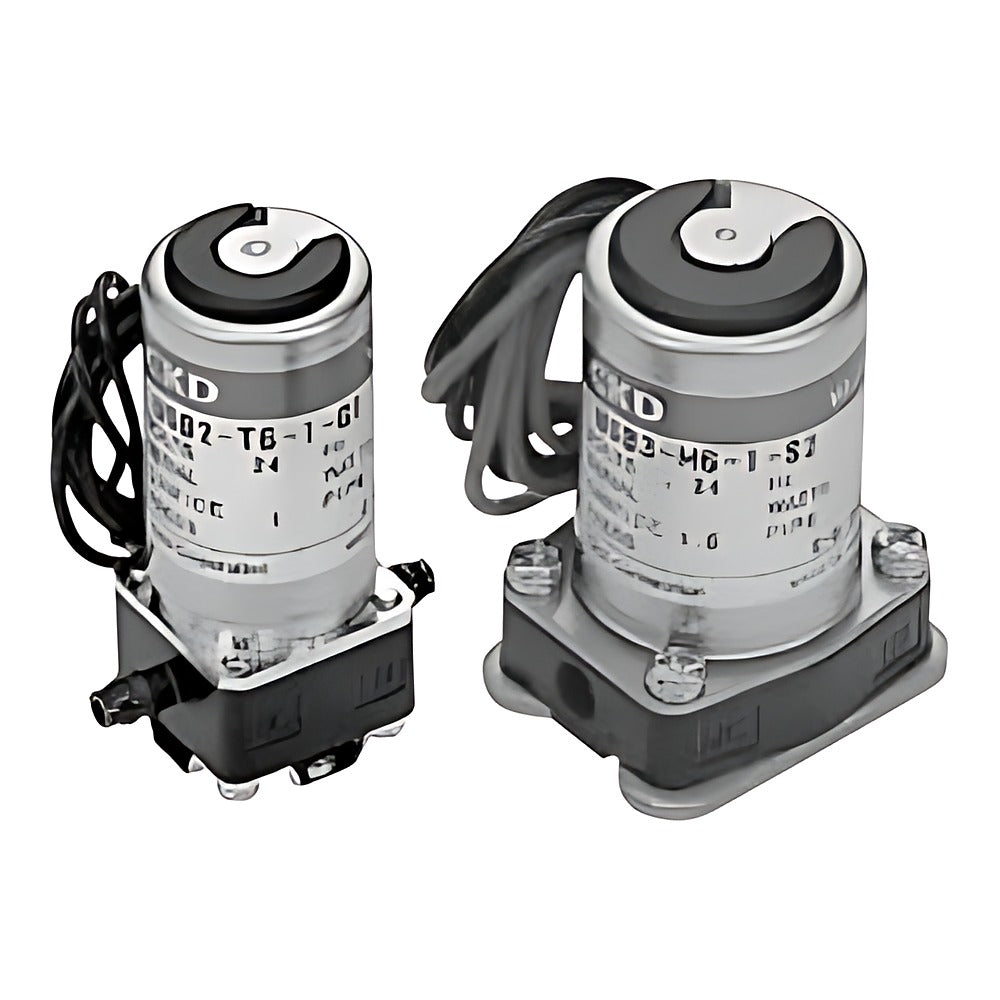

CKD US Resin Body-FP2 Direct Acting 2/3-Port Solenoid Valve (USB/USG)

CKD US Resin Body-FP2 Direct Acting 2/3-Port Solenoid Valve (USB/USG)

CKD US resin body type (USB2/USB3 2-port NC, USG2/USG3 3-port universal) direct-acting solenoid valves with PPS body and FKM seals for food processing.

Key features

  • PPS body with FKM seal (S), oil-free treatment
  • M6 thread or barb fitting for 6x4 mm tube
  • Wetted metal SUS405 equivalent (1, air/water) or SUS316 equivalent (2, water/pure water)
  • DC12V or DC24V coil
  • USG2 NO port is M5
  • FP2 food-processing spec: wetted materials comply with the Japanese Food Sanitation Act

Specifications

Operating pressure differential 0 to 0.7 MPa (by model)
Proof pressure 1.5 MPa (US*2), 2 MPa (US*3)
Fluid temperature 0 to 60 C
Ambient temperature 0 to 50 C
Seat leakage 0.2 cm3/min or less (air)
Coil insulation Class B (130)
Source CKD Korea catalog CC-1271K-5, p. 386-387
USB2-M6-1-S1FP2-DC12V Model: USB2 | Port: M6 | Orifice: 1 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USB2-M6-1-S1FP2-DC24V Model: USB2 | Port: M6 | Orifice: 1 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USB2-M6-1-S2FP2-DC12V Model: USB2 | Port: M6 | Orifice: 1 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USB2-M6-1-S2FP2-DC24V Model: USB2 | Port: M6 | Orifice: 1 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USB2-M6-2-S1FP2-DC12V Model: USB2 | Port: M6 | Orifice: 1.5 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USB2-M6-2-S1FP2-DC24V Model: USB2 | Port: M6 | Orifice: 1.5 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USB2-M6-2-S2FP2-DC12V Model: USB2 | Port: M6 | Orifice: 1.5 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USB2-M6-2-S2FP2-DC24V Model: USB2 | Port: M6 | Orifice: 1.5 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USB2-T6-1-S1FP2-DC12V Model: USB2 | Port: Barb 6x4 mm | Orifice: 1 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USB2-T6-1-S1FP2-DC24V Model: USB2 | Port: Barb 6x4 mm | Orifice: 1 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USB2-T6-1-S2FP2-DC12V Model: USB2 | Port: Barb 6x4 mm | Orifice: 1 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USB2-T6-1-S2FP2-DC24V Model: USB2 | Port: Barb 6x4 mm | Orifice: 1 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USB2-T6-2-S1FP2-DC12V Model: USB2 | Port: Barb 6x4 mm | Orifice: 1.5 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USB2-T6-2-S1FP2-DC24V Model: USB2 | Port: Barb 6x4 mm | Orifice: 1.5 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USB2-T6-2-S2FP2-DC12V Model: USB2 | Port: Barb 6x4 mm | Orifice: 1.5 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USB2-T6-2-S2FP2-DC24V Model: USB2 | Port: Barb 6x4 mm | Orifice: 1.5 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USB3-M6-1-S1FP2-DC12V Model: USB3 | Port: M6 | Orifice: 1.6 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USB3-M6-1-S1FP2-DC24V Model: USB3 | Port: M6 | Orifice: 1.6 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USB3-M6-1-S2FP2-DC12V Model: USB3 | Port: M6 | Orifice: 1.6 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USB3-M6-1-S2FP2-DC24V Model: USB3 | Port: M6 | Orifice: 1.6 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USB3-M6-2-S1FP2-DC12V Model: USB3 | Port: M6 | Orifice: 2.3 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USB3-M6-2-S1FP2-DC24V Model: USB3 | Port: M6 | Orifice: 2.3 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USB3-M6-2-S2FP2-DC12V Model: USB3 | Port: M6 | Orifice: 2.3 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USB3-M6-2-S2FP2-DC24V Model: USB3 | Port: M6 | Orifice: 2.3 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USB3-T6-1-S1FP2-DC12V Model: USB3 | Port: Barb 6x4 mm | Orifice: 1.6 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USB3-T6-1-S1FP2-DC24V Model: USB3 | Port: Barb 6x4 mm | Orifice: 1.6 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USB3-T6-1-S2FP2-DC12V Model: USB3 | Port: Barb 6x4 mm | Orifice: 1.6 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USB3-T6-1-S2FP2-DC24V Model: USB3 | Port: Barb 6x4 mm | Orifice: 1.6 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USB3-T6-2-S1FP2-DC12V Model: USB3 | Port: Barb 6x4 mm | Orifice: 2.3 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USB3-T6-2-S1FP2-DC24V Model: USB3 | Port: Barb 6x4 mm | Orifice: 2.3 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USB3-T6-2-S2FP2-DC12V Model: USB3 | Port: Barb 6x4 mm | Orifice: 2.3 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USB3-T6-2-S2FP2-DC24V Model: USB3 | Port: Barb 6x4 mm | Orifice: 2.3 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USG2-M6-1-S1FP2-DC12V Model: USG2 | Port: M6 | Orifice: 1 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USG2-M6-1-S1FP2-DC24V Model: USG2 | Port: M6 | Orifice: 1 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USG2-M6-1-S2FP2-DC12V Model: USG2 | Port: M6 | Orifice: 1 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USG2-M6-1-S2FP2-DC24V Model: USG2 | Port: M6 | Orifice: 1 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USG2-M6-2-S1FP2-DC12V Model: USG2 | Port: M6 | Orifice: 1.5 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USG2-M6-2-S1FP2-DC24V Model: USG2 | Port: M6 | Orifice: 1.5 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USG2-M6-2-S2FP2-DC12V Model: USG2 | Port: M6 | Orifice: 1.5 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USG2-M6-2-S2FP2-DC24V Model: USG2 | Port: M6 | Orifice: 1.5 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USG2-T6-1-S1FP2-DC12V Model: USG2 | Port: Barb 6x4 mm | Orifice: 1 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USG2-T6-1-S1FP2-DC24V Model: USG2 | Port: Barb 6x4 mm | Orifice: 1 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USG2-T6-1-S2FP2-DC12V Model: USG2 | Port: Barb 6x4 mm | Orifice: 1 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USG2-T6-1-S2FP2-DC24V Model: USG2 | Port: Barb 6x4 mm | Orifice: 1 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USG2-T6-2-S1FP2-DC12V Model: USG2 | Port: Barb 6x4 mm | Orifice: 1.5 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USG2-T6-2-S1FP2-DC24V Model: USG2 | Port: Barb 6x4 mm | Orifice: 1.5 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USG2-T6-2-S2FP2-DC12V Model: USG2 | Port: Barb 6x4 mm | Orifice: 1.5 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USG2-T6-2-S2FP2-DC24V Model: USG2 | Port: Barb 6x4 mm | Orifice: 1.5 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USG3-M6-1-S1FP2-DC12V Model: USG3 | Port: M6 | Orifice: 1.6 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USG3-M6-1-S1FP2-DC24V Model: USG3 | Port: M6 | Orifice: 1.6 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USG3-M6-1-S2FP2-DC12V Model: USG3 | Port: M6 | Orifice: 1.6 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USG3-M6-1-S2FP2-DC24V Model: USG3 | Port: M6 | Orifice: 1.6 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USG3-T6-1-S1FP2-DC12V Model: USG3 | Port: Barb 6x4 mm | Orifice: 1.6 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USG3-T6-1-S1FP2-DC24V Model: USG3 | Port: Barb 6x4 mm | Orifice: 1.6 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USG3-T6-1-S2FP2-DC12V Model: USG3 | Port: Barb 6x4 mm | Orifice: 1.6 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USG3-T6-1-S2FP2-DC24V Model: USG3 | Port: Barb 6x4 mm | Orifice: 1.6 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
2-Port Solenoid ValvesCKD
56 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD US Resin Body-FP2 Direct Acting 2/3-Port Solenoid Valve (USB/USG)

Brand CKD·2-Port Solenoid Valves

Available part numbers (56)

USB2-M6-1-S1FP2-DC12V, USB2-M6-1-S1FP2-DC24V, USB2-M6-1-S2FP2-DC12V, USB2-M6-1-S2FP2-DC24V, USB2-M6-2-S1FP2-DC12V, USB2-M6-2-S1FP2-DC24V, USB2-M6-2-S2FP2-DC12V, USB2-M6-2-S2FP2-DC24V, USB2-T6-1-S1FP2-DC12V, USB2-T6-1-S1FP2-DC24V + 46 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
USB2-M6-1-S1FP2-DC12VModel: USB2 | Port: M6 | Orifice: 1 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USB2-M6-1-S1FP2-DC24VModel: USB2 | Port: M6 | Orifice: 1 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USB2-M6-1-S2FP2-DC12VModel: USB2 | Port: M6 | Orifice: 1 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USB2-M6-1-S2FP2-DC24VModel: USB2 | Port: M6 | Orifice: 1 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USB2-M6-2-S1FP2-DC12VModel: USB2 | Port: M6 | Orifice: 1.5 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USB2-M6-2-S1FP2-DC24VModel: USB2 | Port: M6 | Orifice: 1.5 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USB2-M6-2-S2FP2-DC12VModel: USB2 | Port: M6 | Orifice: 1.5 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USB2-M6-2-S2FP2-DC24VModel: USB2 | Port: M6 | Orifice: 1.5 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USB2-T6-1-S1FP2-DC12VModel: USB2 | Port: Barb 6x4 mm | Orifice: 1 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USB2-T6-1-S1FP2-DC24VModel: USB2 | Port: Barb 6x4 mm | Orifice: 1 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USB2-T6-1-S2FP2-DC12VModel: USB2 | Port: Barb 6x4 mm | Orifice: 1 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USB2-T6-1-S2FP2-DC24VModel: USB2 | Port: Barb 6x4 mm | Orifice: 1 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USB2-T6-2-S1FP2-DC12VModel: USB2 | Port: Barb 6x4 mm | Orifice: 1.5 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USB2-T6-2-S1FP2-DC24VModel: USB2 | Port: Barb 6x4 mm | Orifice: 1.5 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USB2-T6-2-S2FP2-DC12VModel: USB2 | Port: Barb 6x4 mm | Orifice: 1.5 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USB2-T6-2-S2FP2-DC24VModel: USB2 | Port: Barb 6x4 mm | Orifice: 1.5 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USB3-M6-1-S1FP2-DC12VModel: USB3 | Port: M6 | Orifice: 1.6 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USB3-M6-1-S1FP2-DC24VModel: USB3 | Port: M6 | Orifice: 1.6 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USB3-M6-1-S2FP2-DC12VModel: USB3 | Port: M6 | Orifice: 1.6 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USB3-M6-1-S2FP2-DC24VModel: USB3 | Port: M6 | Orifice: 1.6 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USB3-M6-2-S1FP2-DC12VModel: USB3 | Port: M6 | Orifice: 2.3 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USB3-M6-2-S1FP2-DC24VModel: USB3 | Port: M6 | Orifice: 2.3 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USB3-M6-2-S2FP2-DC12VModel: USB3 | Port: M6 | Orifice: 2.3 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USB3-M6-2-S2FP2-DC24VModel: USB3 | Port: M6 | Orifice: 2.3 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USB3-T6-1-S1FP2-DC12VModel: USB3 | Port: Barb 6x4 mm | Orifice: 1.6 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USB3-T6-1-S1FP2-DC24VModel: USB3 | Port: Barb 6x4 mm | Orifice: 1.6 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USB3-T6-1-S2FP2-DC12VModel: USB3 | Port: Barb 6x4 mm | Orifice: 1.6 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USB3-T6-1-S2FP2-DC24VModel: USB3 | Port: Barb 6x4 mm | Orifice: 1.6 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USB3-T6-2-S1FP2-DC12VModel: USB3 | Port: Barb 6x4 mm | Orifice: 2.3 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USB3-T6-2-S1FP2-DC24VModel: USB3 | Port: Barb 6x4 mm | Orifice: 2.3 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USB3-T6-2-S2FP2-DC12VModel: USB3 | Port: Barb 6x4 mm | Orifice: 2.3 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USB3-T6-2-S2FP2-DC24VModel: USB3 | Port: Barb 6x4 mm | Orifice: 2.3 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USG2-M6-1-S1FP2-DC12VModel: USG2 | Port: M6 | Orifice: 1 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USG2-M6-1-S1FP2-DC24VModel: USG2 | Port: M6 | Orifice: 1 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USG2-M6-1-S2FP2-DC12VModel: USG2 | Port: M6 | Orifice: 1 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USG2-M6-1-S2FP2-DC24VModel: USG2 | Port: M6 | Orifice: 1 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USG2-M6-2-S1FP2-DC12VModel: USG2 | Port: M6 | Orifice: 1.5 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USG2-M6-2-S1FP2-DC24VModel: USG2 | Port: M6 | Orifice: 1.5 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USG2-M6-2-S2FP2-DC12VModel: USG2 | Port: M6 | Orifice: 1.5 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USG2-M6-2-S2FP2-DC24VModel: USG2 | Port: M6 | Orifice: 1.5 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USG2-T6-1-S1FP2-DC12VModel: USG2 | Port: Barb 6x4 mm | Orifice: 1 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USG2-T6-1-S1FP2-DC24VModel: USG2 | Port: Barb 6x4 mm | Orifice: 1 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USG2-T6-1-S2FP2-DC12VModel: USG2 | Port: Barb 6x4 mm | Orifice: 1 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USG2-T6-1-S2FP2-DC24VModel: USG2 | Port: Barb 6x4 mm | Orifice: 1 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USG2-T6-2-S1FP2-DC12VModel: USG2 | Port: Barb 6x4 mm | Orifice: 1.5 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USG2-T6-2-S1FP2-DC24VModel: USG2 | Port: Barb 6x4 mm | Orifice: 1.5 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USG2-T6-2-S2FP2-DC12VModel: USG2 | Port: Barb 6x4 mm | Orifice: 1.5 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USG2-T6-2-S2FP2-DC24VModel: USG2 | Port: Barb 6x4 mm | Orifice: 1.5 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USG3-M6-1-S1FP2-DC12VModel: USG3 | Port: M6 | Orifice: 1.6 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USG3-M6-1-S1FP2-DC24VModel: USG3 | Port: M6 | Orifice: 1.6 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USG3-M6-1-S2FP2-DC12VModel: USG3 | Port: M6 | Orifice: 1.6 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USG3-M6-1-S2FP2-DC24VModel: USG3 | Port: M6 | Orifice: 1.6 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V
USG3-T6-1-S1FP2-DC12VModel: USG3 | Port: Barb 6x4 mm | Orifice: 1.6 mm | Wetted metal: SUS405 equivalent | Voltage: DC12V
USG3-T6-1-S1FP2-DC24VModel: USG3 | Port: Barb 6x4 mm | Orifice: 1.6 mm | Wetted metal: SUS405 equivalent | Voltage: DC24V
USG3-T6-1-S2FP2-DC12VModel: USG3 | Port: Barb 6x4 mm | Orifice: 1.6 mm | Wetted metal: SUS316 equivalent | Voltage: DC12V
USG3-T6-1-S2FP2-DC24VModel: USG3 | Port: Barb 6x4 mm | Orifice: 1.6 mm | Wetted metal: SUS316 equivalent | Voltage: DC24V

Need a different model, or a part not listed here? Send us your parts list →
