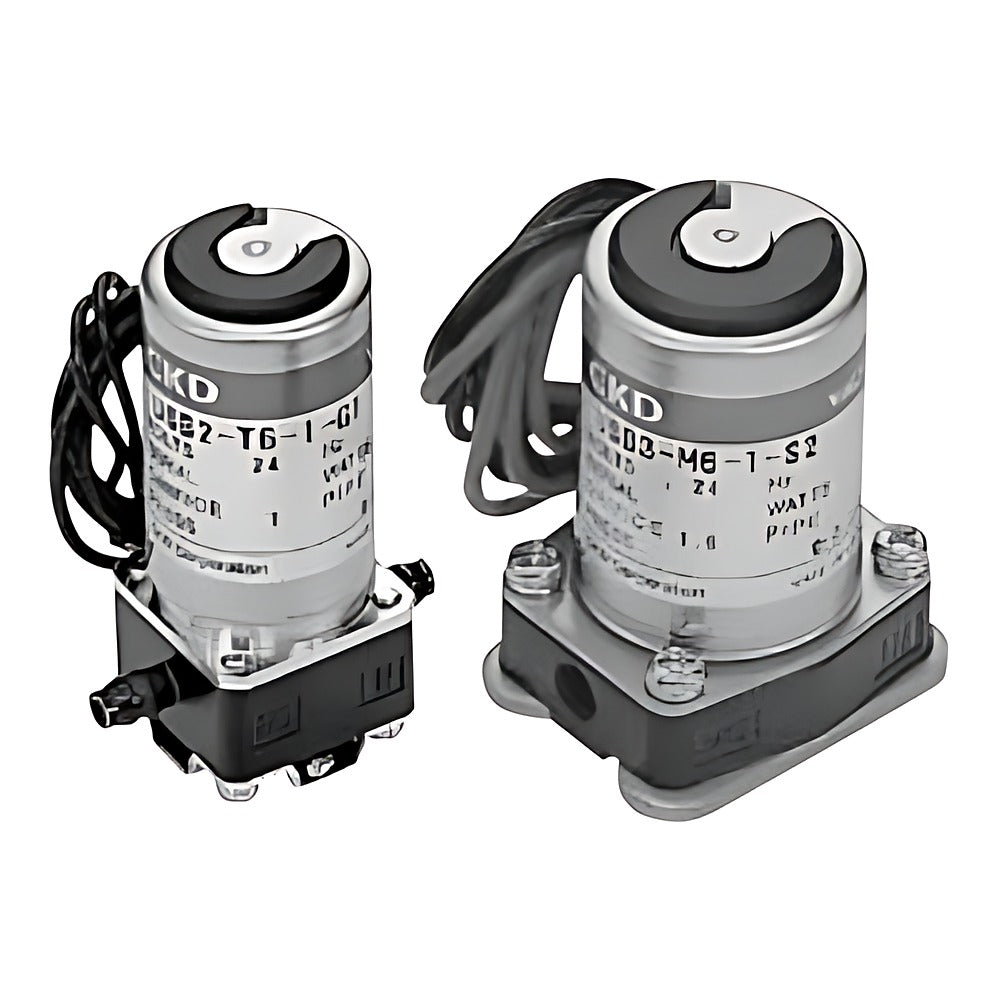

CKD US Resin Body Direct Acting 2/3-Port Solenoid Valve (USB/USG)

CKD US Resin Body Direct Acting 2/3-Port Solenoid Valve (USB/USG)

PPS resin-body versions of the USB (2-port NC) and USG (3-port universal) direct acting solenoid valves for analyzers and cleaning lines.

Key features

  • PPS resin body with SUS316 or SUS405 equivalent wetted metal parts
  • M6, barb fitting (6x4 tube) or 1/4-28UNF ports for analyzer fittings
  • USB2/USB3 2-port NC and USG2/USG3 3-port universal models
  • NBR or FKM seals; oil-free treatment
  • DC12V / DC24V

Specifications

Fluid Water, pure water, air, dry air, low vacuum
Operating pressure differential 0-0.9 MPa (by model)
Proof pressure 1.5 MPa (US-2), 2 MPa (US-3)
Fluid temperature 0-60 C
Treatment Oil-free
Source CKD Korea catalog CB-03-1SK-9, p. 106-109
USB2-M6-1-G1-DC12V Model: USB2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-M6-1-G1-DC24V Model: USB2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-M6-1-G2-DC12V Model: USB2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-M6-1-G2-DC24V Model: USB2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-M6-1-S1-DC12V Model: USB2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-M6-1-S1-DC24V Model: USB2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-M6-1-S2-DC12V Model: USB2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-M6-1-S2-DC24V Model: USB2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-M6-2-G1-DC12V Model: USB2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-M6-2-G1-DC24V Model: USB2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-M6-2-G2-DC12V Model: USB2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-M6-2-G2-DC24V Model: USB2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-M6-2-S1-DC12V Model: USB2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-M6-2-S1-DC24V Model: USB2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-M6-2-S2-DC12V Model: USB2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-M6-2-S2-DC24V Model: USB2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-T6-1-G1-DC12V Model: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-T6-1-G1-DC24V Model: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-T6-1-G2-DC12V Model: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-T6-1-G2-DC24V Model: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-T6-1-S1-DC12V Model: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-T6-1-S1-DC24V Model: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-T6-1-S2-DC12V Model: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-T6-1-S2-DC24V Model: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-T6-2-G1-DC12V Model: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-T6-2-G1-DC24V Model: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-T6-2-G2-DC12V Model: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-T6-2-G2-DC24V Model: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-T6-2-S1-DC12V Model: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-T6-2-S1-DC24V Model: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-T6-2-S2-DC12V Model: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-T6-2-S2-DC24V Model: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-4U-1-G1-DC12V Model: USB2 | Port: 1/4-28UNF | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-4U-1-G1-DC24V Model: USB2 | Port: 1/4-28UNF | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-4U-1-G2-DC12V Model: USB2 | Port: 1/4-28UNF | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-4U-1-G2-DC24V Model: USB2 | Port: 1/4-28UNF | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-4U-1-S1-DC12V Model: USB2 | Port: 1/4-28UNF | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-4U-1-S1-DC24V Model: USB2 | Port: 1/4-28UNF | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-4U-1-S2-DC12V Model: USB2 | Port: 1/4-28UNF | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-4U-1-S2-DC24V Model: USB2 | Port: 1/4-28UNF | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-4U-2-G1-DC12V Model: USB2 | Port: 1/4-28UNF | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-4U-2-G1-DC24V Model: USB2 | Port: 1/4-28UNF | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-4U-2-G2-DC12V Model: USB2 | Port: 1/4-28UNF | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-4U-2-G2-DC24V Model: USB2 | Port: 1/4-28UNF | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-4U-2-S1-DC12V Model: USB2 | Port: 1/4-28UNF | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-4U-2-S1-DC24V Model: USB2 | Port: 1/4-28UNF | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-4U-2-S2-DC12V Model: USB2 | Port: 1/4-28UNF | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-4U-2-S2-DC24V Model: USB2 | Port: 1/4-28UNF | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB3-M6-1-G1-DC12V Model: USB3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB3-M6-1-G1-DC24V Model: USB3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB3-M6-1-G2-DC12V Model: USB3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB3-M6-1-G2-DC24V Model: USB3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB3-M6-1-S1-DC12V Model: USB3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB3-M6-1-S1-DC24V Model: USB3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB3-M6-1-S2-DC12V Model: USB3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB3-M6-1-S2-DC24V Model: USB3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB3-M6-2-G1-DC12V Model: USB3 | Port: M6 | Orifice: 2.3 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB3-M6-2-G1-DC24V Model: USB3 | Port: M6 | Orifice: 2.3 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB3-M6-2-G2-DC12V Model: USB3 | Port: M6 | Orifice: 2.3 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB3-M6-2-G2-DC24V Model: USB3 | Port: M6 | Orifice: 2.3 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB3-M6-2-S1-DC12V Model: USB3 | Port: M6 | Orifice: 2.3 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB3-M6-2-S1-DC24V Model: USB3 | Port: M6 | Orifice: 2.3 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB3-M6-2-S2-DC12V Model: USB3 | Port: M6 | Orifice: 2.3 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB3-M6-2-S2-DC24V Model: USB3 | Port: M6 | Orifice: 2.3 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB3-T6-1-G1-DC12V Model: USB3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB3-T6-1-G1-DC24V Model: USB3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB3-T6-1-G2-DC12V Model: USB3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB3-T6-1-G2-DC24V Model: USB3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB3-T6-1-S1-DC12V Model: USB3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB3-T6-1-S1-DC24V Model: USB3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB3-T6-1-S2-DC12V Model: USB3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB3-T6-1-S2-DC24V Model: USB3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB3-T6-2-G1-DC12V Model: USB3 | Port: Barb fitting 6x4 tube | Orifice: 2.3 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB3-T6-2-G1-DC24V Model: USB3 | Port: Barb fitting 6x4 tube | Orifice: 2.3 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB3-T6-2-G2-DC12V Model: USB3 | Port: Barb fitting 6x4 tube | Orifice: 2.3 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB3-T6-2-G2-DC24V Model: USB3 | Port: Barb fitting 6x4 tube | Orifice: 2.3 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB3-T6-2-S1-DC12V Model: USB3 | Port: Barb fitting 6x4 tube | Orifice: 2.3 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB3-T6-2-S1-DC24V Model: USB3 | Port: Barb fitting 6x4 tube | Orifice: 2.3 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB3-T6-2-S2-DC12V Model: USB3 | Port: Barb fitting 6x4 tube | Orifice: 2.3 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB3-T6-2-S2-DC24V Model: USB3 | Port: Barb fitting 6x4 tube | Orifice: 2.3 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG2-M6-1-G1-DC12V Model: USG2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG2-M6-1-G1-DC24V Model: USG2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG2-M6-1-G2-DC12V Model: USG2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG2-M6-1-G2-DC24V Model: USG2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG2-M6-1-S1-DC12V Model: USG2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG2-M6-1-S1-DC24V Model: USG2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG2-M6-1-S2-DC12V Model: USG2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG2-M6-1-S2-DC24V Model: USG2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG2-M6-2-G1-DC12V Model: USG2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG2-M6-2-G1-DC24V Model: USG2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG2-M6-2-G2-DC12V Model: USG2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG2-M6-2-G2-DC24V Model: USG2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG2-M6-2-S1-DC12V Model: USG2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG2-M6-2-S1-DC24V Model: USG2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG2-M6-2-S2-DC12V Model: USG2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG2-M6-2-S2-DC24V Model: USG2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG2-T6-1-G1-DC12V Model: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG2-T6-1-G1-DC24V Model: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG2-T6-1-G2-DC12V Model: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG2-T6-1-G2-DC24V Model: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG2-T6-1-S1-DC12V Model: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG2-T6-1-S1-DC24V Model: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG2-T6-1-S2-DC12V Model: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG2-T6-1-S2-DC24V Model: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG2-T6-2-G1-DC12V Model: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG2-T6-2-G1-DC24V Model: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG2-T6-2-G2-DC12V Model: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG2-T6-2-G2-DC24V Model: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG2-T6-2-S1-DC12V Model: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG2-T6-2-S1-DC24V Model: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG2-T6-2-S2-DC12V Model: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG2-T6-2-S2-DC24V Model: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG3-M6-1-G1-DC12V Model: USG3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG3-M6-1-G1-DC24V Model: USG3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG3-M6-1-G2-DC12V Model: USG3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG3-M6-1-G2-DC24V Model: USG3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG3-M6-1-S1-DC12V Model: USG3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG3-M6-1-S1-DC24V Model: USG3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG3-M6-1-S2-DC12V Model: USG3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG3-M6-1-S2-DC24V Model: USG3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG3-T6-1-G1-DC12V Model: USG3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG3-T6-1-G1-DC24V Model: USG3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG3-T6-1-G2-DC12V Model: USG3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG3-T6-1-G2-DC24V Model: USG3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG3-T6-1-S1-DC12V Model: USG3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG3-T6-1-S1-DC24V Model: USG3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG3-T6-1-S2-DC12V Model: USG3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG3-T6-1-S2-DC24V Model: USG3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
Solenoid ValvesCKD
128 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD US Resin Body Direct Acting 2/3-Port Solenoid Valve (USB/USG)

Brand CKD·Solenoid Valves

Available part numbers (128)

USB2-M6-1-G1-DC12V, USB2-M6-1-G1-DC24V, USB2-M6-1-G2-DC12V, USB2-M6-1-G2-DC24V, USB2-M6-1-S1-DC12V, USB2-M6-1-S1-DC24V, USB2-M6-1-S2-DC12V, USB2-M6-1-S2-DC24V, USB2-M6-2-G1-DC12V, USB2-M6-2-G1-DC24V + 118 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
USB2-M6-1-G1-DC12VModel: USB2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-M6-1-G1-DC24VModel: USB2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-M6-1-G2-DC12VModel: USB2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-M6-1-G2-DC24VModel: USB2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-M6-1-S1-DC12VModel: USB2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-M6-1-S1-DC24VModel: USB2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-M6-1-S2-DC12VModel: USB2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-M6-1-S2-DC24VModel: USB2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-M6-2-G1-DC12VModel: USB2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-M6-2-G1-DC24VModel: USB2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-M6-2-G2-DC12VModel: USB2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-M6-2-G2-DC24VModel: USB2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-M6-2-S1-DC12VModel: USB2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-M6-2-S1-DC24VModel: USB2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-M6-2-S2-DC12VModel: USB2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-M6-2-S2-DC24VModel: USB2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-T6-1-G1-DC12VModel: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-T6-1-G1-DC24VModel: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-T6-1-G2-DC12VModel: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-T6-1-G2-DC24VModel: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-T6-1-S1-DC12VModel: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-T6-1-S1-DC24VModel: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-T6-1-S2-DC12VModel: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-T6-1-S2-DC24VModel: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-T6-2-G1-DC12VModel: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-T6-2-G1-DC24VModel: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-T6-2-G2-DC12VModel: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-T6-2-G2-DC24VModel: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-T6-2-S1-DC12VModel: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-T6-2-S1-DC24VModel: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-T6-2-S2-DC12VModel: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-T6-2-S2-DC24VModel: USB2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-4U-1-G1-DC12VModel: USB2 | Port: 1/4-28UNF | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-4U-1-G1-DC24VModel: USB2 | Port: 1/4-28UNF | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-4U-1-G2-DC12VModel: USB2 | Port: 1/4-28UNF | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-4U-1-G2-DC24VModel: USB2 | Port: 1/4-28UNF | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-4U-1-S1-DC12VModel: USB2 | Port: 1/4-28UNF | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-4U-1-S1-DC24VModel: USB2 | Port: 1/4-28UNF | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-4U-1-S2-DC12VModel: USB2 | Port: 1/4-28UNF | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-4U-1-S2-DC24VModel: USB2 | Port: 1/4-28UNF | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-4U-2-G1-DC12VModel: USB2 | Port: 1/4-28UNF | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-4U-2-G1-DC24VModel: USB2 | Port: 1/4-28UNF | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-4U-2-G2-DC12VModel: USB2 | Port: 1/4-28UNF | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-4U-2-G2-DC24VModel: USB2 | Port: 1/4-28UNF | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB2-4U-2-S1-DC12VModel: USB2 | Port: 1/4-28UNF | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB2-4U-2-S1-DC24VModel: USB2 | Port: 1/4-28UNF | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB2-4U-2-S2-DC12VModel: USB2 | Port: 1/4-28UNF | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB2-4U-2-S2-DC24VModel: USB2 | Port: 1/4-28UNF | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB3-M6-1-G1-DC12VModel: USB3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB3-M6-1-G1-DC24VModel: USB3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB3-M6-1-G2-DC12VModel: USB3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB3-M6-1-G2-DC24VModel: USB3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB3-M6-1-S1-DC12VModel: USB3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB3-M6-1-S1-DC24VModel: USB3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB3-M6-1-S2-DC12VModel: USB3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB3-M6-1-S2-DC24VModel: USB3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB3-M6-2-G1-DC12VModel: USB3 | Port: M6 | Orifice: 2.3 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB3-M6-2-G1-DC24VModel: USB3 | Port: M6 | Orifice: 2.3 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB3-M6-2-G2-DC12VModel: USB3 | Port: M6 | Orifice: 2.3 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB3-M6-2-G2-DC24VModel: USB3 | Port: M6 | Orifice: 2.3 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB3-M6-2-S1-DC12VModel: USB3 | Port: M6 | Orifice: 2.3 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB3-M6-2-S1-DC24VModel: USB3 | Port: M6 | Orifice: 2.3 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB3-M6-2-S2-DC12VModel: USB3 | Port: M6 | Orifice: 2.3 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB3-M6-2-S2-DC24VModel: USB3 | Port: M6 | Orifice: 2.3 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB3-T6-1-G1-DC12VModel: USB3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB3-T6-1-G1-DC24VModel: USB3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB3-T6-1-G2-DC12VModel: USB3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB3-T6-1-G2-DC24VModel: USB3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB3-T6-1-S1-DC12VModel: USB3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB3-T6-1-S1-DC24VModel: USB3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB3-T6-1-S2-DC12VModel: USB3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB3-T6-1-S2-DC24VModel: USB3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB3-T6-2-G1-DC12VModel: USB3 | Port: Barb fitting 6x4 tube | Orifice: 2.3 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB3-T6-2-G1-DC24VModel: USB3 | Port: Barb fitting 6x4 tube | Orifice: 2.3 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB3-T6-2-G2-DC12VModel: USB3 | Port: Barb fitting 6x4 tube | Orifice: 2.3 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB3-T6-2-G2-DC24VModel: USB3 | Port: Barb fitting 6x4 tube | Orifice: 2.3 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USB3-T6-2-S1-DC12VModel: USB3 | Port: Barb fitting 6x4 tube | Orifice: 2.3 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USB3-T6-2-S1-DC24VModel: USB3 | Port: Barb fitting 6x4 tube | Orifice: 2.3 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USB3-T6-2-S2-DC12VModel: USB3 | Port: Barb fitting 6x4 tube | Orifice: 2.3 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USB3-T6-2-S2-DC24VModel: USB3 | Port: Barb fitting 6x4 tube | Orifice: 2.3 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG2-M6-1-G1-DC12VModel: USG2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG2-M6-1-G1-DC24VModel: USG2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG2-M6-1-G2-DC12VModel: USG2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG2-M6-1-G2-DC24VModel: USG2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG2-M6-1-S1-DC12VModel: USG2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG2-M6-1-S1-DC24VModel: USG2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG2-M6-1-S2-DC12VModel: USG2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG2-M6-1-S2-DC24VModel: USG2 | Port: M6 | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG2-M6-2-G1-DC12VModel: USG2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG2-M6-2-G1-DC24VModel: USG2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG2-M6-2-G2-DC12VModel: USG2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG2-M6-2-G2-DC24VModel: USG2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG2-M6-2-S1-DC12VModel: USG2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG2-M6-2-S1-DC24VModel: USG2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG2-M6-2-S2-DC12VModel: USG2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG2-M6-2-S2-DC24VModel: USG2 | Port: M6 | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG2-T6-1-G1-DC12VModel: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG2-T6-1-G1-DC24VModel: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG2-T6-1-G2-DC12VModel: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG2-T6-1-G2-DC24VModel: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG2-T6-1-S1-DC12VModel: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG2-T6-1-S1-DC24VModel: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG2-T6-1-S2-DC12VModel: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG2-T6-1-S2-DC24VModel: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG2-T6-2-G1-DC12VModel: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG2-T6-2-G1-DC24VModel: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG2-T6-2-G2-DC12VModel: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG2-T6-2-G2-DC24VModel: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG2-T6-2-S1-DC12VModel: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG2-T6-2-S1-DC24VModel: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG2-T6-2-S2-DC12VModel: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG2-T6-2-S2-DC24VModel: USG2 | Port: Barb fitting 6x4 tube | Orifice: 1.5 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG3-M6-1-G1-DC12VModel: USG3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG3-M6-1-G1-DC24VModel: USG3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG3-M6-1-G2-DC12VModel: USG3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG3-M6-1-G2-DC24VModel: USG3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG3-M6-1-S1-DC12VModel: USG3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG3-M6-1-S1-DC24VModel: USG3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG3-M6-1-S2-DC12VModel: USG3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG3-M6-1-S2-DC24VModel: USG3 | Port: M6 | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG3-T6-1-G1-DC12VModel: USG3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG3-T6-1-G1-DC24VModel: USG3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG3-T6-1-G2-DC12VModel: USG3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG3-T6-1-G2-DC24VModel: USG3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, NBR | Wetted metal: SUS316 equiv. | Voltage: DC24V
USG3-T6-1-S1-DC12VModel: USG3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC12V
USG3-T6-1-S1-DC24VModel: USG3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS405 equiv. | Voltage: DC24V
USG3-T6-1-S2-DC12VModel: USG3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC12V
USG3-T6-1-S2-DC24VModel: USG3 | Port: Barb fitting 6x4 tube | Orifice: 1.6 mm | Body/seal: PPS, FKM | Wetted metal: SUS316 equiv. | Voltage: DC24V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
