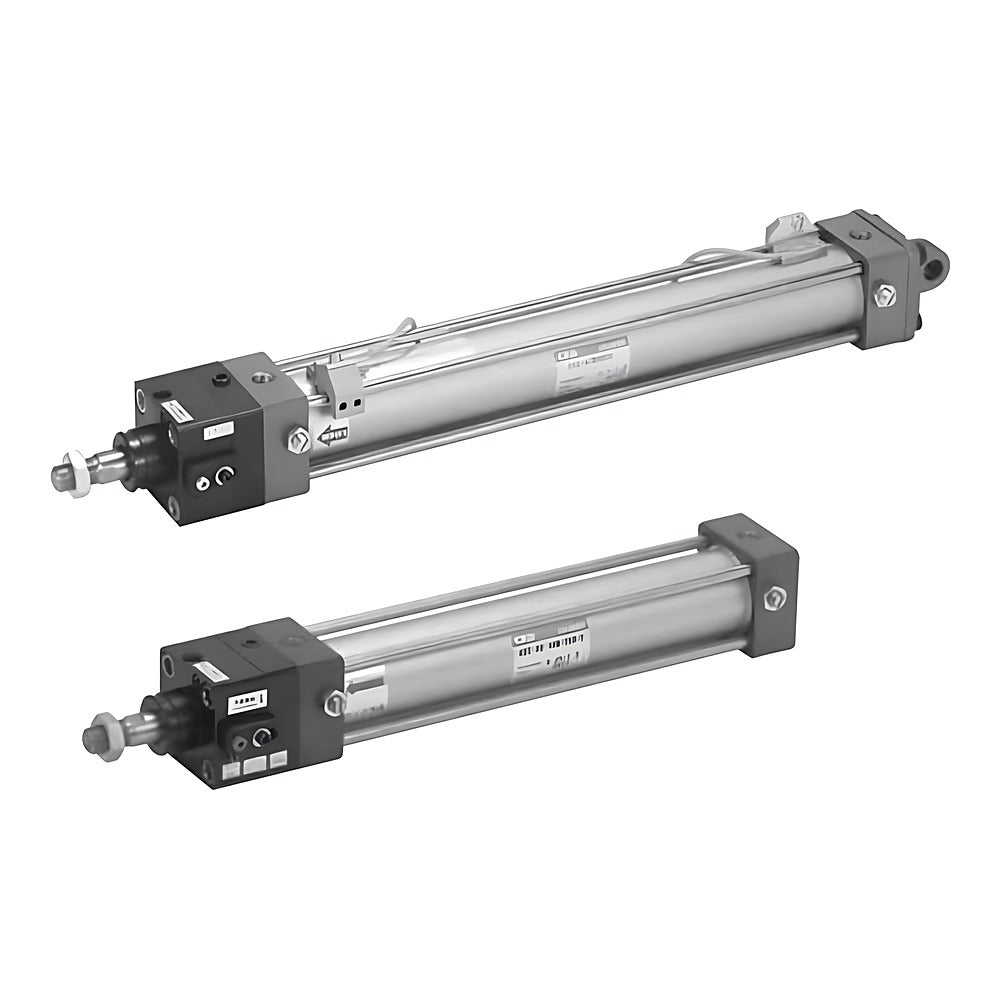

CKD USC-G1 Free-Position Locking SELEX Cylinder, Coil Scraper

The CKD USC-G1 is a medium-bore (40 to 100 mm) SELEX cylinder with a free-position drop-prevention lock that holds the rod at any stopped position.

Key features

Spring-applied lock plate holds the piston rod when the release port is exhausted
Lock direction: extend (F) or retract (B)
Switch magnet built in; T-type and H0/H0Y (USC-L2) switches available
USC-G1 adds a coil scraper for spatter and chip environments
Air cushion standard in listed codes (B); R/H/N cushion, bellows, stainless rod, accessories as options

Specifications

Operation	Double acting
Working fluid	Compressed air
Max. working pressure	1.0 MPa
Proof pressure	1.6 MPa
Cushion (listed codes)	Air cushion both ends (B)
Magnet	Built in
Max. stroke	600 to 800 mm (by bore)
Source	CKD Korea catalog CB-030SK-9, p. 989-1013

USC-G1-00-40B-25-F		Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-00-40B-25-B		Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-00-40B-50-F		Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-00-40B-50-B		Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-00-40B-75-F		Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-00-40B-75-B		Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-00-40B-100-F		Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-00-40B-100-B		Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-00-40B-150-F		Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-00-40B-150-B		Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-00-40B-200-F		Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-00-40B-200-B		Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-00-40B-250-F		Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-00-40B-250-B		Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-00-40B-300-F		Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-00-40B-300-B		Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-00-40B-350-F		Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-00-40B-350-B		Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-00-40B-400-F		Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-00-40B-400-B		Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-00-40B-450-F		Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-00-40B-450-B		Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-00-40B-500-F		Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-00-40B-500-B		Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-00-50B-25-F		Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-00-50B-25-B		Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-00-50B-50-F		Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-00-50B-50-B		Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-00-50B-75-F		Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-00-50B-75-B		Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-00-50B-100-F		Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-00-50B-100-B		Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-00-50B-150-F		Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-00-50B-150-B		Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-00-50B-200-F		Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-00-50B-200-B		Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-00-50B-250-F		Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-00-50B-250-B		Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-00-50B-300-F		Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-00-50B-300-B		Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-00-50B-350-F		Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-00-50B-350-B		Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-00-50B-400-F		Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-00-50B-400-B		Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-00-50B-450-F		Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-00-50B-450-B		Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-00-50B-500-F		Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-00-50B-500-B		Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-00-63B-25-F		Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-00-63B-25-B		Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-00-63B-50-F		Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-00-63B-50-B		Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-00-63B-75-F		Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-00-63B-75-B		Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-00-63B-100-F		Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-00-63B-100-B		Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-00-63B-150-F		Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-00-63B-150-B		Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-00-63B-200-F		Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-00-63B-200-B		Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-00-63B-250-F		Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-00-63B-250-B		Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-00-63B-300-F		Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-00-63B-300-B		Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-00-63B-350-F		Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-00-63B-350-B		Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-00-63B-400-F		Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-00-63B-400-B		Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-00-63B-450-F		Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-00-63B-450-B		Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-00-63B-500-F		Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-00-63B-500-B		Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-00-80B-25-F		Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-00-80B-25-B		Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-00-80B-50-F		Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-00-80B-50-B		Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-00-80B-75-F		Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-00-80B-75-B		Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-00-80B-100-F		Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-00-80B-100-B		Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-00-80B-150-F		Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-00-80B-150-B		Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-00-80B-200-F		Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-00-80B-200-B		Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-00-80B-250-F		Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-00-80B-250-B		Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-00-80B-300-F		Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-00-80B-300-B		Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-00-80B-350-F		Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-00-80B-350-B		Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-00-80B-400-F		Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-00-80B-400-B		Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-00-80B-450-F		Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-00-80B-450-B		Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-00-80B-500-F		Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-00-80B-500-B		Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-00-100B-25-F		Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-00-100B-25-B		Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-00-100B-50-F		Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-00-100B-50-B		Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-00-100B-75-F		Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-00-100B-75-B		Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-00-100B-100-F		Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-00-100B-100-B		Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-00-100B-150-F		Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-00-100B-150-B		Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-00-100B-200-F		Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-00-100B-200-B		Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-00-100B-250-F		Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-00-100B-250-B		Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-00-100B-300-F		Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-00-100B-300-B		Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-00-100B-350-F		Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-00-100B-350-B		Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-00-100B-400-F		Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-00-100B-400-B		Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-00-100B-450-F		Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-00-100B-450-B		Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-00-100B-500-F		Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-00-100B-500-B		Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-LB-40B-25-F		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-LB-40B-25-B		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-LB-40B-50-F		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-LB-40B-50-B		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-LB-40B-75-F		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-LB-40B-75-B		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-LB-40B-100-F		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-LB-40B-100-B		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-LB-40B-150-F		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-LB-40B-150-B		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-LB-40B-200-F		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-LB-40B-200-B		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-LB-40B-250-F		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-LB-40B-250-B		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-LB-40B-300-F		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-LB-40B-300-B		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-LB-40B-350-F		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-LB-40B-350-B		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-LB-40B-400-F		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-LB-40B-400-B		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-LB-40B-450-F		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-LB-40B-450-B		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-LB-40B-500-F		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-LB-40B-500-B		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-LB-50B-25-F		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-LB-50B-25-B		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-LB-50B-50-F		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-LB-50B-50-B		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-LB-50B-75-F		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-LB-50B-75-B		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-LB-50B-100-F		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-LB-50B-100-B		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-LB-50B-150-F		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-LB-50B-150-B		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-LB-50B-200-F		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-LB-50B-200-B		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-LB-50B-250-F		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-LB-50B-250-B		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-LB-50B-300-F		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-LB-50B-300-B		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-LB-50B-350-F		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-LB-50B-350-B		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-LB-50B-400-F		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-LB-50B-400-B		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-LB-50B-450-F		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-LB-50B-450-B		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-LB-50B-500-F		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-LB-50B-500-B		Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-LB-63B-25-F		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-LB-63B-25-B		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-LB-63B-50-F		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-LB-63B-50-B		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-LB-63B-75-F		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-LB-63B-75-B		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-LB-63B-100-F		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-LB-63B-100-B		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-LB-63B-150-F		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-LB-63B-150-B		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-LB-63B-200-F		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-LB-63B-200-B		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-LB-63B-250-F		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-LB-63B-250-B		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-LB-63B-300-F		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-LB-63B-300-B		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-LB-63B-350-F		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-LB-63B-350-B		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-LB-63B-400-F		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-LB-63B-400-B		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-LB-63B-450-F		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-LB-63B-450-B		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-LB-63B-500-F		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-LB-63B-500-B		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-LB-80B-25-F		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-LB-80B-25-B		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-LB-80B-50-F		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-LB-80B-50-B		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-LB-80B-75-F		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-LB-80B-75-B		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-LB-80B-100-F		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-LB-80B-100-B		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-LB-80B-150-F		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-LB-80B-150-B		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-LB-80B-200-F		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-LB-80B-200-B		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-LB-80B-250-F		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-LB-80B-250-B		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-LB-80B-300-F		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-LB-80B-300-B		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-LB-80B-350-F		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-LB-80B-350-B		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-LB-80B-400-F		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-LB-80B-400-B		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-LB-80B-450-F		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-LB-80B-450-B		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-LB-80B-500-F		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-LB-80B-500-B		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-LB-100B-25-F		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-LB-100B-25-B		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-LB-100B-50-F		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-LB-100B-50-B		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-LB-100B-75-F		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-LB-100B-75-B		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-LB-100B-100-F		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-LB-100B-100-B		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-LB-100B-150-F		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-LB-100B-150-B		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-LB-100B-200-F		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-LB-100B-200-B		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-LB-100B-250-F		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-LB-100B-250-B		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-LB-100B-300-F		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-LB-100B-300-B		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-LB-100B-350-F		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-LB-100B-350-B		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-LB-100B-400-F		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-LB-100B-400-B		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-LB-100B-450-F		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-LB-100B-450-B		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-LB-100B-500-F		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-LB-100B-500-B		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-FA-40B-25-F		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-FA-40B-25-B		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-FA-40B-50-F		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-FA-40B-50-B		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-FA-40B-75-F		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-FA-40B-75-B		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-FA-40B-100-F		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-FA-40B-100-B		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-FA-40B-150-F		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-FA-40B-150-B		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-FA-40B-200-F		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-FA-40B-200-B		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-FA-40B-250-F		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-FA-40B-250-B		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-FA-40B-300-F		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-FA-40B-300-B		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-FA-40B-350-F		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-FA-40B-350-B		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-FA-40B-400-F		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-FA-40B-400-B		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-FA-40B-450-F		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-FA-40B-450-B		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-FA-40B-500-F		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-FA-40B-500-B		Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-FA-50B-25-F		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-FA-50B-25-B		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-FA-50B-50-F		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-FA-50B-50-B		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-FA-50B-75-F		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-FA-50B-75-B		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-FA-50B-100-F		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-FA-50B-100-B		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-FA-50B-150-F		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-FA-50B-150-B		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-FA-50B-200-F		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-FA-50B-200-B		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-FA-50B-250-F		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-FA-50B-250-B		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-FA-50B-300-F		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-FA-50B-300-B		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-FA-50B-350-F		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-FA-50B-350-B		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-FA-50B-400-F		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-FA-50B-400-B		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-FA-50B-450-F		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-FA-50B-450-B		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-FA-50B-500-F		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-FA-50B-500-B		Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-FA-63B-25-F		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-FA-63B-25-B		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-FA-63B-50-F		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-FA-63B-50-B		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-FA-63B-75-F		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-FA-63B-75-B		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-FA-63B-100-F		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-FA-63B-100-B		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-FA-63B-150-F		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-FA-63B-150-B		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-FA-63B-200-F		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-FA-63B-200-B		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-FA-63B-250-F		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-FA-63B-250-B		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-FA-63B-300-F		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-FA-63B-300-B		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-FA-63B-350-F		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-FA-63B-350-B		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-FA-63B-400-F		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-FA-63B-400-B		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-FA-63B-450-F		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-FA-63B-450-B		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-FA-63B-500-F		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-FA-63B-500-B		Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-FA-80B-25-F		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-FA-80B-25-B		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-FA-80B-50-F		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-FA-80B-50-B		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-FA-80B-75-F		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-FA-80B-75-B		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-FA-80B-100-F		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-FA-80B-100-B		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-FA-80B-150-F		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-FA-80B-150-B		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-FA-80B-200-F		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-FA-80B-200-B		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-FA-80B-250-F		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-FA-80B-250-B		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-FA-80B-300-F		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-FA-80B-300-B		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-FA-80B-350-F		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-FA-80B-350-B		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-FA-80B-400-F		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-FA-80B-400-B		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-FA-80B-450-F		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-FA-80B-450-B		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-FA-80B-500-F		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-FA-80B-500-B		Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-FA-100B-25-F		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-FA-100B-25-B		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-FA-100B-50-F		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-FA-100B-50-B		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-FA-100B-75-F		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-FA-100B-75-B		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-FA-100B-100-F		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-FA-100B-100-B		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-FA-100B-150-F		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-FA-100B-150-B		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-FA-100B-200-F		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-FA-100B-200-B		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-FA-100B-250-F		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-FA-100B-250-B		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-FA-100B-300-F		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-FA-100B-300-B		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-FA-100B-350-F		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-FA-100B-350-B		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-FA-100B-400-F		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-FA-100B-400-B		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-FA-100B-450-F		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-FA-100B-450-B		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-FA-100B-500-F		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-FA-100B-500-B		Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-FB-40B-25-F		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-FB-40B-25-B		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-FB-40B-50-F		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-FB-40B-50-B		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-FB-40B-75-F		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-FB-40B-75-B		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-FB-40B-100-F		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-FB-40B-100-B		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-FB-40B-150-F		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-FB-40B-150-B		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-FB-40B-200-F		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-FB-40B-200-B		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-FB-40B-250-F		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-FB-40B-250-B		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-FB-40B-300-F		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-FB-40B-300-B		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-FB-40B-350-F		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-FB-40B-350-B		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-FB-40B-400-F		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-FB-40B-400-B		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-FB-40B-450-F		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-FB-40B-450-B		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-FB-40B-500-F		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-FB-40B-500-B		Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-FB-50B-25-F		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-FB-50B-25-B		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-FB-50B-50-F		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-FB-50B-50-B		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-FB-50B-75-F		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-FB-50B-75-B		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-FB-50B-100-F		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-FB-50B-100-B		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-FB-50B-150-F		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-FB-50B-150-B		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-FB-50B-200-F		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-FB-50B-200-B		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-FB-50B-250-F		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-FB-50B-250-B		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-FB-50B-300-F		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-FB-50B-300-B		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-FB-50B-350-F		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-FB-50B-350-B		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-FB-50B-400-F		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-FB-50B-400-B		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-FB-50B-450-F		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-FB-50B-450-B		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-FB-50B-500-F		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-FB-50B-500-B		Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-FB-63B-25-F		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-FB-63B-25-B		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-FB-63B-50-F		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-FB-63B-50-B		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-FB-63B-75-F		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-FB-63B-75-B		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-FB-63B-100-F		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-FB-63B-100-B		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-FB-63B-150-F		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-FB-63B-150-B		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-FB-63B-200-F		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-FB-63B-200-B		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-FB-63B-250-F		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-FB-63B-250-B		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-FB-63B-300-F		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-FB-63B-300-B		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-FB-63B-350-F		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-FB-63B-350-B		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-FB-63B-400-F		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-FB-63B-400-B		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-FB-63B-450-F		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-FB-63B-450-B		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-FB-63B-500-F		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-FB-63B-500-B		Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-FB-80B-25-F		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-FB-80B-25-B		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-FB-80B-50-F		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-FB-80B-50-B		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-FB-80B-75-F		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-FB-80B-75-B		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-FB-80B-100-F		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-FB-80B-100-B		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-FB-80B-150-F		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-FB-80B-150-B		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-FB-80B-200-F		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-FB-80B-200-B		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-FB-80B-250-F		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-FB-80B-250-B		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-FB-80B-300-F		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-FB-80B-300-B		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-FB-80B-350-F		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-FB-80B-350-B		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-FB-80B-400-F		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-FB-80B-400-B		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-FB-80B-450-F		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-FB-80B-450-B		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-FB-80B-500-F		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-FB-80B-500-B		Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-FB-100B-25-F		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-FB-100B-25-B		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-FB-100B-50-F		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-FB-100B-50-B		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-FB-100B-75-F		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-FB-100B-75-B		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-FB-100B-100-F		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-FB-100B-100-B		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-FB-100B-150-F		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-FB-100B-150-B		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-FB-100B-200-F		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-FB-100B-200-B		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-FB-100B-250-F		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-FB-100B-250-B		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-FB-100B-300-F		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-FB-100B-300-B		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-FB-100B-350-F		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-FB-100B-350-B		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-FB-100B-400-F		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-FB-100B-400-B		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-FB-100B-450-F		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-FB-100B-450-B		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-FB-100B-500-F		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-FB-100B-500-B		Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-FC-40B-25-F		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-FC-40B-25-B		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-FC-40B-50-F		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-FC-40B-50-B		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-FC-40B-75-F		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-FC-40B-75-B		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-FC-40B-100-F		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-FC-40B-100-B		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-FC-40B-150-F		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-FC-40B-150-B		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-FC-40B-200-F		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-FC-40B-200-B		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-FC-40B-250-F		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-FC-40B-250-B		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-FC-40B-300-F		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-FC-40B-300-B		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-FC-40B-350-F		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-FC-40B-350-B		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-FC-40B-400-F		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-FC-40B-400-B		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-FC-40B-450-F		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-FC-40B-450-B		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-FC-40B-500-F		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-FC-40B-500-B		Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-FC-50B-25-F		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-FC-50B-25-B		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-FC-50B-50-F		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-FC-50B-50-B		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-FC-50B-75-F		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-FC-50B-75-B		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-FC-50B-100-F		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-FC-50B-100-B		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-FC-50B-150-F		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-FC-50B-150-B		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-FC-50B-200-F		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-FC-50B-200-B		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-FC-50B-250-F		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-FC-50B-250-B		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-FC-50B-300-F		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-FC-50B-300-B		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-FC-50B-350-F		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-FC-50B-350-B		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-FC-50B-400-F		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-FC-50B-400-B		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-FC-50B-450-F		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-FC-50B-450-B		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-FC-50B-500-F		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-FC-50B-500-B		Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-FC-63B-25-F		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-FC-63B-25-B		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-FC-63B-50-F		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-FC-63B-50-B		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-FC-63B-75-F		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-FC-63B-75-B		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-FC-63B-100-F		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-FC-63B-100-B		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-FC-63B-150-F		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-FC-63B-150-B		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-FC-63B-200-F		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-FC-63B-200-B		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-FC-63B-250-F		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-FC-63B-250-B		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-FC-63B-300-F		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-FC-63B-300-B		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-FC-63B-350-F		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-FC-63B-350-B		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-FC-63B-400-F		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-FC-63B-400-B		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-FC-63B-450-F		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-FC-63B-450-B		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-FC-63B-500-F		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-FC-63B-500-B		Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-FC-80B-25-F		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-FC-80B-25-B		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-FC-80B-50-F		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-FC-80B-50-B		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-FC-80B-75-F		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-FC-80B-75-B		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-FC-80B-100-F		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-FC-80B-100-B		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-FC-80B-150-F		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-FC-80B-150-B		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-FC-80B-200-F		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-FC-80B-200-B		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-FC-80B-250-F		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-FC-80B-250-B		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-FC-80B-300-F		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-FC-80B-300-B		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-FC-80B-350-F		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-FC-80B-350-B		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-FC-80B-400-F		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-FC-80B-400-B		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-FC-80B-450-F		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-FC-80B-450-B		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-FC-80B-500-F		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-FC-80B-500-B		Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-FC-100B-25-F		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-FC-100B-25-B		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-FC-100B-50-F		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-FC-100B-50-B		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-FC-100B-75-F		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-FC-100B-75-B		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-FC-100B-100-F		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-FC-100B-100-B		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-FC-100B-150-F		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-FC-100B-150-B		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-FC-100B-200-F		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-FC-100B-200-B		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-FC-100B-250-F		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-FC-100B-250-B		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-FC-100B-300-F		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-FC-100B-300-B		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-FC-100B-350-F		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-FC-100B-350-B		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-FC-100B-400-F		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-FC-100B-400-B		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-FC-100B-450-F		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-FC-100B-450-B		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-FC-100B-500-F		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-FC-100B-500-B		Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-CA-40B-25-F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-CA-40B-25-B		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-CA-40B-50-F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-CA-40B-50-B		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-CA-40B-75-F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-CA-40B-75-B		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-CA-40B-100-F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-CA-40B-100-B		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-CA-40B-150-F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-CA-40B-150-B		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-CA-40B-200-F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-CA-40B-200-B		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-CA-40B-250-F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-CA-40B-250-B		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-CA-40B-300-F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-CA-40B-300-B		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-CA-40B-350-F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-CA-40B-350-B		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-CA-40B-400-F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-CA-40B-400-B		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-CA-40B-450-F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-CA-40B-450-B		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-CA-40B-500-F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-CA-40B-500-B		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-CA-50B-25-F		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-CA-50B-25-B		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-CA-50B-50-F		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-CA-50B-50-B		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-CA-50B-75-F		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-CA-50B-75-B		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-CA-50B-100-F		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-CA-50B-100-B		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-CA-50B-150-F		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-CA-50B-150-B		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-CA-50B-200-F		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-CA-50B-200-B		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-CA-50B-250-F		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-CA-50B-250-B		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-CA-50B-300-F		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-CA-50B-300-B		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-CA-50B-350-F		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-CA-50B-350-B		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-CA-50B-400-F		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-CA-50B-400-B		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-CA-50B-450-F		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-CA-50B-450-B		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-CA-50B-500-F		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-CA-50B-500-B		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-CA-63B-25-F		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-CA-63B-25-B		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-CA-63B-50-F		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-CA-63B-50-B		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-CA-63B-75-F		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-CA-63B-75-B		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-CA-63B-100-F		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-CA-63B-100-B		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-CA-63B-150-F		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-CA-63B-150-B		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-CA-63B-200-F		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-CA-63B-200-B		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-CA-63B-250-F		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-CA-63B-250-B		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-CA-63B-300-F		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-CA-63B-300-B		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-CA-63B-350-F		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-CA-63B-350-B		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-CA-63B-400-F		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-CA-63B-400-B		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-CA-63B-450-F		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-CA-63B-450-B		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-CA-63B-500-F		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-CA-63B-500-B		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-CA-80B-25-F		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-CA-80B-25-B		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-CA-80B-50-F		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-CA-80B-50-B		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-CA-80B-75-F		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-CA-80B-75-B		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-CA-80B-100-F		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-CA-80B-100-B		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-CA-80B-150-F		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-CA-80B-150-B		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-CA-80B-200-F		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-CA-80B-200-B		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-CA-80B-250-F		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-CA-80B-250-B		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-CA-80B-300-F		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-CA-80B-300-B		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-CA-80B-350-F		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-CA-80B-350-B		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-CA-80B-400-F		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-CA-80B-400-B		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-CA-80B-450-F		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-CA-80B-450-B		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-CA-80B-500-F		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-CA-80B-500-B		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-CA-100B-25-F		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-CA-100B-25-B		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-CA-100B-50-F		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-CA-100B-50-B		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-CA-100B-75-F		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-CA-100B-75-B		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-CA-100B-100-F		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-CA-100B-100-B		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-CA-100B-150-F		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-CA-100B-150-B		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-CA-100B-200-F		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-CA-100B-200-B		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-CA-100B-250-F		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-CA-100B-250-B		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-CA-100B-300-F		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-CA-100B-300-B		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-CA-100B-350-F		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-CA-100B-350-B		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-CA-100B-400-F		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-CA-100B-400-B		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-CA-100B-450-F		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-CA-100B-450-B		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-CA-100B-500-F		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-CA-100B-500-B		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-CB-40B-25-F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-CB-40B-25-B		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-CB-40B-50-F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-CB-40B-50-B		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-CB-40B-75-F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-CB-40B-75-B		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-CB-40B-100-F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-CB-40B-100-B		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-CB-40B-150-F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-CB-40B-150-B		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-CB-40B-200-F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-CB-40B-200-B		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-CB-40B-250-F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-CB-40B-250-B		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-CB-40B-300-F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-CB-40B-300-B		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-CB-40B-350-F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-CB-40B-350-B		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-CB-40B-400-F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-CB-40B-400-B		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-CB-40B-450-F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-CB-40B-450-B		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-CB-40B-500-F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-CB-40B-500-B		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-CB-50B-25-F		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-CB-50B-25-B		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-CB-50B-50-F		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-CB-50B-50-B		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-CB-50B-75-F		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-CB-50B-75-B		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-CB-50B-100-F		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-CB-50B-100-B		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-CB-50B-150-F		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-CB-50B-150-B		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-CB-50B-200-F		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-CB-50B-200-B		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-CB-50B-250-F		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-CB-50B-250-B		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-CB-50B-300-F		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-CB-50B-300-B		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-CB-50B-350-F		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-CB-50B-350-B		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-CB-50B-400-F		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-CB-50B-400-B		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-CB-50B-450-F		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-CB-50B-450-B		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-CB-50B-500-F		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-CB-50B-500-B		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-CB-63B-25-F		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-CB-63B-25-B		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-CB-63B-50-F		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-CB-63B-50-B		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-CB-63B-75-F		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-CB-63B-75-B		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-CB-63B-100-F		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-CB-63B-100-B		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-CB-63B-150-F		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-CB-63B-150-B		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-CB-63B-200-F		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-CB-63B-200-B		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-CB-63B-250-F		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-CB-63B-250-B		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-CB-63B-300-F		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-CB-63B-300-B		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-CB-63B-350-F		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-CB-63B-350-B		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-CB-63B-400-F		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-CB-63B-400-B		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-CB-63B-450-F		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-CB-63B-450-B		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-CB-63B-500-F		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-CB-63B-500-B		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-CB-80B-25-F		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-CB-80B-25-B		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-CB-80B-50-F		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-CB-80B-50-B		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-CB-80B-75-F		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-CB-80B-75-B		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-CB-80B-100-F		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-CB-80B-100-B		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-CB-80B-150-F		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-CB-80B-150-B		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-CB-80B-200-F		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-CB-80B-200-B		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-CB-80B-250-F		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-CB-80B-250-B		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-CB-80B-300-F		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-CB-80B-300-B		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-CB-80B-350-F		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-CB-80B-350-B		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-CB-80B-400-F		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-CB-80B-400-B		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-CB-80B-450-F		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-CB-80B-450-B		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-CB-80B-500-F		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-CB-80B-500-B		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-CB-100B-25-F		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-CB-100B-25-B		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-CB-100B-50-F		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-CB-100B-50-B		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-CB-100B-75-F		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-CB-100B-75-B		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-CB-100B-100-F		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-CB-100B-100-B		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-CB-100B-150-F		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-CB-100B-150-B		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-CB-100B-200-F		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-CB-100B-200-B		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-CB-100B-250-F		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-CB-100B-250-B		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-CB-100B-300-F		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-CB-100B-300-B		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-CB-100B-350-F		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-CB-100B-350-B		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-CB-100B-400-F		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-CB-100B-400-B		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-CB-100B-450-F		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-CB-100B-450-B		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-CB-100B-500-F		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-CB-100B-500-B		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-TC-40B-25-F		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-TC-40B-25-B		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-TC-40B-50-F		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-TC-40B-50-B		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-TC-40B-75-F		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-TC-40B-75-B		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-TC-40B-100-F		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-TC-40B-100-B		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-TC-40B-150-F		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-TC-40B-150-B		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-TC-40B-200-F		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-TC-40B-200-B		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-TC-40B-250-F		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-TC-40B-250-B		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-TC-40B-300-F		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-TC-40B-300-B		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-TC-40B-350-F		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-TC-40B-350-B		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-TC-40B-400-F		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-TC-40B-400-B		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-TC-40B-450-F		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-TC-40B-450-B		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-TC-40B-500-F		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-TC-40B-500-B		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-TC-50B-25-F		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-TC-50B-25-B		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-TC-50B-50-F		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-TC-50B-50-B		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-TC-50B-75-F		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-TC-50B-75-B		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-TC-50B-100-F		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-TC-50B-100-B		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-TC-50B-150-F		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-TC-50B-150-B		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-TC-50B-200-F		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-TC-50B-200-B		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-TC-50B-250-F		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-TC-50B-250-B		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-TC-50B-300-F		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-TC-50B-300-B		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-TC-50B-350-F		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-TC-50B-350-B		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-TC-50B-400-F		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-TC-50B-400-B		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-TC-50B-450-F		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-TC-50B-450-B		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-TC-50B-500-F		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-TC-50B-500-B		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-TC-63B-25-F		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-TC-63B-25-B		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-TC-63B-50-F		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-TC-63B-50-B		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-TC-63B-75-F		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-TC-63B-75-B		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-TC-63B-100-F		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-TC-63B-100-B		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-TC-63B-150-F		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-TC-63B-150-B		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-TC-63B-200-F		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-TC-63B-200-B		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-TC-63B-250-F		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-TC-63B-250-B		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-TC-63B-300-F		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-TC-63B-300-B		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-TC-63B-350-F		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-TC-63B-350-B		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-TC-63B-400-F		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-TC-63B-400-B		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-TC-63B-450-F		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-TC-63B-450-B		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-TC-63B-500-F		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-TC-63B-500-B		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-TC-80B-25-F		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-TC-80B-25-B		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-TC-80B-50-F		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-TC-80B-50-B		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-TC-80B-75-F		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-TC-80B-75-B		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-TC-80B-100-F		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-TC-80B-100-B		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-TC-80B-150-F		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-TC-80B-150-B		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-TC-80B-200-F		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-TC-80B-200-B		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-TC-80B-250-F		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-TC-80B-250-B		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-TC-80B-300-F		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-TC-80B-300-B		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-TC-80B-350-F		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-TC-80B-350-B		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-TC-80B-400-F		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-TC-80B-400-B		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-TC-80B-450-F		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-TC-80B-450-B		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-TC-80B-500-F		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-TC-80B-500-B		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-TC-100B-25-F		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-TC-100B-25-B		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-TC-100B-50-F		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-TC-100B-50-B		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-TC-100B-75-F		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-TC-100B-75-B		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-TC-100B-100-F		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-TC-100B-100-B		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-TC-100B-150-F		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-TC-100B-150-B		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-TC-100B-200-F		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-TC-100B-200-B		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-TC-100B-250-F		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-TC-100B-250-B		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-TC-100B-300-F		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-TC-100B-300-B		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-TC-100B-350-F		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-TC-100B-350-B		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-TC-100B-400-F		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-TC-100B-400-B		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-TC-100B-450-F		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-TC-100B-450-B		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-TC-100B-500-F		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-TC-100B-500-B		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-TA-40B-25-F		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-TA-40B-25-B		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-TA-40B-50-F		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-TA-40B-50-B		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-TA-40B-75-F		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-TA-40B-75-B		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-TA-40B-100-F		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-TA-40B-100-B		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-TA-40B-150-F		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-TA-40B-150-B		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-TA-40B-200-F		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-TA-40B-200-B		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-TA-40B-250-F		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-TA-40B-250-B		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-TA-40B-300-F		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-TA-40B-300-B		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-TA-40B-350-F		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-TA-40B-350-B		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-TA-40B-400-F		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-TA-40B-400-B		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-TA-40B-450-F		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-TA-40B-450-B		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-TA-40B-500-F		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-TA-40B-500-B		Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-TA-50B-25-F		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-TA-50B-25-B		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-TA-50B-50-F		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-TA-50B-50-B		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-TA-50B-75-F		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-TA-50B-75-B		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-TA-50B-100-F		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-TA-50B-100-B		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-TA-50B-150-F		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-TA-50B-150-B		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-TA-50B-200-F		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-TA-50B-200-B		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-TA-50B-250-F		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-TA-50B-250-B		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-TA-50B-300-F		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-TA-50B-300-B		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-TA-50B-350-F		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-TA-50B-350-B		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-TA-50B-400-F		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-TA-50B-400-B		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-TA-50B-450-F		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-TA-50B-450-B		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-TA-50B-500-F		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-TA-50B-500-B		Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-TA-63B-25-F		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-TA-63B-25-B		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-TA-63B-50-F		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-TA-63B-50-B		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-TA-63B-75-F		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-TA-63B-75-B		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-TA-63B-100-F		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-TA-63B-100-B		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-TA-63B-150-F		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-TA-63B-150-B		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-TA-63B-200-F		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-TA-63B-200-B		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-TA-63B-250-F		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-TA-63B-250-B		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-TA-63B-300-F		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-TA-63B-300-B		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-TA-63B-350-F		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-TA-63B-350-B		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-TA-63B-400-F		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-TA-63B-400-B		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-TA-63B-450-F		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-TA-63B-450-B		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-TA-63B-500-F		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-TA-63B-500-B		Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-TA-80B-25-F		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-TA-80B-25-B		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-TA-80B-50-F		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-TA-80B-50-B		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-TA-80B-75-F		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-TA-80B-75-B		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-TA-80B-100-F		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-TA-80B-100-B		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-TA-80B-150-F		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-TA-80B-150-B		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-TA-80B-200-F		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-TA-80B-200-B		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-TA-80B-250-F		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-TA-80B-250-B		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-TA-80B-300-F		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-TA-80B-300-B		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-TA-80B-350-F		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-TA-80B-350-B		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-TA-80B-400-F		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-TA-80B-400-B		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-TA-80B-450-F		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-TA-80B-450-B		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-TA-80B-500-F		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-TA-80B-500-B		Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-TA-100B-25-F		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-TA-100B-25-B		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-TA-100B-50-F		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-TA-100B-50-B		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-TA-100B-75-F		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-TA-100B-75-B		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-TA-100B-100-F		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-TA-100B-100-B		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-TA-100B-150-F		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-TA-100B-150-B		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-TA-100B-200-F		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-TA-100B-200-B		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-TA-100B-250-F		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-TA-100B-250-B		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-TA-100B-300-F		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-TA-100B-300-B		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-TA-100B-350-F		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-TA-100B-350-B		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-TA-100B-400-F		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-TA-100B-400-B		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-TA-100B-450-F		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-TA-100B-450-B		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-TA-100B-500-F		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-TA-100B-500-B		Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-TB-40B-25-F		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-TB-40B-25-B		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-TB-40B-50-F		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-TB-40B-50-B		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-TB-40B-75-F		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-TB-40B-75-B		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-TB-40B-100-F		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-TB-40B-100-B		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-TB-40B-150-F		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-TB-40B-150-B		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-TB-40B-200-F		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-TB-40B-200-B		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-TB-40B-250-F		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-TB-40B-250-B		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-TB-40B-300-F		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-TB-40B-300-B		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-TB-40B-350-F		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-TB-40B-350-B		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-TB-40B-400-F		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-TB-40B-400-B		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-TB-40B-450-F		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-TB-40B-450-B		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-TB-40B-500-F		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-TB-40B-500-B		Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-TB-50B-25-F		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-TB-50B-25-B		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-TB-50B-50-F		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-TB-50B-50-B		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-TB-50B-75-F		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-TB-50B-75-B		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-TB-50B-100-F		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-TB-50B-100-B		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-TB-50B-150-F		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-TB-50B-150-B		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-TB-50B-200-F		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-TB-50B-200-B		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-TB-50B-250-F		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-TB-50B-250-B		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-TB-50B-300-F		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-TB-50B-300-B		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-TB-50B-350-F		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-TB-50B-350-B		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-TB-50B-400-F		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-TB-50B-400-B		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-TB-50B-450-F		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-TB-50B-450-B		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-TB-50B-500-F		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-TB-50B-500-B		Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-TB-63B-25-F		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-TB-63B-25-B		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-TB-63B-50-F		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-TB-63B-50-B		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-TB-63B-75-F		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-TB-63B-75-B		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-TB-63B-100-F		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-TB-63B-100-B		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-TB-63B-150-F		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-TB-63B-150-B		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-TB-63B-200-F		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-TB-63B-200-B		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-TB-63B-250-F		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-TB-63B-250-B		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-TB-63B-300-F		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-TB-63B-300-B		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-TB-63B-350-F		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-TB-63B-350-B		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-TB-63B-400-F		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-TB-63B-400-B		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-TB-63B-450-F		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-TB-63B-450-B		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-TB-63B-500-F		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-TB-63B-500-B		Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-TB-80B-25-F		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-TB-80B-25-B		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-TB-80B-50-F		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-TB-80B-50-B		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-TB-80B-75-F		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-TB-80B-75-B		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-TB-80B-100-F		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-TB-80B-100-B		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-TB-80B-150-F		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-TB-80B-150-B		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-TB-80B-200-F		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-TB-80B-200-B		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-TB-80B-250-F		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-TB-80B-250-B		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-TB-80B-300-F		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-TB-80B-300-B		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-TB-80B-350-F		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-TB-80B-350-B		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-TB-80B-400-F		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-TB-80B-400-B		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-TB-80B-450-F		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-TB-80B-450-B		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-TB-80B-500-F		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-TB-80B-500-B		Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
USC-G1-TB-100B-25-F		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
USC-G1-TB-100B-25-B		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
USC-G1-TB-100B-50-F		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
USC-G1-TB-100B-50-B		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
USC-G1-TB-100B-75-F		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
USC-G1-TB-100B-75-B		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
USC-G1-TB-100B-100-F		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
USC-G1-TB-100B-100-B		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
USC-G1-TB-100B-150-F		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
USC-G1-TB-100B-150-B		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
USC-G1-TB-100B-200-F		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
USC-G1-TB-100B-200-B		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
USC-G1-TB-100B-250-F		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
USC-G1-TB-100B-250-B		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
USC-G1-TB-100B-300-F		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
USC-G1-TB-100B-300-B		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
USC-G1-TB-100B-350-F		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
USC-G1-TB-100B-350-B		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
USC-G1-TB-100B-400-F		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
USC-G1-TB-100B-400-B		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
USC-G1-TB-100B-450-F		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
USC-G1-TB-100B-450-B		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
USC-G1-TB-100B-500-F		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
USC-G1-TB-100B-500-B		Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction

Pneumatic CylindersCKD

1200 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD USC-G1 Free-Position Locking SELEX Cylinder, Coil Scraper

Brand CKD·Pneumatic Cylinders

Available part numbers (1200)

USC-G1-00-40B-25-F, USC-G1-00-40B-25-B, USC-G1-00-40B-50-F, USC-G1-00-40B-50-B, USC-G1-00-40B-75-F, USC-G1-00-40B-75-B, USC-G1-00-40B-100-F, USC-G1-00-40B-100-B, USC-G1-00-40B-150-F, USC-G1-00-40B-150-B + 1190 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	USC-G1-00-40B-25-F	Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-00-40B-25-B	Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-00-40B-50-F	Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-00-40B-50-B	Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-00-40B-75-F	Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-00-40B-75-B	Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-00-40B-100-F	Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-00-40B-100-B	Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-00-40B-150-F	Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-00-40B-150-B	Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-00-40B-200-F	Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-00-40B-200-B	Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-00-40B-250-F	Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-00-40B-250-B	Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-00-40B-300-F	Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-00-40B-300-B	Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-00-40B-350-F	Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-00-40B-350-B	Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-00-40B-400-F	Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-00-40B-400-B	Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-00-40B-450-F	Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-00-40B-450-B	Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-00-40B-500-F	Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-00-40B-500-B	Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-00-50B-25-F	Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-00-50B-25-B	Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-00-50B-50-F	Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-00-50B-50-B	Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-00-50B-75-F	Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-00-50B-75-B	Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-00-50B-100-F	Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-00-50B-100-B	Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-00-50B-150-F	Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-00-50B-150-B	Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-00-50B-200-F	Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-00-50B-200-B	Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-00-50B-250-F	Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-00-50B-250-B	Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-00-50B-300-F	Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-00-50B-300-B	Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-00-50B-350-F	Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-00-50B-350-B	Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-00-50B-400-F	Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-00-50B-400-B	Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-00-50B-450-F	Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-00-50B-450-B	Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-00-50B-500-F	Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-00-50B-500-B	Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-00-63B-25-F	Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-00-63B-25-B	Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-00-63B-50-F	Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-00-63B-50-B	Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-00-63B-75-F	Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-00-63B-75-B	Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-00-63B-100-F	Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-00-63B-100-B	Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-00-63B-150-F	Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-00-63B-150-B	Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-00-63B-200-F	Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-00-63B-200-B	Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-00-63B-250-F	Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-00-63B-250-B	Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-00-63B-300-F	Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-00-63B-300-B	Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-00-63B-350-F	Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-00-63B-350-B	Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-00-63B-400-F	Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-00-63B-400-B	Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-00-63B-450-F	Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-00-63B-450-B	Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-00-63B-500-F	Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-00-63B-500-B	Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-00-80B-25-F	Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-00-80B-25-B	Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-00-80B-50-F	Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-00-80B-50-B	Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-00-80B-75-F	Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-00-80B-75-B	Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-00-80B-100-F	Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-00-80B-100-B	Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-00-80B-150-F	Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-00-80B-150-B	Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-00-80B-200-F	Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-00-80B-200-B	Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-00-80B-250-F	Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-00-80B-250-B	Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-00-80B-300-F	Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-00-80B-300-B	Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-00-80B-350-F	Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-00-80B-350-B	Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-00-80B-400-F	Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-00-80B-400-B	Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-00-80B-450-F	Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-00-80B-450-B	Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-00-80B-500-F	Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-00-80B-500-B	Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-00-100B-25-F	Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-00-100B-25-B	Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-00-100B-50-F	Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-00-100B-50-B	Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-00-100B-75-F	Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-00-100B-75-B	Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-00-100B-100-F	Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-00-100B-100-B	Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-00-100B-150-F	Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-00-100B-150-B	Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-00-100B-200-F	Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-00-100B-200-B	Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-00-100B-250-F	Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-00-100B-250-B	Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-00-100B-300-F	Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-00-100B-300-B	Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-00-100B-350-F	Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-00-100B-350-B	Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-00-100B-400-F	Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-00-100B-400-B	Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-00-100B-450-F	Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-00-100B-450-B	Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-00-100B-500-F	Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-00-100B-500-B	Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-LB-40B-25-F	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-LB-40B-25-B	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-LB-40B-50-F	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-LB-40B-50-B	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-LB-40B-75-F	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-LB-40B-75-B	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-LB-40B-100-F	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-LB-40B-100-B	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-LB-40B-150-F	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-LB-40B-150-B	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-LB-40B-200-F	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-LB-40B-200-B	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-LB-40B-250-F	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-LB-40B-250-B	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-LB-40B-300-F	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-LB-40B-300-B	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-LB-40B-350-F	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-LB-40B-350-B	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-LB-40B-400-F	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-LB-40B-400-B	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-LB-40B-450-F	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-LB-40B-450-B	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-LB-40B-500-F	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-LB-40B-500-B	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-LB-50B-25-F	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-LB-50B-25-B	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-LB-50B-50-F	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-LB-50B-50-B	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-LB-50B-75-F	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-LB-50B-75-B	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-LB-50B-100-F	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-LB-50B-100-B	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-LB-50B-150-F	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-LB-50B-150-B	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-LB-50B-200-F	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-LB-50B-200-B	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-LB-50B-250-F	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-LB-50B-250-B	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-LB-50B-300-F	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-LB-50B-300-B	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-LB-50B-350-F	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-LB-50B-350-B	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-LB-50B-400-F	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-LB-50B-400-B	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-LB-50B-450-F	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-LB-50B-450-B	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-LB-50B-500-F	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-LB-50B-500-B	Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-LB-63B-25-F	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-LB-63B-25-B	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-LB-63B-50-F	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-LB-63B-50-B	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-LB-63B-75-F	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-LB-63B-75-B	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-LB-63B-100-F	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-LB-63B-100-B	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-LB-63B-150-F	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-LB-63B-150-B	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-LB-63B-200-F	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-LB-63B-200-B	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-LB-63B-250-F	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-LB-63B-250-B	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-LB-63B-300-F	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-LB-63B-300-B	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-LB-63B-350-F	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-LB-63B-350-B	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-LB-63B-400-F	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-LB-63B-400-B	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-LB-63B-450-F	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-LB-63B-450-B	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-LB-63B-500-F	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-LB-63B-500-B	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-LB-80B-25-F	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-LB-80B-25-B	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-LB-80B-50-F	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-LB-80B-50-B	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-LB-80B-75-F	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-LB-80B-75-B	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-LB-80B-100-F	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-LB-80B-100-B	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-LB-80B-150-F	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-LB-80B-150-B	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-LB-80B-200-F	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-LB-80B-200-B	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-LB-80B-250-F	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-LB-80B-250-B	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-LB-80B-300-F	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-LB-80B-300-B	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-LB-80B-350-F	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-LB-80B-350-B	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-LB-80B-400-F	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-LB-80B-400-B	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-LB-80B-450-F	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-LB-80B-450-B	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-LB-80B-500-F	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-LB-80B-500-B	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-LB-100B-25-F	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-LB-100B-25-B	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-LB-100B-50-F	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-LB-100B-50-B	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-LB-100B-75-F	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-LB-100B-75-B	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-LB-100B-100-F	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-LB-100B-100-B	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-LB-100B-150-F	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-LB-100B-150-B	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-LB-100B-200-F	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-LB-100B-200-B	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-LB-100B-250-F	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-LB-100B-250-B	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-LB-100B-300-F	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-LB-100B-300-B	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-LB-100B-350-F	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-LB-100B-350-B	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-LB-100B-400-F	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-LB-100B-400-B	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-LB-100B-450-F	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-LB-100B-450-B	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-LB-100B-500-F	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-LB-100B-500-B	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-FA-40B-25-F	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-FA-40B-25-B	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-FA-40B-50-F	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-FA-40B-50-B	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-FA-40B-75-F	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-FA-40B-75-B	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-FA-40B-100-F	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-FA-40B-100-B	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-FA-40B-150-F	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-FA-40B-150-B	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-FA-40B-200-F	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-FA-40B-200-B	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-FA-40B-250-F	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-FA-40B-250-B	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-FA-40B-300-F	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-FA-40B-300-B	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-FA-40B-350-F	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-FA-40B-350-B	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-FA-40B-400-F	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-FA-40B-400-B	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-FA-40B-450-F	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-FA-40B-450-B	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-FA-40B-500-F	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-FA-40B-500-B	Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-FA-50B-25-F	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-FA-50B-25-B	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-FA-50B-50-F	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-FA-50B-50-B	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-FA-50B-75-F	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-FA-50B-75-B	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-FA-50B-100-F	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-FA-50B-100-B	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-FA-50B-150-F	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-FA-50B-150-B	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-FA-50B-200-F	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-FA-50B-200-B	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-FA-50B-250-F	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-FA-50B-250-B	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-FA-50B-300-F	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-FA-50B-300-B	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-FA-50B-350-F	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-FA-50B-350-B	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-FA-50B-400-F	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-FA-50B-400-B	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-FA-50B-450-F	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-FA-50B-450-B	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-FA-50B-500-F	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-FA-50B-500-B	Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-FA-63B-25-F	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-FA-63B-25-B	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-FA-63B-50-F	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-FA-63B-50-B	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-FA-63B-75-F	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-FA-63B-75-B	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-FA-63B-100-F	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-FA-63B-100-B	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-FA-63B-150-F	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-FA-63B-150-B	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-FA-63B-200-F	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-FA-63B-200-B	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-FA-63B-250-F	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-FA-63B-250-B	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-FA-63B-300-F	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-FA-63B-300-B	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-FA-63B-350-F	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-FA-63B-350-B	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-FA-63B-400-F	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-FA-63B-400-B	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-FA-63B-450-F	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-FA-63B-450-B	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-FA-63B-500-F	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-FA-63B-500-B	Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-FA-80B-25-F	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-FA-80B-25-B	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-FA-80B-50-F	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-FA-80B-50-B	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-FA-80B-75-F	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-FA-80B-75-B	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-FA-80B-100-F	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-FA-80B-100-B	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-FA-80B-150-F	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-FA-80B-150-B	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-FA-80B-200-F	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-FA-80B-200-B	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-FA-80B-250-F	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-FA-80B-250-B	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-FA-80B-300-F	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-FA-80B-300-B	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-FA-80B-350-F	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-FA-80B-350-B	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-FA-80B-400-F	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-FA-80B-400-B	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-FA-80B-450-F	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-FA-80B-450-B	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-FA-80B-500-F	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-FA-80B-500-B	Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-FA-100B-25-F	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-FA-100B-25-B	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-FA-100B-50-F	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-FA-100B-50-B	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-FA-100B-75-F	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-FA-100B-75-B	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-FA-100B-100-F	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-FA-100B-100-B	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-FA-100B-150-F	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-FA-100B-150-B	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-FA-100B-200-F	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-FA-100B-200-B	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-FA-100B-250-F	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-FA-100B-250-B	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-FA-100B-300-F	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-FA-100B-300-B	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-FA-100B-350-F	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-FA-100B-350-B	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-FA-100B-400-F	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-FA-100B-400-B	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-FA-100B-450-F	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-FA-100B-450-B	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-FA-100B-500-F	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-FA-100B-500-B	Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-FB-40B-25-F	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-FB-40B-25-B	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-FB-40B-50-F	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-FB-40B-50-B	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-FB-40B-75-F	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-FB-40B-75-B	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-FB-40B-100-F	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-FB-40B-100-B	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-FB-40B-150-F	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-FB-40B-150-B	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-FB-40B-200-F	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-FB-40B-200-B	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-FB-40B-250-F	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-FB-40B-250-B	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-FB-40B-300-F	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-FB-40B-300-B	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-FB-40B-350-F	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-FB-40B-350-B	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-FB-40B-400-F	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-FB-40B-400-B	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-FB-40B-450-F	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-FB-40B-450-B	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-FB-40B-500-F	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-FB-40B-500-B	Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-FB-50B-25-F	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-FB-50B-25-B	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-FB-50B-50-F	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-FB-50B-50-B	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-FB-50B-75-F	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-FB-50B-75-B	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-FB-50B-100-F	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-FB-50B-100-B	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-FB-50B-150-F	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-FB-50B-150-B	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-FB-50B-200-F	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-FB-50B-200-B	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-FB-50B-250-F	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-FB-50B-250-B	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-FB-50B-300-F	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-FB-50B-300-B	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-FB-50B-350-F	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-FB-50B-350-B	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-FB-50B-400-F	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-FB-50B-400-B	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-FB-50B-450-F	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-FB-50B-450-B	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-FB-50B-500-F	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-FB-50B-500-B	Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-FB-63B-25-F	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-FB-63B-25-B	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-FB-63B-50-F	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-FB-63B-50-B	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-FB-63B-75-F	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-FB-63B-75-B	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-FB-63B-100-F	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-FB-63B-100-B	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-FB-63B-150-F	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-FB-63B-150-B	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-FB-63B-200-F	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-FB-63B-200-B	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-FB-63B-250-F	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-FB-63B-250-B	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-FB-63B-300-F	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-FB-63B-300-B	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-FB-63B-350-F	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-FB-63B-350-B	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-FB-63B-400-F	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-FB-63B-400-B	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-FB-63B-450-F	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-FB-63B-450-B	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-FB-63B-500-F	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-FB-63B-500-B	Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-FB-80B-25-F	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-FB-80B-25-B	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-FB-80B-50-F	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-FB-80B-50-B	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-FB-80B-75-F	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-FB-80B-75-B	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-FB-80B-100-F	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-FB-80B-100-B	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-FB-80B-150-F	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-FB-80B-150-B	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-FB-80B-200-F	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-FB-80B-200-B	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-FB-80B-250-F	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-FB-80B-250-B	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-FB-80B-300-F	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-FB-80B-300-B	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-FB-80B-350-F	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-FB-80B-350-B	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-FB-80B-400-F	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-FB-80B-400-B	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-FB-80B-450-F	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-FB-80B-450-B	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-FB-80B-500-F	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-FB-80B-500-B	Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-FB-100B-25-F	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-FB-100B-25-B	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-FB-100B-50-F	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-FB-100B-50-B	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-FB-100B-75-F	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-FB-100B-75-B	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-FB-100B-100-F	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-FB-100B-100-B	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-FB-100B-150-F	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-FB-100B-150-B	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-FB-100B-200-F	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-FB-100B-200-B	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-FB-100B-250-F	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-FB-100B-250-B	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-FB-100B-300-F	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-FB-100B-300-B	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-FB-100B-350-F	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-FB-100B-350-B	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-FB-100B-400-F	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-FB-100B-400-B	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-FB-100B-450-F	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-FB-100B-450-B	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-FB-100B-500-F	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-FB-100B-500-B	Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-FC-40B-25-F	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-FC-40B-25-B	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-FC-40B-50-F	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-FC-40B-50-B	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-FC-40B-75-F	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-FC-40B-75-B	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-FC-40B-100-F	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-FC-40B-100-B	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-FC-40B-150-F	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-FC-40B-150-B	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-FC-40B-200-F	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-FC-40B-200-B	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-FC-40B-250-F	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-FC-40B-250-B	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-FC-40B-300-F	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-FC-40B-300-B	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-FC-40B-350-F	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-FC-40B-350-B	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-FC-40B-400-F	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-FC-40B-400-B	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-FC-40B-450-F	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-FC-40B-450-B	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-FC-40B-500-F	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-FC-40B-500-B	Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-FC-50B-25-F	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-FC-50B-25-B	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-FC-50B-50-F	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-FC-50B-50-B	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-FC-50B-75-F	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-FC-50B-75-B	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-FC-50B-100-F	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-FC-50B-100-B	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-FC-50B-150-F	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-FC-50B-150-B	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-FC-50B-200-F	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-FC-50B-200-B	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-FC-50B-250-F	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-FC-50B-250-B	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-FC-50B-300-F	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-FC-50B-300-B	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-FC-50B-350-F	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-FC-50B-350-B	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-FC-50B-400-F	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-FC-50B-400-B	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-FC-50B-450-F	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-FC-50B-450-B	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-FC-50B-500-F	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-FC-50B-500-B	Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-FC-63B-25-F	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-FC-63B-25-B	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-FC-63B-50-F	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-FC-63B-50-B	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-FC-63B-75-F	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-FC-63B-75-B	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-FC-63B-100-F	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-FC-63B-100-B	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-FC-63B-150-F	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-FC-63B-150-B	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-FC-63B-200-F	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-FC-63B-200-B	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-FC-63B-250-F	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-FC-63B-250-B	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-FC-63B-300-F	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-FC-63B-300-B	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-FC-63B-350-F	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-FC-63B-350-B	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-FC-63B-400-F	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-FC-63B-400-B	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-FC-63B-450-F	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-FC-63B-450-B	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-FC-63B-500-F	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-FC-63B-500-B	Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-FC-80B-25-F	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-FC-80B-25-B	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-FC-80B-50-F	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-FC-80B-50-B	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-FC-80B-75-F	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-FC-80B-75-B	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-FC-80B-100-F	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-FC-80B-100-B	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-FC-80B-150-F	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-FC-80B-150-B	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-FC-80B-200-F	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-FC-80B-200-B	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-FC-80B-250-F	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-FC-80B-250-B	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-FC-80B-300-F	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-FC-80B-300-B	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-FC-80B-350-F	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-FC-80B-350-B	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-FC-80B-400-F	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-FC-80B-400-B	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-FC-80B-450-F	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-FC-80B-450-B	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-FC-80B-500-F	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-FC-80B-500-B	Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-FC-100B-25-F	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-FC-100B-25-B	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-FC-100B-50-F	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-FC-100B-50-B	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-FC-100B-75-F	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-FC-100B-75-B	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-FC-100B-100-F	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-FC-100B-100-B	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-FC-100B-150-F	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-FC-100B-150-B	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-FC-100B-200-F	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-FC-100B-200-B	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-FC-100B-250-F	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-FC-100B-250-B	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-FC-100B-300-F	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-FC-100B-300-B	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-FC-100B-350-F	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-FC-100B-350-B	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-FC-100B-400-F	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-FC-100B-400-B	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-FC-100B-450-F	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-FC-100B-450-B	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-FC-100B-500-F	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-FC-100B-500-B	Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-CA-40B-25-F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-CA-40B-25-B	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-CA-40B-50-F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-CA-40B-50-B	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-CA-40B-75-F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-CA-40B-75-B	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-CA-40B-100-F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-CA-40B-100-B	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-CA-40B-150-F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-CA-40B-150-B	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-CA-40B-200-F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-CA-40B-200-B	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-CA-40B-250-F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-CA-40B-250-B	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-CA-40B-300-F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-CA-40B-300-B	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-CA-40B-350-F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-CA-40B-350-B	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-CA-40B-400-F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-CA-40B-400-B	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-CA-40B-450-F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-CA-40B-450-B	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-CA-40B-500-F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-CA-40B-500-B	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-CA-50B-25-F	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-CA-50B-25-B	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-CA-50B-50-F	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-CA-50B-50-B	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-CA-50B-75-F	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-CA-50B-75-B	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-CA-50B-100-F	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-CA-50B-100-B	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-CA-50B-150-F	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-CA-50B-150-B	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-CA-50B-200-F	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-CA-50B-200-B	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-CA-50B-250-F	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-CA-50B-250-B	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-CA-50B-300-F	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-CA-50B-300-B	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-CA-50B-350-F	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-CA-50B-350-B	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-CA-50B-400-F	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-CA-50B-400-B	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-CA-50B-450-F	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-CA-50B-450-B	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-CA-50B-500-F	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-CA-50B-500-B	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-CA-63B-25-F	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-CA-63B-25-B	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-CA-63B-50-F	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-CA-63B-50-B	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-CA-63B-75-F	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-CA-63B-75-B	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-CA-63B-100-F	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-CA-63B-100-B	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-CA-63B-150-F	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-CA-63B-150-B	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-CA-63B-200-F	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-CA-63B-200-B	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-CA-63B-250-F	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-CA-63B-250-B	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-CA-63B-300-F	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-CA-63B-300-B	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-CA-63B-350-F	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-CA-63B-350-B	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-CA-63B-400-F	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-CA-63B-400-B	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-CA-63B-450-F	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-CA-63B-450-B	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-CA-63B-500-F	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-CA-63B-500-B	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-CA-80B-25-F	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-CA-80B-25-B	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-CA-80B-50-F	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-CA-80B-50-B	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-CA-80B-75-F	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-CA-80B-75-B	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-CA-80B-100-F	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-CA-80B-100-B	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-CA-80B-150-F	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-CA-80B-150-B	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-CA-80B-200-F	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-CA-80B-200-B	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-CA-80B-250-F	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-CA-80B-250-B	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-CA-80B-300-F	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-CA-80B-300-B	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-CA-80B-350-F	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-CA-80B-350-B	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-CA-80B-400-F	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-CA-80B-400-B	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-CA-80B-450-F	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-CA-80B-450-B	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-CA-80B-500-F	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-CA-80B-500-B	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-CA-100B-25-F	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-CA-100B-25-B	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-CA-100B-50-F	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-CA-100B-50-B	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-CA-100B-75-F	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-CA-100B-75-B	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-CA-100B-100-F	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-CA-100B-100-B	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-CA-100B-150-F	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-CA-100B-150-B	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-CA-100B-200-F	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-CA-100B-200-B	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-CA-100B-250-F	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-CA-100B-250-B	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-CA-100B-300-F	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-CA-100B-300-B	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-CA-100B-350-F	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-CA-100B-350-B	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-CA-100B-400-F	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-CA-100B-400-B	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-CA-100B-450-F	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-CA-100B-450-B	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-CA-100B-500-F	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-CA-100B-500-B	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-CB-40B-25-F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-CB-40B-25-B	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-CB-40B-50-F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-CB-40B-50-B	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-CB-40B-75-F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-CB-40B-75-B	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-CB-40B-100-F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-CB-40B-100-B	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-CB-40B-150-F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-CB-40B-150-B	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-CB-40B-200-F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-CB-40B-200-B	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-CB-40B-250-F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-CB-40B-250-B	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-CB-40B-300-F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-CB-40B-300-B	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-CB-40B-350-F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-CB-40B-350-B	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-CB-40B-400-F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-CB-40B-400-B	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-CB-40B-450-F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-CB-40B-450-B	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-CB-40B-500-F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-CB-40B-500-B	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-CB-50B-25-F	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-CB-50B-25-B	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-CB-50B-50-F	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-CB-50B-50-B	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-CB-50B-75-F	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-CB-50B-75-B	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-CB-50B-100-F	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-CB-50B-100-B	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-CB-50B-150-F	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-CB-50B-150-B	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-CB-50B-200-F	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-CB-50B-200-B	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-CB-50B-250-F	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-CB-50B-250-B	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-CB-50B-300-F	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-CB-50B-300-B	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-CB-50B-350-F	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-CB-50B-350-B	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-CB-50B-400-F	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-CB-50B-400-B	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-CB-50B-450-F	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-CB-50B-450-B	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-CB-50B-500-F	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-CB-50B-500-B	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-CB-63B-25-F	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-CB-63B-25-B	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-CB-63B-50-F	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-CB-63B-50-B	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-CB-63B-75-F	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-CB-63B-75-B	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-CB-63B-100-F	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-CB-63B-100-B	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-CB-63B-150-F	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-CB-63B-150-B	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-CB-63B-200-F	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-CB-63B-200-B	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-CB-63B-250-F	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-CB-63B-250-B	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-CB-63B-300-F	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-CB-63B-300-B	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-CB-63B-350-F	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-CB-63B-350-B	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-CB-63B-400-F	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-CB-63B-400-B	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-CB-63B-450-F	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-CB-63B-450-B	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-CB-63B-500-F	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-CB-63B-500-B	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-CB-80B-25-F	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-CB-80B-25-B	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-CB-80B-50-F	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-CB-80B-50-B	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-CB-80B-75-F	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-CB-80B-75-B	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-CB-80B-100-F	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-CB-80B-100-B	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-CB-80B-150-F	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-CB-80B-150-B	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-CB-80B-200-F	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-CB-80B-200-B	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-CB-80B-250-F	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-CB-80B-250-B	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-CB-80B-300-F	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-CB-80B-300-B	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-CB-80B-350-F	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-CB-80B-350-B	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-CB-80B-400-F	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-CB-80B-400-B	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-CB-80B-450-F	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-CB-80B-450-B	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-CB-80B-500-F	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-CB-80B-500-B	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-CB-100B-25-F	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-CB-100B-25-B	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-CB-100B-50-F	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-CB-100B-50-B	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-CB-100B-75-F	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-CB-100B-75-B	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-CB-100B-100-F	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-CB-100B-100-B	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-CB-100B-150-F	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-CB-100B-150-B	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-CB-100B-200-F	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-CB-100B-200-B	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-CB-100B-250-F	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-CB-100B-250-B	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-CB-100B-300-F	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-CB-100B-300-B	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-CB-100B-350-F	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-CB-100B-350-B	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-CB-100B-400-F	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-CB-100B-400-B	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-CB-100B-450-F	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-CB-100B-450-B	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-CB-100B-500-F	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-CB-100B-500-B	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-TC-40B-25-F	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-TC-40B-25-B	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-TC-40B-50-F	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-TC-40B-50-B	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-TC-40B-75-F	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-TC-40B-75-B	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-TC-40B-100-F	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-TC-40B-100-B	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-TC-40B-150-F	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-TC-40B-150-B	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-TC-40B-200-F	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-TC-40B-200-B	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-TC-40B-250-F	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-TC-40B-250-B	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-TC-40B-300-F	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-TC-40B-300-B	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-TC-40B-350-F	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-TC-40B-350-B	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-TC-40B-400-F	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-TC-40B-400-B	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-TC-40B-450-F	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-TC-40B-450-B	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-TC-40B-500-F	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-TC-40B-500-B	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-TC-50B-25-F	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-TC-50B-25-B	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-TC-50B-50-F	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-TC-50B-50-B	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-TC-50B-75-F	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-TC-50B-75-B	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-TC-50B-100-F	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-TC-50B-100-B	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-TC-50B-150-F	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-TC-50B-150-B	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-TC-50B-200-F	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-TC-50B-200-B	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-TC-50B-250-F	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-TC-50B-250-B	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-TC-50B-300-F	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-TC-50B-300-B	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-TC-50B-350-F	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-TC-50B-350-B	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-TC-50B-400-F	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-TC-50B-400-B	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-TC-50B-450-F	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-TC-50B-450-B	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-TC-50B-500-F	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-TC-50B-500-B	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-TC-63B-25-F	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-TC-63B-25-B	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-TC-63B-50-F	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-TC-63B-50-B	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-TC-63B-75-F	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-TC-63B-75-B	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-TC-63B-100-F	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-TC-63B-100-B	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-TC-63B-150-F	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-TC-63B-150-B	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-TC-63B-200-F	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-TC-63B-200-B	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-TC-63B-250-F	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-TC-63B-250-B	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-TC-63B-300-F	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-TC-63B-300-B	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-TC-63B-350-F	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-TC-63B-350-B	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-TC-63B-400-F	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-TC-63B-400-B	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-TC-63B-450-F	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-TC-63B-450-B	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-TC-63B-500-F	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-TC-63B-500-B	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-TC-80B-25-F	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-TC-80B-25-B	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-TC-80B-50-F	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-TC-80B-50-B	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-TC-80B-75-F	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-TC-80B-75-B	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-TC-80B-100-F	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-TC-80B-100-B	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-TC-80B-150-F	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-TC-80B-150-B	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-TC-80B-200-F	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-TC-80B-200-B	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-TC-80B-250-F	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-TC-80B-250-B	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-TC-80B-300-F	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-TC-80B-300-B	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-TC-80B-350-F	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-TC-80B-350-B	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-TC-80B-400-F	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-TC-80B-400-B	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-TC-80B-450-F	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-TC-80B-450-B	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-TC-80B-500-F	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-TC-80B-500-B	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-TC-100B-25-F	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-TC-100B-25-B	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-TC-100B-50-F	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-TC-100B-50-B	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-TC-100B-75-F	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-TC-100B-75-B	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-TC-100B-100-F	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-TC-100B-100-B	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-TC-100B-150-F	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-TC-100B-150-B	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-TC-100B-200-F	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-TC-100B-200-B	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-TC-100B-250-F	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-TC-100B-250-B	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-TC-100B-300-F	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-TC-100B-300-B	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-TC-100B-350-F	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-TC-100B-350-B	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-TC-100B-400-F	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-TC-100B-400-B	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-TC-100B-450-F	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-TC-100B-450-B	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-TC-100B-500-F	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-TC-100B-500-B	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-TA-40B-25-F	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-TA-40B-25-B	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-TA-40B-50-F	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-TA-40B-50-B	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-TA-40B-75-F	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-TA-40B-75-B	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-TA-40B-100-F	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-TA-40B-100-B	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-TA-40B-150-F	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-TA-40B-150-B	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-TA-40B-200-F	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-TA-40B-200-B	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-TA-40B-250-F	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-TA-40B-250-B	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-TA-40B-300-F	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-TA-40B-300-B	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-TA-40B-350-F	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-TA-40B-350-B	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-TA-40B-400-F	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-TA-40B-400-B	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-TA-40B-450-F	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-TA-40B-450-B	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-TA-40B-500-F	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-TA-40B-500-B	Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-TA-50B-25-F	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-TA-50B-25-B	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-TA-50B-50-F	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-TA-50B-50-B	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-TA-50B-75-F	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-TA-50B-75-B	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-TA-50B-100-F	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-TA-50B-100-B	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-TA-50B-150-F	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-TA-50B-150-B	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-TA-50B-200-F	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-TA-50B-200-B	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-TA-50B-250-F	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-TA-50B-250-B	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-TA-50B-300-F	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-TA-50B-300-B	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-TA-50B-350-F	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-TA-50B-350-B	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-TA-50B-400-F	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-TA-50B-400-B	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-TA-50B-450-F	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-TA-50B-450-B	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-TA-50B-500-F	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-TA-50B-500-B	Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-TA-63B-25-F	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-TA-63B-25-B	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-TA-63B-50-F	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-TA-63B-50-B	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-TA-63B-75-F	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-TA-63B-75-B	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-TA-63B-100-F	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-TA-63B-100-B	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-TA-63B-150-F	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-TA-63B-150-B	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-TA-63B-200-F	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-TA-63B-200-B	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-TA-63B-250-F	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-TA-63B-250-B	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-TA-63B-300-F	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-TA-63B-300-B	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-TA-63B-350-F	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-TA-63B-350-B	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-TA-63B-400-F	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-TA-63B-400-B	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-TA-63B-450-F	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-TA-63B-450-B	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-TA-63B-500-F	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-TA-63B-500-B	Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-TA-80B-25-F	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-TA-80B-25-B	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-TA-80B-50-F	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-TA-80B-50-B	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-TA-80B-75-F	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-TA-80B-75-B	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-TA-80B-100-F	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-TA-80B-100-B	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-TA-80B-150-F	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-TA-80B-150-B	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-TA-80B-200-F	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-TA-80B-200-B	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-TA-80B-250-F	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-TA-80B-250-B	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-TA-80B-300-F	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-TA-80B-300-B	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-TA-80B-350-F	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-TA-80B-350-B	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-TA-80B-400-F	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-TA-80B-400-B	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-TA-80B-450-F	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-TA-80B-450-B	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-TA-80B-500-F	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-TA-80B-500-B	Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-TA-100B-25-F	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-TA-100B-25-B	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-TA-100B-50-F	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-TA-100B-50-B	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-TA-100B-75-F	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-TA-100B-75-B	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-TA-100B-100-F	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-TA-100B-100-B	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-TA-100B-150-F	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-TA-100B-150-B	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-TA-100B-200-F	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-TA-100B-200-B	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-TA-100B-250-F	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-TA-100B-250-B	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-TA-100B-300-F	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-TA-100B-300-B	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-TA-100B-350-F	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-TA-100B-350-B	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-TA-100B-400-F	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-TA-100B-400-B	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-TA-100B-450-F	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-TA-100B-450-B	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-TA-100B-500-F	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-TA-100B-500-B	Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-TB-40B-25-F	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-TB-40B-25-B	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-TB-40B-50-F	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-TB-40B-50-B	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-TB-40B-75-F	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-TB-40B-75-B	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-TB-40B-100-F	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-TB-40B-100-B	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-TB-40B-150-F	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-TB-40B-150-B	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-TB-40B-200-F	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-TB-40B-200-B	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-TB-40B-250-F	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-TB-40B-250-B	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-TB-40B-300-F	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-TB-40B-300-B	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-TB-40B-350-F	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-TB-40B-350-B	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-TB-40B-400-F	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-TB-40B-400-B	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-TB-40B-450-F	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-TB-40B-450-B	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-TB-40B-500-F	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-TB-40B-500-B	Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-TB-50B-25-F	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-TB-50B-25-B	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-TB-50B-50-F	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-TB-50B-50-B	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-TB-50B-75-F	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-TB-50B-75-B	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-TB-50B-100-F	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-TB-50B-100-B	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-TB-50B-150-F	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-TB-50B-150-B	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-TB-50B-200-F	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-TB-50B-200-B	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-TB-50B-250-F	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-TB-50B-250-B	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-TB-50B-300-F	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-TB-50B-300-B	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-TB-50B-350-F	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-TB-50B-350-B	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-TB-50B-400-F	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-TB-50B-400-B	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-TB-50B-450-F	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-TB-50B-450-B	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-TB-50B-500-F	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-TB-50B-500-B	Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-TB-63B-25-F	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-TB-63B-25-B	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-TB-63B-50-F	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-TB-63B-50-B	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-TB-63B-75-F	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-TB-63B-75-B	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-TB-63B-100-F	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-TB-63B-100-B	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-TB-63B-150-F	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-TB-63B-150-B	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-TB-63B-200-F	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-TB-63B-200-B	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-TB-63B-250-F	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-TB-63B-250-B	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-TB-63B-300-F	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-TB-63B-300-B	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-TB-63B-350-F	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-TB-63B-350-B	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-TB-63B-400-F	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-TB-63B-400-B	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-TB-63B-450-F	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-TB-63B-450-B	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-TB-63B-500-F	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-TB-63B-500-B	Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-TB-80B-25-F	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-TB-80B-25-B	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-TB-80B-50-F	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-TB-80B-50-B	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-TB-80B-75-F	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-TB-80B-75-B	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-TB-80B-100-F	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-TB-80B-100-B	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-TB-80B-150-F	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-TB-80B-150-B	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-TB-80B-200-F	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-TB-80B-200-B	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-TB-80B-250-F	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-TB-80B-250-B	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-TB-80B-300-F	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-TB-80B-300-B	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-TB-80B-350-F	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-TB-80B-350-B	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-TB-80B-400-F	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-TB-80B-400-B	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-TB-80B-450-F	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-TB-80B-450-B	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-TB-80B-500-F	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-TB-80B-500-B	Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Retract direction
	USC-G1-TB-100B-25-F	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Extend direction
	USC-G1-TB-100B-25-B	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Retract direction
	USC-G1-TB-100B-50-F	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Extend direction
	USC-G1-TB-100B-50-B	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Retract direction
	USC-G1-TB-100B-75-F	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Extend direction
	USC-G1-TB-100B-75-B	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Retract direction
	USC-G1-TB-100B-100-F	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Extend direction
	USC-G1-TB-100B-100-B	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Retract direction
	USC-G1-TB-100B-150-F	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Extend direction
	USC-G1-TB-100B-150-B	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Retract direction
	USC-G1-TB-100B-200-F	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Extend direction
	USC-G1-TB-100B-200-B	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Retract direction
	USC-G1-TB-100B-250-F	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Extend direction
	USC-G1-TB-100B-250-B	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Retract direction
	USC-G1-TB-100B-300-F	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Extend direction
	USC-G1-TB-100B-300-B	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Retract direction
	USC-G1-TB-100B-350-F	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Extend direction
	USC-G1-TB-100B-350-B	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Retract direction
	USC-G1-TB-100B-400-F	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Extend direction
	USC-G1-TB-100B-400-B	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Retract direction
	USC-G1-TB-100B-450-F	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Extend direction
	USC-G1-TB-100B-450-B	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Retract direction
	USC-G1-TB-100B-500-F	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Extend direction
	USC-G1-TB-100B-500-B	Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Retract direction

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD USC-G1 Free-Position Locking SELEX Cylinder, Coil Scraper
