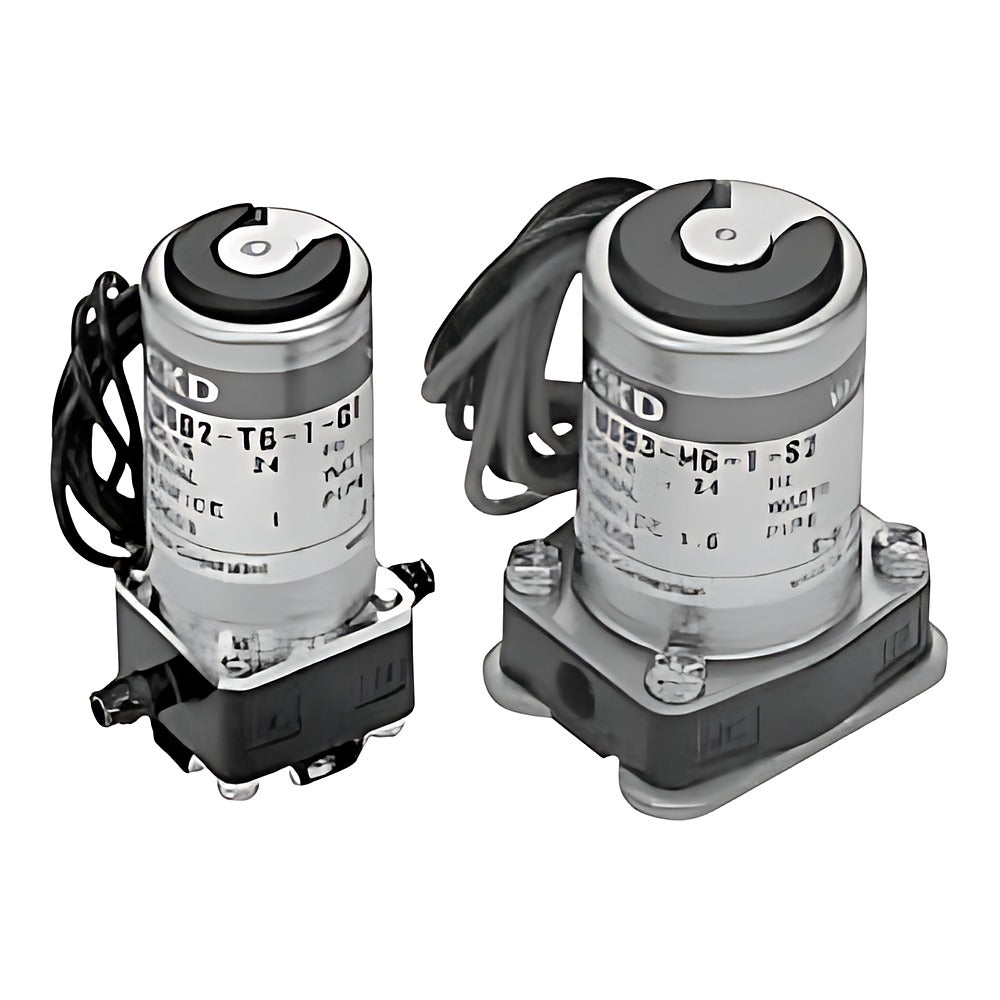

CKD USG3-FP2 Compact Direct Acting 3-Port Solenoid Valve (Rc1/8)

CKD USG3-FP2 Compact Direct Acting 3-Port Solenoid Valve (Rc1/8)

CKD USG3-FP2 compact direct-acting 3-port universal solenoid valve with stainless steel body, FKM seals and oil-free treatment for food processing.

Key features

  • 3-port universal direct-acting poppet
  • Rc1/8 port, stainless steel body
  • FKM seals with oil-free treatment (M)
  • DC12V/DC24V standard, AC100V/AC200V optional
  • Usable on low vacuum 1.33x10^2 Pa (abs)
  • FP2 food-processing spec: wetted materials comply with the Japanese Food Sanitation Act

Specifications

Port Rc1/8
Fluid Air, water, dry air, low vacuum
Proof pressure 2 MPa (hydraulic)
Fluid temperature -10 to 60 C
Ambient temperature -20 to 50 C
Body / seal Stainless steel / FKM, oil-free (M)
Coil insulation Class B (130)
Source CKD Korea catalog CC-1271K-5, p. 385-385
USG3-6-1-MFP2-DC12V Orifice: 1.2 mm | Max pressure: 0.7 MPa | Voltage: DC12V
USG3-6-1-MFP2-DC24V Orifice: 1.2 mm | Max pressure: 0.7 MPa | Voltage: DC24V
USG3-6-1-MFP2-AC100V Orifice: 1.2 mm | Max pressure: 0.7 MPa | Voltage: AC100V
USG3-6-1-MFP2-AC200V Orifice: 1.2 mm | Max pressure: 0.7 MPa | Voltage: AC200V
USG3-6-2-MFP2-DC12V Orifice: 1.8 mm | Max pressure: 0.3 MPa | Voltage: DC12V
USG3-6-2-MFP2-DC24V Orifice: 1.8 mm | Max pressure: 0.3 MPa | Voltage: DC24V
USG3-6-2-MFP2-AC100V Orifice: 1.8 mm | Max pressure: 0.3 MPa | Voltage: AC100V
USG3-6-2-MFP2-AC200V Orifice: 1.8 mm | Max pressure: 0.3 MPa | Voltage: AC200V
3-Port Solenoid ValvesCKD
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD USG3-FP2 Compact Direct Acting 3-Port Solenoid Valve (Rc1/8)

Brand CKD·3-Port Solenoid Valves

Available part numbers (8)

USG3-6-1-MFP2-DC12V, USG3-6-1-MFP2-DC24V, USG3-6-1-MFP2-AC100V, USG3-6-1-MFP2-AC200V, USG3-6-2-MFP2-DC12V, USG3-6-2-MFP2-DC24V, USG3-6-2-MFP2-AC100V, USG3-6-2-MFP2-AC200V

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
USG3-6-1-MFP2-DC12VOrifice: 1.2 mm | Max pressure: 0.7 MPa | Voltage: DC12V
USG3-6-1-MFP2-DC24VOrifice: 1.2 mm | Max pressure: 0.7 MPa | Voltage: DC24V
USG3-6-1-MFP2-AC100VOrifice: 1.2 mm | Max pressure: 0.7 MPa | Voltage: AC100V
USG3-6-1-MFP2-AC200VOrifice: 1.2 mm | Max pressure: 0.7 MPa | Voltage: AC200V
USG3-6-2-MFP2-DC12VOrifice: 1.8 mm | Max pressure: 0.3 MPa | Voltage: DC12V
USG3-6-2-MFP2-DC24VOrifice: 1.8 mm | Max pressure: 0.3 MPa | Voltage: DC24V
USG3-6-2-MFP2-AC100VOrifice: 1.8 mm | Max pressure: 0.3 MPa | Voltage: AC100V
USG3-6-2-MFP2-AC200VOrifice: 1.8 mm | Max pressure: 0.3 MPa | Voltage: AC200V
