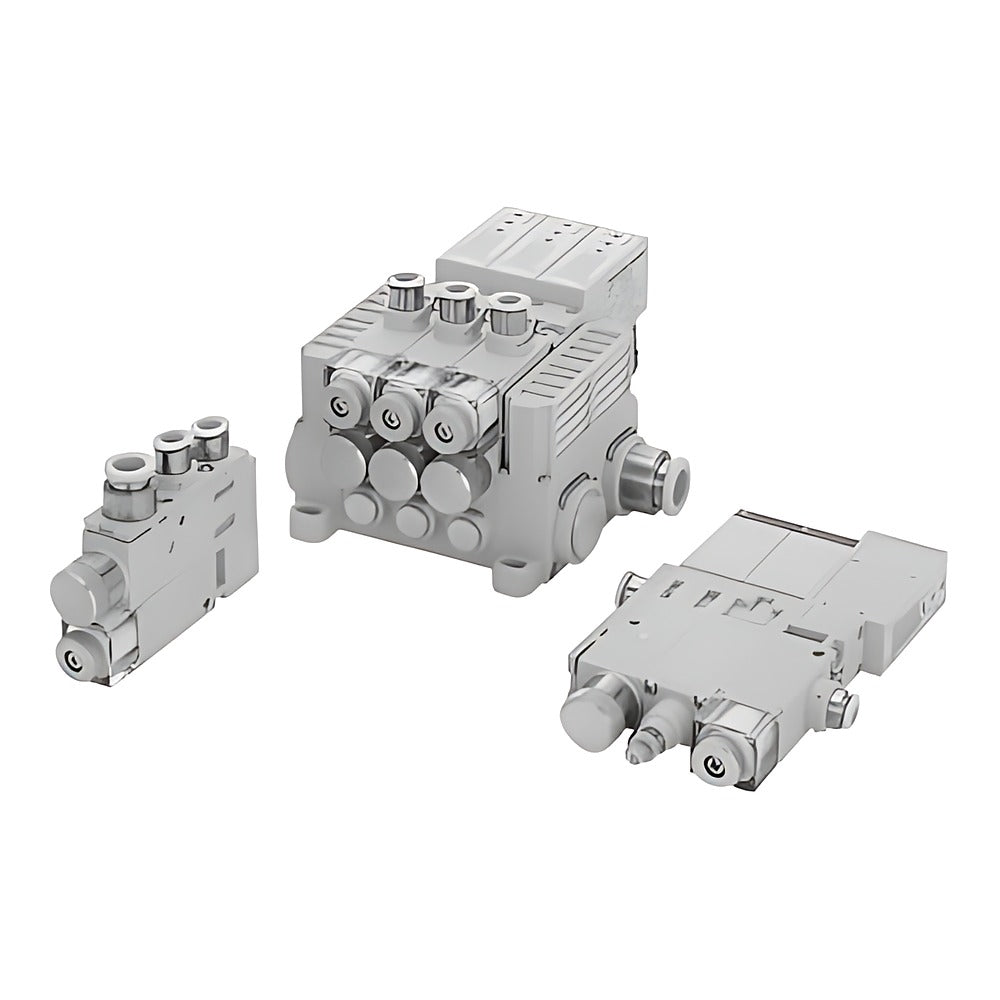

CKD VSG Vacuum Ejector Unit (20 mm Width, Single Unit)

CKD VSG Vacuum Ejector Unit (20 mm Width, Single Unit)

CKD SELVACS VSG series 20 mm wide single-unit vacuum ejector unit combining filter, vacuum pressure switch and vacuum generation/break valves.

Key features

  • Unit combinations A (filter), B (+ LED vacuum switch), E (+ generation and break valves), F (all)
  • Vacuum switch: NPN 2 outputs (NW), NPN 1 output + analog (NA) or low-cost analog only (A)
  • Pilot poppet generation valve (5 mm2) and direct-acting break valve (0.3 mm2), DC24V or AC100V, LED, non-locking manual override
  • Nozzle 0.5 mm (4 mm push-in ports) or 0.7/1.0 mm (6 mm push-in ports); E05 not available
  • Break-air flow adjusting needle; replacement filter element VSG-E

Specifications

Fluid Air
Operating pressure 0.25 to 0.7 MPa
Ambient/fluid temperature 5 to 50 C
Lubrication Not required
Ultimate vacuum H 90-93 kPa, L 66 kPa, E 90 kPa
Suction flow 7 to 40 L/min (ANR)
Filter PVF element, 10 um
Width 20 mm
Mass 46 to 128 g
Source CKD Korea catalog CC-796K-5, p. 69-76
VSG-H05A-44 Vacuum type: H high vacuum, medium flow | Nozzle: 0.5 mm | Unit: Filter | Ports V/P: Push-in 4 mm | Valve voltage: None | Vacuum switch: None
VSG-H05B-44-NW Vacuum type: H high vacuum, medium flow | Nozzle: 0.5 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 4 mm | Valve voltage: None | Vacuum switch: NPN 2 outputs
VSG-H05B-44-NA Vacuum type: H high vacuum, medium flow | Nozzle: 0.5 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 4 mm | Valve voltage: None | Vacuum switch: NPN 1 output + analog
VSG-H05B-44-A Vacuum type: H high vacuum, medium flow | Nozzle: 0.5 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 4 mm | Valve voltage: None | Vacuum switch: Analog output
VSG-H05E-44-1 Vacuum type: H high vacuum, medium flow | Nozzle: 0.5 mm | Unit: Filter + gen./break valves | Ports V/P: Push-in 4 mm | Valve voltage: AC100V | Vacuum switch: None
VSG-H05E-44-3 Vacuum type: H high vacuum, medium flow | Nozzle: 0.5 mm | Unit: Filter + gen./break valves | Ports V/P: Push-in 4 mm | Valve voltage: DC24V | Vacuum switch: None
VSG-H05F-44-1-NW Vacuum type: H high vacuum, medium flow | Nozzle: 0.5 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 4 mm | Valve voltage: AC100V | Vacuum switch: NPN 2 outputs
VSG-H05F-44-1-NA Vacuum type: H high vacuum, medium flow | Nozzle: 0.5 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 4 mm | Valve voltage: AC100V | Vacuum switch: NPN 1 output + analog
VSG-H05F-44-1-A Vacuum type: H high vacuum, medium flow | Nozzle: 0.5 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 4 mm | Valve voltage: AC100V | Vacuum switch: Analog output
VSG-H05F-44-3-NW Vacuum type: H high vacuum, medium flow | Nozzle: 0.5 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 4 mm | Valve voltage: DC24V | Vacuum switch: NPN 2 outputs
VSG-H05F-44-3-NA Vacuum type: H high vacuum, medium flow | Nozzle: 0.5 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 4 mm | Valve voltage: DC24V | Vacuum switch: NPN 1 output + analog
VSG-H05F-44-3-A Vacuum type: H high vacuum, medium flow | Nozzle: 0.5 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 4 mm | Valve voltage: DC24V | Vacuum switch: Analog output
VSG-H07A-66 Vacuum type: H high vacuum, medium flow | Nozzle: 0.7 mm | Unit: Filter | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: None
VSG-H07B-66-NW Vacuum type: H high vacuum, medium flow | Nozzle: 0.7 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: NPN 2 outputs
VSG-H07B-66-NA Vacuum type: H high vacuum, medium flow | Nozzle: 0.7 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: NPN 1 output + analog
VSG-H07B-66-A Vacuum type: H high vacuum, medium flow | Nozzle: 0.7 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: Analog output
VSG-H07E-66-1 Vacuum type: H high vacuum, medium flow | Nozzle: 0.7 mm | Unit: Filter + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: None
VSG-H07E-66-3 Vacuum type: H high vacuum, medium flow | Nozzle: 0.7 mm | Unit: Filter + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: None
VSG-H07F-66-1-NW Vacuum type: H high vacuum, medium flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: NPN 2 outputs
VSG-H07F-66-1-NA Vacuum type: H high vacuum, medium flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: NPN 1 output + analog
VSG-H07F-66-1-A Vacuum type: H high vacuum, medium flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: Analog output
VSG-H07F-66-3-NW Vacuum type: H high vacuum, medium flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: NPN 2 outputs
VSG-H07F-66-3-NA Vacuum type: H high vacuum, medium flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: NPN 1 output + analog
VSG-H07F-66-3-A Vacuum type: H high vacuum, medium flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: Analog output
VSG-H10A-66 Vacuum type: H high vacuum, medium flow | Nozzle: 1.0 mm | Unit: Filter | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: None
VSG-H10B-66-NW Vacuum type: H high vacuum, medium flow | Nozzle: 1.0 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: NPN 2 outputs
VSG-H10B-66-NA Vacuum type: H high vacuum, medium flow | Nozzle: 1.0 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: NPN 1 output + analog
VSG-H10B-66-A Vacuum type: H high vacuum, medium flow | Nozzle: 1.0 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: Analog output
VSG-H10E-66-1 Vacuum type: H high vacuum, medium flow | Nozzle: 1.0 mm | Unit: Filter + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: None
VSG-H10E-66-3 Vacuum type: H high vacuum, medium flow | Nozzle: 1.0 mm | Unit: Filter + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: None
VSG-H10F-66-1-NW Vacuum type: H high vacuum, medium flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: NPN 2 outputs
VSG-H10F-66-1-NA Vacuum type: H high vacuum, medium flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: NPN 1 output + analog
VSG-H10F-66-1-A Vacuum type: H high vacuum, medium flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: Analog output
VSG-H10F-66-3-NW Vacuum type: H high vacuum, medium flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: NPN 2 outputs
VSG-H10F-66-3-NA Vacuum type: H high vacuum, medium flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: NPN 1 output + analog
VSG-H10F-66-3-A Vacuum type: H high vacuum, medium flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: Analog output
VSG-L05A-44 Vacuum type: L medium vacuum, high flow | Nozzle: 0.5 mm | Unit: Filter | Ports V/P: Push-in 4 mm | Valve voltage: None | Vacuum switch: None
VSG-L05B-44-NW Vacuum type: L medium vacuum, high flow | Nozzle: 0.5 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 4 mm | Valve voltage: None | Vacuum switch: NPN 2 outputs
VSG-L05B-44-NA Vacuum type: L medium vacuum, high flow | Nozzle: 0.5 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 4 mm | Valve voltage: None | Vacuum switch: NPN 1 output + analog
VSG-L05B-44-A Vacuum type: L medium vacuum, high flow | Nozzle: 0.5 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 4 mm | Valve voltage: None | Vacuum switch: Analog output
VSG-L05E-44-1 Vacuum type: L medium vacuum, high flow | Nozzle: 0.5 mm | Unit: Filter + gen./break valves | Ports V/P: Push-in 4 mm | Valve voltage: AC100V | Vacuum switch: None
VSG-L05E-44-3 Vacuum type: L medium vacuum, high flow | Nozzle: 0.5 mm | Unit: Filter + gen./break valves | Ports V/P: Push-in 4 mm | Valve voltage: DC24V | Vacuum switch: None
VSG-L05F-44-1-NW Vacuum type: L medium vacuum, high flow | Nozzle: 0.5 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 4 mm | Valve voltage: AC100V | Vacuum switch: NPN 2 outputs
VSG-L05F-44-1-NA Vacuum type: L medium vacuum, high flow | Nozzle: 0.5 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 4 mm | Valve voltage: AC100V | Vacuum switch: NPN 1 output + analog
VSG-L05F-44-1-A Vacuum type: L medium vacuum, high flow | Nozzle: 0.5 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 4 mm | Valve voltage: AC100V | Vacuum switch: Analog output
VSG-L05F-44-3-NW Vacuum type: L medium vacuum, high flow | Nozzle: 0.5 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 4 mm | Valve voltage: DC24V | Vacuum switch: NPN 2 outputs
VSG-L05F-44-3-NA Vacuum type: L medium vacuum, high flow | Nozzle: 0.5 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 4 mm | Valve voltage: DC24V | Vacuum switch: NPN 1 output + analog
VSG-L05F-44-3-A Vacuum type: L medium vacuum, high flow | Nozzle: 0.5 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 4 mm | Valve voltage: DC24V | Vacuum switch: Analog output
VSG-L07A-66 Vacuum type: L medium vacuum, high flow | Nozzle: 0.7 mm | Unit: Filter | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: None
VSG-L07B-66-NW Vacuum type: L medium vacuum, high flow | Nozzle: 0.7 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: NPN 2 outputs
VSG-L07B-66-NA Vacuum type: L medium vacuum, high flow | Nozzle: 0.7 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: NPN 1 output + analog
VSG-L07B-66-A Vacuum type: L medium vacuum, high flow | Nozzle: 0.7 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: Analog output
VSG-L07E-66-1 Vacuum type: L medium vacuum, high flow | Nozzle: 0.7 mm | Unit: Filter + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: None
VSG-L07E-66-3 Vacuum type: L medium vacuum, high flow | Nozzle: 0.7 mm | Unit: Filter + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: None
VSG-L07F-66-1-NW Vacuum type: L medium vacuum, high flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: NPN 2 outputs
VSG-L07F-66-1-NA Vacuum type: L medium vacuum, high flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: NPN 1 output + analog
VSG-L07F-66-1-A Vacuum type: L medium vacuum, high flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: Analog output
VSG-L07F-66-3-NW Vacuum type: L medium vacuum, high flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: NPN 2 outputs
VSG-L07F-66-3-NA Vacuum type: L medium vacuum, high flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: NPN 1 output + analog
VSG-L07F-66-3-A Vacuum type: L medium vacuum, high flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: Analog output
VSG-L10A-66 Vacuum type: L medium vacuum, high flow | Nozzle: 1.0 mm | Unit: Filter | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: None
VSG-L10B-66-NW Vacuum type: L medium vacuum, high flow | Nozzle: 1.0 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: NPN 2 outputs
VSG-L10B-66-NA Vacuum type: L medium vacuum, high flow | Nozzle: 1.0 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: NPN 1 output + analog
VSG-L10B-66-A Vacuum type: L medium vacuum, high flow | Nozzle: 1.0 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: Analog output
VSG-L10E-66-1 Vacuum type: L medium vacuum, high flow | Nozzle: 1.0 mm | Unit: Filter + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: None
VSG-L10E-66-3 Vacuum type: L medium vacuum, high flow | Nozzle: 1.0 mm | Unit: Filter + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: None
VSG-L10F-66-1-NW Vacuum type: L medium vacuum, high flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: NPN 2 outputs
VSG-L10F-66-1-NA Vacuum type: L medium vacuum, high flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: NPN 1 output + analog
VSG-L10F-66-1-A Vacuum type: L medium vacuum, high flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: Analog output
VSG-L10F-66-3-NW Vacuum type: L medium vacuum, high flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: NPN 2 outputs
VSG-L10F-66-3-NA Vacuum type: L medium vacuum, high flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: NPN 1 output + analog
VSG-L10F-66-3-A Vacuum type: L medium vacuum, high flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: Analog output
VSG-E07A-66 Vacuum type: E high vacuum, low flow | Nozzle: 0.7 mm | Unit: Filter | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: None
VSG-E07B-66-NW Vacuum type: E high vacuum, low flow | Nozzle: 0.7 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: NPN 2 outputs
VSG-E07B-66-NA Vacuum type: E high vacuum, low flow | Nozzle: 0.7 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: NPN 1 output + analog
VSG-E07B-66-A Vacuum type: E high vacuum, low flow | Nozzle: 0.7 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: Analog output
VSG-E07E-66-1 Vacuum type: E high vacuum, low flow | Nozzle: 0.7 mm | Unit: Filter + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: None
VSG-E07E-66-3 Vacuum type: E high vacuum, low flow | Nozzle: 0.7 mm | Unit: Filter + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: None
VSG-E07F-66-1-NW Vacuum type: E high vacuum, low flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: NPN 2 outputs
VSG-E07F-66-1-NA Vacuum type: E high vacuum, low flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: NPN 1 output + analog
VSG-E07F-66-1-A Vacuum type: E high vacuum, low flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: Analog output
VSG-E07F-66-3-NW Vacuum type: E high vacuum, low flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: NPN 2 outputs
VSG-E07F-66-3-NA Vacuum type: E high vacuum, low flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: NPN 1 output + analog
VSG-E07F-66-3-A Vacuum type: E high vacuum, low flow | Nozzle: 0.7 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: Analog output
VSG-E10A-66 Vacuum type: E high vacuum, low flow | Nozzle: 1.0 mm | Unit: Filter | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: None
VSG-E10B-66-NW Vacuum type: E high vacuum, low flow | Nozzle: 1.0 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: NPN 2 outputs
VSG-E10B-66-NA Vacuum type: E high vacuum, low flow | Nozzle: 1.0 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: NPN 1 output + analog
VSG-E10B-66-A Vacuum type: E high vacuum, low flow | Nozzle: 1.0 mm | Unit: Filter + LED vacuum switch | Ports V/P: Push-in 6 mm | Valve voltage: None | Vacuum switch: Analog output
VSG-E10E-66-1 Vacuum type: E high vacuum, low flow | Nozzle: 1.0 mm | Unit: Filter + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: None
VSG-E10E-66-3 Vacuum type: E high vacuum, low flow | Nozzle: 1.0 mm | Unit: Filter + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: None
VSG-E10F-66-1-NW Vacuum type: E high vacuum, low flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: NPN 2 outputs
VSG-E10F-66-1-NA Vacuum type: E high vacuum, low flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: NPN 1 output + analog
VSG-E10F-66-1-A Vacuum type: E high vacuum, low flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: AC100V | Vacuum switch: Analog output
VSG-E10F-66-3-NW Vacuum type: E high vacuum, low flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: NPN 2 outputs
VSG-E10F-66-3-NA Vacuum type: E high vacuum, low flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: NPN 1 output + analog
VSG-E10F-66-3-A Vacuum type: E high vacuum, low flow | Nozzle: 1.0 mm | Unit: Filter + switch + gen./break valves | Ports V/P: Push-in 6 mm | Valve voltage: DC24V | Vacuum switch: Analog output
VSG-E Vacuum type: Spare part | Nozzle: - | Unit: - | Ports V/P: - | Valve voltage: - | Vacuum switch: Replacement filter element
Vacuum EjectorsCKD
97 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD VSG Vacuum Ejector Unit (20 mm Width, Single Unit)

Brand CKD·Vacuum Ejectors

Available part numbers (97)

VSG-H05A-44, VSG-H05B-44-NW, VSG-H05B-44-NA, VSG-H05B-44-A, VSG-H05E-44-1, VSG-H05E-44-3, VSG-H05F-44-1-NW, VSG-H05F-44-1-NA, VSG-H05F-44-1-A, VSG-H05F-44-3-NW + 87 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
