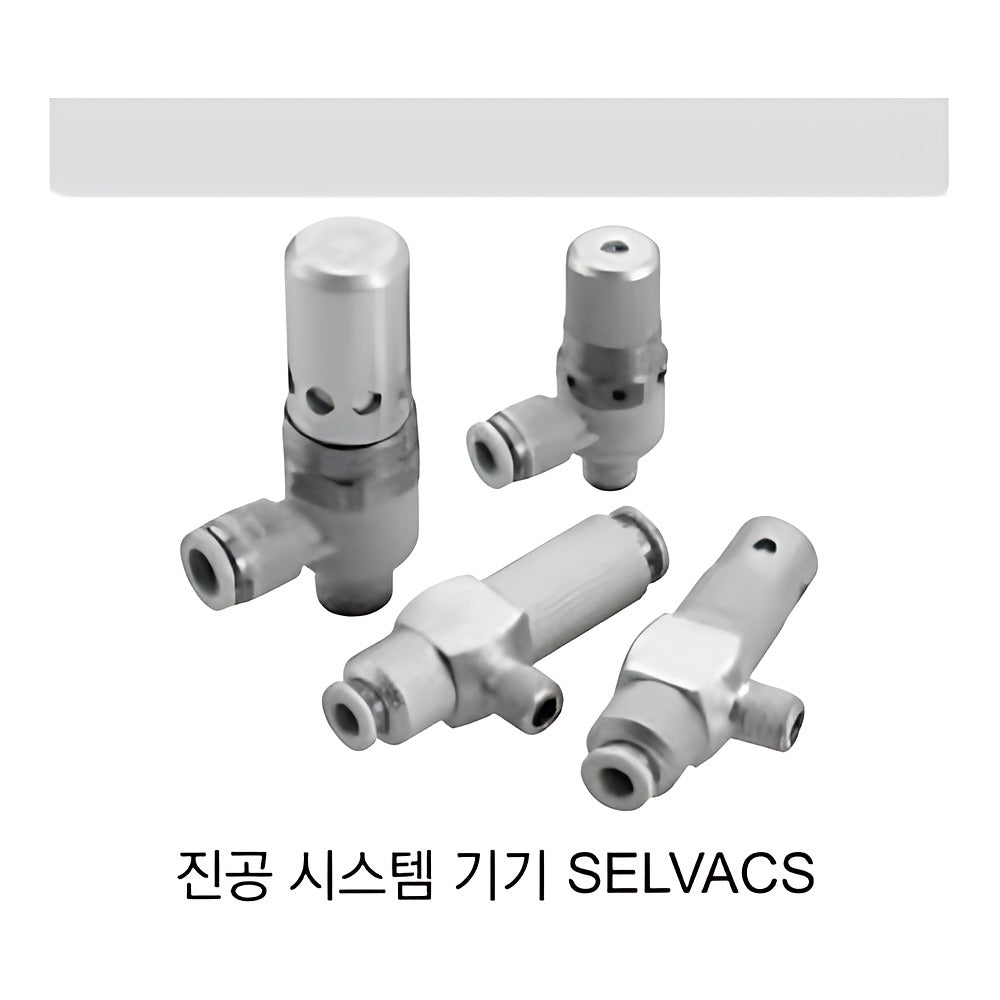

CKD VSH/VSC-FP1 Single Vacuum Ejector (Food Grade, Nozzle 0.5-2.0)

CKD VSH/VSC-FP1 Single Vacuum Ejector (Food Grade, Nozzle 0.5-2.0)

CKD VSH/VSC-FP1 single-unit vacuum ejectors for food-processing lines, for solenoid-valve direct mounting (VSH) or pad direct mounting (VSC).

Key features

  • FP1 food-processing series using NSF H1 registered grease
  • Vacuum characteristics H (high vacuum), L (high flow) or E (low consumption)
  • Nozzle diameters 0.5, 0.7, 1.0, 1.2, 1.5, 2.0 mm
  • Silencer exhaust S or central exhaust J
  • VSH: push-in vacuum port, threaded supply; VSC: threaded vacuum port, push-in supply

Specifications

Fluid Air
Operating pressure 0.15 to 0.7 MPa
Ambient/fluid temperature 0 to 60 C
Body PBT resin body, brass nozzle (VSH)
Combination reference CKD SELVACS catalog CC-796
Source CKD Korea catalog CC-1271K-5, p. 314-315
VSC-E07-6A6J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Central exhaust
VSC-E07-6A6S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Silencer
VSC-E07-6A8J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Central exhaust
VSC-E07-6A8S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Silencer
VSC-E10-6A6J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Central exhaust
VSC-E10-6A6S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Silencer
VSC-E10-6A8J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Central exhaust
VSC-E10-6A8S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Silencer
VSC-E12-6A6J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.2 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Central exhaust
VSC-E12-6A6S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.2 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Silencer
VSC-E12-6A8J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.2 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Central exhaust
VSC-E12-6A8S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.2 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Silencer
VSC-E15-10A10J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Central exhaust
VSC-E15-10A10S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Silencer
VSC-E15-10A8J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Central exhaust
VSC-E15-10A8S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Silencer
VSC-E15-8A10J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Central exhaust
VSC-E15-8A10S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Silencer
VSC-E15-8A8J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Central exhaust
VSC-E15-8A8S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Silencer
VSC-E20-10A10J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Central exhaust
VSC-E20-10A10S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Silencer
VSC-E20-10A8J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Central exhaust
VSC-E20-10A8S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Silencer
VSC-E20-8A10J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Central exhaust
VSC-E20-8A10S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Silencer
VSC-E20-8A8J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Central exhaust
VSC-E20-8A8S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Silencer
VSC-H05-M54S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.5 mm | V/P port: M5 / Push-in 4 | Exhaust: Silencer
VSC-H07-6A6J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Central exhaust
VSC-H07-6A6S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Silencer
VSC-H07-6A8J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Central exhaust
VSC-H07-6A8S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Silencer
VSC-H10-6A6J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Central exhaust
VSC-H10-6A6S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Silencer
VSC-H10-6A8J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Central exhaust
VSC-H10-6A8S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Silencer
VSC-H12-6A6J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.2 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Central exhaust
VSC-H12-6A6S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.2 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Silencer
VSC-H12-6A8J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.2 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Central exhaust
VSC-H12-6A8S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.2 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Silencer
VSC-H15-10A10J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Central exhaust
VSC-H15-10A10S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Silencer
VSC-H15-10A8J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Central exhaust
VSC-H15-10A8S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Silencer
VSC-H15-8A10J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Central exhaust
VSC-H15-8A10S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Silencer
VSC-H15-8A8J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Central exhaust
VSC-H15-8A8S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Silencer
VSC-H20-10A10J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Central exhaust
VSC-H20-10A10S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Silencer
VSC-H20-10A8J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Central exhaust
VSC-H20-10A8S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Silencer
VSC-H20-8A10J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Central exhaust
VSC-H20-8A10S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Silencer
VSC-H20-8A8J-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Central exhaust
VSC-H20-8A8S-FP1 Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Silencer
VSC-L05-M54S-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.5 mm | V/P port: M5 / Push-in 4 | Exhaust: Silencer
VSC-L07-6A6J-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Central exhaust
VSC-L07-6A6S-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Silencer
VSC-L07-6A8J-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Central exhaust
VSC-L07-6A8S-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Silencer
VSC-L10-6A6J-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Central exhaust
VSC-L10-6A6S-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Silencer
VSC-L10-6A8J-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Central exhaust
VSC-L10-6A8S-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Silencer
VSC-L15-10A10J-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Central exhaust
VSC-L15-10A10S-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Silencer
VSC-L15-10A8J-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Central exhaust
VSC-L15-10A8S-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Silencer
VSC-L15-8A10J-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Central exhaust
VSC-L15-8A10S-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Silencer
VSC-L15-8A8J-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Central exhaust
VSC-L15-8A8S-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Silencer
VSC-L20-10A10J-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Central exhaust
VSC-L20-10A10S-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Silencer
VSC-L20-10A8J-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Central exhaust
VSC-L20-10A8S-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Silencer
VSC-L20-8A10J-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Central exhaust
VSC-L20-8A10S-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Silencer
VSC-L20-8A8J-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Central exhaust
VSC-L20-8A8S-FP1 Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Silencer
VSH-E07-66AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 0.7 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-E07-66AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 0.7 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-E10-66AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.0 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-E10-66AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.0 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-E10-86AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.0 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Central exhaust
VSH-E10-86AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.0 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Silencer
VSH-E12-66AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.2 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-E12-66AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.2 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-E12-86AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.2 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Central exhaust
VSH-E12-86AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.2 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Silencer
VSH-E15-108AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Central exhaust
VSH-E15-108AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Silencer
VSH-E15-88AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: Push-in 8 / R1/4 | Exhaust: Central exhaust
VSH-E15-88AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: Push-in 8 / R1/4 | Exhaust: Silencer
VSH-E20-108AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Central exhaust
VSH-E20-108AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Silencer
VSH-E20-128AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: Push-in 12 / R1/4 | Exhaust: Central exhaust
VSH-E20-128AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: Push-in 12 / R1/4 | Exhaust: Silencer
VSH-H05-4M5J-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.5 mm | V/P port: Push-in 4 / M5 | Exhaust: Central exhaust
VSH-H05-4M5S-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.5 mm | V/P port: Push-in 4 / M5 | Exhaust: Silencer
VSH-H05-66AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.5 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-H05-66AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.5 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-H07-66AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.7 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-H07-66AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.7 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-H10-66AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.0 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-H10-66AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.0 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-H10-86AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.0 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Central exhaust
VSH-H10-86AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.0 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Silencer
VSH-H12-66AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.2 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-H12-66AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.2 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-H12-86AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.2 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Central exhaust
VSH-H12-86AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.2 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Silencer
VSH-H15-108AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Central exhaust
VSH-H15-108AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Silencer
VSH-H15-88AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: Push-in 8 / R1/4 | Exhaust: Central exhaust
VSH-H15-88AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: Push-in 8 / R1/4 | Exhaust: Silencer
VSH-H20-108AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Central exhaust
VSH-H20-108AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Silencer
VSH-H20-128AJ-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: Push-in 12 / R1/4 | Exhaust: Central exhaust
VSH-H20-128AS-FP1 Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: Push-in 12 / R1/4 | Exhaust: Silencer
VSH-L05-4M5J-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.5 mm | V/P port: Push-in 4 / M5 | Exhaust: Central exhaust
VSH-L05-4M5S-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.5 mm | V/P port: Push-in 4 / M5 | Exhaust: Silencer
VSH-L05-66AJ-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.5 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-L05-66AS-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.5 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-L07-66AJ-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.7 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-L07-66AS-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.7 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-L07-86AJ-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.7 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Central exhaust
VSH-L07-86AS-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.7 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Silencer
VSH-L10-66AJ-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.0 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-L10-66AS-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.0 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-L10-86AJ-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.0 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Central exhaust
VSH-L10-86AS-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.0 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Silencer
VSH-L15-108AJ-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Central exhaust
VSH-L15-108AS-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Silencer
VSH-L15-128AJ-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: Push-in 12 / R1/4 | Exhaust: Central exhaust
VSH-L15-128AS-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: Push-in 12 / R1/4 | Exhaust: Silencer
VSH-L15-88AJ-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: Push-in 8 / R1/4 | Exhaust: Central exhaust
VSH-L15-88AS-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: Push-in 8 / R1/4 | Exhaust: Silencer
VSH-L20-108AJ-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Central exhaust
VSH-L20-108AS-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Silencer
VSH-L20-128AJ-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: Push-in 12 / R1/4 | Exhaust: Central exhaust
VSH-L20-128AS-FP1 Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: Push-in 12 / R1/4 | Exhaust: Silencer
Vacuum GeneratorsCKD
144 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD VSH/VSC-FP1 Single Vacuum Ejector (Food Grade, Nozzle 0.5-2.0)

Brand CKD·Vacuum Generators

Available part numbers (144)

VSC-E07-6A6J-FP1, VSC-E07-6A6S-FP1, VSC-E07-6A8J-FP1, VSC-E07-6A8S-FP1, VSC-E10-6A6J-FP1, VSC-E10-6A6S-FP1, VSC-E10-6A8J-FP1, VSC-E10-6A8S-FP1, VSC-E12-6A6J-FP1, VSC-E12-6A6S-FP1 + 134 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VSC-E07-6A6J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Central exhaust
VSC-E07-6A6S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Silencer
VSC-E07-6A8J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Central exhaust
VSC-E07-6A8S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Silencer
VSC-E10-6A6J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Central exhaust
VSC-E10-6A6S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Silencer
VSC-E10-6A8J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Central exhaust
VSC-E10-6A8S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Silencer
VSC-E12-6A6J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.2 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Central exhaust
VSC-E12-6A6S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.2 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Silencer
VSC-E12-6A8J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.2 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Central exhaust
VSC-E12-6A8S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.2 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Silencer
VSC-E15-10A10J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Central exhaust
VSC-E15-10A10S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Silencer
VSC-E15-10A8J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Central exhaust
VSC-E15-10A8S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Silencer
VSC-E15-8A10J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Central exhaust
VSC-E15-8A10S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Silencer
VSC-E15-8A8J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Central exhaust
VSC-E15-8A8S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Silencer
VSC-E20-10A10J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Central exhaust
VSC-E20-10A10S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Silencer
VSC-E20-10A8J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Central exhaust
VSC-E20-10A8S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Silencer
VSC-E20-8A10J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Central exhaust
VSC-E20-8A10S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Silencer
VSC-E20-8A8J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Central exhaust
VSC-E20-8A8S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Silencer
VSC-H05-M54S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.5 mm | V/P port: M5 / Push-in 4 | Exhaust: Silencer
VSC-H07-6A6J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Central exhaust
VSC-H07-6A6S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Silencer
VSC-H07-6A8J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Central exhaust
VSC-H07-6A8S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Silencer
VSC-H10-6A6J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Central exhaust
VSC-H10-6A6S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Silencer
VSC-H10-6A8J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Central exhaust
VSC-H10-6A8S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Silencer
VSC-H12-6A6J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.2 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Central exhaust
VSC-H12-6A6S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.2 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Silencer
VSC-H12-6A8J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.2 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Central exhaust
VSC-H12-6A8S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.2 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Silencer
VSC-H15-10A10J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Central exhaust
VSC-H15-10A10S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Silencer
VSC-H15-10A8J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Central exhaust
VSC-H15-10A8S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Silencer
VSC-H15-8A10J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Central exhaust
VSC-H15-8A10S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Silencer
VSC-H15-8A8J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Central exhaust
VSC-H15-8A8S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Silencer
VSC-H20-10A10J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Central exhaust
VSC-H20-10A10S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Silencer
VSC-H20-10A8J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Central exhaust
VSC-H20-10A8S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Silencer
VSC-H20-8A10J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Central exhaust
VSC-H20-8A10S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Silencer
VSC-H20-8A8J-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Central exhaust
VSC-H20-8A8S-FP1Type: VSC pad direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Silencer
VSC-L05-M54S-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.5 mm | V/P port: M5 / Push-in 4 | Exhaust: Silencer
VSC-L07-6A6J-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Central exhaust
VSC-L07-6A6S-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Silencer
VSC-L07-6A8J-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Central exhaust
VSC-L07-6A8S-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.7 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Silencer
VSC-L10-6A6J-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Central exhaust
VSC-L10-6A6S-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 6 | Exhaust: Silencer
VSC-L10-6A8J-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Central exhaust
VSC-L10-6A8S-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.0 mm | V/P port: R1/8 / Push-in 8 | Exhaust: Silencer
VSC-L15-10A10J-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Central exhaust
VSC-L15-10A10S-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Silencer
VSC-L15-10A8J-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Central exhaust
VSC-L15-10A8S-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Silencer
VSC-L15-8A10J-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Central exhaust
VSC-L15-8A10S-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Silencer
VSC-L15-8A8J-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Central exhaust
VSC-L15-8A8S-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Silencer
VSC-L20-10A10J-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Central exhaust
VSC-L20-10A10S-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 10 | Exhaust: Silencer
VSC-L20-10A8J-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Central exhaust
VSC-L20-10A8S-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: R3/8 / Push-in 8 | Exhaust: Silencer
VSC-L20-8A10J-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Central exhaust
VSC-L20-8A10S-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 10 | Exhaust: Silencer
VSC-L20-8A8J-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Central exhaust
VSC-L20-8A8S-FP1Type: VSC pad direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: R1/4 / Push-in 8 | Exhaust: Silencer
VSH-E07-66AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 0.7 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-E07-66AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 0.7 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-E10-66AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.0 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-E10-66AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.0 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-E10-86AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.0 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Central exhaust
VSH-E10-86AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.0 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Silencer
VSH-E12-66AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.2 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-E12-66AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.2 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-E12-86AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.2 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Central exhaust
VSH-E12-86AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.2 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Silencer
VSH-E15-108AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Central exhaust
VSH-E15-108AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Silencer
VSH-E15-88AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: Push-in 8 / R1/4 | Exhaust: Central exhaust
VSH-E15-88AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 1.5 mm | V/P port: Push-in 8 / R1/4 | Exhaust: Silencer
VSH-E20-108AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Central exhaust
VSH-E20-108AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Silencer
VSH-E20-128AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: Push-in 12 / R1/4 | Exhaust: Central exhaust
VSH-E20-128AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, low flow | Nozzle: 2.0 mm | V/P port: Push-in 12 / R1/4 | Exhaust: Silencer
VSH-H05-4M5J-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.5 mm | V/P port: Push-in 4 / M5 | Exhaust: Central exhaust
VSH-H05-4M5S-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.5 mm | V/P port: Push-in 4 / M5 | Exhaust: Silencer
VSH-H05-66AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.5 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-H05-66AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.5 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-H07-66AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.7 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-H07-66AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 0.7 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-H10-66AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.0 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-H10-66AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.0 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-H10-86AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.0 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Central exhaust
VSH-H10-86AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.0 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Silencer
VSH-H12-66AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.2 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-H12-66AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.2 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-H12-86AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.2 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Central exhaust
VSH-H12-86AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.2 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Silencer
VSH-H15-108AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Central exhaust
VSH-H15-108AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Silencer
VSH-H15-88AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: Push-in 8 / R1/4 | Exhaust: Central exhaust
VSH-H15-88AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 1.5 mm | V/P port: Push-in 8 / R1/4 | Exhaust: Silencer
VSH-H20-108AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Central exhaust
VSH-H20-108AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Silencer
VSH-H20-128AJ-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: Push-in 12 / R1/4 | Exhaust: Central exhaust
VSH-H20-128AS-FP1Type: VSH valve direct mount | Vacuum: High vacuum, medium flow | Nozzle: 2.0 mm | V/P port: Push-in 12 / R1/4 | Exhaust: Silencer
VSH-L05-4M5J-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.5 mm | V/P port: Push-in 4 / M5 | Exhaust: Central exhaust
VSH-L05-4M5S-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.5 mm | V/P port: Push-in 4 / M5 | Exhaust: Silencer
VSH-L05-66AJ-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.5 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-L05-66AS-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.5 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-L07-66AJ-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.7 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-L07-66AS-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.7 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-L07-86AJ-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.7 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Central exhaust
VSH-L07-86AS-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 0.7 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Silencer
VSH-L10-66AJ-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.0 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Central exhaust
VSH-L10-66AS-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.0 mm | V/P port: Push-in 6 / R1/8 | Exhaust: Silencer
VSH-L10-86AJ-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.0 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Central exhaust
VSH-L10-86AS-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.0 mm | V/P port: Push-in 8 / R1/8 | Exhaust: Silencer
VSH-L15-108AJ-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Central exhaust
VSH-L15-108AS-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Silencer
VSH-L15-128AJ-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: Push-in 12 / R1/4 | Exhaust: Central exhaust
VSH-L15-128AS-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: Push-in 12 / R1/4 | Exhaust: Silencer
VSH-L15-88AJ-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: Push-in 8 / R1/4 | Exhaust: Central exhaust
VSH-L15-88AS-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 1.5 mm | V/P port: Push-in 8 / R1/4 | Exhaust: Silencer
VSH-L20-108AJ-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Central exhaust
VSH-L20-108AS-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: Push-in 10 / R1/4 | Exhaust: Silencer
VSH-L20-128AJ-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: Push-in 12 / R1/4 | Exhaust: Central exhaust
VSH-L20-128AS-FP1Type: VSH valve direct mount | Vacuum: Medium vacuum, high flow | Nozzle: 2.0 mm | V/P port: Push-in 12 / R1/4 | Exhaust: Silencer

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
