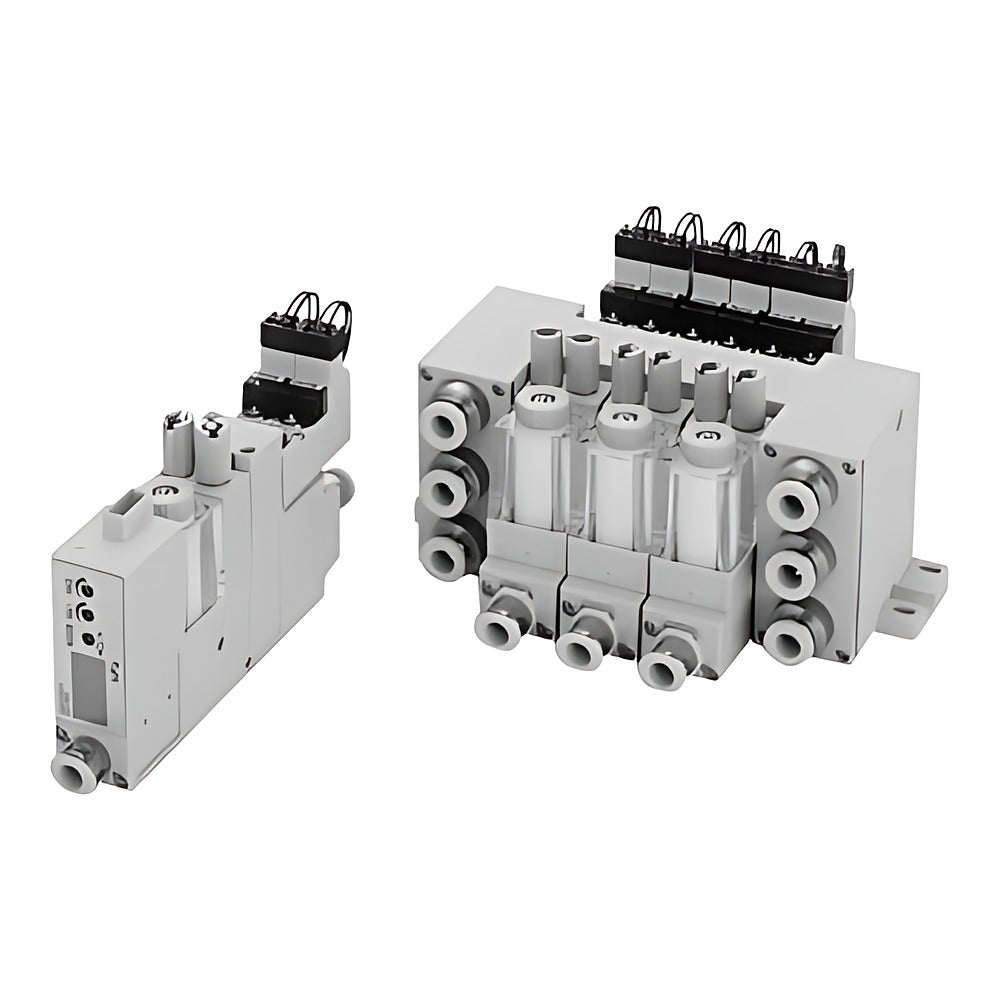

CKD VSJP Vacuum Switching Unit (20 mm, Break Flow & Relief Needles)

CKD VSJP Vacuum Switching Unit (20 mm, Break Flow & Relief Needles)

CKD SELVACS VSJP 20 mm wide all-in-one vacuum switching unit for vacuum pump systems, adding relief pressure control to vacuum break flow control to prevent workpiece blow-off.

Key features

  • Relief function in the vacuum break circuit shortens break time; relief pressure setting -25 to 25 kPa
  • For vacuum pump systems where large vacuum flow or long vacuum hold is required
  • Supply valve: self-holding, normally closed or normally open; digital vacuum switch W (2 outputs) or A (1 output + analog)
  • Manifold VSJPM (2-10 stations), e.g. VSJPM-D6101010-3-10A-W, with piping outlet on vacuum side (A) or supply side (B)
  • Spare parts: vacuum filter element VSG-E, break-side filter element VSJ-PE

Specifications

Fluid Air
Operating pressure 0.3 to 0.7 MPa
Vacuum pressure 0 to -100 kPa
Ambient/fluid temperature 5 to 50 C
Width 20 mm
Pilot valves Direct-acting poppet, DC24V 1.2 W / AC100V 1.5 VA
Vacuum break flow 0-50 L/min (0.5 MPa)
Vacuum filter PVF, 10 um, 1130 mm2
Source CKD Korea catalog CC-796K-5, p. 231-246
VSJP-A444-1 Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A444-1-W Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A444-1-A Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A444-3 Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A444-3-W Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A444-3-A Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A446-1 Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A446-1-W Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A446-1-A Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A446-3 Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A446-3-W Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A446-3-A Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A464-1 Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A464-1-W Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A464-1-A Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A464-3 Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A464-3-W Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A464-3-A Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A466-1 Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A466-1-W Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A466-1-A Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A466-3 Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A466-3-W Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A466-3-A Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A644-1 Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A644-1-W Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A644-1-A Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A644-3 Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A644-3-W Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A644-3-A Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A646-1 Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A646-1-W Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A646-1-A Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A646-3 Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A646-3-W Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A646-3-A Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A664-1 Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A664-1-W Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A664-1-A Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A664-3 Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A664-3-W Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A664-3-A Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A666-1 Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A666-1-W Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A666-1-A Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A666-3 Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A666-3-W Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A666-3-A Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A844-1 Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A844-1-W Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A844-1-A Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A844-3 Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A844-3-W Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A844-3-A Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A846-1 Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A846-1-W Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A846-1-A Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A846-3 Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A846-3-W Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A846-3-A Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A864-1 Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A864-1-W Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A864-1-A Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A864-3 Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A864-3-W Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A864-3-A Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A866-1 Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A866-1-W Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A866-1-A Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A866-3 Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A866-3-W Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A866-3-A Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B444-1 Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B444-1-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B444-1-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B444-3 Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B444-3-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B444-3-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B446-1 Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B446-1-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B446-1-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B446-3 Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B446-3-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B446-3-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B464-1 Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B464-1-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B464-1-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B464-3 Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B464-3-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B464-3-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B466-1 Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B466-1-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B466-1-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B466-3 Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B466-3-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B466-3-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B644-1 Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B644-1-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B644-1-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B644-3 Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B644-3-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B644-3-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B646-1 Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B646-1-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B646-1-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B646-3 Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B646-3-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B646-3-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B664-1 Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B664-1-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B664-1-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B664-3 Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B664-3-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B664-3-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B666-1 Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B666-1-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B666-1-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B666-3 Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B666-3-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B666-3-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B844-1 Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B844-1-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B844-1-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B844-3 Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B844-3-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B844-3-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B846-1 Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B846-1-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B846-1-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B846-3 Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B846-3-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B846-3-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B864-1 Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B864-1-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B864-1-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B864-3 Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B864-3-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B864-3-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B866-1 Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B866-1-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B866-1-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B866-3 Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B866-3-W Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B866-3-A Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D444-1 Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D444-1-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D444-1-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D444-3 Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D444-3-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D444-3-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D446-1 Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D446-1-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D446-1-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D446-3 Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D446-3-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D446-3-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D464-1 Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D464-1-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D464-1-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D464-3 Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D464-3-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D464-3-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D466-1 Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D466-1-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D466-1-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D466-3 Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D466-3-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D466-3-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D644-1 Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D644-1-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D644-1-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D644-3 Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D644-3-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D644-3-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D646-1 Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D646-1-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D646-1-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D646-3 Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D646-3-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D646-3-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D664-1 Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D664-1-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D664-1-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D664-3 Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D664-3-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D664-3-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D666-1 Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D666-1-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D666-1-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D666-3 Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D666-3-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D666-3-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D844-1 Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D844-1-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D844-1-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D844-3 Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D844-3-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D844-3-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D846-1 Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D846-1-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D846-1-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D846-3 Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D846-3-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D846-3-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D864-1 Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D864-1-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D864-1-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D864-3 Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D864-3-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D864-3-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D866-1 Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D866-1-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D866-1-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D866-3 Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D866-3-W Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D866-3-A Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJPM-A4 Unit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-A4-W Unit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-A4-A Unit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog
VSJPM-A6 Unit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-A6-W Unit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-A6-A Unit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog
VSJPM-A8 Unit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-A8-W Unit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-A8-A Unit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog
VSJPM-B4 Unit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-B4-W Unit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-B4-A Unit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog
VSJPM-B6 Unit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-B6-W Unit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-B6-A Unit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog
VSJPM-B8 Unit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-B8-W Unit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-B8-A Unit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog
VSJPM-D4 Unit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-D4-W Unit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-D4-A Unit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog
VSJPM-D6 Unit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-D6-W Unit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-D6-A Unit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog
VSJPM-D8 Unit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-D8-W Unit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-D8-A Unit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog
Vacuum EquipmentCKD
243 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD VSJP Vacuum Switching Unit (20 mm, Break Flow & Relief Needles)

Brand CKD·Vacuum Equipment

Available part numbers (243)

VSJP-A444-1, VSJP-A444-1-W, VSJP-A444-1-A, VSJP-A444-3, VSJP-A444-3-W, VSJP-A444-3-A, VSJP-A446-1, VSJP-A446-1-W, VSJP-A446-1-A, VSJP-A446-3 + 233 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VSJP-A444-1Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A444-1-WUnit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A444-1-AUnit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A444-3Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A444-3-WUnit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A444-3-AUnit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A446-1Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A446-1-WUnit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A446-1-AUnit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A446-3Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A446-3-WUnit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A446-3-AUnit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A464-1Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A464-1-WUnit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A464-1-AUnit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A464-3Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A464-3-WUnit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A464-3-AUnit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A466-1Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A466-1-WUnit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A466-1-AUnit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A466-3Unit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A466-3-WUnit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A466-3-AUnit: Single | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A644-1Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A644-1-WUnit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A644-1-AUnit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A644-3Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A644-3-WUnit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A644-3-AUnit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A646-1Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A646-1-WUnit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A646-1-AUnit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A646-3Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A646-3-WUnit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A646-3-AUnit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A664-1Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A664-1-WUnit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A664-1-AUnit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A664-3Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A664-3-WUnit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A664-3-AUnit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A666-1Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A666-1-WUnit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A666-1-AUnit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A666-3Unit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A666-3-WUnit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A666-3-AUnit: Single | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A844-1Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A844-1-WUnit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A844-1-AUnit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A844-3Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A844-3-WUnit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A844-3-AUnit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A846-1Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A846-1-WUnit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A846-1-AUnit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A846-3Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A846-3-WUnit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A846-3-AUnit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A864-1Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A864-1-WUnit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A864-1-AUnit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A864-3Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A864-3-WUnit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A864-3-AUnit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A866-1Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-A866-1-WUnit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-A866-1-AUnit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-A866-3Unit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-A866-3-WUnit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-A866-3-AUnit: Single | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B444-1Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B444-1-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B444-1-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B444-3Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B444-3-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B444-3-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B446-1Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B446-1-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B446-1-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B446-3Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B446-3-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B446-3-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B464-1Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B464-1-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B464-1-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B464-3Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B464-3-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B464-3-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B466-1Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B466-1-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B466-1-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B466-3Unit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B466-3-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B466-3-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B644-1Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B644-1-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B644-1-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B644-3Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B644-3-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B644-3-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B646-1Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B646-1-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B646-1-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B646-3Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B646-3-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B646-3-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B664-1Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B664-1-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B664-1-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B664-3Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B664-3-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B664-3-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B666-1Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B666-1-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B666-1-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B666-3Unit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B666-3-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B666-3-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B844-1Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B844-1-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B844-1-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B844-3Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B844-3-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B844-3-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B846-1Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B846-1-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B846-1-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B846-3Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B846-3-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B846-3-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B864-1Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B864-1-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B864-1-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B864-3Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B864-3-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B864-3-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B866-1Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-B866-1-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-B866-1-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-B866-3Unit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-B866-3-WUnit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-B866-3-AUnit: Single | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D444-1Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D444-1-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D444-1-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D444-3Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D444-3-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D444-3-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D446-1Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D446-1-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D446-1-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D446-3Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D446-3-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D446-3-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D464-1Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D464-1-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D464-1-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D464-3Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D464-3-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D464-3-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D466-1Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D466-1-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D466-1-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D466-3Unit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D466-3-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D466-3-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D644-1Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D644-1-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D644-1-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D644-3Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D644-3-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D644-3-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D646-1Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D646-1-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D646-1-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D646-3Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D646-3-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D646-3-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D664-1Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D664-1-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D664-1-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D664-3Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D664-3-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D664-3-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D666-1Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D666-1-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D666-1-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D666-3Unit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D666-3-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D666-3-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D844-1Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D844-1-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D844-1-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D844-3Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D844-3-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D844-3-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D846-1Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D846-1-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D846-1-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D846-3Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D846-3-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D846-3-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi4 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D864-1Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D864-1-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D864-1-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D864-3Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D864-3-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D864-3-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D866-1Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSJP-D866-1-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSJP-D866-1-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSJP-D866-3Unit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSJP-D866-3-WUnit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSJP-D866-3-AUnit: Single | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: phi6 / phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSJPM-A4Unit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-A4-WUnit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-A4-AUnit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog
VSJPM-A6Unit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-A6-WUnit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-A6-AUnit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog
VSJPM-A8Unit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-A8-WUnit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-A8-AUnit: Manifold station (VSJPM) | Supply valve: Normally open | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog
VSJPM-B4Unit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-B4-WUnit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-B4-AUnit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog
VSJPM-B6Unit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-B6-WUnit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-B6-AUnit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog
VSJPM-B8Unit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-B8-WUnit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-B8-AUnit: Manifold station (VSJPM) | Supply valve: Normally closed | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog
VSJPM-D4Unit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-D4-WUnit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-D4-AUnit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi4 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog
VSJPM-D6Unit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-D6-WUnit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-D6-AUnit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi6 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog
VSJPM-D8Unit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: None
VSJPM-D8-WUnit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 2 outputs
VSJPM-D8-AUnit: Manifold station (VSJPM) | Supply valve: Self-holding | Vacuum port: phi8 push-in | Ports PS/PV: Per manifold base | Valve voltage: Per manifold code | Pressure switch: Digital, NPN 1 out + analog

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
