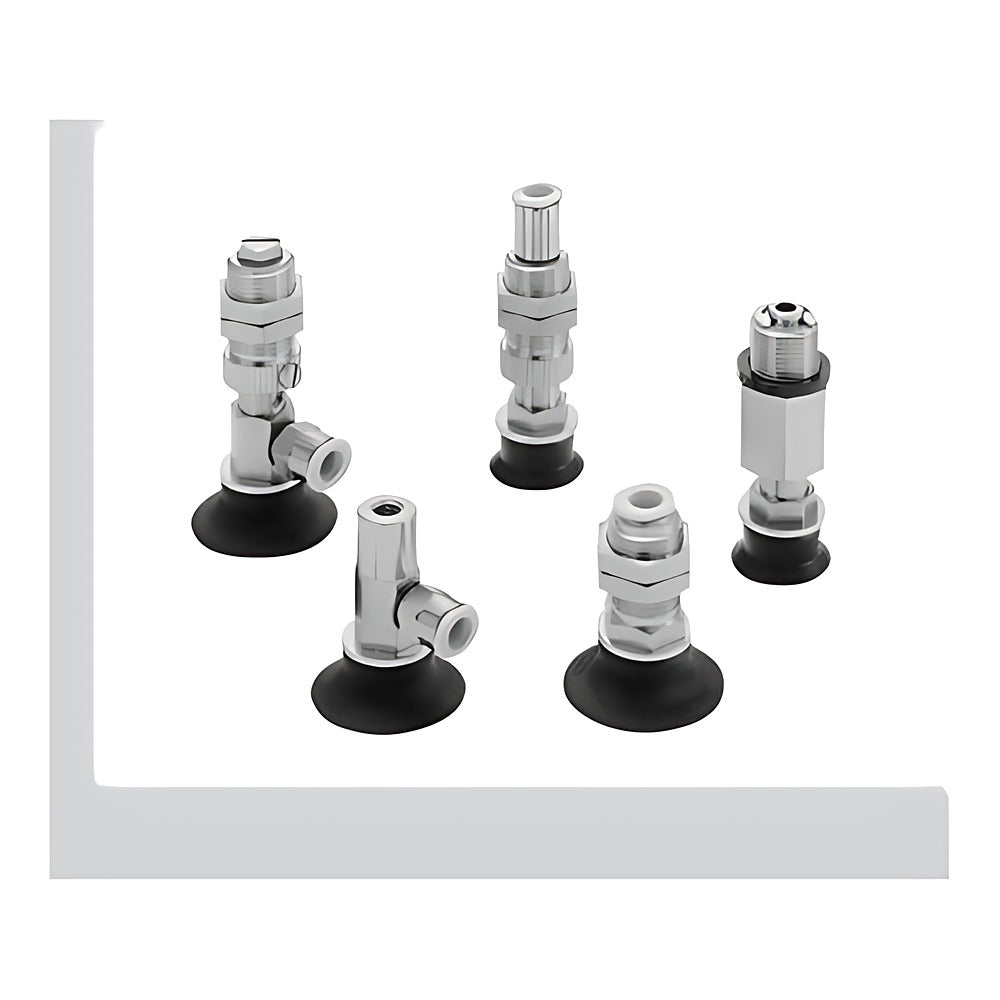

CKD VSPG Replacement Pad, Standard Type (R/A/RM, Pad Only)

CKD VSPG Replacement Pad, Standard Type (R/A/RM, Pad Only)

CKD VSPG pad-only (rubber pad without holder) for the VSP standard type vacuum pad, flat (R), deep (A) and small (RM) shapes, ø0.7 to ø200 mm.

Key features

  • Pad rubber only, for replacement on VSP standard type holders
  • Flat (R) ø1-ø200, deep (A) ø15-ø100, small (RM) ø0.7-ø4
  • Frame (A suffix) available for ø80 to ø200 flat and ø80/ø100 deep pads
  • Ten pad materials, availability by size per combination table
  • Pad codes match the pad section of the holder codes, e.g. VSP-A40RN-6T uses VSPG-40RN

Specifications

Pad diameter range ø0.7 to ø200 mm
Pad shapes Flat (R), deep (A), small (RM)
Pad materials 10 (N, S, U, F, HN, EP, SE, E, NE, G)
Frame A: with frame (ø80-ø200)
Source CKD Korea catalog CC-796K-5, p. 334-364
VSPG-1RN Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-1RS Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-1RU Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-1RF Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-1RSE Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-1RE Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-1RNE Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-1RG Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-2RN Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-2RS Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-2RU Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-2RF Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-2RSE Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-2RE Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-2RNE Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-2RG Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-3RN Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-3RS Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-3RU Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-3RF Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-3RSE Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-3RE Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-3RNE Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-3RG Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-4RN Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-4RS Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-4RU Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-4RF Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-4RSE Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-4RE Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-4RNE Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-4RG Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-6RN Holder: None (pad only) | Pad diameter: ø6 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-6RS Holder: None (pad only) | Pad diameter: ø6 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-6RU Holder: None (pad only) | Pad diameter: ø6 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-6RF Holder: None (pad only) | Pad diameter: ø6 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-6RSE Holder: None (pad only) | Pad diameter: ø6 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-6RE Holder: None (pad only) | Pad diameter: ø6 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-6RNE Holder: None (pad only) | Pad diameter: ø6 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-6RG Holder: None (pad only) | Pad diameter: ø6 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-8RN Holder: None (pad only) | Pad diameter: ø8 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-8RS Holder: None (pad only) | Pad diameter: ø8 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-8RU Holder: None (pad only) | Pad diameter: ø8 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-8RF Holder: None (pad only) | Pad diameter: ø8 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-8RSE Holder: None (pad only) | Pad diameter: ø8 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-8RE Holder: None (pad only) | Pad diameter: ø8 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-8RNE Holder: None (pad only) | Pad diameter: ø8 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-8RG Holder: None (pad only) | Pad diameter: ø8 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-10RN Holder: None (pad only) | Pad diameter: ø10 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-10RS Holder: None (pad only) | Pad diameter: ø10 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-10RU Holder: None (pad only) | Pad diameter: ø10 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-10RF Holder: None (pad only) | Pad diameter: ø10 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-10RSE Holder: None (pad only) | Pad diameter: ø10 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-10RE Holder: None (pad only) | Pad diameter: ø10 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-10RNE Holder: None (pad only) | Pad diameter: ø10 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-10RG Holder: None (pad only) | Pad diameter: ø10 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-15RN Holder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-15RS Holder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-15RU Holder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-15RF Holder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-15RSE Holder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-15RE Holder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-15RNE Holder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-15RG Holder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-20RN Holder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-20RS Holder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-20RU Holder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-20RF Holder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-20RSE Holder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-20RE Holder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-20RNE Holder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-20RG Holder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-25RN Holder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-25RS Holder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-25RU Holder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-25RF Holder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-25RSE Holder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-25RE Holder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-25RNE Holder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-25RG Holder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-30RN Holder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-30RS Holder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-30RU Holder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-30RF Holder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-30RSE Holder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-30RE Holder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-30RNE Holder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-30RG Holder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-40RN Holder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-40RS Holder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-40RU Holder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-40RF Holder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-40RSE Holder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-40RE Holder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-40RNE Holder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-40RG Holder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-50RN Holder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-50RS Holder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-50RU Holder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-50RF Holder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-50RSE Holder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-50RE Holder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-50RNE Holder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-50RG Holder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-60RN Holder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-60RS Holder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-60RU Holder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-60RF Holder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-60RSE Holder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-60RNE Holder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-80RN Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-80RNA Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, with frame
VSPG-80RS Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-80RSA Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, with frame
VSPG-80RU Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-80RUA Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, with frame
VSPG-80RF Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-80RFA Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, with frame
VSPG-80RSE Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-80RSEA Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, with frame
VSPG-80RNE Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-80RNEA Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, with frame
VSPG-100RN Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-100RNA Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, with frame
VSPG-100RS Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-100RSA Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, with frame
VSPG-100RU Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-100RUA Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, with frame
VSPG-100RF Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-100RFA Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, with frame
VSPG-100RSE Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-100RSEA Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, with frame
VSPG-100RNE Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-100RNEA Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, with frame
VSPG-150RN Holder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-150RNA Holder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, with frame
VSPG-150RS Holder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-150RSA Holder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, with frame
VSPG-150RU Holder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-150RUA Holder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, with frame
VSPG-150RF Holder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-150RFA Holder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, with frame
VSPG-150RSE Holder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-150RSEA Holder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, with frame
VSPG-150RNE Holder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-150RNEA Holder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, with frame
VSPG-200RN Holder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-200RNA Holder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, with frame
VSPG-200RS Holder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-200RSA Holder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, with frame
VSPG-200RU Holder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-200RUA Holder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, with frame
VSPG-200RF Holder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-200RFA Holder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, with frame
VSPG-200RSE Holder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-200RSEA Holder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, with frame
VSPG-200RNE Holder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-200RNEA Holder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, with frame
VSPG-15AN Holder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-15AS Holder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-15AU Holder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-15AF Holder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-15ANE Holder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-15AG Holder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard deep | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-20AN Holder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-20AS Holder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-20AU Holder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-20AF Holder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-20ANE Holder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-20AG Holder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard deep | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-25AN Holder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-25AS Holder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-25AU Holder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-25AF Holder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-25ANE Holder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-25AG Holder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard deep | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-30AN Holder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-30AS Holder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-30AU Holder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-30AF Holder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-30ANE Holder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-30AG Holder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard deep | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-40AN Holder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-40AS Holder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-40AU Holder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-40AF Holder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-40ANE Holder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-40AG Holder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard deep | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-50AN Holder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-50AS Holder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-50AU Holder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-50AF Holder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-50ANE Holder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-50AG Holder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard deep | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-60AN Holder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-60AS Holder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-60AU Holder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-60AF Holder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-60ANE Holder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-80AN Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-80ANA Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, with frame
VSPG-80AS Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-80ASA Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, with frame
VSPG-80AU Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-80AUA Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, with frame
VSPG-80AF Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-80AFA Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, with frame
VSPG-80ANE Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-80ANEA Holder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, with frame
VSPG-100AN Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-100ANA Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, with frame
VSPG-100AS Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-100ASA Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, with frame
VSPG-100AU Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-100AUA Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, with frame
VSPG-100AF Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-100AFA Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, with frame
VSPG-100ANE Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-100ANEA Holder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, with frame
VSPG-0.7RMN Holder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-0.7RMS Holder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-0.7RMU Holder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-0.7RMF Holder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-0.7RMHN Holder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: HNBR | Connection: Pad only, no frame
VSPG-0.7RMEP Holder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: EPDM | Connection: Pad only, no frame
VSPG-0.7RMSE Holder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-0.7RME Holder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-0.7RMNE Holder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-0.7RMG Holder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-1RMN Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-1RMS Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-1RMU Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-1RMF Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-1RMHN Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: HNBR | Connection: Pad only, no frame
VSPG-1RMEP Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: EPDM | Connection: Pad only, no frame
VSPG-1RMSE Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-1RME Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-1RMNE Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-1RMG Holder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-1.5RMN Holder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-1.5RMS Holder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-1.5RMU Holder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-1.5RMF Holder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-1.5RMHN Holder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: HNBR | Connection: Pad only, no frame
VSPG-1.5RMEP Holder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: EPDM | Connection: Pad only, no frame
VSPG-1.5RMSE Holder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-1.5RME Holder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-1.5RMNE Holder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-1.5RMG Holder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-2RMN Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-2RMS Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-2RMU Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-2RMF Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-2RMHN Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: HNBR | Connection: Pad only, no frame
VSPG-2RMEP Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: EPDM | Connection: Pad only, no frame
VSPG-2RMSE Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-2RME Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-2RMNE Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-2RMG Holder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-3RMN Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-3RMS Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-3RMU Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-3RMF Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-3RMHN Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: HNBR | Connection: Pad only, no frame
VSPG-3RMEP Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: EPDM | Connection: Pad only, no frame
VSPG-3RMSE Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-3RME Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-3RMNE Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-3RMG Holder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-4RMN Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-4RMS Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-4RMU Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-4RMF Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-4RMHN Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: HNBR | Connection: Pad only, no frame
VSPG-4RMEP Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: EPDM | Connection: Pad only, no frame
VSPG-4RMSE Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-4RME Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-4RMNE Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-4RMG Holder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: Food-grade NBR | Connection: Pad only, no frame
Vacuum PadsCKD
279 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD VSPG Replacement Pad, Standard Type (R/A/RM, Pad Only)

Brand CKD·Vacuum Pads

Available part numbers (279)

VSPG-1RN, VSPG-1RS, VSPG-1RU, VSPG-1RF, VSPG-1RSE, VSPG-1RE, VSPG-1RNE, VSPG-1RG, VSPG-2RN, VSPG-2RS + 269 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VSPG-1RNHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-1RSHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-1RUHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-1RFHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-1RSEHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-1REHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-1RNEHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-1RGHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-2RNHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-2RSHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-2RUHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-2RFHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-2RSEHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-2REHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-2RNEHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-2RGHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-3RNHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-3RSHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-3RUHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-3RFHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-3RSEHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-3REHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-3RNEHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-3RGHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-4RNHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-4RSHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-4RUHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-4RFHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-4RSEHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-4REHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-4RNEHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-4RGHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-6RNHolder: None (pad only) | Pad diameter: ø6 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-6RSHolder: None (pad only) | Pad diameter: ø6 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-6RUHolder: None (pad only) | Pad diameter: ø6 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-6RFHolder: None (pad only) | Pad diameter: ø6 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-6RSEHolder: None (pad only) | Pad diameter: ø6 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-6REHolder: None (pad only) | Pad diameter: ø6 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-6RNEHolder: None (pad only) | Pad diameter: ø6 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-6RGHolder: None (pad only) | Pad diameter: ø6 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-8RNHolder: None (pad only) | Pad diameter: ø8 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-8RSHolder: None (pad only) | Pad diameter: ø8 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-8RUHolder: None (pad only) | Pad diameter: ø8 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-8RFHolder: None (pad only) | Pad diameter: ø8 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-8RSEHolder: None (pad only) | Pad diameter: ø8 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-8REHolder: None (pad only) | Pad diameter: ø8 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-8RNEHolder: None (pad only) | Pad diameter: ø8 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-8RGHolder: None (pad only) | Pad diameter: ø8 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-10RNHolder: None (pad only) | Pad diameter: ø10 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-10RSHolder: None (pad only) | Pad diameter: ø10 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-10RUHolder: None (pad only) | Pad diameter: ø10 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-10RFHolder: None (pad only) | Pad diameter: ø10 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-10RSEHolder: None (pad only) | Pad diameter: ø10 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-10REHolder: None (pad only) | Pad diameter: ø10 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-10RNEHolder: None (pad only) | Pad diameter: ø10 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-10RGHolder: None (pad only) | Pad diameter: ø10 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-15RNHolder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-15RSHolder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-15RUHolder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-15RFHolder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-15RSEHolder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-15REHolder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-15RNEHolder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-15RGHolder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-20RNHolder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-20RSHolder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-20RUHolder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-20RFHolder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-20RSEHolder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-20REHolder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-20RNEHolder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-20RGHolder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-25RNHolder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-25RSHolder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-25RUHolder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-25RFHolder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-25RSEHolder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-25REHolder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-25RNEHolder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-25RGHolder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-30RNHolder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-30RSHolder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-30RUHolder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-30RFHolder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-30RSEHolder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-30REHolder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-30RNEHolder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-30RGHolder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-40RNHolder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-40RSHolder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-40RUHolder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-40RFHolder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-40RSEHolder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-40REHolder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-40RNEHolder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-40RGHolder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-50RNHolder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-50RSHolder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-50RUHolder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-50RFHolder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-50RSEHolder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-50REHolder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard flat | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-50RNEHolder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-50RGHolder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard flat | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-60RNHolder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-60RSHolder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-60RUHolder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-60RFHolder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-60RSEHolder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-60RNEHolder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-80RNHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-80RNAHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, with frame
VSPG-80RSHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-80RSAHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, with frame
VSPG-80RUHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-80RUAHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, with frame
VSPG-80RFHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-80RFAHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, with frame
VSPG-80RSEHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-80RSEAHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, with frame
VSPG-80RNEHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-80RNEAHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, with frame
VSPG-100RNHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-100RNAHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, with frame
VSPG-100RSHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-100RSAHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, with frame
VSPG-100RUHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-100RUAHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, with frame
VSPG-100RFHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-100RFAHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, with frame
VSPG-100RSEHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-100RSEAHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, with frame
VSPG-100RNEHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-100RNEAHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, with frame
VSPG-150RNHolder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-150RNAHolder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, with frame
VSPG-150RSHolder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-150RSAHolder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, with frame
VSPG-150RUHolder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-150RUAHolder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, with frame
VSPG-150RFHolder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-150RFAHolder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, with frame
VSPG-150RSEHolder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-150RSEAHolder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, with frame
VSPG-150RNEHolder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-150RNEAHolder: None (pad only) | Pad diameter: ø150 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, with frame
VSPG-200RNHolder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-200RNAHolder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Nitrile rubber (NBR) | Connection: Pad only, with frame
VSPG-200RSHolder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-200RSAHolder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Silicone rubber | Connection: Pad only, with frame
VSPG-200RUHolder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-200RUAHolder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Urethane rubber | Connection: Pad only, with frame
VSPG-200RFHolder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-200RFAHolder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Fluoro rubber (FKM) | Connection: Pad only, with frame
VSPG-200RSEHolder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-200RSEAHolder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Conductive silicone | Connection: Pad only, with frame
VSPG-200RNEHolder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-200RNEAHolder: None (pad only) | Pad diameter: ø200 mm | Pad shape: Standard flat | Material: Conductive NBR | Connection: Pad only, with frame
VSPG-15ANHolder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-15ASHolder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-15AUHolder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-15AFHolder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-15ANEHolder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-15AGHolder: None (pad only) | Pad diameter: ø15 mm | Pad shape: Standard deep | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-20ANHolder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-20ASHolder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-20AUHolder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-20AFHolder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-20ANEHolder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-20AGHolder: None (pad only) | Pad diameter: ø20 mm | Pad shape: Standard deep | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-25ANHolder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-25ASHolder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-25AUHolder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-25AFHolder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-25ANEHolder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-25AGHolder: None (pad only) | Pad diameter: ø25 mm | Pad shape: Standard deep | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-30ANHolder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-30ASHolder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-30AUHolder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-30AFHolder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-30ANEHolder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-30AGHolder: None (pad only) | Pad diameter: ø30 mm | Pad shape: Standard deep | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-40ANHolder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-40ASHolder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-40AUHolder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-40AFHolder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-40ANEHolder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-40AGHolder: None (pad only) | Pad diameter: ø40 mm | Pad shape: Standard deep | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-50ANHolder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-50ASHolder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-50AUHolder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-50AFHolder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-50ANEHolder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-50AGHolder: None (pad only) | Pad diameter: ø50 mm | Pad shape: Standard deep | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-60ANHolder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-60ASHolder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-60AUHolder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-60AFHolder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-60ANEHolder: None (pad only) | Pad diameter: ø60 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-80ANHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-80ANAHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, with frame
VSPG-80ASHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-80ASAHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, with frame
VSPG-80AUHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-80AUAHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, with frame
VSPG-80AFHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-80AFAHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, with frame
VSPG-80ANEHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-80ANEAHolder: None (pad only) | Pad diameter: ø80 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, with frame
VSPG-100ANHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-100ANAHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Nitrile rubber (NBR) | Connection: Pad only, with frame
VSPG-100ASHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-100ASAHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Silicone rubber | Connection: Pad only, with frame
VSPG-100AUHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-100AUAHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Urethane rubber | Connection: Pad only, with frame
VSPG-100AFHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-100AFAHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Fluoro rubber (FKM) | Connection: Pad only, with frame
VSPG-100ANEHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-100ANEAHolder: None (pad only) | Pad diameter: ø100 mm | Pad shape: Standard deep | Material: Conductive NBR | Connection: Pad only, with frame
VSPG-0.7RMNHolder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-0.7RMSHolder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-0.7RMUHolder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-0.7RMFHolder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-0.7RMHNHolder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: HNBR | Connection: Pad only, no frame
VSPG-0.7RMEPHolder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: EPDM | Connection: Pad only, no frame
VSPG-0.7RMSEHolder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-0.7RMEHolder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-0.7RMNEHolder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-0.7RMGHolder: None (pad only) | Pad diameter: ø0.7 mm | Pad shape: Standard small | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-1RMNHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-1RMSHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-1RMUHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-1RMFHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-1RMHNHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: HNBR | Connection: Pad only, no frame
VSPG-1RMEPHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: EPDM | Connection: Pad only, no frame
VSPG-1RMSEHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-1RMEHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-1RMNEHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-1RMGHolder: None (pad only) | Pad diameter: ø1 mm | Pad shape: Standard small | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-1.5RMNHolder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-1.5RMSHolder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-1.5RMUHolder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-1.5RMFHolder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-1.5RMHNHolder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: HNBR | Connection: Pad only, no frame
VSPG-1.5RMEPHolder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: EPDM | Connection: Pad only, no frame
VSPG-1.5RMSEHolder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-1.5RMEHolder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-1.5RMNEHolder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-1.5RMGHolder: None (pad only) | Pad diameter: ø1.5 mm | Pad shape: Standard small | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-2RMNHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-2RMSHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-2RMUHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-2RMFHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-2RMHNHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: HNBR | Connection: Pad only, no frame
VSPG-2RMEPHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: EPDM | Connection: Pad only, no frame
VSPG-2RMSEHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-2RMEHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-2RMNEHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-2RMGHolder: None (pad only) | Pad diameter: ø2 mm | Pad shape: Standard small | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-3RMNHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-3RMSHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-3RMUHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-3RMFHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-3RMHNHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: HNBR | Connection: Pad only, no frame
VSPG-3RMEPHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: EPDM | Connection: Pad only, no frame
VSPG-3RMSEHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-3RMEHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-3RMNEHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-3RMGHolder: None (pad only) | Pad diameter: ø3 mm | Pad shape: Standard small | Material: Food-grade NBR | Connection: Pad only, no frame
VSPG-4RMNHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: Nitrile rubber (NBR) | Connection: Pad only, no frame
VSPG-4RMSHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: Silicone rubber | Connection: Pad only, no frame
VSPG-4RMUHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: Urethane rubber | Connection: Pad only, no frame
VSPG-4RMFHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: Fluoro rubber (FKM) | Connection: Pad only, no frame
VSPG-4RMHNHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: HNBR | Connection: Pad only, no frame
VSPG-4RMEPHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: EPDM | Connection: Pad only, no frame
VSPG-4RMSEHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: Conductive silicone | Connection: Pad only, no frame
VSPG-4RMEHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: Antistatic butadiene rubber | Connection: Pad only, no frame
VSPG-4RMNEHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: Conductive NBR | Connection: Pad only, no frame
VSPG-4RMGHolder: None (pad only) | Pad diameter: ø4 mm | Pad shape: Standard small | Material: Food-grade NBR | Connection: Pad only, no frame

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
