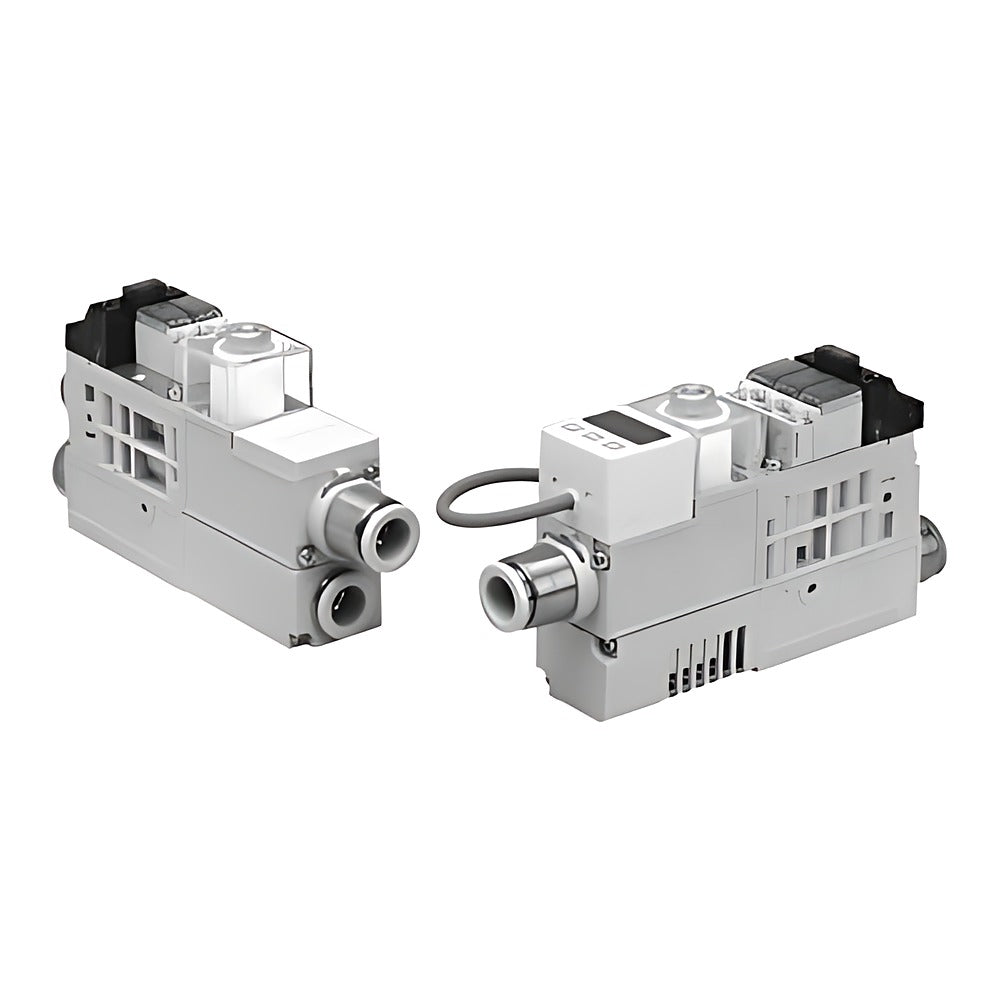

CKD VSQ Vacuum Ejector Unit (31.5 mm, Large Flow)

CKD SELVACS VSQ 31.5 mm wide single-type vacuum ejector unit for large-flow vacuum, available with single, 2-stage and twin nozzles.

Key features

Single nozzle 1.5/2.0 mm (H, L, E), 2-stage nozzle 0.7/1.0/1.2 mm (about 40% more suction flow) and twin nozzle T15/T20
Twin nozzle switches from large to small nozzle above an adjustable reference vacuum, greatly reducing air consumption; one signal control
Supply valve: normally open, normally closed or self-holding (single nozzle); NO/NC (2-stage); NC only and DC24V only (twin)
Optional digital vacuum switch with 2 NPN outputs (R), 2-colour display, selectable response time
Vacuum break flow 0-50 L/min (0.5 MPa); spare parts VSQ-E filter, VSQ-SEZA / VSQ-SEZB silencer elements

Specifications

Fluid	Air
Operating pressure	0.3 to 0.7 MPa
Ambient/fluid temperature	5 to 50 C
Width	31.5 mm
Pilot valve	Direct-acting poppet, DC24V 0.55 W / AC100V 1 VA
Max. suction flow	180 L/min (L20)
Vacuum filter	PVF, 10 um, 1507 mm2 (VSQ-E)
Source	CKD Korea catalog CC-796K-5, p. 179-205

VSQ-H15A-88S-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15A-88S-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15A-88S-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15A-88S-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15A-88J-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15A-88J-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15A-88J-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15A-88J-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15A-810S-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15A-810S-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15A-810S-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15A-810S-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15A-810J-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15A-810J-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15A-810J-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15A-810J-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15A-108S-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15A-108S-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15A-108S-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15A-108S-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15A-108J-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15A-108J-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15A-108J-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15A-108J-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15A-1010S-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15A-1010S-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15A-1010S-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15A-1010S-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15A-1010J-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15A-1010J-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15A-1010J-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15A-1010J-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15B-88S-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15B-88S-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15B-88S-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15B-88S-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15B-88J-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15B-88J-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15B-88J-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15B-88J-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15B-810S-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15B-810S-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15B-810S-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15B-810S-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15B-810J-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15B-810J-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15B-810J-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15B-810J-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15B-108S-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15B-108S-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15B-108S-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15B-108S-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15B-108J-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15B-108J-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15B-108J-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15B-108J-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15B-1010S-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15B-1010S-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15B-1010S-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15B-1010S-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15B-1010J-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15B-1010J-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15B-1010J-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15B-1010J-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15D-88S-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15D-88S-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15D-88S-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15D-88S-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15D-88J-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15D-88J-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15D-88J-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15D-88J-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15D-810S-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15D-810S-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15D-810S-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15D-810S-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15D-810J-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15D-810J-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15D-810J-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15D-810J-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15D-108S-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15D-108S-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15D-108S-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15D-108S-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15D-108J-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15D-108J-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15D-108J-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15D-108J-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15D-1010S-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15D-1010S-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15D-1010S-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15D-1010S-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15D-1010J-1		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H15D-1010J-1-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H15D-1010J-3		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H15D-1010J-3-R		Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15A-88S-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15A-88S-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15A-88S-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15A-88S-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15A-88J-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15A-88J-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15A-88J-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15A-88J-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15A-810S-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15A-810S-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15A-810S-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15A-810S-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15A-810J-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15A-810J-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15A-810J-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15A-810J-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15A-108S-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15A-108S-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15A-108S-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15A-108S-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15A-108J-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15A-108J-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15A-108J-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15A-108J-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15A-1010S-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15A-1010S-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15A-1010S-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15A-1010S-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15A-1010J-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15A-1010J-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15A-1010J-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15A-1010J-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15B-88S-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15B-88S-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15B-88S-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15B-88S-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15B-88J-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15B-88J-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15B-88J-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15B-88J-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15B-810S-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15B-810S-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15B-810S-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15B-810S-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15B-810J-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15B-810J-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15B-810J-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15B-810J-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15B-108S-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15B-108S-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15B-108S-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15B-108S-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15B-108J-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15B-108J-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15B-108J-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15B-108J-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15B-1010S-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15B-1010S-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15B-1010S-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15B-1010S-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15B-1010J-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15B-1010J-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15B-1010J-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15B-1010J-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15D-88S-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15D-88S-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15D-88S-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15D-88S-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15D-88J-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15D-88J-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15D-88J-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15D-88J-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15D-810S-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15D-810S-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15D-810S-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15D-810S-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15D-810J-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15D-810J-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15D-810J-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15D-810J-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15D-108S-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15D-108S-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15D-108S-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15D-108S-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15D-108J-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15D-108J-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15D-108J-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15D-108J-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15D-1010S-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15D-1010S-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15D-1010S-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15D-1010S-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15D-1010J-1		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L15D-1010J-1-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L15D-1010J-3		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L15D-1010J-3-R		Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15A-88S-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15A-88S-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15A-88S-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15A-88S-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15A-88J-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15A-88J-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15A-88J-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15A-88J-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15A-810S-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15A-810S-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15A-810S-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15A-810S-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15A-810J-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15A-810J-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15A-810J-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15A-810J-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15A-108S-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15A-108S-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15A-108S-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15A-108S-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15A-108J-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15A-108J-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15A-108J-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15A-108J-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15A-1010S-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15A-1010S-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15A-1010S-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15A-1010S-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15A-1010J-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15A-1010J-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15A-1010J-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15A-1010J-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15B-88S-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15B-88S-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15B-88S-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15B-88S-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15B-88J-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15B-88J-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15B-88J-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15B-88J-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15B-810S-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15B-810S-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15B-810S-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15B-810S-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15B-810J-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15B-810J-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15B-810J-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15B-810J-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15B-108S-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15B-108S-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15B-108S-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15B-108S-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15B-108J-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15B-108J-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15B-108J-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15B-108J-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15B-1010S-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15B-1010S-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15B-1010S-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15B-1010S-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15B-1010J-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15B-1010J-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15B-1010J-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15B-1010J-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15D-88S-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15D-88S-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15D-88S-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15D-88S-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15D-88J-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15D-88J-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15D-88J-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15D-88J-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15D-810S-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15D-810S-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15D-810S-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15D-810S-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15D-810J-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15D-810J-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15D-810J-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15D-810J-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15D-108S-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15D-108S-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15D-108S-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15D-108S-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15D-108J-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15D-108J-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15D-108J-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15D-108J-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15D-1010S-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15D-1010S-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15D-1010S-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15D-1010S-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15D-1010J-1		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E15D-1010J-1-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E15D-1010J-3		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E15D-1010J-3-R		Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20A-88S-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20A-88S-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20A-88S-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20A-88S-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20A-88J-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20A-88J-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20A-88J-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20A-88J-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20A-810S-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20A-810S-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20A-810S-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20A-810S-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20A-810J-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20A-810J-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20A-810J-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20A-810J-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20A-108S-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20A-108S-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20A-108S-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20A-108S-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20A-108J-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20A-108J-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20A-108J-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20A-108J-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20A-1010S-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20A-1010S-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20A-1010S-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20A-1010S-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20A-1010J-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20A-1010J-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20A-1010J-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20A-1010J-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20B-88S-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20B-88S-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20B-88S-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20B-88S-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20B-88J-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20B-88J-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20B-88J-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20B-88J-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20B-810S-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20B-810S-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20B-810S-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20B-810S-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20B-810J-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20B-810J-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20B-810J-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20B-810J-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20B-108S-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20B-108S-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20B-108S-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20B-108S-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20B-108J-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20B-108J-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20B-108J-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20B-108J-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20B-1010S-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20B-1010S-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20B-1010S-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20B-1010S-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20B-1010J-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20B-1010J-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20B-1010J-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20B-1010J-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20D-88S-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20D-88S-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20D-88S-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20D-88S-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20D-88J-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20D-88J-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20D-88J-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20D-88J-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20D-810S-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20D-810S-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20D-810S-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20D-810S-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20D-810J-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20D-810J-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20D-810J-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20D-810J-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20D-108S-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20D-108S-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20D-108S-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20D-108S-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20D-108J-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20D-108J-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20D-108J-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20D-108J-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20D-1010S-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20D-1010S-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20D-1010S-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20D-1010S-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20D-1010J-1		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-H20D-1010J-1-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-H20D-1010J-3		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-H20D-1010J-3-R		Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20A-88S-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20A-88S-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20A-88S-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20A-88S-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20A-88J-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20A-88J-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20A-88J-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20A-88J-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20A-810S-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20A-810S-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20A-810S-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20A-810S-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20A-810J-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20A-810J-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20A-810J-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20A-810J-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20A-108S-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20A-108S-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20A-108S-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20A-108S-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20A-108J-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20A-108J-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20A-108J-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20A-108J-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20A-1010S-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20A-1010S-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20A-1010S-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20A-1010S-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20A-1010J-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20A-1010J-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20A-1010J-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20A-1010J-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20B-88S-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20B-88S-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20B-88S-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20B-88S-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20B-88J-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20B-88J-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20B-88J-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20B-88J-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20B-810S-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20B-810S-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20B-810S-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20B-810S-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20B-810J-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20B-810J-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20B-810J-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20B-810J-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20B-108S-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20B-108S-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20B-108S-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20B-108S-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20B-108J-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20B-108J-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20B-108J-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20B-108J-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20B-1010S-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20B-1010S-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20B-1010S-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20B-1010S-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20B-1010J-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20B-1010J-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20B-1010J-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20B-1010J-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20D-88S-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20D-88S-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20D-88S-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20D-88S-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20D-88J-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20D-88J-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20D-88J-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20D-88J-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20D-810S-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20D-810S-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20D-810S-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20D-810S-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20D-810J-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20D-810J-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20D-810J-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20D-810J-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20D-108S-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20D-108S-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20D-108S-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20D-108S-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20D-108J-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20D-108J-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20D-108J-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20D-108J-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20D-1010S-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20D-1010S-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20D-1010S-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20D-1010S-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20D-1010J-1		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-L20D-1010J-1-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-L20D-1010J-3		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-L20D-1010J-3-R		Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20A-88S-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20A-88S-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20A-88S-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20A-88S-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20A-88J-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20A-88J-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20A-88J-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20A-88J-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20A-810S-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20A-810S-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20A-810S-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20A-810S-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20A-810J-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20A-810J-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20A-810J-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20A-810J-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20A-108S-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20A-108S-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20A-108S-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20A-108S-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20A-108J-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20A-108J-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20A-108J-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20A-108J-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20A-1010S-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20A-1010S-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20A-1010S-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20A-1010S-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20A-1010J-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20A-1010J-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20A-1010J-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20A-1010J-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20B-88S-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20B-88S-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20B-88S-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20B-88S-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20B-88J-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20B-88J-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20B-88J-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20B-88J-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20B-810S-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20B-810S-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20B-810S-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20B-810S-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20B-810J-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20B-810J-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20B-810J-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20B-810J-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20B-108S-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20B-108S-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20B-108S-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20B-108S-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20B-108J-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20B-108J-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20B-108J-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20B-108J-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20B-1010S-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20B-1010S-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20B-1010S-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20B-1010S-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20B-1010J-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20B-1010J-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20B-1010J-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20B-1010J-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20D-88S-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20D-88S-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20D-88S-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20D-88S-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20D-88J-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20D-88J-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20D-88J-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20D-88J-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20D-810S-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20D-810S-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20D-810S-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20D-810S-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20D-810J-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20D-810J-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20D-810J-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20D-810J-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20D-108S-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20D-108S-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20D-108S-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20D-108S-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20D-108J-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20D-108J-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20D-108J-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20D-108J-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20D-1010S-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20D-1010S-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20D-1010S-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20D-1010S-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20D-1010J-1		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-E20D-1010J-1-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-E20D-1010J-3		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-E20D-1010J-3-R		Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-T15B-88S-3		Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-T15B-88S-3-R		Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-T15B-88J-3		Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-T15B-88J-3-R		Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-T15B-810S-3		Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-T15B-810S-3-R		Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-T15B-810J-3		Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-T15B-810J-3-R		Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-T15B-108S-3		Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-T15B-108S-3-R		Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-T15B-108J-3		Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-T15B-108J-3-R		Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-T15B-1010S-3		Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-T15B-1010S-3-R		Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-T15B-1010J-3		Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-T15B-1010J-3-R		Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-T20B-88S-3		Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-T20B-88S-3-R		Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-T20B-88J-3		Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-T20B-88J-3-R		Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-T20B-810S-3		Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-T20B-810S-3-R		Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-T20B-810J-3		Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-T20B-810J-3-R		Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-T20B-108S-3		Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-T20B-108S-3-R		Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-T20B-108J-3		Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-T20B-108J-3-R		Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-T20B-1010S-3		Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-T20B-1010S-3-R		Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-T20B-1010J-3		Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-T20B-1010J-3-R		Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-86S-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07A-86S-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-86S-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07A-86S-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-86J-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07A-86J-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-86J-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07A-86J-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-88S-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07A-88S-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-88S-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07A-88S-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-88J-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07A-88J-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-88J-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07A-88J-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-810S-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07A-810S-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-810S-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07A-810S-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-810J-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07A-810J-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-810J-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07A-810J-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-106S-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07A-106S-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-106S-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07A-106S-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-106J-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07A-106J-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-106J-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07A-106J-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-108S-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07A-108S-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-108S-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07A-108S-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-108J-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07A-108J-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-108J-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07A-108J-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-1010S-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07A-1010S-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-1010S-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07A-1010S-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-1010J-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07A-1010J-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07A-1010J-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07A-1010J-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-86S-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07B-86S-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-86S-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07B-86S-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-86J-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07B-86J-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-86J-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07B-86J-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-88S-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07B-88S-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-88S-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07B-88S-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-88J-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07B-88J-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-88J-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07B-88J-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-810S-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07B-810S-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-810S-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07B-810S-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-810J-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07B-810J-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-810J-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07B-810J-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-106S-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07B-106S-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-106S-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07B-106S-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-106J-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07B-106J-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-106J-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07B-106J-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-108S-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07B-108S-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-108S-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07B-108S-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-108J-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07B-108J-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-108J-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07B-108J-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-1010S-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07B-1010S-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-1010S-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07B-1010S-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-1010J-1		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D07B-1010J-1-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D07B-1010J-3		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D07B-1010J-3-R		Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-86S-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10A-86S-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-86S-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10A-86S-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-86J-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10A-86J-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-86J-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10A-86J-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-88S-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10A-88S-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-88S-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10A-88S-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-88J-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10A-88J-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-88J-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10A-88J-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-810S-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10A-810S-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-810S-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10A-810S-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-810J-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10A-810J-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-810J-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10A-810J-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-106S-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10A-106S-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-106S-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10A-106S-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-106J-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10A-106J-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-106J-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10A-106J-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-108S-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10A-108S-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-108S-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10A-108S-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-108J-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10A-108J-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-108J-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10A-108J-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-1010S-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10A-1010S-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-1010S-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10A-1010S-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-1010J-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10A-1010J-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10A-1010J-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10A-1010J-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-86S-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10B-86S-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-86S-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10B-86S-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-86J-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10B-86J-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-86J-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10B-86J-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-88S-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10B-88S-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-88S-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10B-88S-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-88J-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10B-88J-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-88J-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10B-88J-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-810S-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10B-810S-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-810S-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10B-810S-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-810J-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10B-810J-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-810J-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10B-810J-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-106S-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10B-106S-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-106S-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10B-106S-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-106J-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10B-106J-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-106J-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10B-106J-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-108S-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10B-108S-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-108S-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10B-108S-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-108J-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10B-108J-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-108J-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10B-108J-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-1010S-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10B-1010S-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-1010S-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10B-1010S-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-1010J-1		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D10B-1010J-1-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D10B-1010J-3		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D10B-1010J-3-R		Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-86S-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12A-86S-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-86S-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12A-86S-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-86J-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12A-86J-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-86J-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12A-86J-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-88S-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12A-88S-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-88S-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12A-88S-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-88J-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12A-88J-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-88J-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12A-88J-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-810S-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12A-810S-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-810S-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12A-810S-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-810J-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12A-810J-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-810J-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12A-810J-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-106S-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12A-106S-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-106S-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12A-106S-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-106J-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12A-106J-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-106J-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12A-106J-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-108S-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12A-108S-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-108S-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12A-108S-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-108J-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12A-108J-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-108J-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12A-108J-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-1010S-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12A-1010S-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-1010S-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12A-1010S-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-1010J-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12A-1010J-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12A-1010J-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12A-1010J-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-86S-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12B-86S-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-86S-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12B-86S-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-86J-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12B-86J-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-86J-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12B-86J-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-88S-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12B-88S-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-88S-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12B-88S-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-88J-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12B-88J-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-88J-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12B-88J-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-810S-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12B-810S-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-810S-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12B-810S-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-810J-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12B-810J-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-810J-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12B-810J-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-106S-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12B-106S-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-106S-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12B-106S-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-106J-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12B-106J-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-106J-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12B-106J-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-108S-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12B-108S-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-108S-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12B-108S-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-108J-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12B-108J-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-108J-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12B-108J-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-1010S-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12B-1010S-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-1010S-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12B-1010S-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-1010J-1		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
VSQ-D12B-1010J-1-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSQ-D12B-1010J-3		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
VSQ-D12B-1010J-3-R		Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs

Vacuum EjectorsCKD

896 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD VSQ Vacuum Ejector Unit (31.5 mm, Large Flow)

Brand CKD·Vacuum Ejectors

Available part numbers (896)

VSQ-H15A-88S-1, VSQ-H15A-88S-1-R, VSQ-H15A-88S-3, VSQ-H15A-88S-3-R, VSQ-H15A-88J-1, VSQ-H15A-88J-1-R, VSQ-H15A-88J-3, VSQ-H15A-88J-3-R, VSQ-H15A-810S-1, VSQ-H15A-810S-1-R + 886 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VSQ-H15A-88S-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15A-88S-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15A-88S-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15A-88S-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15A-88J-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15A-88J-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15A-88J-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15A-88J-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15A-810S-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15A-810S-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15A-810S-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15A-810S-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15A-810J-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15A-810J-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15A-810J-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15A-810J-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15A-108S-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15A-108S-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15A-108S-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15A-108S-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15A-108J-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15A-108J-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15A-108J-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15A-108J-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15A-1010S-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15A-1010S-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15A-1010S-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15A-1010S-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15A-1010J-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15A-1010J-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15A-1010J-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15A-1010J-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15B-88S-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15B-88S-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15B-88S-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15B-88S-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15B-88J-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15B-88J-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15B-88J-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15B-88J-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15B-810S-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15B-810S-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15B-810S-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15B-810S-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15B-810J-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15B-810J-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15B-810J-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15B-810J-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15B-108S-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15B-108S-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15B-108S-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15B-108S-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15B-108J-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15B-108J-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15B-108J-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15B-108J-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15B-1010S-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15B-1010S-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15B-1010S-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15B-1010S-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15B-1010J-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15B-1010J-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15B-1010J-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15B-1010J-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15D-88S-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15D-88S-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15D-88S-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15D-88S-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15D-88J-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15D-88J-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15D-88J-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15D-88J-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15D-810S-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15D-810S-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15D-810S-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15D-810S-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15D-810J-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15D-810J-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15D-810J-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15D-810J-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15D-108S-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15D-108S-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15D-108S-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15D-108S-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15D-108J-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15D-108J-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15D-108J-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15D-108J-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15D-1010S-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15D-1010S-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15D-1010S-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15D-1010S-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15D-1010J-1	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H15D-1010J-1-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H15D-1010J-3	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H15D-1010J-3-R	Ejector: Single nozzle, H, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15A-88S-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15A-88S-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15A-88S-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15A-88S-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15A-88J-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15A-88J-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15A-88J-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15A-88J-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15A-810S-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15A-810S-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15A-810S-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15A-810S-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15A-810J-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15A-810J-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15A-810J-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15A-810J-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15A-108S-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15A-108S-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15A-108S-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15A-108S-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15A-108J-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15A-108J-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15A-108J-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15A-108J-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15A-1010S-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15A-1010S-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15A-1010S-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15A-1010S-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15A-1010J-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15A-1010J-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15A-1010J-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15A-1010J-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15B-88S-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15B-88S-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15B-88S-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15B-88S-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15B-88J-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15B-88J-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15B-88J-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15B-88J-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15B-810S-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15B-810S-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15B-810S-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15B-810S-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15B-810J-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15B-810J-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15B-810J-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15B-810J-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15B-108S-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15B-108S-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15B-108S-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15B-108S-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15B-108J-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15B-108J-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15B-108J-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15B-108J-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15B-1010S-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15B-1010S-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15B-1010S-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15B-1010S-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15B-1010J-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15B-1010J-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15B-1010J-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15B-1010J-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15D-88S-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15D-88S-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15D-88S-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15D-88S-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15D-88J-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15D-88J-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15D-88J-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15D-88J-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15D-810S-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15D-810S-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15D-810S-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15D-810S-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15D-810J-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15D-810J-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15D-810J-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15D-810J-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15D-108S-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15D-108S-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15D-108S-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15D-108S-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15D-108J-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15D-108J-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15D-108J-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15D-108J-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15D-1010S-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15D-1010S-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15D-1010S-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15D-1010S-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15D-1010J-1	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L15D-1010J-1-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L15D-1010J-3	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L15D-1010J-3-R	Ejector: Single nozzle, L, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15A-88S-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15A-88S-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15A-88S-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15A-88S-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15A-88J-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15A-88J-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15A-88J-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15A-88J-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15A-810S-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15A-810S-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15A-810S-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15A-810S-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15A-810J-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15A-810J-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15A-810J-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15A-810J-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15A-108S-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15A-108S-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15A-108S-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15A-108S-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15A-108J-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15A-108J-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15A-108J-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15A-108J-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15A-1010S-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15A-1010S-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15A-1010S-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15A-1010S-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15A-1010J-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15A-1010J-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15A-1010J-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15A-1010J-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15B-88S-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15B-88S-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15B-88S-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15B-88S-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15B-88J-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15B-88J-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15B-88J-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15B-88J-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15B-810S-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15B-810S-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15B-810S-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15B-810S-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15B-810J-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15B-810J-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15B-810J-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15B-810J-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15B-108S-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15B-108S-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15B-108S-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15B-108S-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15B-108J-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15B-108J-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15B-108J-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15B-108J-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15B-1010S-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15B-1010S-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15B-1010S-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15B-1010S-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15B-1010J-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15B-1010J-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15B-1010J-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15B-1010J-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15D-88S-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15D-88S-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15D-88S-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15D-88S-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15D-88J-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15D-88J-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15D-88J-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15D-88J-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15D-810S-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15D-810S-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15D-810S-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15D-810S-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15D-810J-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15D-810J-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15D-810J-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15D-810J-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15D-108S-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15D-108S-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15D-108S-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15D-108S-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15D-108J-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15D-108J-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15D-108J-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15D-108J-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15D-1010S-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15D-1010S-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15D-1010S-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15D-1010S-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15D-1010J-1	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E15D-1010J-1-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E15D-1010J-3	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E15D-1010J-3-R	Ejector: Single nozzle, E, nozzle 1.5 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20A-88S-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20A-88S-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20A-88S-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20A-88S-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20A-88J-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20A-88J-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20A-88J-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20A-88J-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20A-810S-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20A-810S-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20A-810S-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20A-810S-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20A-810J-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20A-810J-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20A-810J-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20A-810J-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20A-108S-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20A-108S-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20A-108S-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20A-108S-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20A-108J-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20A-108J-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20A-108J-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20A-108J-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20A-1010S-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20A-1010S-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20A-1010S-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20A-1010S-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20A-1010J-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20A-1010J-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20A-1010J-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20A-1010J-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20B-88S-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20B-88S-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20B-88S-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20B-88S-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20B-88J-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20B-88J-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20B-88J-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20B-88J-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20B-810S-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20B-810S-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20B-810S-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20B-810S-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20B-810J-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20B-810J-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20B-810J-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20B-810J-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20B-108S-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20B-108S-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20B-108S-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20B-108S-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20B-108J-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20B-108J-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20B-108J-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20B-108J-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20B-1010S-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20B-1010S-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20B-1010S-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20B-1010S-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20B-1010J-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20B-1010J-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20B-1010J-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20B-1010J-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20D-88S-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20D-88S-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20D-88S-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20D-88S-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20D-88J-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20D-88J-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20D-88J-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20D-88J-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20D-810S-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20D-810S-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20D-810S-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20D-810S-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20D-810J-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20D-810J-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20D-810J-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20D-810J-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20D-108S-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20D-108S-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20D-108S-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20D-108S-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20D-108J-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20D-108J-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20D-108J-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20D-108J-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20D-1010S-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20D-1010S-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20D-1010S-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20D-1010S-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20D-1010J-1	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-H20D-1010J-1-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-H20D-1010J-3	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-H20D-1010J-3-R	Ejector: Single nozzle, H, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20A-88S-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20A-88S-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20A-88S-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20A-88S-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20A-88J-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20A-88J-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20A-88J-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20A-88J-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20A-810S-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20A-810S-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20A-810S-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20A-810S-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20A-810J-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20A-810J-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20A-810J-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20A-810J-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20A-108S-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20A-108S-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20A-108S-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20A-108S-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20A-108J-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20A-108J-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20A-108J-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20A-108J-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20A-1010S-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20A-1010S-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20A-1010S-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20A-1010S-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20A-1010J-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20A-1010J-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20A-1010J-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20A-1010J-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20B-88S-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20B-88S-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20B-88S-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20B-88S-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20B-88J-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20B-88J-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20B-88J-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20B-88J-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20B-810S-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20B-810S-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20B-810S-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20B-810S-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20B-810J-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20B-810J-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20B-810J-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20B-810J-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20B-108S-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20B-108S-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20B-108S-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20B-108S-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20B-108J-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20B-108J-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20B-108J-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20B-108J-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20B-1010S-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20B-1010S-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20B-1010S-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20B-1010S-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20B-1010J-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20B-1010J-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20B-1010J-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20B-1010J-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20D-88S-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20D-88S-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20D-88S-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20D-88S-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20D-88J-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20D-88J-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20D-88J-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20D-88J-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20D-810S-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20D-810S-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20D-810S-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20D-810S-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20D-810J-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20D-810J-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20D-810J-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20D-810J-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20D-108S-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20D-108S-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20D-108S-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20D-108S-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20D-108J-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20D-108J-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20D-108J-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20D-108J-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20D-1010S-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20D-1010S-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20D-1010S-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20D-1010S-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20D-1010J-1	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-L20D-1010J-1-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-L20D-1010J-3	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-L20D-1010J-3-R	Ejector: Single nozzle, L, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20A-88S-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20A-88S-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20A-88S-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20A-88S-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20A-88J-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20A-88J-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20A-88J-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20A-88J-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20A-810S-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20A-810S-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20A-810S-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20A-810S-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20A-810J-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20A-810J-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20A-810J-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20A-810J-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20A-108S-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20A-108S-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20A-108S-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20A-108S-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20A-108J-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20A-108J-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20A-108J-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20A-108J-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20A-1010S-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20A-1010S-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20A-1010S-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20A-1010S-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20A-1010J-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20A-1010J-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20A-1010J-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20A-1010J-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20B-88S-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20B-88S-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20B-88S-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20B-88S-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20B-88J-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20B-88J-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20B-88J-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20B-88J-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20B-810S-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20B-810S-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20B-810S-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20B-810S-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20B-810J-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20B-810J-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20B-810J-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20B-810J-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20B-108S-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20B-108S-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20B-108S-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20B-108S-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20B-108J-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20B-108J-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20B-108J-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20B-108J-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20B-1010S-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20B-1010S-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20B-1010S-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20B-1010S-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20B-1010J-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20B-1010J-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20B-1010J-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20B-1010J-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20D-88S-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20D-88S-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20D-88S-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20D-88S-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20D-88J-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20D-88J-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20D-88J-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20D-88J-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20D-810S-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20D-810S-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20D-810S-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20D-810S-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20D-810J-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20D-810J-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20D-810J-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20D-810J-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20D-108S-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20D-108S-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20D-108S-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20D-108S-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20D-108J-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20D-108J-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20D-108J-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20D-108J-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20D-1010S-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20D-1010S-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20D-1010S-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20D-1010S-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20D-1010J-1	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-E20D-1010J-1-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-E20D-1010J-3	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-E20D-1010J-3-R	Ejector: Single nozzle, E, nozzle 2.0 mm \| Supply valve: Self-holding \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-T15B-88S-3	Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-T15B-88S-3-R	Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-T15B-88J-3	Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-T15B-88J-3-R	Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-T15B-810S-3	Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-T15B-810S-3-R	Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-T15B-810J-3	Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-T15B-810J-3-R	Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-T15B-108S-3	Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-T15B-108S-3-R	Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-T15B-108J-3	Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-T15B-108J-3-R	Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-T15B-1010S-3	Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-T15B-1010S-3-R	Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-T15B-1010J-3	Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-T15B-1010J-3-R	Ejector: Twin nozzle, nozzle 1.5 (0.7) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-T20B-88S-3	Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-T20B-88S-3-R	Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-T20B-88J-3	Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-T20B-88J-3-R	Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-T20B-810S-3	Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-T20B-810S-3-R	Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-T20B-810J-3	Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-T20B-810J-3-R	Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-T20B-108S-3	Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-T20B-108S-3-R	Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-T20B-108J-3	Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-T20B-108J-3-R	Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-T20B-1010S-3	Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-T20B-1010S-3-R	Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-T20B-1010J-3	Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-T20B-1010J-3-R	Ejector: Twin nozzle, nozzle 2.0 (1.0) mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-86S-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07A-86S-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-86S-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07A-86S-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-86J-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07A-86J-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-86J-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07A-86J-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-88S-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07A-88S-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-88S-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07A-88S-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-88J-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07A-88J-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-88J-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07A-88J-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-810S-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07A-810S-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-810S-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07A-810S-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-810J-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07A-810J-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-810J-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07A-810J-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-106S-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07A-106S-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-106S-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07A-106S-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-106J-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07A-106J-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-106J-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07A-106J-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-108S-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07A-108S-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-108S-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07A-108S-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-108J-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07A-108J-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-108J-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07A-108J-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-1010S-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07A-1010S-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-1010S-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07A-1010S-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-1010J-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07A-1010J-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07A-1010J-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07A-1010J-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-86S-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07B-86S-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-86S-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07B-86S-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-86J-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07B-86J-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-86J-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07B-86J-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-88S-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07B-88S-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-88S-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07B-88S-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-88J-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07B-88J-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-88J-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07B-88J-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-810S-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07B-810S-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-810S-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07B-810S-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-810J-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07B-810J-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-810J-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07B-810J-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-106S-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07B-106S-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-106S-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07B-106S-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-106J-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07B-106J-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-106J-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07B-106J-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-108S-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07B-108S-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-108S-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07B-108S-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-108J-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07B-108J-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-108J-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07B-108J-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-1010S-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07B-1010S-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-1010S-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07B-1010S-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-1010J-1	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D07B-1010J-1-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D07B-1010J-3	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D07B-1010J-3-R	Ejector: 2-stage nozzle, nozzle 0.7 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-86S-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10A-86S-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-86S-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10A-86S-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-86J-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10A-86J-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-86J-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10A-86J-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-88S-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10A-88S-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-88S-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10A-88S-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-88J-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10A-88J-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-88J-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10A-88J-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-810S-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10A-810S-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-810S-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10A-810S-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-810J-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10A-810J-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-810J-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10A-810J-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-106S-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10A-106S-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-106S-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10A-106S-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-106J-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10A-106J-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-106J-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10A-106J-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-108S-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10A-108S-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-108S-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10A-108S-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-108J-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10A-108J-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-108J-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10A-108J-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-1010S-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10A-1010S-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-1010S-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10A-1010S-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-1010J-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10A-1010J-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10A-1010J-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10A-1010J-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-86S-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10B-86S-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-86S-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10B-86S-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-86J-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10B-86J-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-86J-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10B-86J-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-88S-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10B-88S-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-88S-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10B-88S-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-88J-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10B-88J-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-88J-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10B-88J-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-810S-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10B-810S-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-810S-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10B-810S-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-810J-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10B-810J-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-810J-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10B-810J-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-106S-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10B-106S-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-106S-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10B-106S-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-106J-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10B-106J-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-106J-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10B-106J-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-108S-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10B-108S-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-108S-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10B-108S-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-108J-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10B-108J-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-108J-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10B-108J-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-1010S-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10B-1010S-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-1010S-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10B-1010S-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-1010J-1	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D10B-1010J-1-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D10B-1010J-3	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D10B-1010J-3-R	Ejector: 2-stage nozzle, nozzle 1.0 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-86S-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12A-86S-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-86S-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12A-86S-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-86J-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12A-86J-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-86J-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12A-86J-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-88S-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12A-88S-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-88S-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12A-88S-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-88J-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12A-88J-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-88J-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12A-88J-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-810S-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12A-810S-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-810S-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12A-810S-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-810J-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12A-810J-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-810J-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12A-810J-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-106S-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12A-106S-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-106S-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12A-106S-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-106J-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12A-106J-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-106J-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12A-106J-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-108S-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12A-108S-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-108S-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12A-108S-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-108J-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12A-108J-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-108J-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12A-108J-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-1010S-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12A-1010S-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-1010S-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12A-1010S-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-1010J-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12A-1010J-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12A-1010J-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12A-1010J-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally open \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-86S-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12B-86S-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-86S-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12B-86S-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-86J-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12B-86J-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-86J-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12B-86J-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-88S-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12B-88S-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-88S-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12B-88S-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-88J-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12B-88J-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-88J-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12B-88J-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-810S-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12B-810S-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-810S-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12B-810S-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-810J-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12B-810J-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-810J-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12B-810J-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi8 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-106S-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12B-106S-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-106S-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12B-106S-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-106J-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12B-106J-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-106J-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12B-106J-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi6 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-108S-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12B-108S-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-108S-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12B-108S-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-108J-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12B-108J-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-108J-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12B-108J-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi8 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-1010S-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12B-1010S-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-1010S-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12B-1010S-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: Silencer, open to atmosphere \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-1010J-1	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: None
	VSQ-D12B-1010J-1-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSQ-D12B-1010J-3	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: None
	VSQ-D12B-1010J-3-R	Ejector: 2-stage nozzle, nozzle 1.2 mm \| Supply valve: Normally closed \| Ports V/PS: phi10 / phi10 push-in \| Exhaust: phi12 push-in, ported \| Valve voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD VSQ Vacuum Ejector Unit (31.5 mm, Large Flow)
