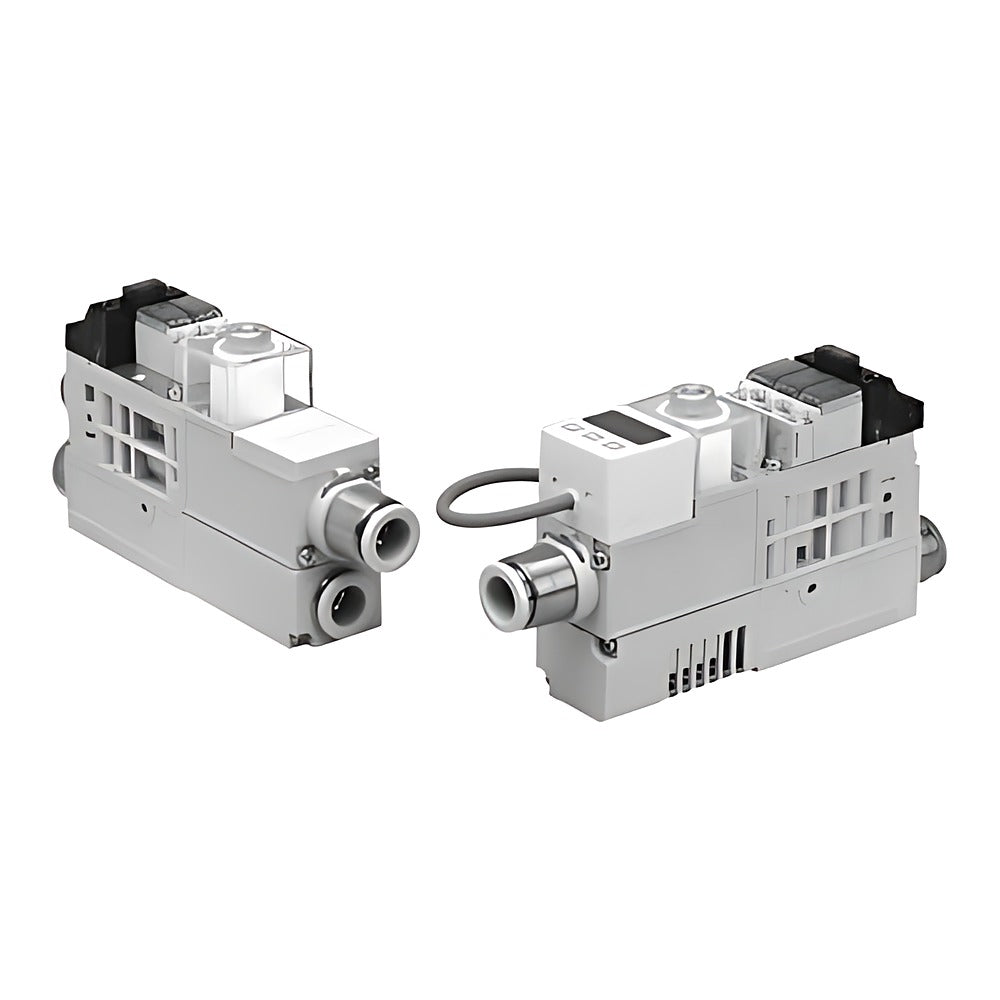

CKD VSQP Vacuum Switching Unit (31.5 mm, Large Flow)

CKD VSQP Vacuum Switching Unit (31.5 mm, Large Flow)

CKD VSQP series 31.5 mm wide single vacuum switching unit for large-flow vacuum pressure control in vacuum pump systems, with pilot-operated supply and break valves, filter and optional digital pressure switch.

Key features

  • 31.5 mm wide body optimised for large vacuum flow control
  • Vacuum supply valve normally open (A) or normally closed (B)
  • Vacuum port and vacuum supply port ø10 or ø12 push-in fittings
  • Optional digital vacuum pressure switch with 2 NPN outputs (R)
  • Built-in 10 um PVF vacuum filter, replacement element VSQ-E; break flow 0 to 50 L/min adjustable
  • Pilot valves DC24V (0.55 W) or AC100V (1 VA), push-lock manual override

Specifications

Fluid Air
Operating pressure 0.3 to 0.7 MPa
Vacuum pressure -100 to 0 kPa
Ambient and fluid temperature 5 to 50°C
Valves Pilot operated poppet
Effective area Supply 16.5 mm2 (Cv 0.89), break 3.5 mm2 (Cv 0.19)
Break air flow 0 to 50 L/min (ANR) at 0.5 MPa
Vacuum filter PVF, 10 um, 1507 mm2
Source CKD Korea catalog CC-796K-5, p. 297-307
VSQP-A1010-1 Supply valve: Normally open | Vacuum port V: ø10 push-in | Vacuum supply PV: ø10 push-in | Voltage: AC100V | Pressure switch: None
VSQP-A1010-1-R Supply valve: Normally open | Vacuum port V: ø10 push-in | Vacuum supply PV: ø10 push-in | Voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSQP-A1010-3 Supply valve: Normally open | Vacuum port V: ø10 push-in | Vacuum supply PV: ø10 push-in | Voltage: DC24V | Pressure switch: None
VSQP-A1010-3-R Supply valve: Normally open | Vacuum port V: ø10 push-in | Vacuum supply PV: ø10 push-in | Voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSQP-A1012-1 Supply valve: Normally open | Vacuum port V: ø10 push-in | Vacuum supply PV: ø12 push-in | Voltage: AC100V | Pressure switch: None
VSQP-A1012-1-R Supply valve: Normally open | Vacuum port V: ø10 push-in | Vacuum supply PV: ø12 push-in | Voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSQP-A1012-3 Supply valve: Normally open | Vacuum port V: ø10 push-in | Vacuum supply PV: ø12 push-in | Voltage: DC24V | Pressure switch: None
VSQP-A1012-3-R Supply valve: Normally open | Vacuum port V: ø10 push-in | Vacuum supply PV: ø12 push-in | Voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSQP-A1210-1 Supply valve: Normally open | Vacuum port V: ø12 push-in | Vacuum supply PV: ø10 push-in | Voltage: AC100V | Pressure switch: None
VSQP-A1210-1-R Supply valve: Normally open | Vacuum port V: ø12 push-in | Vacuum supply PV: ø10 push-in | Voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSQP-A1210-3 Supply valve: Normally open | Vacuum port V: ø12 push-in | Vacuum supply PV: ø10 push-in | Voltage: DC24V | Pressure switch: None
VSQP-A1210-3-R Supply valve: Normally open | Vacuum port V: ø12 push-in | Vacuum supply PV: ø10 push-in | Voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSQP-A1212-1 Supply valve: Normally open | Vacuum port V: ø12 push-in | Vacuum supply PV: ø12 push-in | Voltage: AC100V | Pressure switch: None
VSQP-A1212-1-R Supply valve: Normally open | Vacuum port V: ø12 push-in | Vacuum supply PV: ø12 push-in | Voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSQP-A1212-3 Supply valve: Normally open | Vacuum port V: ø12 push-in | Vacuum supply PV: ø12 push-in | Voltage: DC24V | Pressure switch: None
VSQP-A1212-3-R Supply valve: Normally open | Vacuum port V: ø12 push-in | Vacuum supply PV: ø12 push-in | Voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSQP-B1010-1 Supply valve: Normally closed | Vacuum port V: ø10 push-in | Vacuum supply PV: ø10 push-in | Voltage: AC100V | Pressure switch: None
VSQP-B1010-1-R Supply valve: Normally closed | Vacuum port V: ø10 push-in | Vacuum supply PV: ø10 push-in | Voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSQP-B1010-3 Supply valve: Normally closed | Vacuum port V: ø10 push-in | Vacuum supply PV: ø10 push-in | Voltage: DC24V | Pressure switch: None
VSQP-B1010-3-R Supply valve: Normally closed | Vacuum port V: ø10 push-in | Vacuum supply PV: ø10 push-in | Voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSQP-B1012-1 Supply valve: Normally closed | Vacuum port V: ø10 push-in | Vacuum supply PV: ø12 push-in | Voltage: AC100V | Pressure switch: None
VSQP-B1012-1-R Supply valve: Normally closed | Vacuum port V: ø10 push-in | Vacuum supply PV: ø12 push-in | Voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSQP-B1012-3 Supply valve: Normally closed | Vacuum port V: ø10 push-in | Vacuum supply PV: ø12 push-in | Voltage: DC24V | Pressure switch: None
VSQP-B1012-3-R Supply valve: Normally closed | Vacuum port V: ø10 push-in | Vacuum supply PV: ø12 push-in | Voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSQP-B1210-1 Supply valve: Normally closed | Vacuum port V: ø12 push-in | Vacuum supply PV: ø10 push-in | Voltage: AC100V | Pressure switch: None
VSQP-B1210-1-R Supply valve: Normally closed | Vacuum port V: ø12 push-in | Vacuum supply PV: ø10 push-in | Voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSQP-B1210-3 Supply valve: Normally closed | Vacuum port V: ø12 push-in | Vacuum supply PV: ø10 push-in | Voltage: DC24V | Pressure switch: None
VSQP-B1210-3-R Supply valve: Normally closed | Vacuum port V: ø12 push-in | Vacuum supply PV: ø10 push-in | Voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSQP-B1212-1 Supply valve: Normally closed | Vacuum port V: ø12 push-in | Vacuum supply PV: ø12 push-in | Voltage: AC100V | Pressure switch: None
VSQP-B1212-1-R Supply valve: Normally closed | Vacuum port V: ø12 push-in | Vacuum supply PV: ø12 push-in | Voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSQP-B1212-3 Supply valve: Normally closed | Vacuum port V: ø12 push-in | Vacuum supply PV: ø12 push-in | Voltage: DC24V | Pressure switch: None
VSQP-B1212-3-R Supply valve: Normally closed | Vacuum port V: ø12 push-in | Vacuum supply PV: ø12 push-in | Voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSQ-E Supply valve: - | Vacuum port V: - | Vacuum supply PV: - | Voltage: - | Pressure switch: Spare filter element
