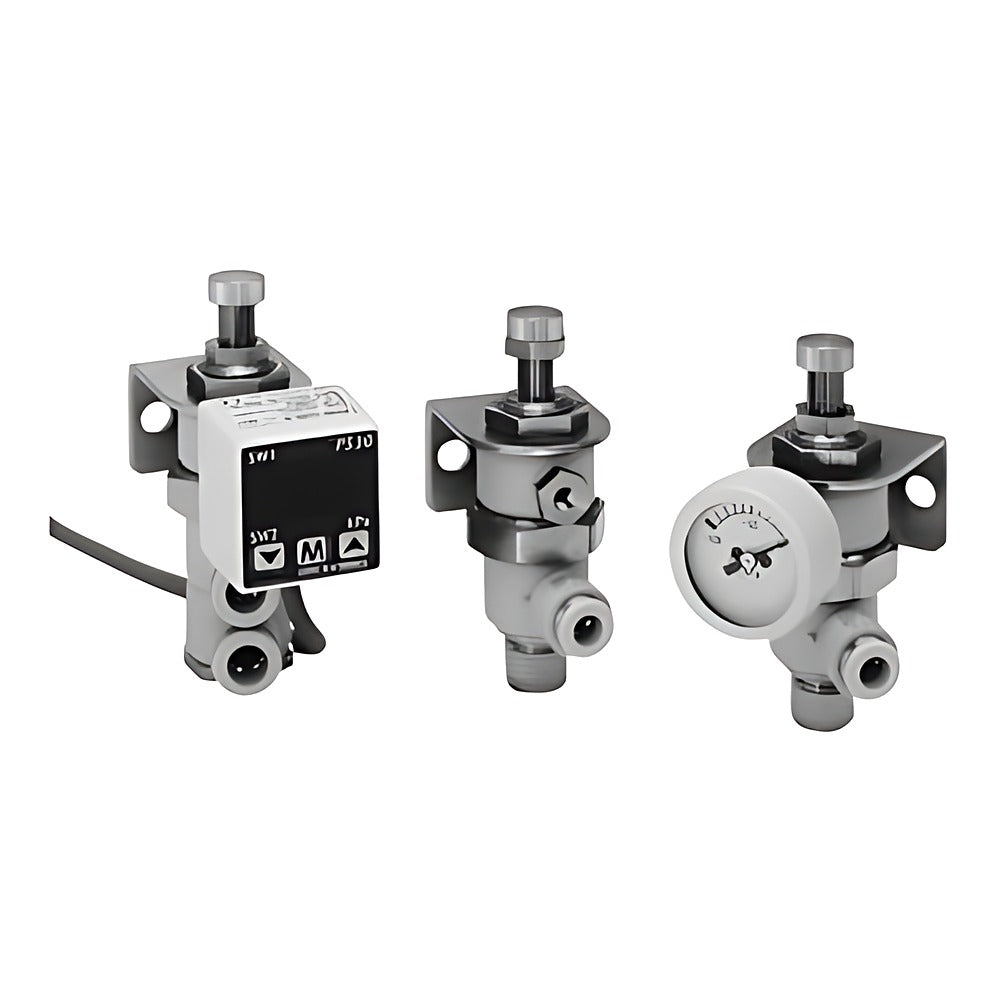

CKD VSRVV Compact Vacuum Regulator (6/8 mm Push-in)

CKD VSRVV Compact Vacuum Regulator (6/8 mm Push-in)

The CKD SELVACS VSRVV compact vacuum regulator controls vacuum pressure at the source or at individual pads, with 6 or 8 mm push-in connections.

Key features

  • Suited to supply-side control of small vacuum pumps or individual pad control between valve and pad
  • Elbow A type mounts directly on the pump vacuum port; elbow B type mounts on 150/200 mm pad holders
  • Union type for in-line installation; bracket fitted as standard on union type
  • Pressure display: none (M5 port), 30 mm vacuum gauge, or large digital vacuum switch with analog output
  • Set pressure -100 to -1.3 kPa, suction flow 30 L/min (ANR)
  • Spare bracket VSRVV-B

Specifications

Fluid Air
Operating pressure -100 to 100 kPa (gauge type -100 to 0 kPa)
Set pressure -100 to -1.3 kPa
Suction flow 30 L/min (ANR)
Operating temperature 0 to 50 C (gauge/switch type 0 to 40 C)
Digital switch power 12 to 24 VDC +/-10%
Digital switch outputs NPN open collector, 1-5 V analog
Body PBT, nickel-plated brass
Source CKD Korea catalog CC-796K-5, p. 593-602
VSRVV-6AG Connection: 6 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: 30 mm vacuum gauge | Bracket: None
VSRVV-6AG-B Connection: 6 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: 30 mm vacuum gauge | Bracket: With bracket
VSRVV-6ARA Connection: 6 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: Digital switch, analog out | Bracket: None
VSRVV-6ARA-B Connection: 6 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: Digital switch, analog out | Bracket: With bracket
VSRVV-6AM Connection: 6 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: None (M5 male port) | Bracket: None
VSRVV-6AM-B Connection: 6 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: None (M5 male port) | Bracket: With bracket
VSRVV-6BG Connection: 6 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: 30 mm vacuum gauge | Bracket: None
VSRVV-6BG-B Connection: 6 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: 30 mm vacuum gauge | Bracket: With bracket
VSRVV-6BRA Connection: 6 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: Digital switch, analog out | Bracket: None
VSRVV-6BRA-B Connection: 6 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: Digital switch, analog out | Bracket: With bracket
VSRVV-6BM Connection: 6 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: None (M5 male port) | Bracket: None
VSRVV-6BM-B Connection: 6 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: None (M5 male port) | Bracket: With bracket
VSRVV-6UG Connection: 6 mm push-in | Shape: Union | Pressure display: 30 mm vacuum gauge | Bracket: Standard (union)
VSRVV-6URA Connection: 6 mm push-in | Shape: Union | Pressure display: Digital switch, analog out | Bracket: Standard (union)
VSRVV-6UM Connection: 6 mm push-in | Shape: Union | Pressure display: None (M5 male port) | Bracket: Standard (union)
VSRVV-8AG Connection: 8 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: 30 mm vacuum gauge | Bracket: None
VSRVV-8AG-B Connection: 8 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: 30 mm vacuum gauge | Bracket: With bracket
VSRVV-8ARA Connection: 8 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: Digital switch, analog out | Bracket: None
VSRVV-8ARA-B Connection: 8 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: Digital switch, analog out | Bracket: With bracket
VSRVV-8AM Connection: 8 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: None (M5 male port) | Bracket: None
VSRVV-8AM-B Connection: 8 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: None (M5 male port) | Bracket: With bracket
VSRVV-8BG Connection: 8 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: 30 mm vacuum gauge | Bracket: None
VSRVV-8BG-B Connection: 8 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: 30 mm vacuum gauge | Bracket: With bracket
VSRVV-8BRA Connection: 8 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: Digital switch, analog out | Bracket: None
VSRVV-8BRA-B Connection: 8 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: Digital switch, analog out | Bracket: With bracket
VSRVV-8BM Connection: 8 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: None (M5 male port) | Bracket: None
VSRVV-8BM-B Connection: 8 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: None (M5 male port) | Bracket: With bracket
VSRVV-8UG Connection: 8 mm push-in | Shape: Union | Pressure display: 30 mm vacuum gauge | Bracket: Standard (union)
VSRVV-8URA Connection: 8 mm push-in | Shape: Union | Pressure display: Digital switch, analog out | Bracket: Standard (union)
VSRVV-8UM Connection: 8 mm push-in | Shape: Union | Pressure display: None (M5 male port) | Bracket: Standard (union)
VSRVV-B Connection: - | Shape: Bracket (spare part) | Pressure display: - | Bracket: Bracket only
Vacuum RegulatorsCKD
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD VSRVV Compact Vacuum Regulator (6/8 mm Push-in)

Brand CKD·Vacuum Regulators

Available part numbers (31)

VSRVV-6AG, VSRVV-6AG-B, VSRVV-6ARA, VSRVV-6ARA-B, VSRVV-6AM, VSRVV-6AM-B, VSRVV-6BG, VSRVV-6BG-B, VSRVV-6BRA, VSRVV-6BRA-B + 21 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VSRVV-6AGConnection: 6 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: 30 mm vacuum gauge | Bracket: None
VSRVV-6AG-BConnection: 6 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: 30 mm vacuum gauge | Bracket: With bracket
VSRVV-6ARAConnection: 6 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: Digital switch, analog out | Bracket: None
VSRVV-6ARA-BConnection: 6 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: Digital switch, analog out | Bracket: With bracket
VSRVV-6AMConnection: 6 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: None (M5 male port) | Bracket: None
VSRVV-6AM-BConnection: 6 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: None (M5 male port) | Bracket: With bracket
VSRVV-6BGConnection: 6 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: 30 mm vacuum gauge | Bracket: None
VSRVV-6BG-BConnection: 6 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: 30 mm vacuum gauge | Bracket: With bracket
VSRVV-6BRAConnection: 6 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: Digital switch, analog out | Bracket: None
VSRVV-6BRA-BConnection: 6 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: Digital switch, analog out | Bracket: With bracket
VSRVV-6BMConnection: 6 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: None (M5 male port) | Bracket: None
VSRVV-6BM-BConnection: 6 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: None (M5 male port) | Bracket: With bracket
VSRVV-6UGConnection: 6 mm push-in | Shape: Union | Pressure display: 30 mm vacuum gauge | Bracket: Standard (union)
VSRVV-6URAConnection: 6 mm push-in | Shape: Union | Pressure display: Digital switch, analog out | Bracket: Standard (union)
VSRVV-6UMConnection: 6 mm push-in | Shape: Union | Pressure display: None (M5 male port) | Bracket: Standard (union)
VSRVV-8AGConnection: 8 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: 30 mm vacuum gauge | Bracket: None
VSRVV-8AG-BConnection: 8 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: 30 mm vacuum gauge | Bracket: With bracket
VSRVV-8ARAConnection: 8 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: Digital switch, analog out | Bracket: None
VSRVV-8ARA-BConnection: 8 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: Digital switch, analog out | Bracket: With bracket
VSRVV-8AMConnection: 8 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: None (M5 male port) | Bracket: None
VSRVV-8AM-BConnection: 8 mm push-in | Shape: Elbow A (pump direct mount) | Pressure display: None (M5 male port) | Bracket: With bracket
VSRVV-8BGConnection: 8 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: 30 mm vacuum gauge | Bracket: None
VSRVV-8BG-BConnection: 8 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: 30 mm vacuum gauge | Bracket: With bracket
VSRVV-8BRAConnection: 8 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: Digital switch, analog out | Bracket: None
VSRVV-8BRA-BConnection: 8 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: Digital switch, analog out | Bracket: With bracket
VSRVV-8BMConnection: 8 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: None (M5 male port) | Bracket: None
VSRVV-8BM-BConnection: 8 mm push-in | Shape: Elbow B (pad direct mount) | Pressure display: None (M5 male port) | Bracket: With bracket
VSRVV-8UGConnection: 8 mm push-in | Shape: Union | Pressure display: 30 mm vacuum gauge | Bracket: Standard (union)
VSRVV-8URAConnection: 8 mm push-in | Shape: Union | Pressure display: Digital switch, analog out | Bracket: Standard (union)
VSRVV-8UMConnection: 8 mm push-in | Shape: Union | Pressure display: None (M5 male port) | Bracket: Standard (union)
VSRVV-BConnection: - | Shape: Bracket (spare part) | Pressure display: - | Bracket: Bracket only
