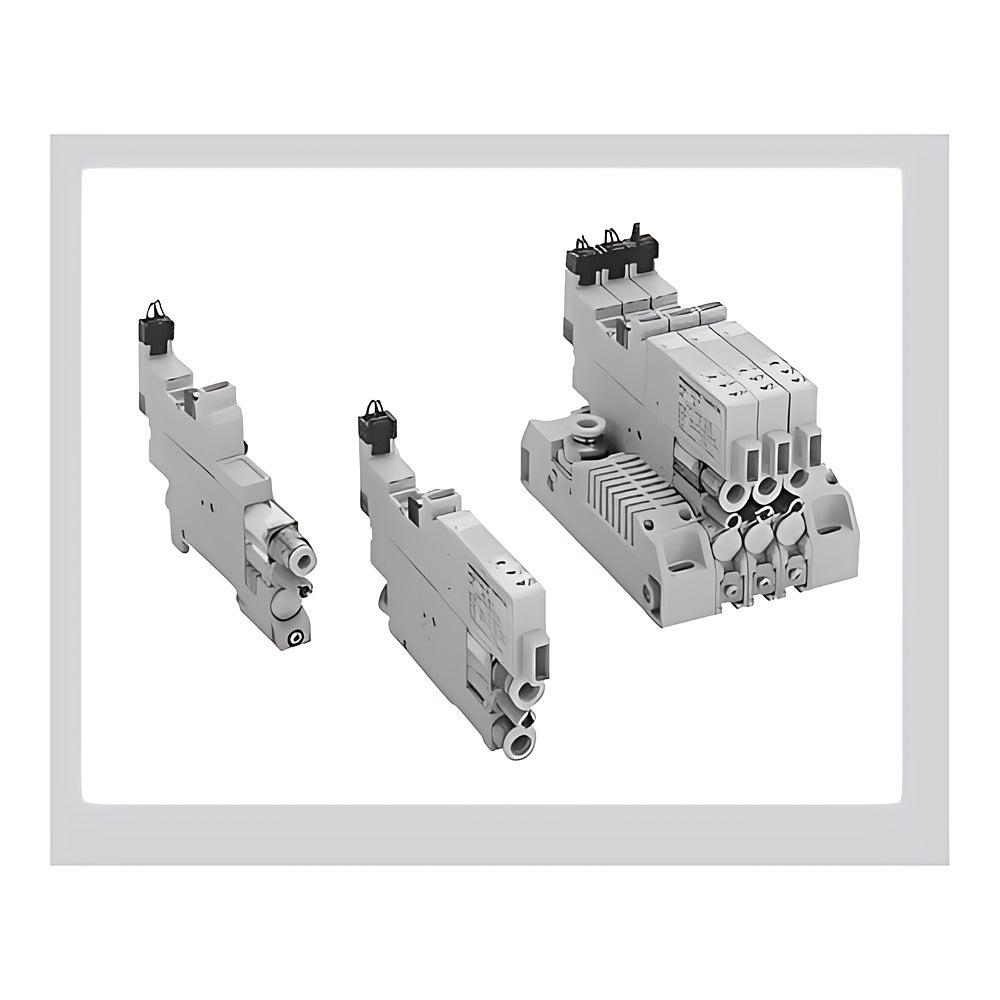

• CKD VSXM Vacuum Ejector Unit (10.5 mm Manifold Type, Station Units)
1 1

CKD VSXM Vacuum Ejector Unit (10.5 mm Manifold Type, Station Units)

CKD VSXM Vacuum Ejector Unit (10.5 mm Manifold Type, Station Units)

CKD SELVACS VSXM 10.5 mm manifold-type vacuum ejector station units, mounted on a VSXM manifold base with common air supply and exhaust (2 to 10 stations).

Key features

  • Station unit codes per the "manifold unit" ordering line, e.g. VSXM-H07D-6-3-DW
  • Complete manifold code adds supply port (4/6/8/10), exhaust (S silencer or 6/8/10 ported) and station count 2-10: e.g. VSXM-H07D-61010-3-10-DW
  • Base only: VSXM + PS port + EX port + stations; mixed manifolds (Z/00/CX) ordered with the mix manifold specification sheet
  • Normally closed or power-saving self-holding supply valve, nozzle 0.5/0.7/1.0 mm
  • Spare part: manifold silencer element VSXPM-SE

Specifications

Fluid Air
Operating pressure 0.3 to 0.7 MPa
Ambient temperature 5 to 50 C
Station pitch 11 mm
Stations 2 to 10
Vacuum filter PVF, 10 um (element VSX-E)
Source CKD Korea catalog CC-796K-5, p. 149-178
VSXM-H05B-4-1 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H05B-4-1-DW Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H05B-4-1-DA Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H05B-4-1-AO Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H05B-4-3 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H05B-4-3-DW Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H05B-4-3-DA Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H05B-4-3-AO Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H05B-6-1 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H05B-6-1-DW Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H05B-6-1-DA Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H05B-6-1-AO Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H05B-6-3 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H05B-6-3-DW Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H05B-6-3-DA Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H05B-6-3-AO Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H05D-4-1 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H05D-4-1-DW Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H05D-4-1-DA Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H05D-4-1-AO Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H05D-4-3 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H05D-4-3-DW Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H05D-4-3-DA Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H05D-4-3-AO Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H05D-6-1 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H05D-6-1-DW Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H05D-6-1-DA Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H05D-6-1-AO Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H05D-6-3 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H05D-6-3-DW Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H05D-6-3-DA Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H05D-6-3-AO Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H07B-4-1 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H07B-4-1-DW Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H07B-4-1-DA Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H07B-4-1-AO Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H07B-4-3 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H07B-4-3-DW Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H07B-4-3-DA Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H07B-4-3-AO Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H07B-6-1 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H07B-6-1-DW Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H07B-6-1-DA Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H07B-6-1-AO Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H07B-6-3 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H07B-6-3-DW Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H07B-6-3-DA Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H07B-6-3-AO Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H07D-4-1 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H07D-4-1-DW Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H07D-4-1-DA Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H07D-4-1-AO Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H07D-4-3 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H07D-4-3-DW Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H07D-4-3-DA Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H07D-4-3-AO Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H07D-6-1 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H07D-6-1-DW Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H07D-6-1-DA Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H07D-6-1-AO Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H07D-6-3 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H07D-6-3-DW Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H07D-6-3-DA Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H07D-6-3-AO Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H10B-4-1 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H10B-4-1-DW Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H10B-4-1-DA Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H10B-4-1-AO Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H10B-4-3 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H10B-4-3-DW Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H10B-4-3-DA Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H10B-4-3-AO Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H10B-6-1 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H10B-6-1-DW Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H10B-6-1-DA Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H10B-6-1-AO Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H10B-6-3 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H10B-6-3-DW Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H10B-6-3-DA Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H10B-6-3-AO Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H10D-4-1 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H10D-4-1-DW Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H10D-4-1-DA Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H10D-4-1-AO Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H10D-4-3 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H10D-4-3-DW Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H10D-4-3-DA Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H10D-4-3-AO Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H10D-6-1 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H10D-6-1-DW Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H10D-6-1-DA Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H10D-6-1-AO Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H10D-6-3 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H10D-6-3-DW Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H10D-6-3-DA Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H10D-6-3-AO Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L05B-4-1 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L05B-4-1-DW Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L05B-4-1-DA Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L05B-4-1-AO Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L05B-4-3 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L05B-4-3-DW Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L05B-4-3-DA Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L05B-4-3-AO Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L05B-6-1 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L05B-6-1-DW Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L05B-6-1-DA Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L05B-6-1-AO Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L05B-6-3 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L05B-6-3-DW Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L05B-6-3-DA Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L05B-6-3-AO Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L05D-4-1 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L05D-4-1-DW Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L05D-4-1-DA Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L05D-4-1-AO Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L05D-4-3 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L05D-4-3-DW Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L05D-4-3-DA Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L05D-4-3-AO Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L05D-6-1 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L05D-6-1-DW Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L05D-6-1-DA Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L05D-6-1-AO Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L05D-6-3 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L05D-6-3-DW Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L05D-6-3-DA Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L05D-6-3-AO Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L07B-4-1 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L07B-4-1-DW Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L07B-4-1-DA Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L07B-4-1-AO Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L07B-4-3 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L07B-4-3-DW Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L07B-4-3-DA Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L07B-4-3-AO Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L07B-6-1 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L07B-6-1-DW Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L07B-6-1-DA Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L07B-6-1-AO Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L07B-6-3 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L07B-6-3-DW Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L07B-6-3-DA Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L07B-6-3-AO Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L07D-4-1 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L07D-4-1-DW Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L07D-4-1-DA Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L07D-4-1-AO Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L07D-4-3 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L07D-4-3-DW Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L07D-4-3-DA Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L07D-4-3-AO Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L07D-6-1 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L07D-6-1-DW Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L07D-6-1-DA Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L07D-6-1-AO Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L07D-6-3 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L07D-6-3-DW Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L07D-6-3-DA Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L07D-6-3-AO Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L10B-4-1 Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L10B-4-1-DW Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L10B-4-1-DA Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L10B-4-1-AO Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L10B-4-3 Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L10B-4-3-DW Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L10B-4-3-DA Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L10B-4-3-AO Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L10B-6-1 Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L10B-6-1-DW Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L10B-6-1-DA Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L10B-6-1-AO Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L10B-6-3 Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L10B-6-3-DW Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L10B-6-3-DA Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L10B-6-3-AO Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L10D-4-1 Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L10D-4-1-DW Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L10D-4-1-DA Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L10D-4-1-AO Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L10D-4-3 Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L10D-4-3-DW Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L10D-4-3-DA Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L10D-4-3-AO Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L10D-6-1 Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L10D-6-1-DW Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L10D-6-1-DA Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L10D-6-1-AO Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L10D-6-3 Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L10D-6-3-DW Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L10D-6-3-DA Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L10D-6-3-AO Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E05B-4-1 Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E05B-4-1-DW Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E05B-4-1-DA Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E05B-4-1-AO Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E05B-4-3 Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E05B-4-3-DW Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E05B-4-3-DA Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E05B-4-3-AO Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E05B-6-1 Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E05B-6-1-DW Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E05B-6-1-DA Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E05B-6-1-AO Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E05B-6-3 Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E05B-6-3-DW Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E05B-6-3-DA Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E05B-6-3-AO Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E05D-4-1 Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E05D-4-1-DW Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E05D-4-1-DA Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E05D-4-1-AO Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E05D-4-3 Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E05D-4-3-DW Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E05D-4-3-DA Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E05D-4-3-AO Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E05D-6-1 Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E05D-6-1-DW Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E05D-6-1-DA Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E05D-6-1-AO Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E05D-6-3 Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E05D-6-3-DW Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E05D-6-3-DA Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E05D-6-3-AO Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E07B-4-1 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E07B-4-1-DW Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E07B-4-1-DA Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E07B-4-1-AO Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E07B-4-3 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E07B-4-3-DW Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E07B-4-3-DA Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E07B-4-3-AO Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E07B-6-1 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E07B-6-1-DW Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E07B-6-1-DA Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E07B-6-1-AO Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E07B-6-3 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E07B-6-3-DW Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E07B-6-3-DA Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E07B-6-3-AO Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E07D-4-1 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E07D-4-1-DW Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E07D-4-1-DA Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E07D-4-1-AO Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E07D-4-3 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E07D-4-3-DW Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E07D-4-3-DA Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E07D-4-3-AO Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E07D-6-1 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E07D-6-1-DW Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E07D-6-1-DA Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E07D-6-1-AO Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E07D-6-3 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E07D-6-3-DW Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E07D-6-3-DA Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E07D-6-3-AO Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E10B-4-1 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E10B-4-1-DW Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E10B-4-1-DA Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E10B-4-1-AO Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E10B-4-3 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E10B-4-3-DW Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E10B-4-3-DA Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E10B-4-3-AO Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E10B-6-1 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E10B-6-1-DW Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E10B-6-1-DA Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E10B-6-1-AO Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E10B-6-3 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E10B-6-3-DW Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E10B-6-3-DA Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E10B-6-3-AO Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E10D-4-1 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E10D-4-1-DW Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E10D-4-1-DA Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E10D-4-1-AO Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E10D-4-3 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E10D-4-3-DW Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E10D-4-3-DA Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E10D-4-3-AO Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E10D-6-1 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E10D-6-1-DW Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E10D-6-1-DA Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E10D-6-1-AO Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E10D-6-3 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E10D-6-3-DW Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E10D-6-3-DA Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E10D-6-3-AO Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
Vacuum EjectorsCKD
288 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD VSXM Vacuum Ejector Unit (10.5 mm Manifold Type, Station Units)

Brand CKD·Vacuum Ejectors

Available part numbers (288)

VSXM-H05B-4-1, VSXM-H05B-4-1-DW, VSXM-H05B-4-1-DA, VSXM-H05B-4-1-AO, VSXM-H05B-4-3, VSXM-H05B-4-3-DW, VSXM-H05B-4-3-DA, VSXM-H05B-4-3-AO, VSXM-H05B-6-1, VSXM-H05B-6-1-DW + 278 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VSXM-H05B-4-1Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H05B-4-1-DWEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H05B-4-1-DAEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H05B-4-1-AOEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H05B-4-3Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H05B-4-3-DWEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H05B-4-3-DAEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H05B-4-3-AOEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H05B-6-1Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H05B-6-1-DWEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H05B-6-1-DAEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H05B-6-1-AOEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H05B-6-3Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H05B-6-3-DWEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H05B-6-3-DAEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H05B-6-3-AOEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H05D-4-1Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H05D-4-1-DWEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H05D-4-1-DAEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H05D-4-1-AOEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H05D-4-3Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H05D-4-3-DWEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H05D-4-3-DAEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H05D-4-3-AOEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H05D-6-1Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H05D-6-1-DWEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H05D-6-1-DAEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H05D-6-1-AOEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H05D-6-3Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H05D-6-3-DWEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H05D-6-3-DAEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H05D-6-3-AOEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H07B-4-1Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H07B-4-1-DWEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H07B-4-1-DAEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H07B-4-1-AOEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H07B-4-3Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H07B-4-3-DWEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H07B-4-3-DAEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H07B-4-3-AOEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H07B-6-1Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H07B-6-1-DWEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H07B-6-1-DAEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H07B-6-1-AOEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H07B-6-3Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H07B-6-3-DWEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H07B-6-3-DAEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H07B-6-3-AOEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H07D-4-1Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H07D-4-1-DWEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H07D-4-1-DAEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H07D-4-1-AOEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H07D-4-3Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H07D-4-3-DWEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H07D-4-3-DAEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H07D-4-3-AOEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H07D-6-1Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H07D-6-1-DWEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H07D-6-1-DAEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H07D-6-1-AOEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H07D-6-3Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H07D-6-3-DWEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H07D-6-3-DAEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H07D-6-3-AOEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H10B-4-1Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H10B-4-1-DWEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H10B-4-1-DAEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H10B-4-1-AOEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H10B-4-3Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H10B-4-3-DWEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H10B-4-3-DAEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H10B-4-3-AOEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H10B-6-1Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H10B-6-1-DWEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H10B-6-1-DAEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H10B-6-1-AOEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H10B-6-3Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H10B-6-3-DWEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H10B-6-3-DAEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H10B-6-3-AOEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H10D-4-1Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H10D-4-1-DWEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H10D-4-1-DAEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H10D-4-1-AOEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H10D-4-3Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H10D-4-3-DWEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H10D-4-3-DAEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H10D-4-3-AOEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-H10D-6-1Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-H10D-6-1-DWEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-H10D-6-1-DAEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H10D-6-1-AOEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-H10D-6-3Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-H10D-6-3-DWEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-H10D-6-3-DAEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-H10D-6-3-AOEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L05B-4-1Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L05B-4-1-DWEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L05B-4-1-DAEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L05B-4-1-AOEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L05B-4-3Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L05B-4-3-DWEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L05B-4-3-DAEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L05B-4-3-AOEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L05B-6-1Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L05B-6-1-DWEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L05B-6-1-DAEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L05B-6-1-AOEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L05B-6-3Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L05B-6-3-DWEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L05B-6-3-DAEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L05B-6-3-AOEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L05D-4-1Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L05D-4-1-DWEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L05D-4-1-DAEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L05D-4-1-AOEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L05D-4-3Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L05D-4-3-DWEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L05D-4-3-DAEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L05D-4-3-AOEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L05D-6-1Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L05D-6-1-DWEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L05D-6-1-DAEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L05D-6-1-AOEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L05D-6-3Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L05D-6-3-DWEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L05D-6-3-DAEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L05D-6-3-AOEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L07B-4-1Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L07B-4-1-DWEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L07B-4-1-DAEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L07B-4-1-AOEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L07B-4-3Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L07B-4-3-DWEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L07B-4-3-DAEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L07B-4-3-AOEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L07B-6-1Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L07B-6-1-DWEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L07B-6-1-DAEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L07B-6-1-AOEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L07B-6-3Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L07B-6-3-DWEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L07B-6-3-DAEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L07B-6-3-AOEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L07D-4-1Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L07D-4-1-DWEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L07D-4-1-DAEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L07D-4-1-AOEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L07D-4-3Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L07D-4-3-DWEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L07D-4-3-DAEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L07D-4-3-AOEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L07D-6-1Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L07D-6-1-DWEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L07D-6-1-DAEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L07D-6-1-AOEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L07D-6-3Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L07D-6-3-DWEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L07D-6-3-DAEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L07D-6-3-AOEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L10B-4-1Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L10B-4-1-DWEjector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L10B-4-1-DAEjector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L10B-4-1-AOEjector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L10B-4-3Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L10B-4-3-DWEjector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L10B-4-3-DAEjector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L10B-4-3-AOEjector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L10B-6-1Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L10B-6-1-DWEjector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L10B-6-1-DAEjector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L10B-6-1-AOEjector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L10B-6-3Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L10B-6-3-DWEjector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L10B-6-3-DAEjector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L10B-6-3-AOEjector: L (med vac, large flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L10D-4-1Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L10D-4-1-DWEjector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L10D-4-1-DAEjector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L10D-4-1-AOEjector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L10D-4-3Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L10D-4-3-DWEjector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L10D-4-3-DAEjector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L10D-4-3-AOEjector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-L10D-6-1Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-L10D-6-1-DWEjector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-L10D-6-1-DAEjector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L10D-6-1-AOEjector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-L10D-6-3Ejector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-L10D-6-3-DWEjector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-L10D-6-3-DAEjector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-L10D-6-3-AOEjector: L (med vac, large flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E05B-4-1Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E05B-4-1-DWEjector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E05B-4-1-DAEjector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E05B-4-1-AOEjector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E05B-4-3Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E05B-4-3-DWEjector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E05B-4-3-DAEjector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E05B-4-3-AOEjector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E05B-6-1Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E05B-6-1-DWEjector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E05B-6-1-DAEjector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E05B-6-1-AOEjector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E05B-6-3Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E05B-6-3-DWEjector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E05B-6-3-DAEjector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E05B-6-3-AOEjector: E (high vac, small flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E05D-4-1Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E05D-4-1-DWEjector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E05D-4-1-DAEjector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E05D-4-1-AOEjector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E05D-4-3Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E05D-4-3-DWEjector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E05D-4-3-DAEjector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E05D-4-3-AOEjector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E05D-6-1Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E05D-6-1-DWEjector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E05D-6-1-DAEjector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E05D-6-1-AOEjector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E05D-6-3Ejector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E05D-6-3-DWEjector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E05D-6-3-DAEjector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E05D-6-3-AOEjector: E (high vac, small flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E07B-4-1Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E07B-4-1-DWEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E07B-4-1-DAEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E07B-4-1-AOEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E07B-4-3Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E07B-4-3-DWEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E07B-4-3-DAEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E07B-4-3-AOEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E07B-6-1Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E07B-6-1-DWEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E07B-6-1-DAEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E07B-6-1-AOEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E07B-6-3Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E07B-6-3-DWEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E07B-6-3-DAEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E07B-6-3-AOEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E07D-4-1Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E07D-4-1-DWEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E07D-4-1-DAEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E07D-4-1-AOEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E07D-4-3Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E07D-4-3-DWEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E07D-4-3-DAEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E07D-4-3-AOEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E07D-6-1Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E07D-6-1-DWEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E07D-6-1-DAEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E07D-6-1-AOEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E07D-6-3Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E07D-6-3-DWEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E07D-6-3-DAEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E07D-6-3-AOEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E10B-4-1Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E10B-4-1-DWEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E10B-4-1-DAEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E10B-4-1-AOEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E10B-4-3Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E10B-4-3-DWEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E10B-4-3-DAEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E10B-4-3-AOEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E10B-6-1Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E10B-6-1-DWEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E10B-6-1-DAEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E10B-6-1-AOEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E10B-6-3Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E10B-6-3-DWEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E10B-6-3-DAEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E10B-6-3-AOEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E10D-4-1Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E10D-4-1-DWEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E10D-4-1-DAEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E10D-4-1-AOEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E10D-4-3Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E10D-4-3-DWEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E10D-4-3-DAEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E10D-4-3-AOEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Valve voltage: DC24V | Pressure switch: Analog output only
VSXM-E10D-6-1Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: None
VSXM-E10D-6-1-DWEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 2 outputs
VSXM-E10D-6-1-DAEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E10D-6-1-AOEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: AC100V | Pressure switch: Analog output only
VSXM-E10D-6-3Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: None
VSXM-E10D-6-3-DWEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 2 outputs
VSXM-E10D-6-3-DAEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Digital, NPN 1 out + analog
VSXM-E10D-6-3-AOEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Valve voltage: DC24V | Pressure switch: Analog output only

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
