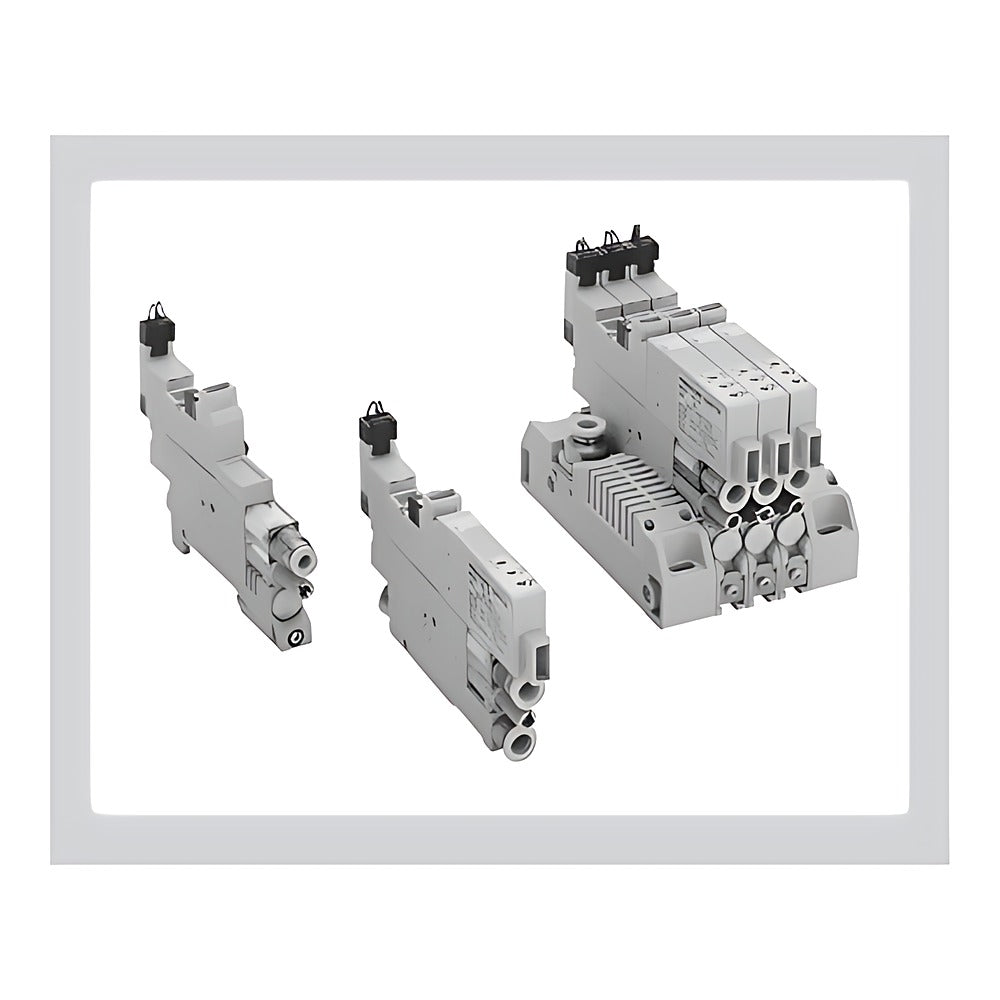

CKD VSXP/VSXPM Vacuum Switching Unit (10.5 mm, Single/Manifold)

CKD VSXP series 10.5 mm wide vacuum switching unit for vacuum pump systems, combining vacuum supply valve, vacuum break valve, filter and optional vacuum pressure switch, as a single unit or on a manifold (VSXPM).

Key features

Light, compact 10.5 mm wide body; direct mount or DIN rail mount (-D) single units
2-port valve type (D) or 3-port valve type (T); the T type admits atmosphere on valve OFF for much shorter vacuum break time
Vacuum pressure switch options: digital NPN 2 outputs (DW), digital NPN 1 output + analog (DA), analog output only (A0)
Manifold up to 10 stations: order the manifold base (VSXPM-<PS><PV>-<stations>) and units for manifold (VSXPM-<valve><V>-<voltage>-<switch>); mixed manifolds (Z, CX) by specification sheet
Built-in 10 um PVF vacuum filter (replacement element VSX-E) and break flow adjusting needle
Connector wiring with 500 mm lead; DC24V or AC100V pilot valves

Specifications

Fluid	Air
Operating pressure	0.3 to 0.7 MPa
Vacuum pressure	0 to -101 kPa
Ambient and fluid temperature	5 to 50°C
Valve	Direct acting poppet, normally closed
Power consumption	DC24V 1.2 W, AC100V 1.5 VA (with LED)
Break air flow	D type 0 to 11.0 L/min, T type 0 to 7.5 L/min (ANR, at 0.5 MPa)
Vacuum filter	PVF, 10 um, 502 mm2
Manifold stations	2 to 10
Source	CKD Korea catalog CC-796K-5, p. 267-296

VSXP-D444-1		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-D444-1-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-D444-1-DW		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D444-1-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D444-1-DA		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D444-1-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D444-1-A0		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-D444-1-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-D444-3		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-D444-3-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-D444-3-DW		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D444-3-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D444-3-DA		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D444-3-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D444-3-A0		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-D444-3-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-D446-1		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-D446-1-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-D446-1-DW		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D446-1-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D446-1-DA		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D446-1-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D446-1-A0		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-D446-1-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-D446-3		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-D446-3-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-D446-3-DW		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D446-3-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D446-3-DA		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D446-3-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D446-3-A0		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-D446-3-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-D464-1		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-D464-1-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-D464-1-DW		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D464-1-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D464-1-DA		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D464-1-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D464-1-A0		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-D464-1-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-D464-3		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-D464-3-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-D464-3-DW		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D464-3-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D464-3-DA		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D464-3-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D464-3-A0		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-D464-3-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-D466-1		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-D466-1-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-D466-1-DW		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D466-1-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D466-1-DA		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D466-1-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D466-1-A0		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-D466-1-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-D466-3		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-D466-3-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-D466-3-DW		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D466-3-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D466-3-DA		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D466-3-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D466-3-A0		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-D466-3-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-D644-1		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-D644-1-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-D644-1-DW		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D644-1-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D644-1-DA		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D644-1-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D644-1-A0		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-D644-1-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-D644-3		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-D644-3-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-D644-3-DW		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D644-3-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D644-3-DA		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D644-3-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D644-3-A0		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-D644-3-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-D646-1		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-D646-1-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-D646-1-DW		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D646-1-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D646-1-DA		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D646-1-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D646-1-A0		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-D646-1-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-D646-3		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-D646-3-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-D646-3-DW		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D646-3-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D646-3-DA		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D646-3-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D646-3-A0		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-D646-3-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-D664-1		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-D664-1-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-D664-1-DW		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D664-1-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D664-1-DA		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D664-1-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D664-1-A0		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-D664-1-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-D664-3		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-D664-3-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-D664-3-DW		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D664-3-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D664-3-DA		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D664-3-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D664-3-A0		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-D664-3-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-D666-1		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-D666-1-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-D666-1-DW		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D666-1-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D666-1-DA		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D666-1-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D666-1-A0		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-D666-1-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-D666-3		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-D666-3-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-D666-3-DW		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D666-3-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-D666-3-DA		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D666-3-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-D666-3-A0		Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-D666-3-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-T444-1		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-T444-1-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-T444-1-DW		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T444-1-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T444-1-DA		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T444-1-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T444-1-A0		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-T444-1-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-T444-3		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-T444-3-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-T444-3-DW		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T444-3-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T444-3-DA		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T444-3-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T444-3-A0		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-T444-3-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-T446-1		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-T446-1-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-T446-1-DW		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T446-1-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T446-1-DA		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T446-1-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T446-1-A0		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-T446-1-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-T446-3		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-T446-3-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-T446-3-DW		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T446-3-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T446-3-DA		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T446-3-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T446-3-A0		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-T446-3-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-T464-1		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-T464-1-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-T464-1-DW		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T464-1-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T464-1-DA		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T464-1-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T464-1-A0		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-T464-1-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-T464-3		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-T464-3-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-T464-3-DW		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T464-3-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T464-3-DA		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T464-3-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T464-3-A0		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-T464-3-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-T466-1		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-T466-1-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-T466-1-DW		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T466-1-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T466-1-DA		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T466-1-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T466-1-A0		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-T466-1-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-T466-3		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-T466-3-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-T466-3-DW		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T466-3-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T466-3-DA		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T466-3-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T466-3-A0		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-T466-3-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-T644-1		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-T644-1-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-T644-1-DW		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T644-1-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T644-1-DA		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T644-1-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T644-1-A0		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-T644-1-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-T644-3		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-T644-3-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-T644-3-DW		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T644-3-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T644-3-DA		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T644-3-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T644-3-A0		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-T644-3-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-T646-1		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-T646-1-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-T646-1-DW		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T646-1-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T646-1-DA		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T646-1-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T646-1-A0		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-T646-1-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-T646-3		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-T646-3-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-T646-3-DW		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T646-3-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T646-3-DA		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T646-3-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T646-3-A0		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-T646-3-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-T664-1		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-T664-1-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-T664-1-DW		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T664-1-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T664-1-DA		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T664-1-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T664-1-A0		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-T664-1-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-T664-3		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-T664-3-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-T664-3-DW		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T664-3-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T664-3-DA		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T664-3-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T664-3-A0		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-T664-3-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-T666-1		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-T666-1-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
VSXP-T666-1-DW		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T666-1-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T666-1-DA		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T666-1-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T666-1-A0		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-T666-1-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
VSXP-T666-3		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-T666-3-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
VSXP-T666-3-DW		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T666-3-DW-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXP-T666-3-DA		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T666-3-DA-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXP-T666-3-A0		Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXP-T666-3-A0-D		Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
VSXPM-D4-1		Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: None
VSXPM-D4-1-DW		Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXPM-D4-1-DA		Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXPM-D4-1-A0		Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Analog output only
VSXPM-D4-3		Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: None
VSXPM-D4-3-DW		Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXPM-D4-3-DA		Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXPM-D4-3-A0		Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Analog output only
VSXPM-D6-1		Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: None
VSXPM-D6-1-DW		Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXPM-D6-1-DA		Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXPM-D6-1-A0		Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Analog output only
VSXPM-D6-3		Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: None
VSXPM-D6-3-DW		Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXPM-D6-3-DA		Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXPM-D6-3-A0		Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Analog output only
VSXPM-T4-1		Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: None
VSXPM-T4-1-DW		Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXPM-T4-1-DA		Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXPM-T4-1-A0		Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Analog output only
VSXPM-T4-3		Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: None
VSXPM-T4-3-DW		Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXPM-T4-3-DA		Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXPM-T4-3-A0		Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Analog output only
VSXPM-T6-1		Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: None
VSXPM-T6-1-DW		Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
VSXPM-T6-1-DA		Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
VSXPM-T6-1-A0		Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Analog output only
VSXPM-T6-3		Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: None
VSXPM-T6-3-DW		Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
VSXPM-T6-3-DA		Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
VSXPM-T6-3-A0		Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Analog output only
VSXPM-44-2		Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-44-3		Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-44-4		Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-44-5		Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-44-6		Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-44-7		Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-44-8		Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-44-9		Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-44-10		Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-46-2		Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-46-3		Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-46-4		Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-46-5		Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-46-6		Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-46-7		Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-46-8		Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-46-9		Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-46-10		Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-48-2		Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-48-3		Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-48-4		Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-48-5		Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-48-6		Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-48-7		Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-48-8		Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-48-9		Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-48-10		Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-410-2		Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-410-3		Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-410-4		Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-410-5		Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-410-6		Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-410-7		Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-410-8		Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-410-9		Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-410-10		Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-64-2		Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-64-3		Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-64-4		Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-64-5		Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-64-6		Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-64-7		Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-64-8		Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-64-9		Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-64-10		Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-66-2		Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-66-3		Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-66-4		Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-66-5		Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-66-6		Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-66-7		Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-66-8		Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-66-9		Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-66-10		Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-68-2		Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-68-3		Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-68-4		Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-68-5		Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-68-6		Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-68-7		Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-68-8		Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-68-9		Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-68-10		Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-610-2		Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-610-3		Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-610-4		Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-610-5		Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-610-6		Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-610-7		Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-610-8		Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-610-9		Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-610-10		Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-84-2		Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-84-3		Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-84-4		Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-84-5		Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-84-6		Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-84-7		Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-84-8		Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-84-9		Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-84-10		Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-86-2		Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-86-3		Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-86-4		Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-86-5		Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-86-6		Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-86-7		Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-86-8		Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-86-9		Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-86-10		Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-88-2		Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-88-3		Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-88-4		Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-88-5		Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-88-6		Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-88-7		Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-88-8		Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-88-9		Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-88-10		Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-810-2		Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-810-3		Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-810-4		Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-810-5		Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-810-6		Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-810-7		Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-810-8		Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-810-9		Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-810-10		Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-104-2		Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-104-3		Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-104-4		Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-104-5		Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-104-6		Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-104-7		Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-104-8		Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-104-9		Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-104-10		Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
VSXPM-106-2		Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-106-3		Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-106-4		Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-106-5		Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-106-6		Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-106-7		Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-106-8		Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-106-9		Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-106-10		Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
VSXPM-108-2		Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-108-3		Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-108-4		Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-108-5		Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-108-6		Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-108-7		Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-108-8		Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-108-9		Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-108-10		Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
VSXPM-1010-2		Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-1010-3		Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-1010-4		Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-1010-5		Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-1010-6		Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-1010-7		Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-1010-8		Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-1010-9		Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSXPM-1010-10		Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
VSX-E		Configuration: Spare filter element \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: - \| Voltage: - \| Pressure switch: -
VSXP-E		Configuration: Spare valve filter element \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: - \| Voltage: - \| Pressure switch: -

Vacuum EquipmentCKD

434 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD VSXP/VSXPM Vacuum Switching Unit (10.5 mm, Single/Manifold)

Brand CKD·Vacuum Equipment

Available part numbers (434)

VSXP-D444-1, VSXP-D444-1-D, VSXP-D444-1-DW, VSXP-D444-1-DW-D, VSXP-D444-1-DA, VSXP-D444-1-DA-D, VSXP-D444-1-A0, VSXP-D444-1-A0-D, VSXP-D444-3, VSXP-D444-3-D + 424 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VSXP-D444-1	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-D444-1-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-D444-1-DW	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D444-1-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D444-1-DA	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D444-1-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D444-1-A0	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-D444-1-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-D444-3	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-D444-3-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-D444-3-DW	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D444-3-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D444-3-DA	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D444-3-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D444-3-A0	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-D444-3-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-D446-1	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-D446-1-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-D446-1-DW	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D446-1-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D446-1-DA	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D446-1-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D446-1-A0	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-D446-1-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-D446-3	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-D446-3-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-D446-3-DW	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D446-3-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D446-3-DA	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D446-3-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D446-3-A0	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-D446-3-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-D464-1	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-D464-1-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-D464-1-DW	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D464-1-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D464-1-DA	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D464-1-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D464-1-A0	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-D464-1-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-D464-3	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-D464-3-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-D464-3-DW	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D464-3-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D464-3-DA	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D464-3-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D464-3-A0	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-D464-3-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-D466-1	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-D466-1-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-D466-1-DW	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D466-1-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D466-1-DA	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D466-1-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D466-1-A0	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-D466-1-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-D466-3	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-D466-3-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-D466-3-DW	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D466-3-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D466-3-DA	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D466-3-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D466-3-A0	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-D466-3-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-D644-1	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-D644-1-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-D644-1-DW	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D644-1-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D644-1-DA	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D644-1-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D644-1-A0	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-D644-1-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-D644-3	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-D644-3-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-D644-3-DW	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D644-3-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D644-3-DA	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D644-3-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D644-3-A0	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-D644-3-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-D646-1	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-D646-1-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-D646-1-DW	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D646-1-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D646-1-DA	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D646-1-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D646-1-A0	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-D646-1-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-D646-3	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-D646-3-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-D646-3-DW	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D646-3-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D646-3-DA	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D646-3-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D646-3-A0	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-D646-3-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-D664-1	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-D664-1-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-D664-1-DW	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D664-1-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D664-1-DA	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D664-1-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D664-1-A0	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-D664-1-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-D664-3	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-D664-3-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-D664-3-DW	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D664-3-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D664-3-DA	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D664-3-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D664-3-A0	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-D664-3-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-D666-1	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-D666-1-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-D666-1-DW	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D666-1-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D666-1-DA	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D666-1-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D666-1-A0	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-D666-1-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-D666-3	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-D666-3-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-D666-3-DW	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D666-3-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-D666-3-DA	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D666-3-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-D666-3-A0	Configuration: Single unit, direct mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-D666-3-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-T444-1	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-T444-1-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-T444-1-DW	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T444-1-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T444-1-DA	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T444-1-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T444-1-A0	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-T444-1-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-T444-3	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-T444-3-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-T444-3-DW	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T444-3-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T444-3-DA	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T444-3-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T444-3-A0	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-T444-3-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-T446-1	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-T446-1-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-T446-1-DW	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T446-1-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T446-1-DA	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T446-1-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T446-1-A0	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-T446-1-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-T446-3	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-T446-3-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-T446-3-DW	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T446-3-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T446-3-DA	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T446-3-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T446-3-A0	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-T446-3-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-T464-1	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-T464-1-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-T464-1-DW	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T464-1-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T464-1-DA	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T464-1-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T464-1-A0	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-T464-1-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-T464-3	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-T464-3-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-T464-3-DW	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T464-3-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T464-3-DA	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T464-3-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T464-3-A0	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-T464-3-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-T466-1	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-T466-1-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-T466-1-DW	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T466-1-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T466-1-DA	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T466-1-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T466-1-A0	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-T466-1-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-T466-3	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-T466-3-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-T466-3-DW	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T466-3-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T466-3-DA	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T466-3-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T466-3-A0	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-T466-3-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-T644-1	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-T644-1-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-T644-1-DW	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T644-1-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T644-1-DA	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T644-1-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T644-1-A0	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-T644-1-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-T644-3	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-T644-3-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-T644-3-DW	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T644-3-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T644-3-DA	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T644-3-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T644-3-A0	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-T644-3-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-T646-1	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-T646-1-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-T646-1-DW	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T646-1-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T646-1-DA	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T646-1-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T646-1-A0	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-T646-1-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-T646-3	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-T646-3-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-T646-3-DW	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T646-3-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T646-3-DA	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T646-3-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T646-3-A0	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-T646-3-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-T664-1	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-T664-1-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-T664-1-DW	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T664-1-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T664-1-DA	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T664-1-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T664-1-A0	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-T664-1-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-T664-3	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-T664-3-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-T664-3-DW	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T664-3-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T664-3-DA	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T664-3-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T664-3-A0	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-T664-3-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-T666-1	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-T666-1-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: None
	VSXP-T666-1-DW	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T666-1-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T666-1-DA	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T666-1-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T666-1-A0	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-T666-1-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXP-T666-3	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-T666-3-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: None
	VSXP-T666-3-DW	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T666-3-DW-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXP-T666-3-DA	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T666-3-DA-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXP-T666-3-A0	Configuration: Single unit, direct mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXP-T666-3-A0-D	Configuration: Single unit, DIN rail mount \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXPM-D4-1	Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: None
	VSXPM-D4-1-DW	Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXPM-D4-1-DA	Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXPM-D4-1-A0	Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXPM-D4-3	Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: None
	VSXPM-D4-3-DW	Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXPM-D4-3-DA	Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXPM-D4-3-A0	Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXPM-D6-1	Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: None
	VSXPM-D6-1-DW	Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXPM-D6-1-DA	Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXPM-D6-1-A0	Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXPM-D6-3	Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: None
	VSXPM-D6-3-DW	Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXPM-D6-3-DA	Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXPM-D6-3-A0	Configuration: Unit for manifold \| Valve type: 2-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXPM-T4-1	Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: None
	VSXPM-T4-1-DW	Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXPM-T4-1-DA	Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXPM-T4-1-A0	Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXPM-T4-3	Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: None
	VSXPM-T4-3-DW	Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXPM-T4-3-DA	Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXPM-T4-3-A0	Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø4 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXPM-T6-1	Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: None
	VSXPM-T6-1-DW	Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Digital, NPN 2 outputs
	VSXPM-T6-1-DA	Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Digital, NPN 1 output + analog
	VSXPM-T6-1-A0	Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: AC100V \| Pressure switch: Analog output only
	VSXPM-T6-3	Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: None
	VSXPM-T6-3-DW	Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Digital, NPN 2 outputs
	VSXPM-T6-3-DA	Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Digital, NPN 1 output + analog
	VSXPM-T6-3-A0	Configuration: Unit for manifold \| Valve type: 3-port valve \| Vacuum port V: ø6 push-in \| Supply ports PS/PV: - \| Voltage: DC24V \| Pressure switch: Analog output only
	VSXPM-44-2	Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-44-3	Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-44-4	Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-44-5	Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-44-6	Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-44-7	Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-44-8	Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-44-9	Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-44-10	Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-46-2	Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-46-3	Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-46-4	Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-46-5	Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-46-6	Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-46-7	Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-46-8	Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-46-9	Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-46-10	Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-48-2	Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-48-3	Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-48-4	Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-48-5	Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-48-6	Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-48-7	Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-48-8	Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-48-9	Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-48-10	Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-410-2	Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-410-3	Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-410-4	Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-410-5	Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-410-6	Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-410-7	Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-410-8	Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-410-9	Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-410-10	Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø4 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-64-2	Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-64-3	Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-64-4	Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-64-5	Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-64-6	Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-64-7	Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-64-8	Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-64-9	Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-64-10	Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-66-2	Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-66-3	Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-66-4	Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-66-5	Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-66-6	Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-66-7	Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-66-8	Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-66-9	Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-66-10	Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-68-2	Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-68-3	Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-68-4	Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-68-5	Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-68-6	Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-68-7	Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-68-8	Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-68-9	Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-68-10	Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-610-2	Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-610-3	Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-610-4	Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-610-5	Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-610-6	Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-610-7	Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-610-8	Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-610-9	Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-610-10	Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø6 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-84-2	Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-84-3	Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-84-4	Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-84-5	Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-84-6	Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-84-7	Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-84-8	Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-84-9	Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-84-10	Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-86-2	Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-86-3	Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-86-4	Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-86-5	Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-86-6	Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-86-7	Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-86-8	Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-86-9	Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-86-10	Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-88-2	Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-88-3	Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-88-4	Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-88-5	Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-88-6	Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-88-7	Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-88-8	Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-88-9	Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-88-10	Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-810-2	Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-810-3	Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-810-4	Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-810-5	Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-810-6	Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-810-7	Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-810-8	Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-810-9	Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-810-10	Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø8 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-104-2	Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-104-3	Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-104-4	Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-104-5	Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-104-6	Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-104-7	Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-104-8	Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-104-9	Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-104-10	Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø4 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-106-2	Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-106-3	Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-106-4	Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-106-5	Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-106-6	Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-106-7	Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-106-8	Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-106-9	Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-106-10	Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø6 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-108-2	Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-108-3	Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-108-4	Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-108-5	Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-108-6	Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-108-7	Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-108-8	Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-108-9	Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-108-10	Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø8 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-1010-2	Configuration: Manifold base, 2 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-1010-3	Configuration: Manifold base, 3 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-1010-4	Configuration: Manifold base, 4 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-1010-5	Configuration: Manifold base, 5 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-1010-6	Configuration: Manifold base, 6 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-1010-7	Configuration: Manifold base, 7 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-1010-8	Configuration: Manifold base, 8 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-1010-9	Configuration: Manifold base, 9 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSXPM-1010-10	Configuration: Manifold base, 10 stations \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: ø10 / ø10 push-in \| Voltage: - \| Pressure switch: -
	VSX-E	Configuration: Spare filter element \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: - \| Voltage: - \| Pressure switch: -
	VSXP-E	Configuration: Spare valve filter element \| Valve type: - \| Vacuum port V: - \| Supply ports PS/PV: - \| Voltage: - \| Pressure switch: -

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD VSXP/VSXPM Vacuum Switching Unit (10.5 mm, Single/Manifold)
