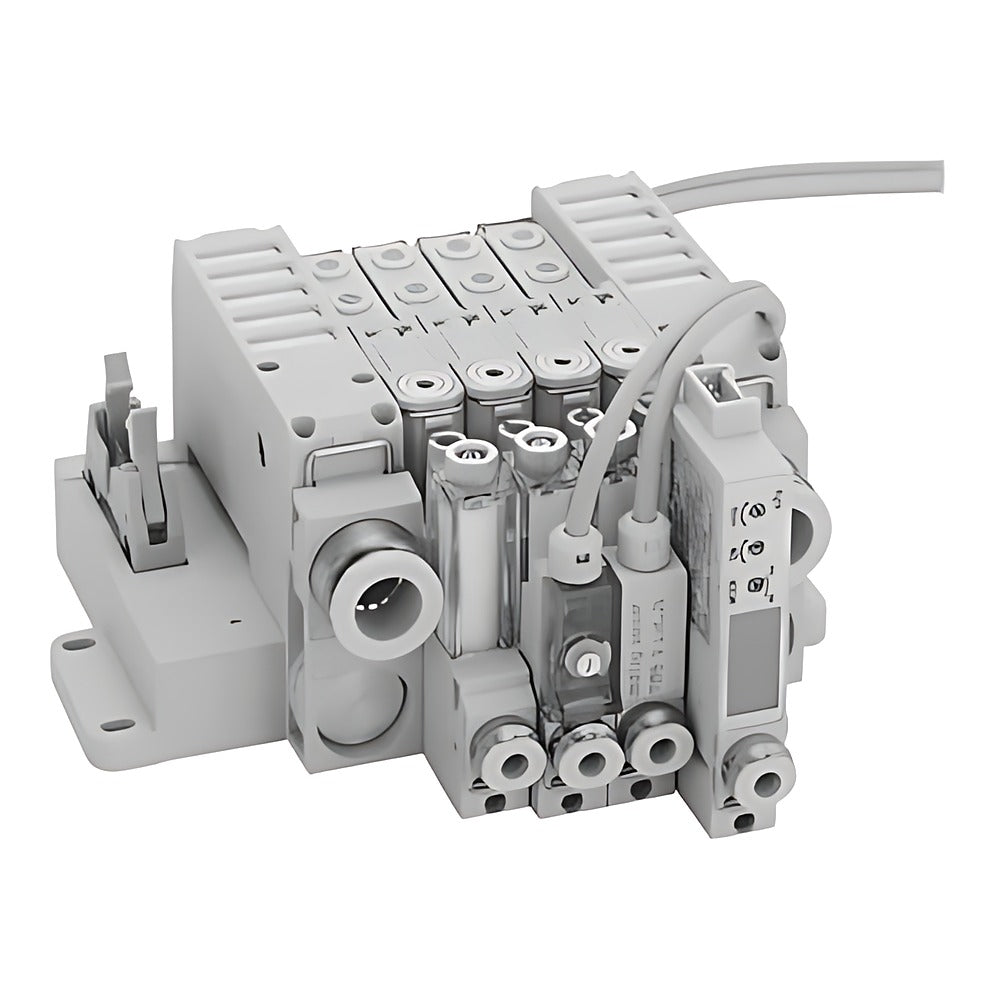

CKD VSZM Vacuum Ejector Unit (11 mm Pitch Manifold, Station Units)

CKD VSZM Vacuum Ejector Unit (11 mm Pitch Manifold, Station Units)

CKD SELVACS VSZM 11 mm pitch manifold-only vacuum ejector unit with atmospheric break valve for very short vacuum break time and collective wiring.

Key features

  • Atmospheric-pressure break valve gives large-flow release and greatly shortened vacuum break time
  • Generation and break valve wiring collected on D-sub (9/25 pin) or flat cable (10/20/26 pin) connector; 0.55 W valves, DC24V
  • Station ejector codes as on the mix manifold sheet (e.g. VSZM-H05B-4-DW); E05 and L10 combinations not available
  • Full manifold code e.g. VSZM-H05D-688-3-8-S-F20: adds PS port 6/8/10, EX S/6/8/10, 2-12 stations, wiring F/D and pin count
  • Six vacuum switch options incl. digital 2-point, 1-point, analog vacuum/compound; spare parts VSZM-E, VSZM-SE

Specifications

Fluid Air
Operating pressure 0.3 to 0.7 MPa
Ambient/fluid temperature 5 to 50 C
Station pitch 11 mm
Stations 2 to 12
Valve voltage DC24V
Vacuum break flow 0-50 L/min (0.5 MPa)
Vacuum filter PVF, 10 um, 660 mm2 (VSZM-E)
Source CKD Korea catalog CC-796K-5, p. 207-226
VSZM-H05B-4 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-H05B-4-DW Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H05B-4-DA Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H05B-4-S Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-H05B-4-V1 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-H05B-4-R1 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-H05B-6 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-H05B-6-DW Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H05B-6-DA Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H05B-6-S Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-H05B-6-V1 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-H05B-6-R1 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-H05B-M5 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-H05B-M5-DW Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-H05B-M5-DA Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-H05B-M5-S Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-H05B-M5-V1 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-H05B-M5-R1 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-H05D-4 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-H05D-4-DW Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H05D-4-DA Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H05D-4-S Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-H05D-4-V1 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-H05D-4-R1 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-H05D-6 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-H05D-6-DW Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H05D-6-DA Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H05D-6-S Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-H05D-6-V1 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-H05D-6-R1 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-H05D-M5 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-H05D-M5-DW Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-H05D-M5-DA Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-H05D-M5-S Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-H05D-M5-V1 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-H05D-M5-R1 Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-H07B-4 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-H07B-4-DW Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H07B-4-DA Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H07B-4-S Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-H07B-4-V1 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-H07B-4-R1 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-H07B-6 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-H07B-6-DW Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H07B-6-DA Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H07B-6-S Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-H07B-6-V1 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-H07B-6-R1 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-H07B-M5 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-H07B-M5-DW Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-H07B-M5-DA Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-H07B-M5-S Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-H07B-M5-V1 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-H07B-M5-R1 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-H07D-4 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-H07D-4-DW Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H07D-4-DA Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H07D-4-S Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-H07D-4-V1 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-H07D-4-R1 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-H07D-6 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-H07D-6-DW Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H07D-6-DA Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H07D-6-S Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-H07D-6-V1 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-H07D-6-R1 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-H07D-M5 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-H07D-M5-DW Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-H07D-M5-DA Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-H07D-M5-S Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-H07D-M5-V1 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-H07D-M5-R1 Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-H10B-4 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-H10B-4-DW Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H10B-4-DA Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H10B-4-S Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-H10B-4-V1 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-H10B-4-R1 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-H10B-6 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-H10B-6-DW Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H10B-6-DA Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H10B-6-S Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-H10B-6-V1 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-H10B-6-R1 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-H10B-M5 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-H10B-M5-DW Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-H10B-M5-DA Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-H10B-M5-S Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-H10B-M5-V1 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-H10B-M5-R1 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-H10D-4 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-H10D-4-DW Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H10D-4-DA Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H10D-4-S Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-H10D-4-V1 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-H10D-4-R1 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-H10D-6 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-H10D-6-DW Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H10D-6-DA Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H10D-6-S Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-H10D-6-V1 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-H10D-6-R1 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-H10D-M5 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-H10D-M5-DW Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-H10D-M5-DA Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-H10D-M5-S Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-H10D-M5-V1 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-H10D-M5-R1 Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-L05B-4 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-L05B-4-DW Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-L05B-4-DA Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-L05B-4-S Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-L05B-4-V1 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-L05B-4-R1 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-L05B-6 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-L05B-6-DW Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-L05B-6-DA Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-L05B-6-S Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-L05B-6-V1 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-L05B-6-R1 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-L05B-M5 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-L05B-M5-DW Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-L05B-M5-DA Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-L05B-M5-S Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-L05B-M5-V1 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-L05B-M5-R1 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-L05D-4 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-L05D-4-DW Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-L05D-4-DA Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-L05D-4-S Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-L05D-4-V1 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-L05D-4-R1 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-L05D-6 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-L05D-6-DW Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-L05D-6-DA Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-L05D-6-S Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-L05D-6-V1 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-L05D-6-R1 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-L05D-M5 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-L05D-M5-DW Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-L05D-M5-DA Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-L05D-M5-S Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-L05D-M5-V1 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-L05D-M5-R1 Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-L07B-4 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-L07B-4-DW Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-L07B-4-DA Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-L07B-4-S Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-L07B-4-V1 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-L07B-4-R1 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-L07B-6 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-L07B-6-DW Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-L07B-6-DA Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-L07B-6-S Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-L07B-6-V1 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-L07B-6-R1 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-L07B-M5 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-L07B-M5-DW Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-L07B-M5-DA Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-L07B-M5-S Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-L07B-M5-V1 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-L07B-M5-R1 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-L07D-4 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-L07D-4-DW Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-L07D-4-DA Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-L07D-4-S Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-L07D-4-V1 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-L07D-4-R1 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-L07D-6 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-L07D-6-DW Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-L07D-6-DA Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-L07D-6-S Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-L07D-6-V1 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-L07D-6-R1 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-L07D-M5 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-L07D-M5-DW Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-L07D-M5-DA Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-L07D-M5-S Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-L07D-M5-V1 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-L07D-M5-R1 Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-E07B-4 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-E07B-4-DW Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-E07B-4-DA Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-E07B-4-S Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-E07B-4-V1 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-E07B-4-R1 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-E07B-6 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-E07B-6-DW Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-E07B-6-DA Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-E07B-6-S Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-E07B-6-V1 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-E07B-6-R1 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-E07B-M5 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-E07B-M5-DW Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-E07B-M5-DA Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-E07B-M5-S Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-E07B-M5-V1 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-E07B-M5-R1 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-E07D-4 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-E07D-4-DW Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-E07D-4-DA Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-E07D-4-S Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-E07D-4-V1 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-E07D-4-R1 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-E07D-6 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-E07D-6-DW Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-E07D-6-DA Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-E07D-6-S Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-E07D-6-V1 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-E07D-6-R1 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-E07D-M5 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-E07D-M5-DW Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-E07D-M5-DA Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-E07D-M5-S Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-E07D-M5-V1 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-E07D-M5-R1 Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-E10B-4 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-E10B-4-DW Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-E10B-4-DA Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-E10B-4-S Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-E10B-4-V1 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-E10B-4-R1 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-E10B-6 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-E10B-6-DW Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-E10B-6-DA Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-E10B-6-S Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-E10B-6-V1 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-E10B-6-R1 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-E10B-M5 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-E10B-M5-DW Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-E10B-M5-DA Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-E10B-M5-S Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-E10B-M5-V1 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-E10B-M5-R1 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-E10D-4 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-E10D-4-DW Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-E10D-4-DA Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-E10D-4-S Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-E10D-4-V1 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-E10D-4-R1 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-E10D-6 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-E10D-6-DW Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-E10D-6-DA Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-E10D-6-S Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-E10D-6-V1 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-E10D-6-R1 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-E10D-M5 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-E10D-M5-DW Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-E10D-M5-DA Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-E10D-M5-S Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-E10D-M5-V1 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-E10D-M5-R1 Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
Vacuum EjectorsCKD
252 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD VSZM Vacuum Ejector Unit (11 mm Pitch Manifold, Station Units)

Brand CKD·Vacuum Ejectors

Available part numbers (252)

VSZM-H05B-4, VSZM-H05B-4-DW, VSZM-H05B-4-DA, VSZM-H05B-4-S, VSZM-H05B-4-V1, VSZM-H05B-4-R1, VSZM-H05B-6, VSZM-H05B-6-DW, VSZM-H05B-6-DA, VSZM-H05B-6-S + 242 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VSZM-H05B-4Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-H05B-4-DWEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H05B-4-DAEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H05B-4-SEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-H05B-4-V1Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-H05B-4-R1Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-H05B-6Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-H05B-6-DWEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H05B-6-DAEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H05B-6-SEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-H05B-6-V1Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-H05B-6-R1Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-H05B-M5Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-H05B-M5-DWEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-H05B-M5-DAEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-H05B-M5-SEjector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-H05B-M5-V1Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-H05B-M5-R1Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-H05D-4Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-H05D-4-DWEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H05D-4-DAEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H05D-4-SEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-H05D-4-V1Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-H05D-4-R1Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-H05D-6Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-H05D-6-DWEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H05D-6-DAEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H05D-6-SEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-H05D-6-V1Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-H05D-6-R1Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-H05D-M5Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-H05D-M5-DWEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-H05D-M5-DAEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-H05D-M5-SEjector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-H05D-M5-V1Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-H05D-M5-R1Ejector: H (high vac, med flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-H07B-4Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-H07B-4-DWEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H07B-4-DAEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H07B-4-SEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-H07B-4-V1Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-H07B-4-R1Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-H07B-6Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-H07B-6-DWEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H07B-6-DAEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H07B-6-SEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-H07B-6-V1Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-H07B-6-R1Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-H07B-M5Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-H07B-M5-DWEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-H07B-M5-DAEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-H07B-M5-SEjector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-H07B-M5-V1Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-H07B-M5-R1Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-H07D-4Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-H07D-4-DWEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H07D-4-DAEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H07D-4-SEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-H07D-4-V1Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-H07D-4-R1Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-H07D-6Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-H07D-6-DWEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H07D-6-DAEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H07D-6-SEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-H07D-6-V1Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-H07D-6-R1Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-H07D-M5Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-H07D-M5-DWEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-H07D-M5-DAEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-H07D-M5-SEjector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-H07D-M5-V1Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-H07D-M5-R1Ejector: H (high vac, med flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-H10B-4Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-H10B-4-DWEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H10B-4-DAEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H10B-4-SEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-H10B-4-V1Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-H10B-4-R1Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-H10B-6Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-H10B-6-DWEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H10B-6-DAEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H10B-6-SEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-H10B-6-V1Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-H10B-6-R1Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-H10B-M5Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-H10B-M5-DWEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-H10B-M5-DAEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-H10B-M5-SEjector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-H10B-M5-V1Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-H10B-M5-R1Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-H10D-4Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-H10D-4-DWEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H10D-4-DAEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H10D-4-SEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-H10D-4-V1Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-H10D-4-R1Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-H10D-6Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-H10D-6-DWEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-H10D-6-DAEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-H10D-6-SEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-H10D-6-V1Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-H10D-6-R1Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-H10D-M5Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-H10D-M5-DWEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-H10D-M5-DAEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-H10D-M5-SEjector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-H10D-M5-V1Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-H10D-M5-R1Ejector: H (high vac, med flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-L05B-4Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-L05B-4-DWEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-L05B-4-DAEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-L05B-4-SEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-L05B-4-V1Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-L05B-4-R1Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-L05B-6Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-L05B-6-DWEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-L05B-6-DAEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-L05B-6-SEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-L05B-6-V1Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-L05B-6-R1Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-L05B-M5Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-L05B-M5-DWEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-L05B-M5-DAEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-L05B-M5-SEjector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-L05B-M5-V1Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-L05B-M5-R1Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-L05D-4Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-L05D-4-DWEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-L05D-4-DAEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-L05D-4-SEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-L05D-4-V1Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-L05D-4-R1Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-L05D-6Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-L05D-6-DWEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-L05D-6-DAEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-L05D-6-SEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-L05D-6-V1Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-L05D-6-R1Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-L05D-M5Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-L05D-M5-DWEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-L05D-M5-DAEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-L05D-M5-SEjector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-L05D-M5-V1Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-L05D-M5-R1Ejector: L (med vac, large flow), 0.5 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-L07B-4Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-L07B-4-DWEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-L07B-4-DAEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-L07B-4-SEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-L07B-4-V1Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-L07B-4-R1Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-L07B-6Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-L07B-6-DWEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-L07B-6-DAEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-L07B-6-SEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-L07B-6-V1Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-L07B-6-R1Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-L07B-M5Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-L07B-M5-DWEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-L07B-M5-DAEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-L07B-M5-SEjector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-L07B-M5-V1Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-L07B-M5-R1Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-L07D-4Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-L07D-4-DWEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-L07D-4-DAEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-L07D-4-SEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-L07D-4-V1Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-L07D-4-R1Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-L07D-6Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-L07D-6-DWEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-L07D-6-DAEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-L07D-6-SEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-L07D-6-V1Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-L07D-6-R1Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-L07D-M5Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-L07D-M5-DWEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-L07D-M5-DAEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-L07D-M5-SEjector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-L07D-M5-V1Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-L07D-M5-R1Ejector: L (med vac, large flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-E07B-4Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-E07B-4-DWEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-E07B-4-DAEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-E07B-4-SEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-E07B-4-V1Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-E07B-4-R1Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-E07B-6Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-E07B-6-DWEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-E07B-6-DAEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-E07B-6-SEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-E07B-6-V1Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-E07B-6-R1Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-E07B-M5Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-E07B-M5-DWEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-E07B-M5-DAEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-E07B-M5-SEjector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-E07B-M5-V1Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-E07B-M5-R1Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-E07D-4Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-E07D-4-DWEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-E07D-4-DAEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-E07D-4-SEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-E07D-4-V1Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-E07D-4-R1Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-E07D-6Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-E07D-6-DWEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-E07D-6-DAEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-E07D-6-SEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-E07D-6-V1Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-E07D-6-R1Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-E07D-M5Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-E07D-M5-DWEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-E07D-M5-DAEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-E07D-M5-SEjector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-E07D-M5-V1Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-E07D-M5-R1Ejector: E (high vac, small flow), 0.7 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-E10B-4Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-E10B-4-DWEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-E10B-4-DAEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-E10B-4-SEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-E10B-4-V1Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-E10B-4-R1Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-E10B-6Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-E10B-6-DWEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-E10B-6-DAEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-E10B-6-SEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-E10B-6-V1Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-E10B-6-R1Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-E10B-M5Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-E10B-M5-DWEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-E10B-M5-DAEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-E10B-M5-SEjector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-E10B-M5-V1Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-E10B-M5-R1Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Normally closed | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound
VSZM-E10D-4Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: None
VSZM-E10D-4-DWEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-E10D-4-DAEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-E10D-4-SEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: No display, NPN 1 output
VSZM-E10D-4-V1Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, vacuum
VSZM-E10D-4-R1Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi4 push-in | Pressure switch: Analog output, compound
VSZM-E10D-6Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: None
VSZM-E10D-6-DWEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 2 outputs
VSZM-E10D-6-DAEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Digital, NPN 1 out + analog
VSZM-E10D-6-SEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: No display, NPN 1 output
VSZM-E10D-6-V1Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, vacuum
VSZM-E10D-6-R1Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: phi6 push-in | Pressure switch: Analog output, compound
VSZM-E10D-M5Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: None
VSZM-E10D-M5-DWEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 2 outputs
VSZM-E10D-M5-DAEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Digital, NPN 1 out + analog
VSZM-E10D-M5-SEjector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: No display, NPN 1 output
VSZM-E10D-M5-V1Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, vacuum
VSZM-E10D-M5-R1Ejector: E (high vac, small flow), 1.0 mm | Supply valve: Self-holding | Vacuum port: M5x0.8 female | Pressure switch: Analog output, compound

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
