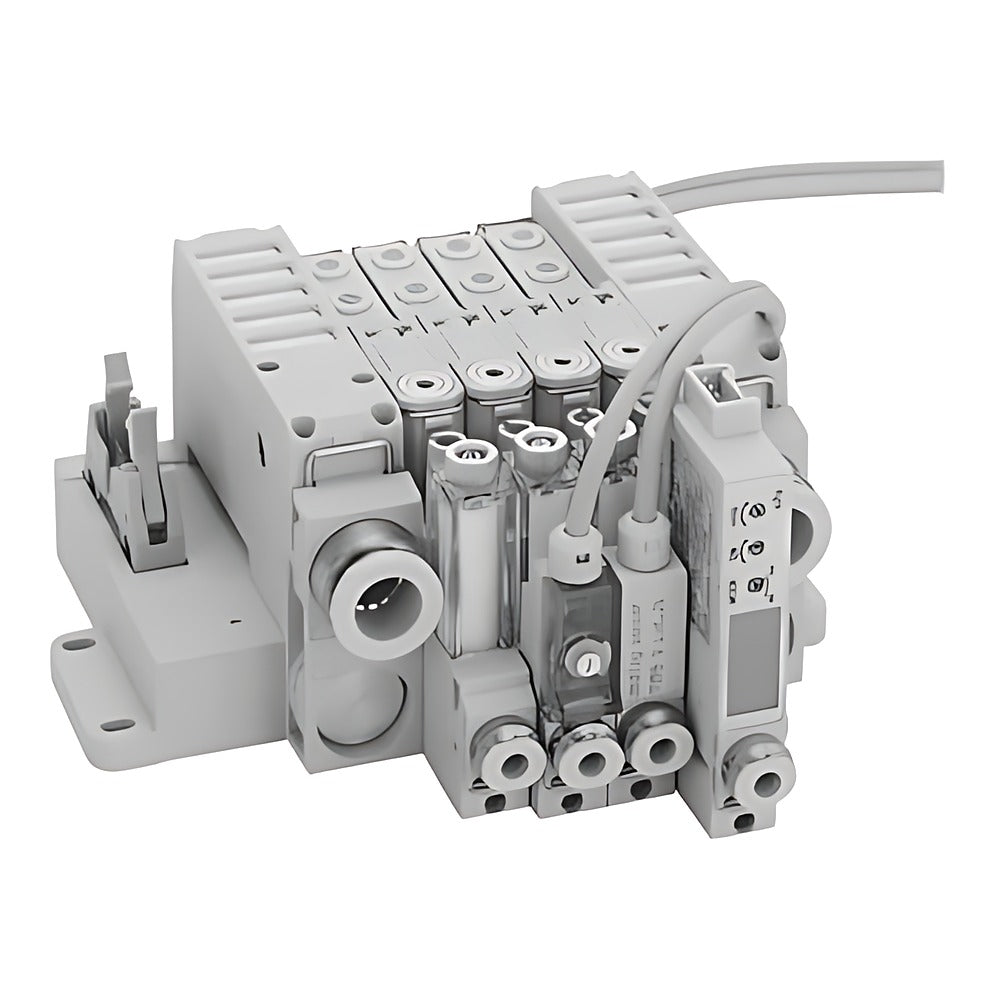

CKD VSZPM Vacuum Switching Unit (11 mm Pitch, Manifold Only)

CKD VSZPM Vacuum Switching Unit (11 mm Pitch, Manifold Only)

CKD VSZPM series 11 mm pitch manifold-only vacuum switching unit for vacuum pump systems, with centralised supply/break valve wiring via flat cable or D-sub connector and a wide choice of vacuum pressure switches.

Key features

  • Manifold-only design, 11 mm pitch, 2 to 12 stations; wiring of supply and break valves centralised on flat cable (F) or D-sub (D) connector
  • Ordered as manifold base (VSZPM-<PS><PV>-<stations>-<wiring><pins>) plus pump unit assemblies (VSZPM-<V>-<switch>) and valve unit assemblies (VSZPM-V-3); mixed manifolds by specification sheet
  • Pressure switch options: digital DW/DA, no-display 1 output S, analog V1 (negative) and R1 (compound)
  • Low 0.55 W pilot valves (DC24V), push and lock manual override
  • Built-in 10 um PVF filter (VSZM-E) and silencer element (VSZM-SE); break flow 0 to 50 L/min

Specifications

Fluid Air
Operating pressure 0.3 to 0.7 MPa
Vacuum pressure 0 to -100 kPa
Ambient and fluid temperature 5 to 50°C
Rated voltage DC24V (21.6 to 26.4 V)
Power consumption 0.55 W (with LED)
Effective area Supply 4.5 mm2 (Cv 0.24), break 3.5 mm2 (Cv 0.19)
Default connector pins Flat cable 10 (2-4 st), 20 (5-9 st), 26 (10-12 st); D-sub 9 (2-4 st), 25 (5-12 st)
Vacuum filter PVF, 10 um, 660 mm2
Source CKD Korea catalog CC-796K-5, p. 309-320
VSZPM-4 Configuration: Pump unit assembly | Vacuum port V: ø4 push-in | Supply ports PS/PV: - | Pressure switch: None | Wiring: -
VSZPM-4-DW Configuration: Pump unit assembly | Vacuum port V: ø4 push-in | Supply ports PS/PV: - | Pressure switch: Digital, NPN 2 outputs | Wiring: -
VSZPM-4-DA Configuration: Pump unit assembly | Vacuum port V: ø4 push-in | Supply ports PS/PV: - | Pressure switch: Digital, NPN 1 output + analog | Wiring: -
VSZPM-4-S Configuration: Pump unit assembly | Vacuum port V: ø4 push-in | Supply ports PS/PV: - | Pressure switch: No display, NPN 1 output | Wiring: -
VSZPM-4-V1 Configuration: Pump unit assembly | Vacuum port V: ø4 push-in | Supply ports PS/PV: - | Pressure switch: Analog, negative pressure | Wiring: -
VSZPM-4-R1 Configuration: Pump unit assembly | Vacuum port V: ø4 push-in | Supply ports PS/PV: - | Pressure switch: Analog, compound pressure | Wiring: -
VSZPM-6 Configuration: Pump unit assembly | Vacuum port V: ø6 push-in | Supply ports PS/PV: - | Pressure switch: None | Wiring: -
VSZPM-6-DW Configuration: Pump unit assembly | Vacuum port V: ø6 push-in | Supply ports PS/PV: - | Pressure switch: Digital, NPN 2 outputs | Wiring: -
VSZPM-6-DA Configuration: Pump unit assembly | Vacuum port V: ø6 push-in | Supply ports PS/PV: - | Pressure switch: Digital, NPN 1 output + analog | Wiring: -
VSZPM-6-S Configuration: Pump unit assembly | Vacuum port V: ø6 push-in | Supply ports PS/PV: - | Pressure switch: No display, NPN 1 output | Wiring: -
VSZPM-6-V1 Configuration: Pump unit assembly | Vacuum port V: ø6 push-in | Supply ports PS/PV: - | Pressure switch: Analog, negative pressure | Wiring: -
VSZPM-6-R1 Configuration: Pump unit assembly | Vacuum port V: ø6 push-in | Supply ports PS/PV: - | Pressure switch: Analog, compound pressure | Wiring: -
VSZPM-M5 Configuration: Pump unit assembly | Vacuum port V: M5x0.8 | Supply ports PS/PV: - | Pressure switch: None | Wiring: -
VSZPM-M5-DW Configuration: Pump unit assembly | Vacuum port V: M5x0.8 | Supply ports PS/PV: - | Pressure switch: Digital, NPN 2 outputs | Wiring: -
VSZPM-M5-DA Configuration: Pump unit assembly | Vacuum port V: M5x0.8 | Supply ports PS/PV: - | Pressure switch: Digital, NPN 1 output + analog | Wiring: -
VSZPM-M5-S Configuration: Pump unit assembly | Vacuum port V: M5x0.8 | Supply ports PS/PV: - | Pressure switch: No display, NPN 1 output | Wiring: -
VSZPM-M5-V1 Configuration: Pump unit assembly | Vacuum port V: M5x0.8 | Supply ports PS/PV: - | Pressure switch: Analog, negative pressure | Wiring: -
VSZPM-M5-R1 Configuration: Pump unit assembly | Vacuum port V: M5x0.8 | Supply ports PS/PV: - | Pressure switch: Analog, compound pressure | Wiring: -
VSZPM-V-3 Configuration: Valve unit assembly, DC24V | Vacuum port V: - | Supply ports PS/PV: - | Pressure switch: - | Wiring: -
VSZPM-46-2-F Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-2-D Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-2-F20 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-46-2-D25 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-46-2-F26 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-46-3-F Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-3-D Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-3-F20 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-46-3-D25 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-46-3-F26 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-46-4-F Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-4-D Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-4-F20 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-46-4-D25 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-46-4-F26 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-46-5-F Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-5-D Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-5-F26 Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-46-6-F Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-6-D Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-6-F26 Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-46-7-F Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-7-D Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-7-F26 Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-46-8-F Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-8-D Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-8-F26 Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-46-9-F Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-9-D Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-9-F26 Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-46-10-F Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-10-D Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-11-F Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-11-D Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-12-F Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-12-D Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-2-F Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-2-D Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-2-F20 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-48-2-D25 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-48-2-F26 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-48-3-F Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-3-D Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-3-F20 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-48-3-D25 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-48-3-F26 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-48-4-F Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-4-D Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-4-F20 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-48-4-D25 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-48-4-F26 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-48-5-F Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-5-D Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-5-F26 Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-48-6-F Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-6-D Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-6-F26 Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-48-7-F Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-7-D Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-7-F26 Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-48-8-F Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-8-D Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-8-F26 Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-48-9-F Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-9-D Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-9-F26 Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-48-10-F Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-10-D Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-11-F Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-11-D Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-12-F Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-12-D Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-2-F Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-2-D Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-2-F20 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-410-2-D25 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-410-2-F26 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-410-3-F Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-3-D Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-3-F20 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-410-3-D25 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-410-3-F26 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-410-4-F Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-4-D Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-4-F20 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-410-4-D25 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-410-4-F26 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-410-5-F Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-5-D Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-5-F26 Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-410-6-F Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-6-D Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-6-F26 Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-410-7-F Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-7-D Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-7-F26 Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-410-8-F Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-8-D Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-8-F26 Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-410-9-F Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-9-D Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-9-F26 Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-410-10-F Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-10-D Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-11-F Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-11-D Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-12-F Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-12-D Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-2-F Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-2-D Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-2-F20 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-66-2-D25 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-66-2-F26 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-66-3-F Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-3-D Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-3-F20 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-66-3-D25 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-66-3-F26 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-66-4-F Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-4-D Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-4-F20 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-66-4-D25 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-66-4-F26 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-66-5-F Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-5-D Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-5-F26 Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-66-6-F Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-6-D Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-6-F26 Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-66-7-F Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-7-D Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-7-F26 Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-66-8-F Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-8-D Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-8-F26 Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-66-9-F Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-9-D Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-9-F26 Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-66-10-F Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-10-D Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-11-F Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-11-D Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-12-F Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-12-D Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-2-F Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-2-D Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-2-F20 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-68-2-D25 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-68-2-F26 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-68-3-F Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-3-D Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-3-F20 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-68-3-D25 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-68-3-F26 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-68-4-F Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-4-D Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-4-F20 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-68-4-D25 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-68-4-F26 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-68-5-F Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-5-D Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-5-F26 Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-68-6-F Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-6-D Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-6-F26 Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-68-7-F Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-7-D Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-7-F26 Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-68-8-F Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-8-D Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-8-F26 Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-68-9-F Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-9-D Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-9-F26 Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-68-10-F Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-10-D Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-11-F Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-11-D Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-12-F Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-12-D Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-2-F Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-2-D Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-2-F20 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-610-2-D25 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-610-2-F26 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-610-3-F Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-3-D Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-3-F20 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-610-3-D25 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-610-3-F26 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-610-4-F Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-4-D Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-4-F20 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-610-4-D25 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-610-4-F26 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-610-5-F Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-5-D Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-5-F26 Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-610-6-F Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-6-D Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-6-F26 Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-610-7-F Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-7-D Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-7-F26 Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-610-8-F Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-8-D Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-8-F26 Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-610-9-F Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-9-D Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-9-F26 Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-610-10-F Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-10-D Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-11-F Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-11-D Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-12-F Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-12-D Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-2-F Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-2-D Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-2-F20 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-86-2-D25 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-86-2-F26 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-86-3-F Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-3-D Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-3-F20 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-86-3-D25 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-86-3-F26 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-86-4-F Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-4-D Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-4-F20 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-86-4-D25 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-86-4-F26 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-86-5-F Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-5-D Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-5-F26 Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-86-6-F Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-6-D Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-6-F26 Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-86-7-F Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-7-D Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-7-F26 Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-86-8-F Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-8-D Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-8-F26 Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-86-9-F Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-9-D Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-9-F26 Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-86-10-F Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-10-D Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-11-F Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-11-D Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-12-F Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-12-D Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-2-F Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-2-D Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-2-F20 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-88-2-D25 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-88-2-F26 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-88-3-F Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-3-D Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-3-F20 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-88-3-D25 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-88-3-F26 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-88-4-F Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-4-D Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-4-F20 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-88-4-D25 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-88-4-F26 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-88-5-F Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-5-D Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-5-F26 Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-88-6-F Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-6-D Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-6-F26 Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-88-7-F Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-7-D Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-7-F26 Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-88-8-F Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-8-D Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-8-F26 Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-88-9-F Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-9-D Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-9-F26 Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-88-10-F Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-10-D Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-11-F Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-11-D Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-12-F Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-12-D Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-2-F Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-2-D Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-2-F20 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-810-2-D25 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-810-2-F26 Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-810-3-F Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-3-D Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-3-F20 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-810-3-D25 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-810-3-F26 Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-810-4-F Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-4-D Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-4-F20 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-810-4-D25 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-810-4-F26 Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-810-5-F Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-5-D Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-5-F26 Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-810-6-F Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-6-D Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-6-F26 Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-810-7-F Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-7-D Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-7-F26 Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-810-8-F Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-8-D Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-8-F26 Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-810-9-F Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-9-D Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-9-F26 Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-810-10-F Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-10-D Configuration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-11-F Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-11-D Configuration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-12-F Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-12-D Configuration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZM-E Configuration: Spare filter element | Vacuum port V: - | Supply ports PS/PV: - | Pressure switch: - | Wiring: -
VSZM-SE Configuration: Spare silencer element | Vacuum port V: - | Supply ports PS/PV: - | Pressure switch: - | Wiring: -
Vacuum EquipmentCKD
345 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD VSZPM Vacuum Switching Unit (11 mm Pitch, Manifold Only)

Brand CKD·Vacuum Equipment

Available part numbers (345)

VSZPM-4, VSZPM-4-DW, VSZPM-4-DA, VSZPM-4-S, VSZPM-4-V1, VSZPM-4-R1, VSZPM-6, VSZPM-6-DW, VSZPM-6-DA, VSZPM-6-S + 335 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VSZPM-4Configuration: Pump unit assembly | Vacuum port V: ø4 push-in | Supply ports PS/PV: - | Pressure switch: None | Wiring: -
VSZPM-4-DWConfiguration: Pump unit assembly | Vacuum port V: ø4 push-in | Supply ports PS/PV: - | Pressure switch: Digital, NPN 2 outputs | Wiring: -
VSZPM-4-DAConfiguration: Pump unit assembly | Vacuum port V: ø4 push-in | Supply ports PS/PV: - | Pressure switch: Digital, NPN 1 output + analog | Wiring: -
VSZPM-4-SConfiguration: Pump unit assembly | Vacuum port V: ø4 push-in | Supply ports PS/PV: - | Pressure switch: No display, NPN 1 output | Wiring: -
VSZPM-4-V1Configuration: Pump unit assembly | Vacuum port V: ø4 push-in | Supply ports PS/PV: - | Pressure switch: Analog, negative pressure | Wiring: -
VSZPM-4-R1Configuration: Pump unit assembly | Vacuum port V: ø4 push-in | Supply ports PS/PV: - | Pressure switch: Analog, compound pressure | Wiring: -
VSZPM-6Configuration: Pump unit assembly | Vacuum port V: ø6 push-in | Supply ports PS/PV: - | Pressure switch: None | Wiring: -
VSZPM-6-DWConfiguration: Pump unit assembly | Vacuum port V: ø6 push-in | Supply ports PS/PV: - | Pressure switch: Digital, NPN 2 outputs | Wiring: -
VSZPM-6-DAConfiguration: Pump unit assembly | Vacuum port V: ø6 push-in | Supply ports PS/PV: - | Pressure switch: Digital, NPN 1 output + analog | Wiring: -
VSZPM-6-SConfiguration: Pump unit assembly | Vacuum port V: ø6 push-in | Supply ports PS/PV: - | Pressure switch: No display, NPN 1 output | Wiring: -
VSZPM-6-V1Configuration: Pump unit assembly | Vacuum port V: ø6 push-in | Supply ports PS/PV: - | Pressure switch: Analog, negative pressure | Wiring: -
VSZPM-6-R1Configuration: Pump unit assembly | Vacuum port V: ø6 push-in | Supply ports PS/PV: - | Pressure switch: Analog, compound pressure | Wiring: -
VSZPM-M5Configuration: Pump unit assembly | Vacuum port V: M5x0.8 | Supply ports PS/PV: - | Pressure switch: None | Wiring: -
VSZPM-M5-DWConfiguration: Pump unit assembly | Vacuum port V: M5x0.8 | Supply ports PS/PV: - | Pressure switch: Digital, NPN 2 outputs | Wiring: -
VSZPM-M5-DAConfiguration: Pump unit assembly | Vacuum port V: M5x0.8 | Supply ports PS/PV: - | Pressure switch: Digital, NPN 1 output + analog | Wiring: -
VSZPM-M5-SConfiguration: Pump unit assembly | Vacuum port V: M5x0.8 | Supply ports PS/PV: - | Pressure switch: No display, NPN 1 output | Wiring: -
VSZPM-M5-V1Configuration: Pump unit assembly | Vacuum port V: M5x0.8 | Supply ports PS/PV: - | Pressure switch: Analog, negative pressure | Wiring: -
VSZPM-M5-R1Configuration: Pump unit assembly | Vacuum port V: M5x0.8 | Supply ports PS/PV: - | Pressure switch: Analog, compound pressure | Wiring: -
VSZPM-V-3Configuration: Valve unit assembly, DC24V | Vacuum port V: - | Supply ports PS/PV: - | Pressure switch: - | Wiring: -
VSZPM-46-2-FConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-2-DConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-2-F20Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-46-2-D25Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-46-2-F26Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-46-3-FConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-3-DConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-3-F20Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-46-3-D25Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-46-3-F26Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-46-4-FConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-4-DConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-4-F20Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-46-4-D25Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-46-4-F26Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-46-5-FConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-5-DConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-5-F26Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-46-6-FConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-6-DConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-6-F26Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-46-7-FConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-7-DConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-7-F26Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-46-8-FConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-8-DConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-8-F26Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-46-9-FConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-9-DConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-9-F26Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-46-10-FConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-10-DConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-11-FConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-11-DConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-46-12-FConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-46-12-DConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-2-FConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-2-DConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-2-F20Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-48-2-D25Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-48-2-F26Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-48-3-FConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-3-DConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-3-F20Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-48-3-D25Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-48-3-F26Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-48-4-FConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-4-DConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-4-F20Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-48-4-D25Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-48-4-F26Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-48-5-FConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-5-DConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-5-F26Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-48-6-FConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-6-DConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-6-F26Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-48-7-FConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-7-DConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-7-F26Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-48-8-FConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-8-DConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-8-F26Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-48-9-FConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-9-DConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-9-F26Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-48-10-FConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-10-DConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-11-FConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-11-DConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-48-12-FConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-48-12-DConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-2-FConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-2-DConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-2-F20Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-410-2-D25Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-410-2-F26Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-410-3-FConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-3-DConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-3-F20Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-410-3-D25Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-410-3-F26Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-410-4-FConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-4-DConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-4-F20Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-410-4-D25Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-410-4-F26Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-410-5-FConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-5-DConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-5-F26Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-410-6-FConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-6-DConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-6-F26Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-410-7-FConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-7-DConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-7-F26Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-410-8-FConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-8-DConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-8-F26Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-410-9-FConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-9-DConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-9-F26Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-410-10-FConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-10-DConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-11-FConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-11-DConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-410-12-FConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-410-12-DConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø4 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-2-FConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-2-DConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-2-F20Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-66-2-D25Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-66-2-F26Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-66-3-FConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-3-DConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-3-F20Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-66-3-D25Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-66-3-F26Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-66-4-FConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-4-DConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-4-F20Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-66-4-D25Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-66-4-F26Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-66-5-FConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-5-DConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-5-F26Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-66-6-FConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-6-DConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-6-F26Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-66-7-FConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-7-DConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-7-F26Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-66-8-FConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-8-DConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-8-F26Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-66-9-FConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-9-DConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-9-F26Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-66-10-FConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-10-DConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-11-FConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-11-DConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-66-12-FConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-66-12-DConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-2-FConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-2-DConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-2-F20Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-68-2-D25Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-68-2-F26Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-68-3-FConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-3-DConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-3-F20Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-68-3-D25Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-68-3-F26Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-68-4-FConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-4-DConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-4-F20Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-68-4-D25Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-68-4-F26Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-68-5-FConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-5-DConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-5-F26Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-68-6-FConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-6-DConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-6-F26Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-68-7-FConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-7-DConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-7-F26Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-68-8-FConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-8-DConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-8-F26Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-68-9-FConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-9-DConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-9-F26Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-68-10-FConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-10-DConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-11-FConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-11-DConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-68-12-FConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-68-12-DConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-2-FConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-2-DConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-2-F20Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-610-2-D25Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-610-2-F26Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-610-3-FConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-3-DConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-3-F20Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-610-3-D25Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-610-3-F26Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-610-4-FConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-4-DConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-4-F20Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-610-4-D25Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-610-4-F26Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-610-5-FConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-5-DConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-5-F26Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-610-6-FConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-6-DConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-6-F26Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-610-7-FConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-7-DConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-7-F26Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-610-8-FConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-8-DConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-8-F26Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-610-9-FConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-9-DConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-9-F26Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-610-10-FConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-10-DConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-11-FConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-11-DConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-610-12-FConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-610-12-DConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø6 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-2-FConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-2-DConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-2-F20Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-86-2-D25Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-86-2-F26Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-86-3-FConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-3-DConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-3-F20Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-86-3-D25Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-86-3-F26Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-86-4-FConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-4-DConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-4-F20Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-86-4-D25Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-86-4-F26Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-86-5-FConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-5-DConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-5-F26Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-86-6-FConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-6-DConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-6-F26Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-86-7-FConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-7-DConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-7-F26Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-86-8-FConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-8-DConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-8-F26Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-86-9-FConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-9-DConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-9-F26Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-86-10-FConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-10-DConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-11-FConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-11-DConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-86-12-FConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-86-12-DConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø6 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-2-FConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-2-DConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-2-F20Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-88-2-D25Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-88-2-F26Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-88-3-FConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-3-DConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-3-F20Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-88-3-D25Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-88-3-F26Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-88-4-FConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-4-DConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-4-F20Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-88-4-D25Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-88-4-F26Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-88-5-FConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-5-DConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-5-F26Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-88-6-FConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-6-DConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-6-F26Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-88-7-FConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-7-DConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-7-F26Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-88-8-FConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-8-DConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-8-F26Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-88-9-FConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-9-DConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-9-F26Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-88-10-FConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-10-DConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-11-FConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-11-DConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-88-12-FConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-88-12-DConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø8 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-2-FConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-2-DConfiguration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-2-F20Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-810-2-D25Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-810-2-F26Configuration: Manifold base, 2 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-810-3-FConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-3-DConfiguration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-3-F20Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-810-3-D25Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-810-3-F26Configuration: Manifold base, 3 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-810-4-FConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-4-DConfiguration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-4-F20Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 20-pin
VSZPM-810-4-D25Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, 25-pin
VSZPM-810-4-F26Configuration: Manifold base, 4 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-810-5-FConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-5-DConfiguration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-5-F26Configuration: Manifold base, 5 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-810-6-FConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-6-DConfiguration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-6-F26Configuration: Manifold base, 6 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-810-7-FConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-7-DConfiguration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-7-F26Configuration: Manifold base, 7 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-810-8-FConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-8-DConfiguration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-8-F26Configuration: Manifold base, 8 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-810-9-FConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-9-DConfiguration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-9-F26Configuration: Manifold base, 9 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, 26-pin
VSZPM-810-10-FConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-10-DConfiguration: Manifold base, 10 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-11-FConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-11-DConfiguration: Manifold base, 11 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZPM-810-12-FConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: Flat cable, standard pins
VSZPM-810-12-DConfiguration: Manifold base, 12 stations | Vacuum port V: - | Supply ports PS/PV: ø8 / ø10 push-in | Pressure switch: - | Wiring: D-sub, standard pins
VSZM-EConfiguration: Spare filter element | Vacuum port V: - | Supply ports PS/PV: - | Pressure switch: - | Wiring: -
VSZM-SEConfiguration: Spare silencer element | Vacuum port V: - | Supply ports PS/PV: - | Pressure switch: - | Wiring: -

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
