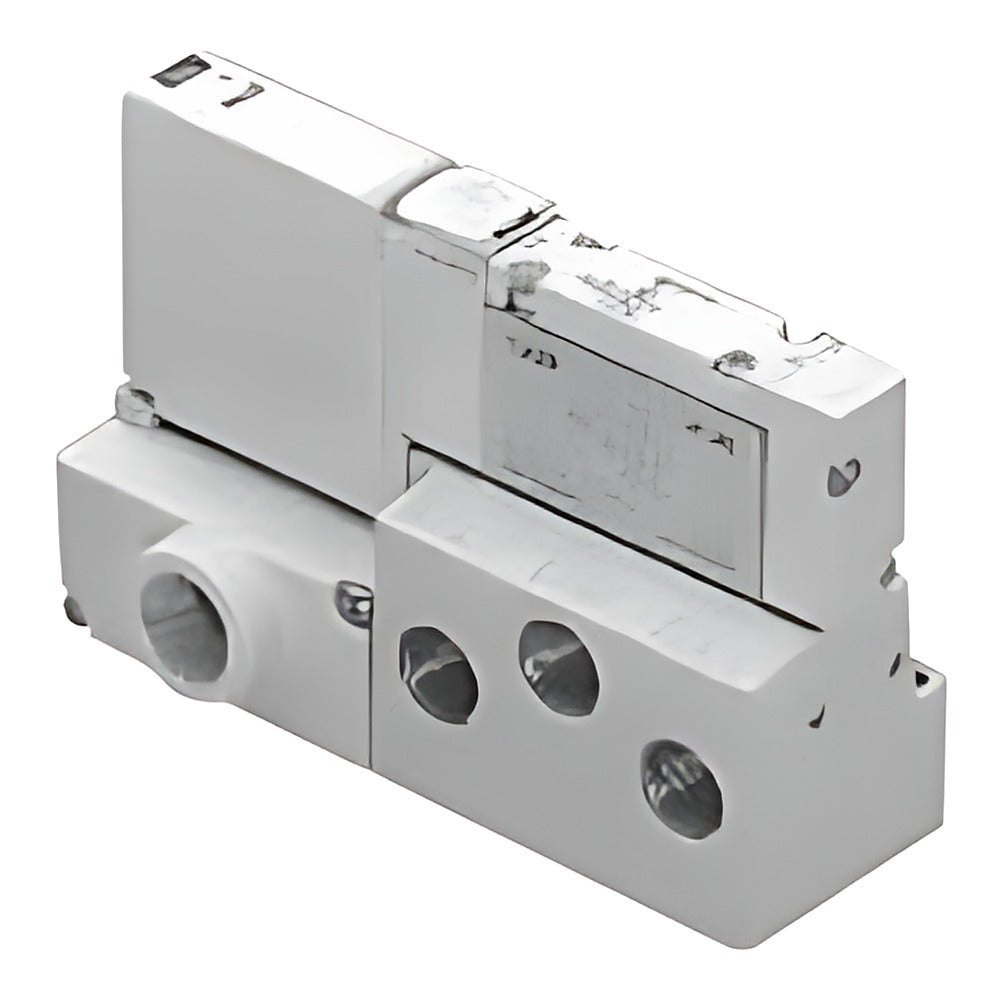

CKD W4GB2-FP1 5-Port Solenoid Valve (Single, Base Piping, IP65)

CKD W4GB2-FP1 5-Port Solenoid Valve (Single, Base Piping, IP65)

CKD W4GB2-FP1 water- and dust-jet-proof (IP65) pilot-operated 5-port solenoid valve on a sub-base for food processing wash-down areas.

Key features

  • IP65 protection (IEC 60529) with terminal-box wiring; surge killer and indicator standard
  • 2-position single/double and 3-position all ports blocked, ABR and PAB
  • Sub-base A/B and P/R ports Rc1/4; applicable cylinder bore 20-80 mm
  • Cable clamp kit W4G-BMS-038GP (PF3/8, cable OD 5-10 mm) for terminal box type
  • I/O connector (R1), AC100V and DC12V versions are made-to-order; options M, H, F not expanded

Specifications

Valve type Pilot operated soft spool valve
Fluid Compressed air
Operating pressure 0.2-0.7 MPa
Proof pressure 1.05 MPa
Ambient / fluid temp. -5 to 55 C / 5 to 55 C
Protection IP65
Wiring Terminal box (standard)
Lubricant NSF H1 food-grade grease
Source CKD Korea catalog CC-1271K-5, p. 214-219
W4GB210-08-3-FP1 Item: Valve with sub-base | Switching: 2-pos single | Port: Rc1/4 | Voltage: DC24V
W4GB219-00-3-FP1 Item: Solenoid valve only | Switching: 2-pos single | Port: None (valve only) | Voltage: DC24V
W4GB220-08-3-FP1 Item: Valve with sub-base | Switching: 2-pos double | Port: Rc1/4 | Voltage: DC24V
W4GB229-00-3-FP1 Item: Solenoid valve only | Switching: 2-pos double | Port: None (valve only) | Voltage: DC24V
W4GB230-08-3-FP1 Item: Valve with sub-base | Switching: 3-pos all ports blocked | Port: Rc1/4 | Voltage: DC24V
W4GB239-00-3-FP1 Item: Solenoid valve only | Switching: 3-pos all ports blocked | Port: None (valve only) | Voltage: DC24V
W4GB240-08-3-FP1 Item: Valve with sub-base | Switching: 3-pos ABR connection | Port: Rc1/4 | Voltage: DC24V
W4GB249-00-3-FP1 Item: Solenoid valve only | Switching: 3-pos ABR connection | Port: None (valve only) | Voltage: DC24V
W4GB250-08-3-FP1 Item: Valve with sub-base | Switching: 3-pos PAB connection | Port: Rc1/4 | Voltage: DC24V
W4GB259-00-3-FP1 Item: Solenoid valve only | Switching: 3-pos PAB connection | Port: None (valve only) | Voltage: DC24V
W4GB2-SP-08-FP1 Item: Sub-plate only | Switching: - | Port: Rc1/4 | Voltage: -
Solenoid ValvesCKD
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD W4GB2-FP1 5-Port Solenoid Valve (Single, Base Piping, IP65)

Brand CKD·Solenoid Valves

Available part numbers (11)

W4GB210-08-3-FP1, W4GB219-00-3-FP1, W4GB220-08-3-FP1, W4GB229-00-3-FP1, W4GB230-08-3-FP1, W4GB239-00-3-FP1, W4GB240-08-3-FP1, W4GB249-00-3-FP1, W4GB250-08-3-FP1, W4GB259-00-3-FP1 + 1 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
W4GB210-08-3-FP1Item: Valve with sub-base | Switching: 2-pos single | Port: Rc1/4 | Voltage: DC24V
W4GB219-00-3-FP1Item: Solenoid valve only | Switching: 2-pos single | Port: None (valve only) | Voltage: DC24V
W4GB220-08-3-FP1Item: Valve with sub-base | Switching: 2-pos double | Port: Rc1/4 | Voltage: DC24V
W4GB229-00-3-FP1Item: Solenoid valve only | Switching: 2-pos double | Port: None (valve only) | Voltage: DC24V
W4GB230-08-3-FP1Item: Valve with sub-base | Switching: 3-pos all ports blocked | Port: Rc1/4 | Voltage: DC24V
W4GB239-00-3-FP1Item: Solenoid valve only | Switching: 3-pos all ports blocked | Port: None (valve only) | Voltage: DC24V
W4GB240-08-3-FP1Item: Valve with sub-base | Switching: 3-pos ABR connection | Port: Rc1/4 | Voltage: DC24V
W4GB249-00-3-FP1Item: Solenoid valve only | Switching: 3-pos ABR connection | Port: None (valve only) | Voltage: DC24V
W4GB250-08-3-FP1Item: Valve with sub-base | Switching: 3-pos PAB connection | Port: Rc1/4 | Voltage: DC24V
W4GB259-00-3-FP1Item: Solenoid valve only | Switching: 3-pos PAB connection | Port: None (valve only) | Voltage: DC24V
W4GB2-SP-08-FP1Item: Sub-plate only | Switching: - | Port: Rc1/4 | Voltage: -
