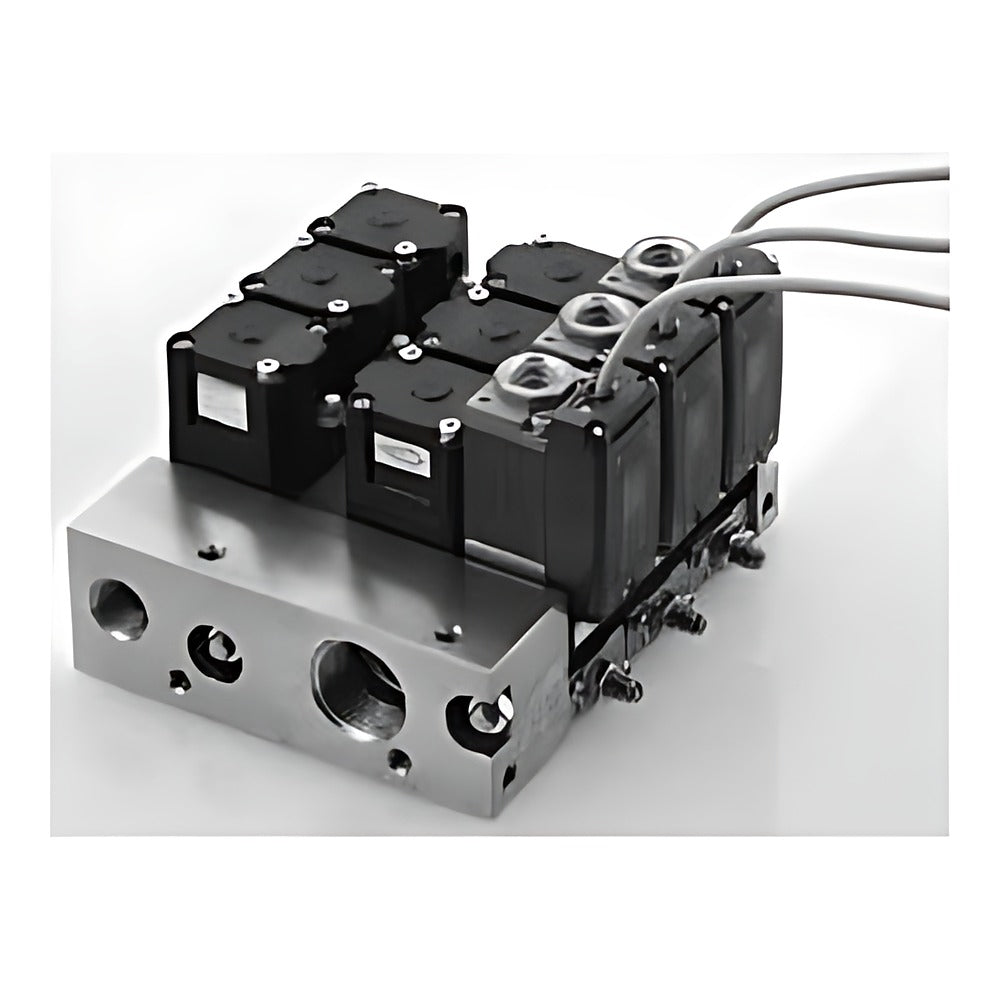

CKD WXU-P Water Integrated Unit, 2-Fluid (Water / Air Purge)

CKD WXU-P 2-fluid water integrated unit uses supply and return units to switch two fluids (e.g. cooling water and purge air) per circuit, for spot welders and similar equipment.

Key features

Supply (S) and return (R) units, 2 to 6 stations; inblock left (L) listed, right (R) or both (W) also available
Two GNAB-based cylinder valves per station: fluid 1 valve standard (S) or high flow (B), each NC (1) or NO (2)
Needle flow adjustment (N) or none (0); branch ports Rc3/8 or Rc1/2
Return side WFK3000 flow sensor 04/12/32; supply side without sensor (00-000)
Listed return-side codes use sensor output A0 (DC0-5V); A1-A3, N0-P1 and A*N0..P1 combinations replace the last block, e.g. WXU-P-R-6-L-S11-N-15-12-A0N0

Specifications

Fluid	Water, hot water
Seal	FKM
Ambient temperature	5-50 C
Fluids	Water and air (2 fluids)
IN/OUT port	Rc1 (inblock)
Inblock position (listed)	L (left)
Source	CKD Korea catalog CB-03-1SK-9, p. 717-734

WXU-P-R-2-L-S11-N-10-04-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-S11-N-10-12-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-S11-N-10-32-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-S11-N-10-00-000		Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-2-L-S11-N-15-04-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-S11-N-15-12-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-S11-N-15-32-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-S11-N-15-00-000		Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-2-L-S11-0-10-04-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-S11-0-10-12-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-S11-0-10-32-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-S11-0-10-00-000		Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-2-L-S11-0-15-04-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-S11-0-15-12-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-S11-0-15-32-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-S11-0-15-00-000		Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-2-L-S12-N-10-04-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-S12-N-10-12-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-S12-N-10-32-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-S12-N-10-00-000		Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-2-L-S12-N-15-04-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-S12-N-15-12-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-S12-N-15-32-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-S12-N-15-00-000		Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-2-L-S12-0-10-04-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-S12-0-10-12-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-S12-0-10-32-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-S12-0-10-00-000		Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-2-L-S12-0-15-04-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-S12-0-15-12-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-S12-0-15-32-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-S12-0-15-00-000		Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-2-L-S21-N-10-04-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-S21-N-10-12-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-S21-N-10-32-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-S21-N-10-00-000		Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-2-L-S21-N-15-04-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-S21-N-15-12-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-S21-N-15-32-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-S21-N-15-00-000		Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-2-L-S21-0-10-04-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-S21-0-10-12-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-S21-0-10-32-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-S21-0-10-00-000		Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-2-L-S21-0-15-04-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-S21-0-15-12-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-S21-0-15-32-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-S21-0-15-00-000		Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-2-L-S22-N-10-04-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-S22-N-10-12-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-S22-N-10-32-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-S22-N-10-00-000		Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-2-L-S22-N-15-04-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-S22-N-15-12-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-S22-N-15-32-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-S22-N-15-00-000		Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-2-L-S22-0-10-04-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-S22-0-10-12-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-S22-0-10-32-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-S22-0-10-00-000		Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-2-L-S22-0-15-04-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-S22-0-15-12-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-S22-0-15-32-A0		Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-S22-0-15-00-000		Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-2-L-B11-N-10-04-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-B11-N-10-12-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-B11-N-10-32-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-B11-N-10-00-000		Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-2-L-B11-N-15-04-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-B11-N-15-12-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-B11-N-15-32-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-B11-N-15-00-000		Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-2-L-B11-0-10-04-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-B11-0-10-12-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-B11-0-10-32-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-B11-0-10-00-000		Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-2-L-B11-0-15-04-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-B11-0-15-12-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-B11-0-15-32-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-B11-0-15-00-000		Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-2-L-B12-N-10-04-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-B12-N-10-12-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-B12-N-10-32-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-B12-N-10-00-000		Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-2-L-B12-N-15-04-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-B12-N-15-12-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-B12-N-15-32-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-B12-N-15-00-000		Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-2-L-B12-0-10-04-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-B12-0-10-12-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-B12-0-10-32-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-B12-0-10-00-000		Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-2-L-B12-0-15-04-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-B12-0-15-12-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-B12-0-15-32-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-B12-0-15-00-000		Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-2-L-B21-N-10-04-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-B21-N-10-12-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-B21-N-10-32-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-B21-N-10-00-000		Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-2-L-B21-N-15-04-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-B21-N-15-12-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-B21-N-15-32-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-B21-N-15-00-000		Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-2-L-B21-0-10-04-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-B21-0-10-12-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-B21-0-10-32-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-B21-0-10-00-000		Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-2-L-B21-0-15-04-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-B21-0-15-12-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-B21-0-15-32-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-B21-0-15-00-000		Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-2-L-B22-N-10-04-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-B22-N-10-12-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-B22-N-10-32-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-B22-N-10-00-000		Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-2-L-B22-N-15-04-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-B22-N-15-12-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-B22-N-15-32-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-B22-N-15-00-000		Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-2-L-B22-0-10-04-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-B22-0-10-12-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-B22-0-10-32-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-B22-0-10-00-000		Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-2-L-B22-0-15-04-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-2-L-B22-0-15-12-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-2-L-B22-0-15-32-A0		Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-2-L-B22-0-15-00-000		Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-3-L-S11-N-10-04-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-S11-N-10-12-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-S11-N-10-32-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-S11-N-10-00-000		Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-3-L-S11-N-15-04-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-S11-N-15-12-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-S11-N-15-32-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-S11-N-15-00-000		Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-3-L-S11-0-10-04-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-S11-0-10-12-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-S11-0-10-32-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-S11-0-10-00-000		Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-3-L-S11-0-15-04-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-S11-0-15-12-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-S11-0-15-32-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-S11-0-15-00-000		Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-3-L-S12-N-10-04-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-S12-N-10-12-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-S12-N-10-32-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-S12-N-10-00-000		Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-3-L-S12-N-15-04-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-S12-N-15-12-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-S12-N-15-32-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-S12-N-15-00-000		Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-3-L-S12-0-10-04-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-S12-0-10-12-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-S12-0-10-32-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-S12-0-10-00-000		Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-3-L-S12-0-15-04-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-S12-0-15-12-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-S12-0-15-32-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-S12-0-15-00-000		Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-3-L-S21-N-10-04-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-S21-N-10-12-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-S21-N-10-32-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-S21-N-10-00-000		Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-3-L-S21-N-15-04-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-S21-N-15-12-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-S21-N-15-32-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-S21-N-15-00-000		Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-3-L-S21-0-10-04-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-S21-0-10-12-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-S21-0-10-32-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-S21-0-10-00-000		Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-3-L-S21-0-15-04-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-S21-0-15-12-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-S21-0-15-32-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-S21-0-15-00-000		Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-3-L-S22-N-10-04-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-S22-N-10-12-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-S22-N-10-32-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-S22-N-10-00-000		Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-3-L-S22-N-15-04-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-S22-N-15-12-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-S22-N-15-32-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-S22-N-15-00-000		Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-3-L-S22-0-10-04-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-S22-0-10-12-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-S22-0-10-32-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-S22-0-10-00-000		Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-3-L-S22-0-15-04-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-S22-0-15-12-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-S22-0-15-32-A0		Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-S22-0-15-00-000		Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-3-L-B11-N-10-04-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-B11-N-10-12-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-B11-N-10-32-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-B11-N-10-00-000		Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-3-L-B11-N-15-04-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-B11-N-15-12-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-B11-N-15-32-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-B11-N-15-00-000		Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-3-L-B11-0-10-04-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-B11-0-10-12-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-B11-0-10-32-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-B11-0-10-00-000		Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-3-L-B11-0-15-04-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-B11-0-15-12-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-B11-0-15-32-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-B11-0-15-00-000		Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-3-L-B12-N-10-04-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-B12-N-10-12-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-B12-N-10-32-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-B12-N-10-00-000		Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-3-L-B12-N-15-04-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-B12-N-15-12-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-B12-N-15-32-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-B12-N-15-00-000		Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-3-L-B12-0-10-04-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-B12-0-10-12-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-B12-0-10-32-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-B12-0-10-00-000		Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-3-L-B12-0-15-04-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-B12-0-15-12-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-B12-0-15-32-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-B12-0-15-00-000		Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-3-L-B21-N-10-04-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-B21-N-10-12-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-B21-N-10-32-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-B21-N-10-00-000		Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-3-L-B21-N-15-04-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-B21-N-15-12-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-B21-N-15-32-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-B21-N-15-00-000		Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-3-L-B21-0-10-04-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-B21-0-10-12-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-B21-0-10-32-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-B21-0-10-00-000		Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-3-L-B21-0-15-04-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-B21-0-15-12-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-B21-0-15-32-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-B21-0-15-00-000		Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-3-L-B22-N-10-04-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-B22-N-10-12-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-B22-N-10-32-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-B22-N-10-00-000		Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-3-L-B22-N-15-04-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-B22-N-15-12-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-B22-N-15-32-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-B22-N-15-00-000		Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-3-L-B22-0-10-04-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-B22-0-10-12-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-B22-0-10-32-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-B22-0-10-00-000		Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-3-L-B22-0-15-04-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-3-L-B22-0-15-12-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-3-L-B22-0-15-32-A0		Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-3-L-B22-0-15-00-000		Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-4-L-S11-N-10-04-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-S11-N-10-12-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-S11-N-10-32-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-S11-N-10-00-000		Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-4-L-S11-N-15-04-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-S11-N-15-12-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-S11-N-15-32-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-S11-N-15-00-000		Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-4-L-S11-0-10-04-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-S11-0-10-12-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-S11-0-10-32-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-S11-0-10-00-000		Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-4-L-S11-0-15-04-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-S11-0-15-12-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-S11-0-15-32-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-S11-0-15-00-000		Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-4-L-S12-N-10-04-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-S12-N-10-12-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-S12-N-10-32-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-S12-N-10-00-000		Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-4-L-S12-N-15-04-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-S12-N-15-12-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-S12-N-15-32-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-S12-N-15-00-000		Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-4-L-S12-0-10-04-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-S12-0-10-12-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-S12-0-10-32-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-S12-0-10-00-000		Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-4-L-S12-0-15-04-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-S12-0-15-12-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-S12-0-15-32-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-S12-0-15-00-000		Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-4-L-S21-N-10-04-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-S21-N-10-12-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-S21-N-10-32-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-S21-N-10-00-000		Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-4-L-S21-N-15-04-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-S21-N-15-12-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-S21-N-15-32-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-S21-N-15-00-000		Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-4-L-S21-0-10-04-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-S21-0-10-12-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-S21-0-10-32-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-S21-0-10-00-000		Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-4-L-S21-0-15-04-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-S21-0-15-12-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-S21-0-15-32-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-S21-0-15-00-000		Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-4-L-S22-N-10-04-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-S22-N-10-12-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-S22-N-10-32-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-S22-N-10-00-000		Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-4-L-S22-N-15-04-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-S22-N-15-12-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-S22-N-15-32-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-S22-N-15-00-000		Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-4-L-S22-0-10-04-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-S22-0-10-12-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-S22-0-10-32-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-S22-0-10-00-000		Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-4-L-S22-0-15-04-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-S22-0-15-12-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-S22-0-15-32-A0		Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-S22-0-15-00-000		Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-4-L-B11-N-10-04-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-B11-N-10-12-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-B11-N-10-32-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-B11-N-10-00-000		Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-4-L-B11-N-15-04-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-B11-N-15-12-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-B11-N-15-32-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-B11-N-15-00-000		Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-4-L-B11-0-10-04-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-B11-0-10-12-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-B11-0-10-32-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-B11-0-10-00-000		Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-4-L-B11-0-15-04-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-B11-0-15-12-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-B11-0-15-32-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-B11-0-15-00-000		Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-4-L-B12-N-10-04-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-B12-N-10-12-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-B12-N-10-32-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-B12-N-10-00-000		Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-4-L-B12-N-15-04-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-B12-N-15-12-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-B12-N-15-32-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-B12-N-15-00-000		Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-4-L-B12-0-10-04-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-B12-0-10-12-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-B12-0-10-32-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-B12-0-10-00-000		Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-4-L-B12-0-15-04-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-B12-0-15-12-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-B12-0-15-32-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-B12-0-15-00-000		Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-4-L-B21-N-10-04-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-B21-N-10-12-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-B21-N-10-32-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-B21-N-10-00-000		Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-4-L-B21-N-15-04-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-B21-N-15-12-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-B21-N-15-32-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-B21-N-15-00-000		Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-4-L-B21-0-10-04-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-B21-0-10-12-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-B21-0-10-32-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-B21-0-10-00-000		Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-4-L-B21-0-15-04-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-B21-0-15-12-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-B21-0-15-32-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-B21-0-15-00-000		Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-4-L-B22-N-10-04-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-B22-N-10-12-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-B22-N-10-32-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-B22-N-10-00-000		Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-4-L-B22-N-15-04-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-B22-N-15-12-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-B22-N-15-32-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-B22-N-15-00-000		Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-4-L-B22-0-10-04-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-B22-0-10-12-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-B22-0-10-32-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-B22-0-10-00-000		Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-4-L-B22-0-15-04-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-4-L-B22-0-15-12-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-4-L-B22-0-15-32-A0		Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-4-L-B22-0-15-00-000		Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-5-L-S11-N-10-04-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-S11-N-10-12-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-S11-N-10-32-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-S11-N-10-00-000		Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-5-L-S11-N-15-04-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-S11-N-15-12-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-S11-N-15-32-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-S11-N-15-00-000		Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-5-L-S11-0-10-04-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-S11-0-10-12-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-S11-0-10-32-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-S11-0-10-00-000		Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-5-L-S11-0-15-04-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-S11-0-15-12-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-S11-0-15-32-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-S11-0-15-00-000		Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-5-L-S12-N-10-04-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-S12-N-10-12-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-S12-N-10-32-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-S12-N-10-00-000		Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-5-L-S12-N-15-04-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-S12-N-15-12-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-S12-N-15-32-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-S12-N-15-00-000		Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-5-L-S12-0-10-04-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-S12-0-10-12-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-S12-0-10-32-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-S12-0-10-00-000		Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-5-L-S12-0-15-04-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-S12-0-15-12-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-S12-0-15-32-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-S12-0-15-00-000		Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-5-L-S21-N-10-04-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-S21-N-10-12-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-S21-N-10-32-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-S21-N-10-00-000		Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-5-L-S21-N-15-04-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-S21-N-15-12-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-S21-N-15-32-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-S21-N-15-00-000		Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-5-L-S21-0-10-04-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-S21-0-10-12-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-S21-0-10-32-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-S21-0-10-00-000		Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-5-L-S21-0-15-04-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-S21-0-15-12-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-S21-0-15-32-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-S21-0-15-00-000		Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-5-L-S22-N-10-04-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-S22-N-10-12-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-S22-N-10-32-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-S22-N-10-00-000		Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-5-L-S22-N-15-04-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-S22-N-15-12-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-S22-N-15-32-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-S22-N-15-00-000		Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-5-L-S22-0-10-04-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-S22-0-10-12-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-S22-0-10-32-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-S22-0-10-00-000		Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-5-L-S22-0-15-04-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-S22-0-15-12-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-S22-0-15-32-A0		Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-S22-0-15-00-000		Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-5-L-B11-N-10-04-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-B11-N-10-12-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-B11-N-10-32-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-B11-N-10-00-000		Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-5-L-B11-N-15-04-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-B11-N-15-12-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-B11-N-15-32-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-B11-N-15-00-000		Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-5-L-B11-0-10-04-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-B11-0-10-12-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-B11-0-10-32-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-B11-0-10-00-000		Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-5-L-B11-0-15-04-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-B11-0-15-12-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-B11-0-15-32-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-B11-0-15-00-000		Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-5-L-B12-N-10-04-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-B12-N-10-12-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-B12-N-10-32-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-B12-N-10-00-000		Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-5-L-B12-N-15-04-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-B12-N-15-12-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-B12-N-15-32-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-B12-N-15-00-000		Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-5-L-B12-0-10-04-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-B12-0-10-12-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-B12-0-10-32-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-B12-0-10-00-000		Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-5-L-B12-0-15-04-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-B12-0-15-12-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-B12-0-15-32-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-B12-0-15-00-000		Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-5-L-B21-N-10-04-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-B21-N-10-12-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-B21-N-10-32-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-B21-N-10-00-000		Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-5-L-B21-N-15-04-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-B21-N-15-12-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-B21-N-15-32-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-B21-N-15-00-000		Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-5-L-B21-0-10-04-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-B21-0-10-12-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-B21-0-10-32-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-B21-0-10-00-000		Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-5-L-B21-0-15-04-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-B21-0-15-12-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-B21-0-15-32-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-B21-0-15-00-000		Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-5-L-B22-N-10-04-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-B22-N-10-12-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-B22-N-10-32-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-B22-N-10-00-000		Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-5-L-B22-N-15-04-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-B22-N-15-12-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-B22-N-15-32-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-B22-N-15-00-000		Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-5-L-B22-0-10-04-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-B22-0-10-12-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-B22-0-10-32-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-B22-0-10-00-000		Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-5-L-B22-0-15-04-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-5-L-B22-0-15-12-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-5-L-B22-0-15-32-A0		Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-5-L-B22-0-15-00-000		Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-6-L-S11-N-10-04-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-S11-N-10-12-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-S11-N-10-32-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-S11-N-10-00-000		Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-6-L-S11-N-15-04-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-S11-N-15-12-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-S11-N-15-32-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-S11-N-15-00-000		Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-6-L-S11-0-10-04-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-S11-0-10-12-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-S11-0-10-32-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-S11-0-10-00-000		Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-6-L-S11-0-15-04-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-S11-0-15-12-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-S11-0-15-32-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-S11-0-15-00-000		Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-6-L-S12-N-10-04-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-S12-N-10-12-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-S12-N-10-32-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-S12-N-10-00-000		Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-6-L-S12-N-15-04-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-S12-N-15-12-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-S12-N-15-32-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-S12-N-15-00-000		Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-6-L-S12-0-10-04-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-S12-0-10-12-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-S12-0-10-32-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-S12-0-10-00-000		Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-6-L-S12-0-15-04-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-S12-0-15-12-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-S12-0-15-32-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-S12-0-15-00-000		Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-6-L-S21-N-10-04-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-S21-N-10-12-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-S21-N-10-32-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-S21-N-10-00-000		Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-6-L-S21-N-15-04-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-S21-N-15-12-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-S21-N-15-32-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-S21-N-15-00-000		Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-6-L-S21-0-10-04-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-S21-0-10-12-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-S21-0-10-32-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-S21-0-10-00-000		Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-6-L-S21-0-15-04-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-S21-0-15-12-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-S21-0-15-32-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-S21-0-15-00-000		Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-6-L-S22-N-10-04-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-S22-N-10-12-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-S22-N-10-32-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-S22-N-10-00-000		Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-6-L-S22-N-15-04-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-S22-N-15-12-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-S22-N-15-32-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-S22-N-15-00-000		Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-6-L-S22-0-10-04-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-S22-0-10-12-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-S22-0-10-32-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-S22-0-10-00-000		Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-6-L-S22-0-15-04-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-S22-0-15-12-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-S22-0-15-32-A0		Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-S22-0-15-00-000		Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-6-L-B11-N-10-04-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-B11-N-10-12-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-B11-N-10-32-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-B11-N-10-00-000		Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-6-L-B11-N-15-04-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-B11-N-15-12-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-B11-N-15-32-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-B11-N-15-00-000		Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-6-L-B11-0-10-04-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-B11-0-10-12-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-B11-0-10-32-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-B11-0-10-00-000		Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-6-L-B11-0-15-04-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-B11-0-15-12-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-B11-0-15-32-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-B11-0-15-00-000		Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-6-L-B12-N-10-04-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-B12-N-10-12-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-B12-N-10-32-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-B12-N-10-00-000		Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-6-L-B12-N-15-04-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-B12-N-15-12-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-B12-N-15-32-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-B12-N-15-00-000		Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-6-L-B12-0-10-04-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-B12-0-10-12-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-B12-0-10-32-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-B12-0-10-00-000		Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-6-L-B12-0-15-04-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-B12-0-15-12-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-B12-0-15-32-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-B12-0-15-00-000		Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-6-L-B21-N-10-04-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-B21-N-10-12-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-B21-N-10-32-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-B21-N-10-00-000		Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-6-L-B21-N-15-04-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-B21-N-15-12-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-B21-N-15-32-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-B21-N-15-00-000		Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-6-L-B21-0-10-04-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-B21-0-10-12-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-B21-0-10-32-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-B21-0-10-00-000		Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-6-L-B21-0-15-04-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-B21-0-15-12-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-B21-0-15-32-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-B21-0-15-00-000		Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-6-L-B22-N-10-04-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-B22-N-10-12-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-B22-N-10-32-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-B22-N-10-00-000		Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-6-L-B22-N-15-04-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-B22-N-15-12-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-B22-N-15-32-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-B22-N-15-00-000		Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
WXU-P-R-6-L-B22-0-10-04-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-B22-0-10-12-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-B22-0-10-32-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-B22-0-10-00-000		Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
WXU-P-R-6-L-B22-0-15-04-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
WXU-P-R-6-L-B22-0-15-12-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
WXU-P-R-6-L-B22-0-15-32-A0		Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
WXU-P-S-6-L-B22-0-15-00-000		Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor

Valve ManifoldsCKD

640 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD WXU-P Water Integrated Unit, 2-Fluid (Water / Air Purge)

Brand CKD·Valve Manifolds

Available part numbers (640)

WXU-P-R-2-L-S11-N-10-04-A0, WXU-P-R-2-L-S11-N-10-12-A0, WXU-P-R-2-L-S11-N-10-32-A0, WXU-P-S-2-L-S11-N-10-00-000, WXU-P-R-2-L-S11-N-15-04-A0, WXU-P-R-2-L-S11-N-15-12-A0, WXU-P-R-2-L-S11-N-15-32-A0, WXU-P-S-2-L-S11-N-15-00-000, WXU-P-R-2-L-S11-0-10-04-A0, WXU-P-R-2-L-S11-0-10-12-A0 + 630 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	WXU-P-R-2-L-S11-N-10-04-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-S11-N-10-12-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-S11-N-10-32-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-S11-N-10-00-000	Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-2-L-S11-N-15-04-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-S11-N-15-12-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-S11-N-15-32-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-S11-N-15-00-000	Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-2-L-S11-0-10-04-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-S11-0-10-12-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-S11-0-10-32-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-S11-0-10-00-000	Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-2-L-S11-0-15-04-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-S11-0-15-12-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-S11-0-15-32-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-S11-0-15-00-000	Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-2-L-S12-N-10-04-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-S12-N-10-12-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-S12-N-10-32-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-S12-N-10-00-000	Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-2-L-S12-N-15-04-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-S12-N-15-12-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-S12-N-15-32-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-S12-N-15-00-000	Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-2-L-S12-0-10-04-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-S12-0-10-12-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-S12-0-10-32-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-S12-0-10-00-000	Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-2-L-S12-0-15-04-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-S12-0-15-12-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-S12-0-15-32-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-S12-0-15-00-000	Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-2-L-S21-N-10-04-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-S21-N-10-12-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-S21-N-10-32-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-S21-N-10-00-000	Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-2-L-S21-N-15-04-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-S21-N-15-12-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-S21-N-15-32-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-S21-N-15-00-000	Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-2-L-S21-0-10-04-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-S21-0-10-12-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-S21-0-10-32-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-S21-0-10-00-000	Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-2-L-S21-0-15-04-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-S21-0-15-12-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-S21-0-15-32-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-S21-0-15-00-000	Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-2-L-S22-N-10-04-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-S22-N-10-12-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-S22-N-10-32-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-S22-N-10-00-000	Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-2-L-S22-N-15-04-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-S22-N-15-12-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-S22-N-15-32-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-S22-N-15-00-000	Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-2-L-S22-0-10-04-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-S22-0-10-12-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-S22-0-10-32-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-S22-0-10-00-000	Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-2-L-S22-0-15-04-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-S22-0-15-12-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-S22-0-15-32-A0	Side: Return \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-S22-0-15-00-000	Side: Supply \| Stations: 2 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-2-L-B11-N-10-04-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-B11-N-10-12-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-B11-N-10-32-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-B11-N-10-00-000	Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-2-L-B11-N-15-04-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-B11-N-15-12-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-B11-N-15-32-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-B11-N-15-00-000	Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-2-L-B11-0-10-04-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-B11-0-10-12-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-B11-0-10-32-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-B11-0-10-00-000	Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-2-L-B11-0-15-04-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-B11-0-15-12-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-B11-0-15-32-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-B11-0-15-00-000	Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-2-L-B12-N-10-04-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-B12-N-10-12-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-B12-N-10-32-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-B12-N-10-00-000	Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-2-L-B12-N-15-04-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-B12-N-15-12-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-B12-N-15-32-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-B12-N-15-00-000	Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-2-L-B12-0-10-04-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-B12-0-10-12-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-B12-0-10-32-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-B12-0-10-00-000	Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-2-L-B12-0-15-04-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-B12-0-15-12-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-B12-0-15-32-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-B12-0-15-00-000	Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-2-L-B21-N-10-04-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-B21-N-10-12-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-B21-N-10-32-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-B21-N-10-00-000	Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-2-L-B21-N-15-04-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-B21-N-15-12-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-B21-N-15-32-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-B21-N-15-00-000	Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-2-L-B21-0-10-04-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-B21-0-10-12-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-B21-0-10-32-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-B21-0-10-00-000	Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-2-L-B21-0-15-04-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-B21-0-15-12-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-B21-0-15-32-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-B21-0-15-00-000	Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-2-L-B22-N-10-04-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-B22-N-10-12-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-B22-N-10-32-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-B22-N-10-00-000	Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-2-L-B22-N-15-04-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-B22-N-15-12-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-B22-N-15-32-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-B22-N-15-00-000	Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-2-L-B22-0-10-04-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-B22-0-10-12-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-B22-0-10-32-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-B22-0-10-00-000	Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-2-L-B22-0-15-04-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-2-L-B22-0-15-12-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-2-L-B22-0-15-32-A0	Side: Return \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-2-L-B22-0-15-00-000	Side: Supply \| Stations: 2 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-3-L-S11-N-10-04-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-S11-N-10-12-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-S11-N-10-32-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-S11-N-10-00-000	Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-3-L-S11-N-15-04-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-S11-N-15-12-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-S11-N-15-32-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-S11-N-15-00-000	Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-3-L-S11-0-10-04-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-S11-0-10-12-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-S11-0-10-32-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-S11-0-10-00-000	Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-3-L-S11-0-15-04-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-S11-0-15-12-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-S11-0-15-32-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-S11-0-15-00-000	Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-3-L-S12-N-10-04-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-S12-N-10-12-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-S12-N-10-32-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-S12-N-10-00-000	Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-3-L-S12-N-15-04-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-S12-N-15-12-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-S12-N-15-32-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-S12-N-15-00-000	Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-3-L-S12-0-10-04-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-S12-0-10-12-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-S12-0-10-32-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-S12-0-10-00-000	Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-3-L-S12-0-15-04-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-S12-0-15-12-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-S12-0-15-32-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-S12-0-15-00-000	Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-3-L-S21-N-10-04-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-S21-N-10-12-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-S21-N-10-32-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-S21-N-10-00-000	Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-3-L-S21-N-15-04-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-S21-N-15-12-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-S21-N-15-32-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-S21-N-15-00-000	Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-3-L-S21-0-10-04-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-S21-0-10-12-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-S21-0-10-32-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-S21-0-10-00-000	Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-3-L-S21-0-15-04-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-S21-0-15-12-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-S21-0-15-32-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-S21-0-15-00-000	Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-3-L-S22-N-10-04-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-S22-N-10-12-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-S22-N-10-32-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-S22-N-10-00-000	Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-3-L-S22-N-15-04-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-S22-N-15-12-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-S22-N-15-32-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-S22-N-15-00-000	Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-3-L-S22-0-10-04-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-S22-0-10-12-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-S22-0-10-32-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-S22-0-10-00-000	Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-3-L-S22-0-15-04-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-S22-0-15-12-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-S22-0-15-32-A0	Side: Return \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-S22-0-15-00-000	Side: Supply \| Stations: 3 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-3-L-B11-N-10-04-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-B11-N-10-12-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-B11-N-10-32-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-B11-N-10-00-000	Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-3-L-B11-N-15-04-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-B11-N-15-12-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-B11-N-15-32-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-B11-N-15-00-000	Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-3-L-B11-0-10-04-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-B11-0-10-12-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-B11-0-10-32-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-B11-0-10-00-000	Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-3-L-B11-0-15-04-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-B11-0-15-12-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-B11-0-15-32-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-B11-0-15-00-000	Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-3-L-B12-N-10-04-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-B12-N-10-12-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-B12-N-10-32-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-B12-N-10-00-000	Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-3-L-B12-N-15-04-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-B12-N-15-12-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-B12-N-15-32-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-B12-N-15-00-000	Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-3-L-B12-0-10-04-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-B12-0-10-12-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-B12-0-10-32-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-B12-0-10-00-000	Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-3-L-B12-0-15-04-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-B12-0-15-12-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-B12-0-15-32-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-B12-0-15-00-000	Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-3-L-B21-N-10-04-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-B21-N-10-12-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-B21-N-10-32-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-B21-N-10-00-000	Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-3-L-B21-N-15-04-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-B21-N-15-12-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-B21-N-15-32-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-B21-N-15-00-000	Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-3-L-B21-0-10-04-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-B21-0-10-12-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-B21-0-10-32-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-B21-0-10-00-000	Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-3-L-B21-0-15-04-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-B21-0-15-12-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-B21-0-15-32-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-B21-0-15-00-000	Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-3-L-B22-N-10-04-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-B22-N-10-12-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-B22-N-10-32-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-B22-N-10-00-000	Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-3-L-B22-N-15-04-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-B22-N-15-12-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-B22-N-15-32-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-B22-N-15-00-000	Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-3-L-B22-0-10-04-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-B22-0-10-12-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-B22-0-10-32-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-B22-0-10-00-000	Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-3-L-B22-0-15-04-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-3-L-B22-0-15-12-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-3-L-B22-0-15-32-A0	Side: Return \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-3-L-B22-0-15-00-000	Side: Supply \| Stations: 3 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-4-L-S11-N-10-04-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-S11-N-10-12-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-S11-N-10-32-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-S11-N-10-00-000	Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-4-L-S11-N-15-04-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-S11-N-15-12-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-S11-N-15-32-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-S11-N-15-00-000	Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-4-L-S11-0-10-04-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-S11-0-10-12-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-S11-0-10-32-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-S11-0-10-00-000	Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-4-L-S11-0-15-04-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-S11-0-15-12-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-S11-0-15-32-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-S11-0-15-00-000	Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-4-L-S12-N-10-04-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-S12-N-10-12-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-S12-N-10-32-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-S12-N-10-00-000	Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-4-L-S12-N-15-04-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-S12-N-15-12-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-S12-N-15-32-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-S12-N-15-00-000	Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-4-L-S12-0-10-04-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-S12-0-10-12-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-S12-0-10-32-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-S12-0-10-00-000	Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-4-L-S12-0-15-04-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-S12-0-15-12-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-S12-0-15-32-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-S12-0-15-00-000	Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-4-L-S21-N-10-04-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-S21-N-10-12-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-S21-N-10-32-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-S21-N-10-00-000	Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-4-L-S21-N-15-04-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-S21-N-15-12-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-S21-N-15-32-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-S21-N-15-00-000	Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-4-L-S21-0-10-04-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-S21-0-10-12-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-S21-0-10-32-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-S21-0-10-00-000	Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-4-L-S21-0-15-04-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-S21-0-15-12-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-S21-0-15-32-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-S21-0-15-00-000	Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-4-L-S22-N-10-04-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-S22-N-10-12-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-S22-N-10-32-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-S22-N-10-00-000	Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-4-L-S22-N-15-04-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-S22-N-15-12-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-S22-N-15-32-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-S22-N-15-00-000	Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-4-L-S22-0-10-04-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-S22-0-10-12-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-S22-0-10-32-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-S22-0-10-00-000	Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-4-L-S22-0-15-04-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-S22-0-15-12-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-S22-0-15-32-A0	Side: Return \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-S22-0-15-00-000	Side: Supply \| Stations: 4 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-4-L-B11-N-10-04-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-B11-N-10-12-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-B11-N-10-32-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-B11-N-10-00-000	Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-4-L-B11-N-15-04-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-B11-N-15-12-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-B11-N-15-32-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-B11-N-15-00-000	Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-4-L-B11-0-10-04-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-B11-0-10-12-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-B11-0-10-32-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-B11-0-10-00-000	Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-4-L-B11-0-15-04-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-B11-0-15-12-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-B11-0-15-32-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-B11-0-15-00-000	Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-4-L-B12-N-10-04-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-B12-N-10-12-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-B12-N-10-32-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-B12-N-10-00-000	Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-4-L-B12-N-15-04-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-B12-N-15-12-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-B12-N-15-32-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-B12-N-15-00-000	Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-4-L-B12-0-10-04-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-B12-0-10-12-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-B12-0-10-32-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-B12-0-10-00-000	Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-4-L-B12-0-15-04-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-B12-0-15-12-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-B12-0-15-32-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-B12-0-15-00-000	Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-4-L-B21-N-10-04-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-B21-N-10-12-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-B21-N-10-32-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-B21-N-10-00-000	Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-4-L-B21-N-15-04-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-B21-N-15-12-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-B21-N-15-32-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-B21-N-15-00-000	Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-4-L-B21-0-10-04-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-B21-0-10-12-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-B21-0-10-32-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-B21-0-10-00-000	Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-4-L-B21-0-15-04-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-B21-0-15-12-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-B21-0-15-32-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-B21-0-15-00-000	Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-4-L-B22-N-10-04-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-B22-N-10-12-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-B22-N-10-32-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-B22-N-10-00-000	Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-4-L-B22-N-15-04-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-B22-N-15-12-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-B22-N-15-32-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-B22-N-15-00-000	Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-4-L-B22-0-10-04-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-B22-0-10-12-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-B22-0-10-32-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-B22-0-10-00-000	Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-4-L-B22-0-15-04-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-4-L-B22-0-15-12-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-4-L-B22-0-15-32-A0	Side: Return \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-4-L-B22-0-15-00-000	Side: Supply \| Stations: 4 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-5-L-S11-N-10-04-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-S11-N-10-12-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-S11-N-10-32-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-S11-N-10-00-000	Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-5-L-S11-N-15-04-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-S11-N-15-12-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-S11-N-15-32-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-S11-N-15-00-000	Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-5-L-S11-0-10-04-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-S11-0-10-12-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-S11-0-10-32-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-S11-0-10-00-000	Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-5-L-S11-0-15-04-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-S11-0-15-12-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-S11-0-15-32-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-S11-0-15-00-000	Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-5-L-S12-N-10-04-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-S12-N-10-12-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-S12-N-10-32-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-S12-N-10-00-000	Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-5-L-S12-N-15-04-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-S12-N-15-12-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-S12-N-15-32-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-S12-N-15-00-000	Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-5-L-S12-0-10-04-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-S12-0-10-12-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-S12-0-10-32-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-S12-0-10-00-000	Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-5-L-S12-0-15-04-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-S12-0-15-12-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-S12-0-15-32-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-S12-0-15-00-000	Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-5-L-S21-N-10-04-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-S21-N-10-12-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-S21-N-10-32-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-S21-N-10-00-000	Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-5-L-S21-N-15-04-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-S21-N-15-12-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-S21-N-15-32-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-S21-N-15-00-000	Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-5-L-S21-0-10-04-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-S21-0-10-12-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-S21-0-10-32-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-S21-0-10-00-000	Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-5-L-S21-0-15-04-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-S21-0-15-12-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-S21-0-15-32-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-S21-0-15-00-000	Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-5-L-S22-N-10-04-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-S22-N-10-12-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-S22-N-10-32-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-S22-N-10-00-000	Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-5-L-S22-N-15-04-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-S22-N-15-12-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-S22-N-15-32-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-S22-N-15-00-000	Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-5-L-S22-0-10-04-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-S22-0-10-12-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-S22-0-10-32-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-S22-0-10-00-000	Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-5-L-S22-0-15-04-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-S22-0-15-12-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-S22-0-15-32-A0	Side: Return \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-S22-0-15-00-000	Side: Supply \| Stations: 5 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-5-L-B11-N-10-04-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-B11-N-10-12-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-B11-N-10-32-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-B11-N-10-00-000	Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-5-L-B11-N-15-04-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-B11-N-15-12-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-B11-N-15-32-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-B11-N-15-00-000	Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-5-L-B11-0-10-04-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-B11-0-10-12-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-B11-0-10-32-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-B11-0-10-00-000	Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-5-L-B11-0-15-04-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-B11-0-15-12-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-B11-0-15-32-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-B11-0-15-00-000	Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-5-L-B12-N-10-04-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-B12-N-10-12-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-B12-N-10-32-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-B12-N-10-00-000	Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-5-L-B12-N-15-04-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-B12-N-15-12-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-B12-N-15-32-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-B12-N-15-00-000	Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-5-L-B12-0-10-04-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-B12-0-10-12-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-B12-0-10-32-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-B12-0-10-00-000	Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-5-L-B12-0-15-04-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-B12-0-15-12-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-B12-0-15-32-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-B12-0-15-00-000	Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-5-L-B21-N-10-04-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-B21-N-10-12-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-B21-N-10-32-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-B21-N-10-00-000	Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-5-L-B21-N-15-04-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-B21-N-15-12-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-B21-N-15-32-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-B21-N-15-00-000	Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-5-L-B21-0-10-04-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-B21-0-10-12-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-B21-0-10-32-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-B21-0-10-00-000	Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-5-L-B21-0-15-04-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-B21-0-15-12-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-B21-0-15-32-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-B21-0-15-00-000	Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-5-L-B22-N-10-04-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-B22-N-10-12-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-B22-N-10-32-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-B22-N-10-00-000	Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-5-L-B22-N-15-04-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-B22-N-15-12-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-B22-N-15-32-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-B22-N-15-00-000	Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-5-L-B22-0-10-04-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-B22-0-10-12-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-B22-0-10-32-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-B22-0-10-00-000	Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-5-L-B22-0-15-04-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-5-L-B22-0-15-12-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-5-L-B22-0-15-32-A0	Side: Return \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-5-L-B22-0-15-00-000	Side: Supply \| Stations: 5 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-6-L-S11-N-10-04-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-S11-N-10-12-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-S11-N-10-32-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-S11-N-10-00-000	Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-6-L-S11-N-15-04-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-S11-N-15-12-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-S11-N-15-32-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-S11-N-15-00-000	Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-6-L-S11-0-10-04-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-S11-0-10-12-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-S11-0-10-32-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-S11-0-10-00-000	Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-6-L-S11-0-15-04-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-S11-0-15-12-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-S11-0-15-32-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-S11-0-15-00-000	Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-6-L-S12-N-10-04-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-S12-N-10-12-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-S12-N-10-32-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-S12-N-10-00-000	Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-6-L-S12-N-15-04-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-S12-N-15-12-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-S12-N-15-32-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-S12-N-15-00-000	Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-6-L-S12-0-10-04-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-S12-0-10-12-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-S12-0-10-32-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-S12-0-10-00-000	Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-6-L-S12-0-15-04-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-S12-0-15-12-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-S12-0-15-32-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-S12-0-15-00-000	Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-6-L-S21-N-10-04-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-S21-N-10-12-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-S21-N-10-32-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-S21-N-10-00-000	Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-6-L-S21-N-15-04-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-S21-N-15-12-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-S21-N-15-32-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-S21-N-15-00-000	Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-6-L-S21-0-10-04-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-S21-0-10-12-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-S21-0-10-32-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-S21-0-10-00-000	Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-6-L-S21-0-15-04-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-S21-0-15-12-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-S21-0-15-32-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-S21-0-15-00-000	Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-6-L-S22-N-10-04-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-S22-N-10-12-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-S22-N-10-32-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-S22-N-10-00-000	Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-6-L-S22-N-15-04-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-S22-N-15-12-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-S22-N-15-32-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-S22-N-15-00-000	Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-6-L-S22-0-10-04-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-S22-0-10-12-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-S22-0-10-32-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-S22-0-10-00-000	Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-6-L-S22-0-15-04-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-S22-0-15-12-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-S22-0-15-32-A0	Side: Return \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-S22-0-15-00-000	Side: Supply \| Stations: 6 \| Valves: Standard, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-6-L-B11-N-10-04-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-B11-N-10-12-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-B11-N-10-32-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-B11-N-10-00-000	Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-6-L-B11-N-15-04-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-B11-N-15-12-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-B11-N-15-32-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-B11-N-15-00-000	Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-6-L-B11-0-10-04-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-B11-0-10-12-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-B11-0-10-32-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-B11-0-10-00-000	Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-6-L-B11-0-15-04-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-B11-0-15-12-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-B11-0-15-32-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-B11-0-15-00-000	Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-6-L-B12-N-10-04-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-B12-N-10-12-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-B12-N-10-32-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-B12-N-10-00-000	Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-6-L-B12-N-15-04-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-B12-N-15-12-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-B12-N-15-32-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-B12-N-15-00-000	Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-6-L-B12-0-10-04-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-B12-0-10-12-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-B12-0-10-32-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-B12-0-10-00-000	Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-6-L-B12-0-15-04-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-B12-0-15-12-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-B12-0-15-32-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-B12-0-15-00-000	Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NC / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-6-L-B21-N-10-04-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-B21-N-10-12-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-B21-N-10-32-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-B21-N-10-00-000	Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-6-L-B21-N-15-04-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-B21-N-15-12-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-B21-N-15-32-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-B21-N-15-00-000	Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-6-L-B21-0-10-04-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-B21-0-10-12-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-B21-0-10-32-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-B21-0-10-00-000	Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-6-L-B21-0-15-04-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-B21-0-15-12-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-B21-0-15-32-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-B21-0-15-00-000	Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NC \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-6-L-B22-N-10-04-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-B22-N-10-12-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-B22-N-10-32-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-B22-N-10-00-000	Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-6-L-B22-N-15-04-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-B22-N-15-12-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-B22-N-15-32-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-B22-N-15-00-000	Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: Flow adj., Rc1/2 \| Sensor range: No sensor
	WXU-P-R-6-L-B22-0-10-04-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-B22-0-10-12-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-B22-0-10-32-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-B22-0-10-00-000	Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc3/8 \| Sensor range: No sensor
	WXU-P-R-6-L-B22-0-15-04-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 0.5-4.0 L/min
	WXU-P-R-6-L-B22-0-15-12-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 1.5-12 L/min
	WXU-P-R-6-L-B22-0-15-32-A0	Side: Return \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: 4.0-32 L/min
	WXU-P-S-6-L-B22-0-15-00-000	Side: Supply \| Stations: 6 \| Valves: High flow, fluid1 NO / fluid2 NO \| Flow adjust / branch: No flow adj., Rc1/2 \| Sensor range: No sensor

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD WXU-P Water Integrated Unit, 2-Fluid (Water / Air Purge)
