Dongyang Chain DSC Water Treatment Chain

Dongyang Chain DSC Water Treatment Chain

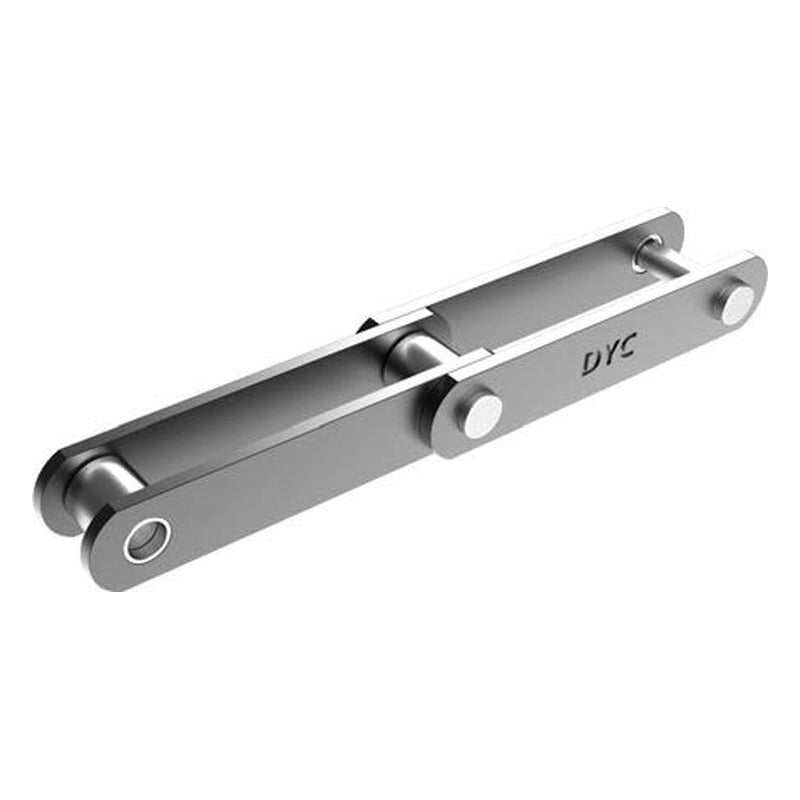

DSC water treatment plant chain, 152.4 mm pitch, available with S-rollers or flanged F-rollers.

Key features

  • 152.4 mm pitch
  • S-roller or flanged F-roller
  • D22, T1 and A2 attachments
DSC15215-S Roller type: S-roller | Pitch (mm): 152.40 | Avg tensile strength (kgf): 15,000 | Guaranteed min strength (kgf): 13,500 | Weight (kgf/m): 6.0 | Roller dia D (mm): 25.4 | Inner width W (mm): 30.2 | Pin d x L (L1/L2) (mm): 11.1 x 69.0 (31.0/38.0) | Plate H x T (mm): 38.1 x 6.3
DSC15215-F Roller type: F-roller (flanged) | Pitch (mm): 152.40 | Avg tensile strength (kgf): 15,000 | Guaranteed min strength (kgf): 13,500 | Weight (kgf/m): 8.0 | Roller dia D (mm): 50.8 | Inner width W (mm): 30.2 | Pin d x L (L1/L2) (mm): 11.1 x 69.0 (31.0/38.0) | Plate H x T (mm): 38.1 x 6.3 | F-roller F/G/e/Z/E (mm): 50.8/65/3/7/20
DSC15219-S Roller type: S-roller | Pitch (mm): 152.40 | Avg tensile strength (kgf): 19,000 | Guaranteed min strength (kgf): 17,100 | Weight (kgf/m): 6.6 | Roller dia D (mm): 29.0 | Inner width W (mm): 30.2 | Pin d x L (L1/L2) (mm): 14.3 x 73.3 (32.8/40.5) | Plate H x T (mm): 38.1 x 6.3
DSC15219-F Roller type: F-roller (flanged) | Pitch (mm): 152.40 | Avg tensile strength (kgf): 19,000 | Guaranteed min strength (kgf): 17,100 | Weight (kgf/m): 8.0 | Roller dia D (mm): 50.8 | Inner width W (mm): 30.2 | Pin d x L (L1/L2) (mm): 14.3 x 73.3 (32.8/40.5) | Plate H x T (mm): 38.1 x 6.3 | F-roller F/G/e/Z/E (mm): 50.8/65/3/7/20
DSC15228-S Roller type: S-roller | Pitch (mm): 152.40 | Avg tensile strength (kgf): 28,000 | Guaranteed min strength (kgf): 25,500 | Weight (kgf/m): 9.3 | Roller dia D (mm): 34.9 | Inner width W (mm): 37.1 | Pin d x L (L1/L2) (mm): 15.9 x 87.5 (40.0/47.5) | Plate H x T (mm): 44.5 x 7.9
DSC15228-F Roller type: F-roller (flanged) | Pitch (mm): 152.40 | Avg tensile strength (kgf): 28,000 | Guaranteed min strength (kgf): 25,500 | Weight (kgf/m): 13.0 | Roller dia D (mm): 65.0 | Inner width W (mm): 37.1 | Pin d x L (L1/L2) (mm): 15.9 x 87.5 (40.0/47.5) | Plate H x T (mm): 44.5 x 7.9 | F-roller F/G/e/Z/E (mm): 65.0/80/4/8/24
DSC15235-S Roller type: S-roller | Pitch (mm): 152.40 | Avg tensile strength (kgf): 38,000 | Guaranteed min strength (kgf): 35,000 | Weight (kgf/m): 12.6 | Roller dia D (mm): 39.7 | Inner width W (mm): 37.1 | Pin d x L (L1/L2) (mm): 19.05 x 97.5 (44.5/53.0) | Plate H x T (mm): 50.8 x 9.5
DSC15235-F Roller type: F-roller (flanged) | Pitch (mm): 152.40 | Avg tensile strength (kgf): 38,000 | Guaranteed min strength (kgf): 35,000 | Weight (kgf/m): 18.1 | Roller dia D (mm): 70.0 | Inner width W (mm): 37.1 | Pin d x L (L1/L2) (mm): 19.05 x 97.5 (44.5/53.0) | Plate H x T (mm): 50.8 x 9.5 | F-roller F/G/e/Z/E (mm): 70.0/85/3.5/9/25
DSC15248-S Roller type: S-roller | Pitch (mm): 152.40 | Avg tensile strength (kgf): 52,000 | Guaranteed min strength (kgf): 47,000 | Weight (kgf/m): 17.8 | Roller dia D (mm): 44.5 | Inner width W (mm): 57.2 | Pin d x L (L1/L2) (mm): 22.2 x 119.6 (55.3/64.3) | Plate H x T (mm): 63.5 x 9.5
Water Treatment ChainsDongyang Chain
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain DSC Water Treatment Chain

Brand Dongyang Chain·Water Treatment Chains

Available part numbers (9)

DSC15215-S, DSC15215-F, DSC15219-S, DSC15219-F, DSC15228-S, DSC15228-F, DSC15235-S, DSC15235-F, DSC15248-S

How to order

Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DSC15215-SRoller type: S-roller | Pitch (mm): 152.40 | Avg tensile strength (kgf): 15,000 | Guaranteed min strength (kgf): 13,500 | Weight (kgf/m): 6.0 | Roller dia D (mm): 25.4 | Inner width W (mm): 30.2 | Pin d x L (L1/L2) (mm): 11.1 x 69.0 (31.0/38.0) | Plate H x T (mm): 38.1 x 6.3
DSC15215-FRoller type: F-roller (flanged) | Pitch (mm): 152.40 | Avg tensile strength (kgf): 15,000 | Guaranteed min strength (kgf): 13,500 | Weight (kgf/m): 8.0 | Roller dia D (mm): 50.8 | Inner width W (mm): 30.2 | Pin d x L (L1/L2) (mm): 11.1 x 69.0 (31.0/38.0) | Plate H x T (mm): 38.1 x 6.3 | F-roller F/G/e/Z/E (mm): 50.8/65/3/7/20
DSC15219-SRoller type: S-roller | Pitch (mm): 152.40 | Avg tensile strength (kgf): 19,000 | Guaranteed min strength (kgf): 17,100 | Weight (kgf/m): 6.6 | Roller dia D (mm): 29.0 | Inner width W (mm): 30.2 | Pin d x L (L1/L2) (mm): 14.3 x 73.3 (32.8/40.5) | Plate H x T (mm): 38.1 x 6.3
DSC15219-FRoller type: F-roller (flanged) | Pitch (mm): 152.40 | Avg tensile strength (kgf): 19,000 | Guaranteed min strength (kgf): 17,100 | Weight (kgf/m): 8.0 | Roller dia D (mm): 50.8 | Inner width W (mm): 30.2 | Pin d x L (L1/L2) (mm): 14.3 x 73.3 (32.8/40.5) | Plate H x T (mm): 38.1 x 6.3 | F-roller F/G/e/Z/E (mm): 50.8/65/3/7/20
DSC15228-SRoller type: S-roller | Pitch (mm): 152.40 | Avg tensile strength (kgf): 28,000 | Guaranteed min strength (kgf): 25,500 | Weight (kgf/m): 9.3 | Roller dia D (mm): 34.9 | Inner width W (mm): 37.1 | Pin d x L (L1/L2) (mm): 15.9 x 87.5 (40.0/47.5) | Plate H x T (mm): 44.5 x 7.9
DSC15228-FRoller type: F-roller (flanged) | Pitch (mm): 152.40 | Avg tensile strength (kgf): 28,000 | Guaranteed min strength (kgf): 25,500 | Weight (kgf/m): 13.0 | Roller dia D (mm): 65.0 | Inner width W (mm): 37.1 | Pin d x L (L1/L2) (mm): 15.9 x 87.5 (40.0/47.5) | Plate H x T (mm): 44.5 x 7.9 | F-roller F/G/e/Z/E (mm): 65.0/80/4/8/24
DSC15235-SRoller type: S-roller | Pitch (mm): 152.40 | Avg tensile strength (kgf): 38,000 | Guaranteed min strength (kgf): 35,000 | Weight (kgf/m): 12.6 | Roller dia D (mm): 39.7 | Inner width W (mm): 37.1 | Pin d x L (L1/L2) (mm): 19.05 x 97.5 (44.5/53.0) | Plate H x T (mm): 50.8 x 9.5
DSC15235-FRoller type: F-roller (flanged) | Pitch (mm): 152.40 | Avg tensile strength (kgf): 38,000 | Guaranteed min strength (kgf): 35,000 | Weight (kgf/m): 18.1 | Roller dia D (mm): 70.0 | Inner width W (mm): 37.1 | Pin d x L (L1/L2) (mm): 19.05 x 97.5 (44.5/53.0) | Plate H x T (mm): 50.8 x 9.5 | F-roller F/G/e/Z/E (mm): 70.0/85/3.5/9/25
DSC15248-SRoller type: S-roller | Pitch (mm): 152.40 | Avg tensile strength (kgf): 52,000 | Guaranteed min strength (kgf): 47,000 | Weight (kgf/m): 17.8 | Roller dia D (mm): 44.5 | Inner width W (mm): 57.2 | Pin d x L (L1/L2) (mm): 22.2 x 119.6 (55.3/64.3) | Plate H x T (mm): 63.5 x 9.5
