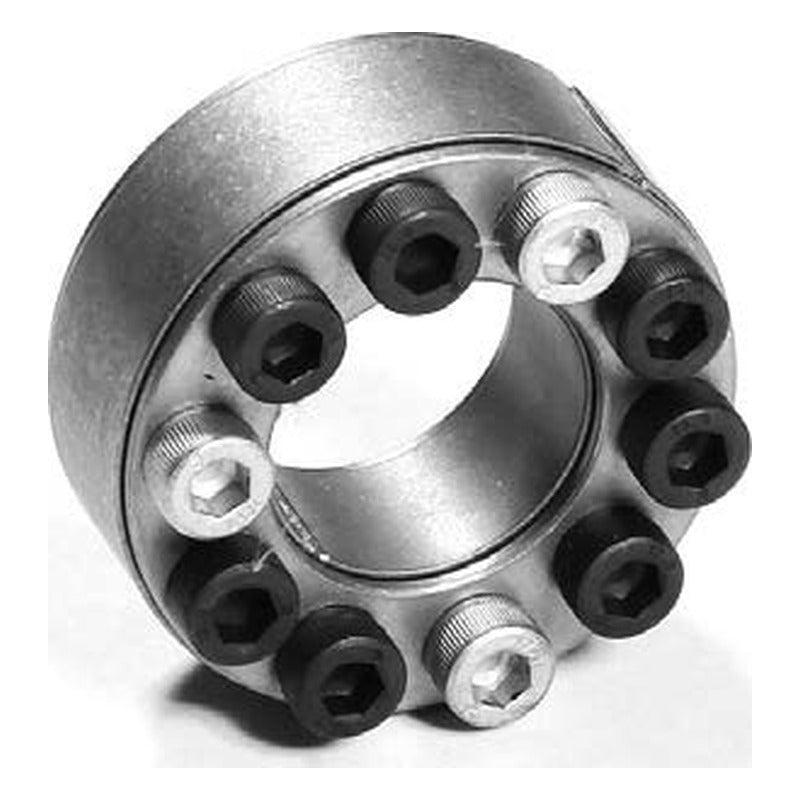

Dongyang Chain Power Lock Keyless Locking Assembly

Dongyang Chain Power Lock Keyless Locking Assembly

Keyless shaft-hub locking assembly tightened with DIN912 12.9 locking screws, shaft diameter 19 to 200 mm.

Key features

  • Keyless shaft-hub connection
  • DIN912-12.9 locking screws
  • Shaft 19 to 200 mm
DYPL19x47 Shaft dia d (mm): 19 | Outer dia D (mm): 47 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 26.8 | Torque Mt (Nm): 260 | Contact pressure shaft / hub (N/mm2): 220 / 93 | Locking screws DIN912-12.9: 8 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL20x47 Shaft dia d (mm): 20 | Outer dia D (mm): 47 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 26.8 | Torque Mt (Nm): 268 | Contact pressure shaft / hub (N/mm2): 210 / 93 | Locking screws DIN912-12.9: 8 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL22x47 Shaft dia d (mm): 22 | Outer dia D (mm): 47 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 26.8 | Torque Mt (Nm): 283 | Contact pressure shaft / hub (N/mm2): 207 / 96 | Locking screws DIN912-12.9: 8 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL24x50 Shaft dia d (mm): 24 | Outer dia D (mm): 50 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 30.1 | Torque Mt (Nm): 361 | Contact pressure shaft / hub (N/mm2): 206 / 103 | Locking screws DIN912-12.9: 9 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL25x50 Shaft dia d (mm): 25 | Outer dia D (mm): 50 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 30.1 | Torque Mt (Nm): 376 | Contact pressure shaft / hub (N/mm2): 206 / 103 | Locking screws DIN912-12.9: 9 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL28x55 Shaft dia d (mm): 28 | Outer dia D (mm): 55 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 33.5 | Torque Mt (Nm): 420 | Contact pressure shaft / hub (N/mm2): 204 / 103 | Locking screws DIN912-12.9: 10 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL30x55 Shaft dia d (mm): 30 | Outer dia D (mm): 55 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 33.5 | Torque Mt (Nm): 450 | Contact pressure shaft / hub (N/mm2): 190 / 103 | Locking screws DIN912-12.9: 10 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL32x60 Shaft dia d (mm): 32 | Outer dia D (mm): 60 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 40.2 | Torque Mt (Nm): 643 | Contact pressure shaft / hub (N/mm2): 214 / 114 | Locking screws DIN912-12.9: 12 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL35x60 Shaft dia d (mm): 35 | Outer dia D (mm): 60 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 40.2 | Torque Mt (Nm): 703 | Contact pressure shaft / hub (N/mm2): 196 / 114 | Locking screws DIN912-12.9: 12 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL38x65 Shaft dia d (mm): 38 | Outer dia D (mm): 65 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 46.9 | Torque Mt (Nm): 891 | Contact pressure shaft / hub (N/mm2): 204 / 122 | Locking screws DIN912-12.9: 14 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL40x65 Shaft dia d (mm): 40 | Outer dia D (mm): 65 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 46.9 | Torque Mt (Nm): 938 | Contact pressure shaft / hub (N/mm2): 200 / 122 | Locking screws DIN912-12.9: 14 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL42x75 Shaft dia d (mm): 42 | Outer dia D (mm): 75 | L1 / L2 / L (mm): 20 / 24 / 32 | Axial force Ft (kN): 73.2 | Torque Mt (Nm): 1537 | Contact pressure shaft / hub (N/mm2): 228 / 125 | Locking screws DIN912-12.9: 12 x M8x22 | Screw tightening torque Ts (Nm): 38
DYPL45x75 Shaft dia d (mm): 45 | Outer dia D (mm): 75 | L1 / L2 / L (mm): 20 / 24 / 32 | Axial force Ft (kN): 73.2 | Torque Mt (Nm): 1647 | Contact pressure shaft / hub (N/mm2): 208 / 125 | Locking screws DIN912-12.9: 12 x M8x22 | Screw tightening torque Ts (Nm): 38
DYPL48x80 Shaft dia d (mm): 48 | Outer dia D (mm): 80 | L1 / L2 / L (mm): 20 / 24 / 32 | Axial force Ft (kN): 73.2 | Torque Mt (Nm): 1756 | Contact pressure shaft / hub (N/mm2): 190 / 110 | Locking screws DIN912-12.9: 12 x M8x22 | Screw tightening torque Ts (Nm): 38
DYPL50x80 Shaft dia d (mm): 50 | Outer dia D (mm): 80 | L1 / L2 / L (mm): 20 / 24 / 32 | Axial force Ft (kN): 73.2 | Torque Mt (Nm): 1830 | Contact pressure shaft / hub (N/mm2): 189 / 115 | Locking screws DIN912-12.9: 12 x M8x22 | Screw tightening torque Ts (Nm): 38
DYPL55x85 Shaft dia d (mm): 55 | Outer dia D (mm): 85 | L1 / L2 / L (mm): 20 / 24 / 32 | Axial force Ft (kN): 85.4 | Torque Mt (Nm): 2348 | Contact pressure shaft / hub (N/mm2): 200 / 130 | Locking screws DIN912-12.9: 14 x M8x22 | Screw tightening torque Ts (Nm): 38
DYPL60x90 Shaft dia d (mm): 60 | Outer dia D (mm): 90 | L1 / L2 / L (mm): 20 / 24 / 32 | Axial force Ft (kN): 85.4 | Torque Mt (Nm): 2560 | Contact pressure shaft / hub (N/mm2): 180 / 122 | Locking screws DIN912-12.9: 14 x M8x22 | Screw tightening torque Ts (Nm): 38
DYPL65x95 Shaft dia d (mm): 65 | Outer dia D (mm): 95 | L1 / L2 / L (mm): 20 / 24 / 32 | Axial force Ft (kN): 97.6 | Torque Mt (Nm): 3170 | Contact pressure shaft / hub (N/mm2): 191 / 130 | Locking screws DIN912-12.9: 16 x M8x22 | Screw tightening torque Ts (Nm): 38
DYPL70x110 Shaft dia d (mm): 70 | Outer dia D (mm): 110 | L1 / L2 / L (mm): 24 / 28 / 38 | Axial force Ft (kN): 134.4 | Torque Mt (Nm): 4700 | Contact pressure shaft / hub (N/mm2): 211 / 132 | Locking screws DIN912-12.9: 14 x M10x25 | Screw tightening torque Ts (Nm): 75
DYPL75x115 Shaft dia d (mm): 75 | Outer dia D (mm): 115 | L1 / L2 / L (mm): 24 / 28 / 38 | Axial force Ft (kN): 134.4 | Torque Mt (Nm): 5000 | Contact pressure shaft / hub (N/mm2): 194 / 128 | Locking screws DIN912-12.9: 14 x M10x25 | Screw tightening torque Ts (Nm): 75
DYPL80x120 Shaft dia d (mm): 80 | Outer dia D (mm): 120 | L1 / L2 / L (mm): 24 / 28 / 38 | Axial force Ft (kN): 134.4 | Torque Mt (Nm): 5300 | Contact pressure shaft / hub (N/mm2): 182 / 124 | Locking screws DIN912-12.9: 14 x M10x25 | Screw tightening torque Ts (Nm): 75
DYPL85x125 Shaft dia d (mm): 85 | Outer dia D (mm): 125 | L1 / L2 / L (mm): 24 / 28 / 38 | Axial force Ft (kN): 153.6 | Torque Mt (Nm): 6500 | Contact pressure shaft / hub (N/mm2): 196 / 133 | Locking screws DIN912-12.9: 16 x M10x25 | Screw tightening torque Ts (Nm): 75
DYPL90x130 Shaft dia d (mm): 90 | Outer dia D (mm): 130 | L1 / L2 / L (mm): 24 / 28 / 38 | Axial force Ft (kN): 153.6 | Torque Mt (Nm): 6900 | Contact pressure shaft / hub (N/mm2): 181 / 128 | Locking screws DIN912-12.9: 16 x M10x25 | Screw tightening torque Ts (Nm): 75
DYPL95x135 Shaft dia d (mm): 95 | Outer dia D (mm): 135 | L1 / L2 / L (mm): 24 / 28 / 38 | Axial force Ft (kN): 172.8 | Torque Mt (Nm): 8200 | Contact pressure shaft / hub (N/mm2): 196 / 139 | Locking screws DIN912-12.9: 18 x M10x25 | Screw tightening torque Ts (Nm): 75
DYPL100x145 Shaft dia d (mm): 100 | Outer dia D (mm): 145 | L1 / L2 / L (mm): 26 / 33 / 45 | Axial force Ft (kN): 197.4 | Torque Mt (Nm): 9870 | Contact pressure shaft / hub (N/mm2): 198 / 139 | Locking screws DIN912-12.9: 14 x M12x30 | Screw tightening torque Ts (Nm): 130
DYPL110x155 Shaft dia d (mm): 110 | Outer dia D (mm): 155 | L1 / L2 / L (mm): 26 / 33 / 45 | Axial force Ft (kN): 187.4 | Torque Mt (Nm): 10800 | Contact pressure shaft / hub (N/mm2): 181 / 128 | Locking screws DIN912-12.9: 14 x M12x30 | Screw tightening torque Ts (Nm): 130
DYPL120x165 Shaft dia d (mm): 120 | Outer dia D (mm): 165 | L1 / L2 / L (mm): 26 / 33 / 45 | Axial force Ft (kN): 225.6 | Torque Mt (Nm): 13500 | Contact pressure shaft / hub (N/mm2): 187 / 139 | Locking screws DIN912-12.9: 16 x M12x30 | Screw tightening torque Ts (Nm): 130
DYPL130x180 Shaft dia d (mm): 130 | Outer dia D (mm): 180 | L1 / L2 / L (mm): 34 / 38 / 50 | Axial force Ft (kN): 282 | Torque Mt (Nm): 18300 | Contact pressure shaft / hub (N/mm2): 168 / 119 | Locking screws DIN912-12.9: 20 x M12x35 | Screw tightening torque Ts (Nm): 130
DYPL140x190 Shaft dia d (mm): 140 | Outer dia D (mm): 190 | L1 / L2 / L (mm): 34 / 38 / 50 | Axial force Ft (kN): 310.1 | Torque Mt (Nm): 21700 | Contact pressure shaft / hub (N/mm2): 168 / 128 | Locking screws DIN912-12.9: 22 x M12x35 | Screw tightening torque Ts (Nm): 130
DYPL150x200 Shaft dia d (mm): 150 | Outer dia D (mm): 200 | L1 / L2 / L (mm): 34 / 38 / 50 | Axial force Ft (kN): 338.4 | Torque Mt (Nm): 25300 | Contact pressure shaft / hub (N/mm2): 170 / 128 | Locking screws DIN912-12.9: 24 x M12x35 | Screw tightening torque Ts (Nm): 130
DYPL160x210 Shaft dia d (mm): 160 | Outer dia D (mm): 210 | L1 / L2 / L (mm): 34 / 38 / 50 | Axial force Ft (kN): 366.6 | Torque Mt (Nm): 29300 | Contact pressure shaft / hub (N/mm2): 171 / 132 | Locking screws DIN912-12.9: 26 x M12x35 | Screw tightening torque Ts (Nm): 130
DYPL170x225 Shaft dia d (mm): 170 | Outer dia D (mm): 225 | L1 / L2 / L (mm): 38 / 44 / 58 | Axial force Ft (kN): 389 | Torque Mt (Nm): 33000 | Contact pressure shaft / hub (N/mm2): 162 / 123 | Locking screws DIN912-12.9: 22 x M14x40 | Screw tightening torque Ts (Nm): 207
DYPL180x235 Shaft dia d (mm): 180 | Outer dia D (mm): 235 | L1 / L2 / L (mm): 38 / 44 / 58 | Axial force Ft (kN): 424 | Torque Mt (Nm): 38000 | Contact pressure shaft / hub (N/mm2): 168 / 128 | Locking screws DIN912-12.9: 24 x M14x40 | Screw tightening torque Ts (Nm): 207
DYPL190x250 Shaft dia d (mm): 190 | Outer dia D (mm): 250 | L1 / L2 / L (mm): 46 / 52 / 66 | Axial force Ft (kN): 495 | Torque Mt (Nm): 47000 | Contact pressure shaft / hub (N/mm2): 154 / 114 | Locking screws DIN912-12.9: 28 x M14x45 | Screw tightening torque Ts (Nm): 207
DYPL200x260 Shaft dia d (mm): 200 | Outer dia D (mm): 260 | L1 / L2 / L (mm): 46 / 52 / 66 | Axial force Ft (kN): 531 | Torque Mt (Nm): 53000 | Contact pressure shaft / hub (N/mm2): 157 / 118 | Locking screws DIN912-12.9: 30 x M14x45 | Screw tightening torque Ts (Nm): 207
Locking AssembliesDongyang Chain
35 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain Power Lock Keyless Locking Assembly

Brand Dongyang Chain·Locking Assemblies

Available part numbers (35)

DYPL19x47, DYPL20x47, DYPL22x47, DYPL24x50, DYPL25x50, DYPL28x55, DYPL30x55, DYPL32x60, DYPL35x60, DYPL38x65 + 25 more — see full table ↓

How to order

Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DYPL19x47Shaft dia d (mm): 19 | Outer dia D (mm): 47 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 26.8 | Torque Mt (Nm): 260 | Contact pressure shaft / hub (N/mm2): 220 / 93 | Locking screws DIN912-12.9: 8 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL20x47Shaft dia d (mm): 20 | Outer dia D (mm): 47 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 26.8 | Torque Mt (Nm): 268 | Contact pressure shaft / hub (N/mm2): 210 / 93 | Locking screws DIN912-12.9: 8 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL22x47Shaft dia d (mm): 22 | Outer dia D (mm): 47 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 26.8 | Torque Mt (Nm): 283 | Contact pressure shaft / hub (N/mm2): 207 / 96 | Locking screws DIN912-12.9: 8 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL24x50Shaft dia d (mm): 24 | Outer dia D (mm): 50 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 30.1 | Torque Mt (Nm): 361 | Contact pressure shaft / hub (N/mm2): 206 / 103 | Locking screws DIN912-12.9: 9 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL25x50Shaft dia d (mm): 25 | Outer dia D (mm): 50 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 30.1 | Torque Mt (Nm): 376 | Contact pressure shaft / hub (N/mm2): 206 / 103 | Locking screws DIN912-12.9: 9 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL28x55Shaft dia d (mm): 28 | Outer dia D (mm): 55 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 33.5 | Torque Mt (Nm): 420 | Contact pressure shaft / hub (N/mm2): 204 / 103 | Locking screws DIN912-12.9: 10 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL30x55Shaft dia d (mm): 30 | Outer dia D (mm): 55 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 33.5 | Torque Mt (Nm): 450 | Contact pressure shaft / hub (N/mm2): 190 / 103 | Locking screws DIN912-12.9: 10 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL32x60Shaft dia d (mm): 32 | Outer dia D (mm): 60 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 40.2 | Torque Mt (Nm): 643 | Contact pressure shaft / hub (N/mm2): 214 / 114 | Locking screws DIN912-12.9: 12 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL35x60Shaft dia d (mm): 35 | Outer dia D (mm): 60 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 40.2 | Torque Mt (Nm): 703 | Contact pressure shaft / hub (N/mm2): 196 / 114 | Locking screws DIN912-12.9: 12 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL38x65Shaft dia d (mm): 38 | Outer dia D (mm): 65 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 46.9 | Torque Mt (Nm): 891 | Contact pressure shaft / hub (N/mm2): 204 / 122 | Locking screws DIN912-12.9: 14 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL40x65Shaft dia d (mm): 40 | Outer dia D (mm): 65 | L1 / L2 / L (mm): 17 / 20 / 26 | Axial force Ft (kN): 46.9 | Torque Mt (Nm): 938 | Contact pressure shaft / hub (N/mm2): 200 / 122 | Locking screws DIN912-12.9: 14 x M6x18 | Screw tightening torque Ts (Nm): 16
DYPL42x75Shaft dia d (mm): 42 | Outer dia D (mm): 75 | L1 / L2 / L (mm): 20 / 24 / 32 | Axial force Ft (kN): 73.2 | Torque Mt (Nm): 1537 | Contact pressure shaft / hub (N/mm2): 228 / 125 | Locking screws DIN912-12.9: 12 x M8x22 | Screw tightening torque Ts (Nm): 38
DYPL45x75Shaft dia d (mm): 45 | Outer dia D (mm): 75 | L1 / L2 / L (mm): 20 / 24 / 32 | Axial force Ft (kN): 73.2 | Torque Mt (Nm): 1647 | Contact pressure shaft / hub (N/mm2): 208 / 125 | Locking screws DIN912-12.9: 12 x M8x22 | Screw tightening torque Ts (Nm): 38
DYPL48x80Shaft dia d (mm): 48 | Outer dia D (mm): 80 | L1 / L2 / L (mm): 20 / 24 / 32 | Axial force Ft (kN): 73.2 | Torque Mt (Nm): 1756 | Contact pressure shaft / hub (N/mm2): 190 / 110 | Locking screws DIN912-12.9: 12 x M8x22 | Screw tightening torque Ts (Nm): 38
DYPL50x80Shaft dia d (mm): 50 | Outer dia D (mm): 80 | L1 / L2 / L (mm): 20 / 24 / 32 | Axial force Ft (kN): 73.2 | Torque Mt (Nm): 1830 | Contact pressure shaft / hub (N/mm2): 189 / 115 | Locking screws DIN912-12.9: 12 x M8x22 | Screw tightening torque Ts (Nm): 38
DYPL55x85Shaft dia d (mm): 55 | Outer dia D (mm): 85 | L1 / L2 / L (mm): 20 / 24 / 32 | Axial force Ft (kN): 85.4 | Torque Mt (Nm): 2348 | Contact pressure shaft / hub (N/mm2): 200 / 130 | Locking screws DIN912-12.9: 14 x M8x22 | Screw tightening torque Ts (Nm): 38
DYPL60x90Shaft dia d (mm): 60 | Outer dia D (mm): 90 | L1 / L2 / L (mm): 20 / 24 / 32 | Axial force Ft (kN): 85.4 | Torque Mt (Nm): 2560 | Contact pressure shaft / hub (N/mm2): 180 / 122 | Locking screws DIN912-12.9: 14 x M8x22 | Screw tightening torque Ts (Nm): 38
DYPL65x95Shaft dia d (mm): 65 | Outer dia D (mm): 95 | L1 / L2 / L (mm): 20 / 24 / 32 | Axial force Ft (kN): 97.6 | Torque Mt (Nm): 3170 | Contact pressure shaft / hub (N/mm2): 191 / 130 | Locking screws DIN912-12.9: 16 x M8x22 | Screw tightening torque Ts (Nm): 38
DYPL70x110Shaft dia d (mm): 70 | Outer dia D (mm): 110 | L1 / L2 / L (mm): 24 / 28 / 38 | Axial force Ft (kN): 134.4 | Torque Mt (Nm): 4700 | Contact pressure shaft / hub (N/mm2): 211 / 132 | Locking screws DIN912-12.9: 14 x M10x25 | Screw tightening torque Ts (Nm): 75
DYPL75x115Shaft dia d (mm): 75 | Outer dia D (mm): 115 | L1 / L2 / L (mm): 24 / 28 / 38 | Axial force Ft (kN): 134.4 | Torque Mt (Nm): 5000 | Contact pressure shaft / hub (N/mm2): 194 / 128 | Locking screws DIN912-12.9: 14 x M10x25 | Screw tightening torque Ts (Nm): 75
DYPL80x120Shaft dia d (mm): 80 | Outer dia D (mm): 120 | L1 / L2 / L (mm): 24 / 28 / 38 | Axial force Ft (kN): 134.4 | Torque Mt (Nm): 5300 | Contact pressure shaft / hub (N/mm2): 182 / 124 | Locking screws DIN912-12.9: 14 x M10x25 | Screw tightening torque Ts (Nm): 75
DYPL85x125Shaft dia d (mm): 85 | Outer dia D (mm): 125 | L1 / L2 / L (mm): 24 / 28 / 38 | Axial force Ft (kN): 153.6 | Torque Mt (Nm): 6500 | Contact pressure shaft / hub (N/mm2): 196 / 133 | Locking screws DIN912-12.9: 16 x M10x25 | Screw tightening torque Ts (Nm): 75
DYPL90x130Shaft dia d (mm): 90 | Outer dia D (mm): 130 | L1 / L2 / L (mm): 24 / 28 / 38 | Axial force Ft (kN): 153.6 | Torque Mt (Nm): 6900 | Contact pressure shaft / hub (N/mm2): 181 / 128 | Locking screws DIN912-12.9: 16 x M10x25 | Screw tightening torque Ts (Nm): 75
DYPL95x135Shaft dia d (mm): 95 | Outer dia D (mm): 135 | L1 / L2 / L (mm): 24 / 28 / 38 | Axial force Ft (kN): 172.8 | Torque Mt (Nm): 8200 | Contact pressure shaft / hub (N/mm2): 196 / 139 | Locking screws DIN912-12.9: 18 x M10x25 | Screw tightening torque Ts (Nm): 75
DYPL100x145Shaft dia d (mm): 100 | Outer dia D (mm): 145 | L1 / L2 / L (mm): 26 / 33 / 45 | Axial force Ft (kN): 197.4 | Torque Mt (Nm): 9870 | Contact pressure shaft / hub (N/mm2): 198 / 139 | Locking screws DIN912-12.9: 14 x M12x30 | Screw tightening torque Ts (Nm): 130
DYPL110x155Shaft dia d (mm): 110 | Outer dia D (mm): 155 | L1 / L2 / L (mm): 26 / 33 / 45 | Axial force Ft (kN): 187.4 | Torque Mt (Nm): 10800 | Contact pressure shaft / hub (N/mm2): 181 / 128 | Locking screws DIN912-12.9: 14 x M12x30 | Screw tightening torque Ts (Nm): 130
DYPL120x165Shaft dia d (mm): 120 | Outer dia D (mm): 165 | L1 / L2 / L (mm): 26 / 33 / 45 | Axial force Ft (kN): 225.6 | Torque Mt (Nm): 13500 | Contact pressure shaft / hub (N/mm2): 187 / 139 | Locking screws DIN912-12.9: 16 x M12x30 | Screw tightening torque Ts (Nm): 130
DYPL130x180Shaft dia d (mm): 130 | Outer dia D (mm): 180 | L1 / L2 / L (mm): 34 / 38 / 50 | Axial force Ft (kN): 282 | Torque Mt (Nm): 18300 | Contact pressure shaft / hub (N/mm2): 168 / 119 | Locking screws DIN912-12.9: 20 x M12x35 | Screw tightening torque Ts (Nm): 130
DYPL140x190Shaft dia d (mm): 140 | Outer dia D (mm): 190 | L1 / L2 / L (mm): 34 / 38 / 50 | Axial force Ft (kN): 310.1 | Torque Mt (Nm): 21700 | Contact pressure shaft / hub (N/mm2): 168 / 128 | Locking screws DIN912-12.9: 22 x M12x35 | Screw tightening torque Ts (Nm): 130
DYPL150x200Shaft dia d (mm): 150 | Outer dia D (mm): 200 | L1 / L2 / L (mm): 34 / 38 / 50 | Axial force Ft (kN): 338.4 | Torque Mt (Nm): 25300 | Contact pressure shaft / hub (N/mm2): 170 / 128 | Locking screws DIN912-12.9: 24 x M12x35 | Screw tightening torque Ts (Nm): 130
DYPL160x210Shaft dia d (mm): 160 | Outer dia D (mm): 210 | L1 / L2 / L (mm): 34 / 38 / 50 | Axial force Ft (kN): 366.6 | Torque Mt (Nm): 29300 | Contact pressure shaft / hub (N/mm2): 171 / 132 | Locking screws DIN912-12.9: 26 x M12x35 | Screw tightening torque Ts (Nm): 130
DYPL170x225Shaft dia d (mm): 170 | Outer dia D (mm): 225 | L1 / L2 / L (mm): 38 / 44 / 58 | Axial force Ft (kN): 389 | Torque Mt (Nm): 33000 | Contact pressure shaft / hub (N/mm2): 162 / 123 | Locking screws DIN912-12.9: 22 x M14x40 | Screw tightening torque Ts (Nm): 207
DYPL180x235Shaft dia d (mm): 180 | Outer dia D (mm): 235 | L1 / L2 / L (mm): 38 / 44 / 58 | Axial force Ft (kN): 424 | Torque Mt (Nm): 38000 | Contact pressure shaft / hub (N/mm2): 168 / 128 | Locking screws DIN912-12.9: 24 x M14x40 | Screw tightening torque Ts (Nm): 207
DYPL190x250Shaft dia d (mm): 190 | Outer dia D (mm): 250 | L1 / L2 / L (mm): 46 / 52 / 66 | Axial force Ft (kN): 495 | Torque Mt (Nm): 47000 | Contact pressure shaft / hub (N/mm2): 154 / 114 | Locking screws DIN912-12.9: 28 x M14x45 | Screw tightening torque Ts (Nm): 207
DYPL200x260Shaft dia d (mm): 200 | Outer dia D (mm): 260 | L1 / L2 / L (mm): 46 / 52 / 66 | Axial force Ft (kN): 531 | Torque Mt (Nm): 53000 | Contact pressure shaft / hub (N/mm2): 157 / 118 | Locking screws DIN912-12.9: 30 x M14x45 | Screw tightening torque Ts (Nm): 207
