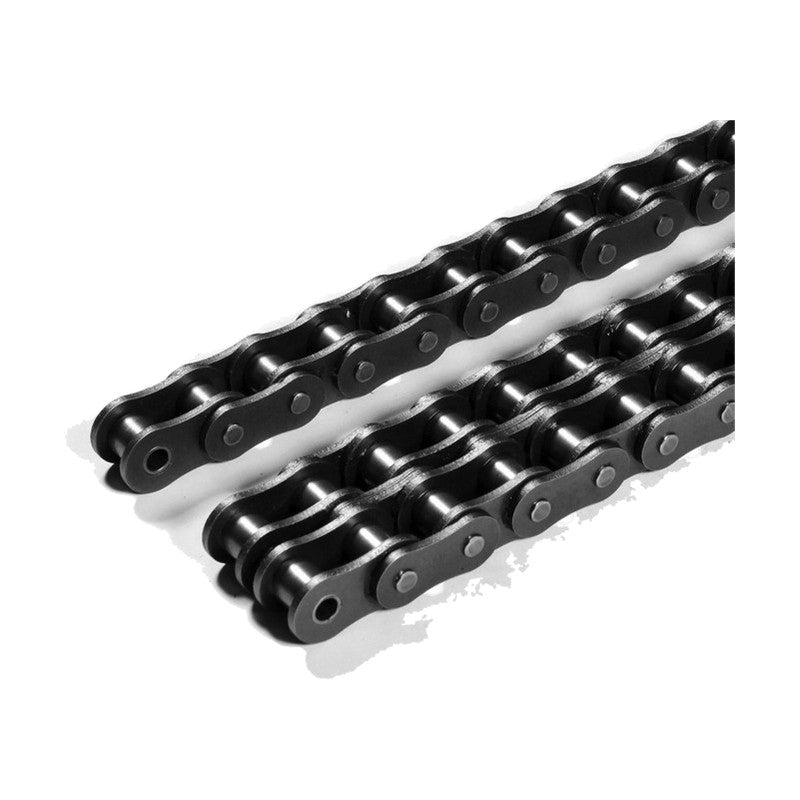

Dongyang Chain Standard Roller Chain DY 25-DY 240 (1-4 Strands)

Dongyang Chain Standard Roller Chain DY 25-DY 240 (1-4 Strands)

KS-certified standard roller chain (ANSI dimensions) in sizes DY 25 to DY 240, pitch 6.35 to 76.2 mm, available as single, double, triple and quadruple strand.

Key features

  • Each chain is rated with the K.S minimum ultimate strength, the DY average ultimate strength and a maximum allowable load
  • Chains are supplied in boxes of fixed link counts (1.5 to 3.0 m per box)
  • The catalog includes kilowatt rating tables for each size and matching roller chain sprockets

Specifications

Standard KS B 1407
DY 25-1 Chain size: DY 25 | Pitch: 6.35 mm (1/4") | Strands: 1 | K.S min. tensile strength: 360 kgf | DY avg. tensile strength: 480 kgf | Max. allowable load: 65 kgf | Approx. weight: 0.14 kg/m | Box packing: 480 links (3.0 m) | Standard: KS B 1407
DY 25-2 Chain size: DY 25 | Pitch: 6.35 mm (1/4") | Strands: 2 | K.S min. tensile strength: 720 kgf | DY avg. tensile strength: 960 kgf | Max. allowable load: 110 kgf | Approx. weight: 0.27 kg/m | Box packing: 480 links (3.0 m) | Standard: KS B 1407
DY 35-1 Chain size: DY 35 | Pitch: 9.525 mm (3/8") | Strands: 1 | K.S min. tensile strength: 800 kgf | DY avg. tensile strength: 1,150 kgf | Max. allowable load: 220 kgf | Approx. weight: 0.33 kg/m | Box packing: 320 links (3.0 m) | Standard: KS B 1407
DY 35-2 Chain size: DY 35 | Pitch: 9.525 mm (3/8") | Strands: 2 | K.S min. tensile strength: 1,600 kgf | DY avg. tensile strength: 2,300 kgf | Max. allowable load: 370 kgf | Approx. weight: 0.69 kg/m | Box packing: 320 links (3.0 m) | Standard: KS B 1407
DY 35-3 Chain size: DY 35 | Pitch: 9.525 mm (3/8") | Strands: 3 | K.S min. tensile strength: 2,400 kgf | DY avg. tensile strength: 3,450 kgf | Max. allowable load: 550 kgf | Approx. weight: 1.05 kg/m | Box packing: 320 links (3.0 m) | Standard: KS B 1407
DY 40-1 Chain size: DY 40 | Pitch: 12.7 mm (1/2") | Strands: 1 | K.S min. tensile strength: 1,420 kgf | DY avg. tensile strength: 1,950 kgf | Max. allowable load: 370 kgf | Approx. weight: 0.64 kg/m | Box packing: 240 links (3.0 m) | Standard: KS B 1407
DY 40-2 Chain size: DY 40 | Pitch: 12.7 mm (1/2") | Strands: 2 | K.S min. tensile strength: 2,840 kgf | DY avg. tensile strength: 3,900 kgf | Max. allowable load: 630 kgf | Approx. weight: 1.27 kg/m | Box packing: 240 links (3.0 m) | Standard: KS B 1407
DY 40-3 Chain size: DY 40 | Pitch: 12.7 mm (1/2") | Strands: 3 | K.S min. tensile strength: 4,260 kgf | DY avg. tensile strength: 5,850 kgf | Max. allowable load: 930 kgf | Approx. weight: 1.90 kg/m | Box packing: 240 links (3.0 m) | Standard: KS B 1407
DY 40-4 Chain size: DY 40 | Pitch: 12.7 mm (1/2") | Strands: 4 | K.S min. tensile strength: 5,680 kgf | DY avg. tensile strength: 7,800 kgf | Max. allowable load: 1,220 kgf | Approx. weight: 2.53 kg/m | Box packing: 240 links (3.0 m) | Standard: KS B 1407
DY 50-1 Chain size: DY 50 | Pitch: 15.875 mm (5/8") | Strands: 1 | K.S min. tensile strength: 2,210 kgf | DY avg. tensile strength: 3,200 kgf | Max. allowable load: 650 kgf | Approx. weight: 1.04 kg/m | Box packing: 192 links (3.0 m) | Standard: KS B 1407
DY 50-2 Chain size: DY 50 | Pitch: 15.875 mm (5/8") | Strands: 2 | K.S min. tensile strength: 4,420 kgf | DY avg. tensile strength: 6,400 kgf | Max. allowable load: 1,100 kgf | Approx. weight: 2.07 kg/m | Box packing: 192 links (3.0 m) | Standard: KS B 1407
DY 50-3 Chain size: DY 50 | Pitch: 15.875 mm (5/8") | Strands: 3 | K.S min. tensile strength: 6,630 kgf | DY avg. tensile strength: 9,600 kgf | Max. allowable load: 1,630 kgf | Approx. weight: 3.09 kg/m | Box packing: 192 links (3.0 m) | Standard: KS B 1407
DY 50-4 Chain size: DY 50 | Pitch: 15.875 mm (5/8") | Strands: 4 | K.S min. tensile strength: 8,840 kgf | DY avg. tensile strength: 12,800 kgf | Max. allowable load: 2,150 kgf | Approx. weight: 4.11 kg/m | Box packing: 192 links (3.0 m) | Standard: KS B 1407
DY 60-1 Chain size: DY 60 | Pitch: 19.05 mm (3/4") | Strands: 1 | K.S min. tensile strength: 3,200 kgf | DY avg. tensile strength: 4,500 kgf | Max. allowable load: 900 kgf | Approx. weight: 1.53 kg/m | Box packing: 160 links (3.0 m) | Standard: KS B 1407
DY 60-2 Chain size: DY 60 | Pitch: 19.05 mm (3/4") | Strands: 2 | K.S min. tensile strength: 6,400 kgf | DY avg. tensile strength: 9,000 kgf | Max. allowable load: 1,530 kgf | Approx. weight: 3.04 kg/m | Box packing: 160 links (3.0 m) | Standard: KS B 1407
DY 60-3 Chain size: DY 60 | Pitch: 19.05 mm (3/4") | Strands: 3 | K.S min. tensile strength: 9,600 kgf | DY avg. tensile strength: 13,500 kgf | Max. allowable load: 2,250 kgf | Approx. weight: 4.54 kg/m | Box packing: 160 links (3.0 m) | Standard: KS B 1407
DY 60-4 Chain size: DY 60 | Pitch: 19.05 mm (3/4") | Strands: 4 | K.S min. tensile strength: 12,800 kgf | DY avg. tensile strength: 18,000 kgf | Max. allowable load: 2,970 kgf | Approx. weight: 6.04 kg/m | Box packing: 160 links (3.0 m) | Standard: KS B 1407
DY 80-1 Chain size: DY 80 | Pitch: 25.4 mm (1") | Strands: 1 | K.S min. tensile strength: 5,650 kgf | DY avg. tensile strength: 8,000 kgf | Max. allowable load: 1,500 kgf | Approx. weight: 2.66 kg/m | Box packing: 120 links (3.0 m) | Standard: KS B 1407
DY 80-2 Chain size: DY 80 | Pitch: 25.4 mm (1") | Strands: 2 | K.S min. tensile strength: 11,300 kgf | DY avg. tensile strength: 16,000 kgf | Max. allowable load: 2,550 kgf | Approx. weight: 5.27 kg/m | Box packing: 120 links (3.0 m) | Standard: KS B 1407
DY 80-3 Chain size: DY 80 | Pitch: 25.4 mm (1") | Strands: 3 | K.S min. tensile strength: 16,950 kgf | DY avg. tensile strength: 24,000 kgf | Max. allowable load: 3,750 kgf | Approx. weight: 7.89 kg/m | Box packing: 120 links (3.0 m) | Standard: KS B 1407
DY 80-4 Chain size: DY 80 | Pitch: 25.4 mm (1") | Strands: 4 | K.S min. tensile strength: 22,600 kgf | DY avg. tensile strength: 32,000 kgf | Max. allowable load: 4,950 kgf | Approx. weight: 10.50 kg/m | Box packing: 120 links (3.0 m) | Standard: KS B 1407
DY 100-1 Chain size: DY 100 | Pitch: 31.75 mm (1-1/4") | Strands: 1 | K.S min. tensile strength: 8,850 kgf | DY avg. tensile strength: 12,000 kgf | Max. allowable load: 2,300 kgf | Approx. weight: 3.99 kg/m | Box packing: 96 links (3.0 m) | Standard: KS B 1407
DY 100-2 Chain size: DY 100 | Pitch: 31.75 mm (1-1/4") | Strands: 2 | K.S min. tensile strength: 17,700 kgf | DY avg. tensile strength: 24,000 kgf | Max. allowable load: 3,910 kgf | Approx. weight: 7.85 kg/m | Box packing: 96 links (3.0 m) | Standard: KS B 1407
DY 100-3 Chain size: DY 100 | Pitch: 31.75 mm (1-1/4") | Strands: 3 | K.S min. tensile strength: 26,550 kgf | DY avg. tensile strength: 36,000 kgf | Max. allowable load: 5,750 kgf | Approx. weight: 11.77 kg/m | Box packing: 96 links (3.0 m) | Standard: KS B 1407
DY 100-4 Chain size: DY 100 | Pitch: 31.75 mm (1-1/4") | Strands: 4 | K.S min. tensile strength: 35,400 kgf | DY avg. tensile strength: 48,000 kgf | Max. allowable load: 7,590 kgf | Approx. weight: 15.70 kg/m | Box packing: 96 links (3.0 m) | Standard: KS B 1407
DY 120-1 Chain size: DY 120 | Pitch: 38.1 mm (1-1/2") | Strands: 1 | K.S min. tensile strength: 12,800 kgf | DY avg. tensile strength: 17,000 kgf | Max. allowable load: 3,100 kgf | Approx. weight: 5.93 kg/m | Box packing: 80 links (3.0 m) | Standard: KS B 1407
DY 120-2 Chain size: DY 120 | Pitch: 38.1 mm (1-1/2") | Strands: 2 | K.S min. tensile strength: 25,600 kgf | DY avg. tensile strength: 32,600 kgf | Max. allowable load: 5,270 kgf | Approx. weight: 11.70 kg/m | Box packing: 80 links (3.0 m) | Standard: KS B 1407
DY 120-3 Chain size: DY 120 | Pitch: 38.1 mm (1-1/2") | Strands: 3 | K.S min. tensile strength: 38,400 kgf | DY avg. tensile strength: 48,900 kgf | Max. allowable load: 7,750 kgf | Approx. weight: 17.53 kg/m | Box packing: 40 links (1.5 m) | Standard: KS B 1407
DY 120-4 Chain size: DY 120 | Pitch: 38.1 mm (1-1/2") | Strands: 4 | K.S min. tensile strength: 51,200 kgf | DY avg. tensile strength: 65,200 kgf | Max. allowable load: 10,230 kgf | Approx. weight: 23.36 kg/m | Box packing: 40 links (1.5 m) | Standard: KS B 1407
DY 140-1 Chain size: DY 140 | Pitch: 44.45 mm (1-3/4") | Strands: 1 | K.S min. tensile strength: 17,400 kgf | DY avg. tensile strength: 22,000 kgf | Max. allowable load: 4,100 kgf | Approx. weight: 7.49 kg/m | Box packing: 68 links (3.0 m) | Standard: KS B 1407
DY 140-2 Chain size: DY 140 | Pitch: 44.45 mm (1-3/4") | Strands: 2 | K.S min. tensile strength: 34,800 kgf | DY avg. tensile strength: 42,800 kgf | Max. allowable load: 6,970 kgf | Approx. weight: 14.83 kg/m | Box packing: 34 links (1.5 m) | Standard: KS B 1407
DY 140-3 Chain size: DY 140 | Pitch: 44.45 mm (1-3/4") | Strands: 3 | K.S min. tensile strength: 52,200 kgf | DY avg. tensile strength: 64,200 kgf | Max. allowable load: 10,250 kgf | Approx. weight: 22.20 kg/m | Box packing: 34 links (1.5 m) | Standard: KS B 1407
DY 140-4 Chain size: DY 140 | Pitch: 44.45 mm (1-3/4") | Strands: 4 | K.S min. tensile strength: 69,600 kgf | DY avg. tensile strength: 85,600 kgf | Max. allowable load: 13,530 kgf | Approx. weight: 28.52 kg/m | Box packing: 34 links (1.5 m) | Standard: KS B 1407
DY 160-1 Chain size: DY 160 | Pitch: 50.8 mm (2") | Strands: 1 | K.S min. tensile strength: 22,700 kgf | DY avg. tensile strength: 27,500 kgf | Max. allowable load: 5,400 kgf | Approx. weight: 10.10 kg/m | Box packing: 30 links (1.5 m) | Standard: KS B 1407
DY 160-2 Chain size: DY 160 | Pitch: 50.8 mm (2") | Strands: 2 | K.S min. tensile strength: 45,400 kgf | DY avg. tensile strength: 54,000 kgf | Max. allowable load: 9,180 kgf | Approx. weight: 20.04 kg/m | Box packing: 30 links (1.5 m) | Standard: KS B 1407
DY 160-3 Chain size: DY 160 | Pitch: 50.8 mm (2") | Strands: 3 | K.S min. tensile strength: 68,100 kgf | DY avg. tensile strength: 81,000 kgf | Max. allowable load: 13,500 kgf | Approx. weight: 30.02 kg/m | Box packing: 30 links (1.5 m) | Standard: KS B 1407
DY 160-4 Chain size: DY 160 | Pitch: 50.8 mm (2") | Strands: 4 | K.S min. tensile strength: 90,800 kgf | DY avg. tensile strength: 108,000 kgf | Max. allowable load: 17,820 kgf | Approx. weight: 40.06 kg/m | Box packing: 30 links (1.5 m) | Standard: KS B 1407
DY 180-1 Chain size: DY 180 | Pitch: 57.15 mm (2-1/4") | Strands: 1 | K.S min. tensile strength: 28,700 kgf | DY avg. tensile strength: 36,500 kgf | Max. allowable load: 6,200 kgf | Approx. weight: 13.45 kg/m | Box packing: 28 links (1.6 m) | Standard: KS B 1407
DY 180-2 Chain size: DY 180 | Pitch: 57.15 mm (2-1/4") | Strands: 2 | K.S min. tensile strength: 57,400 kgf | DY avg. tensile strength: 73,000 kgf | Max. allowable load: 10,540 kgf | Approx. weight: 26.52 kg/m | Box packing: 28 links (1.6 m) | Standard: KS B 1407
DY 180-3 Chain size: DY 180 | Pitch: 57.15 mm (2-1/4") | Strands: 3 | K.S min. tensile strength: 86,110 kgf | DY avg. tensile strength: 109,500 kgf | Max. allowable load: 15,500 kgf | Approx. weight: 38.22 kg/m | Box packing: 28 links (1.6 m) | Standard: KS B 1407
DY 180-4 Chain size: DY 180 | Pitch: 57.15 mm (2-1/4") | Strands: 4 | K.S min. tensile strength: 114,815 kgf | DY avg. tensile strength: 146,000 kgf | Max. allowable load: 20,460 kgf | Approx. weight: 50.90 kg/m | Box packing: 28 links (1.6 m) | Standard: KS B 1407
DY 200-1 Chain size: DY 200 | Pitch: 63.5 mm (2-1/2") | Strands: 1 | K.S min. tensile strength: 35,400 kgf | DY avg. tensile strength: 47,000 kgf | Max. allowable load: 7,300 kgf | Approx. weight: 16.49 kg/m | Box packing: 24 links (1.5 m) | Standard: KS B 1407
DY 200-2 Chain size: DY 200 | Pitch: 63.5 mm (2-1/2") | Strands: 2 | K.S min. tensile strength: 70,800 kgf | DY avg. tensile strength: 94,000 kgf | Max. allowable load: 12,410 kgf | Approx. weight: 32.63 kg/m | Box packing: 24 links (1.5 m) | Standard: KS B 1407
DY 200-3 Chain size: DY 200 | Pitch: 63.5 mm (2-1/2") | Strands: 3 | K.S min. tensile strength: 106,200 kgf | DY avg. tensile strength: 141,000 kgf | Max. allowable load: 18,250 kgf | Approx. weight: 49.02 kg/m | Box packing: 24 links (1.5 m) | Standard: KS B 1407
DY 200-4 Chain size: DY 200 | Pitch: 63.5 mm (2-1/2") | Strands: 4 | K.S min. tensile strength: 141,600 kgf | DY avg. tensile strength: 188,000 kgf | Max. allowable load: 24,090 kgf | Approx. weight: 65.16 kg/m | Box packing: 24 links (1.5 m) | Standard: KS B 1407
DY 240-1 Chain size: DY 240 | Pitch: 76.2 mm (3") | Strands: 1 | K.S min. tensile strength: 51,100 kgf | DY avg. tensile strength: 69,000 kgf | Max. allowable load: 10,100 kgf | Approx. weight: 24.5 kg/m | Box packing: 20 links (1.5 m) | Standard: KS B 1407
DY 240-2 Chain size: DY 240 | Pitch: 76.2 mm (3") | Strands: 2 | K.S min. tensile strength: 102,200 kgf | DY avg. tensile strength: 138,000 kgf | Max. allowable load: 17,170 kgf | Approx. weight: 48.1 kg/m | Box packing: 20 links (1.5 m) | Standard: KS B 1407
DY 240-3 Chain size: DY 240 | Pitch: 76.2 mm (3") | Strands: 3 | K.S min. tensile strength: 153,300 kgf | DY avg. tensile strength: 207,000 kgf | Max. allowable load: 25,250 kgf | Approx. weight: 71.6 kg/m | Box packing: 20 links (1.5 m) | Standard: KS B 1407
DY 240-4 Chain size: DY 240 | Pitch: 76.2 mm (3") | Strands: 4 | K.S min. tensile strength: 204,400 kgf | DY avg. tensile strength: 276,000 kgf | Max. allowable load: 33,330 kgf | Approx. weight: 95.1 kg/m | Box packing: 20 links (1.5 m) | Standard: KS B 1407
Roller ChainsDongyang Chain
49 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain Standard Roller Chain DY 25-DY 240 (1-4 Strands)

Brand Dongyang Chain·Roller Chains

Available part numbers (49)

DY 25-1, DY 25-2, DY 35-1, DY 35-2, DY 35-3, DY 40-1, DY 40-2, DY 40-3, DY 40-4, DY 50-1 + 39 more — see full table ↓

How to order

Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DY 25-1Chain size: DY 25 | Pitch: 6.35 mm (1/4") | Strands: 1 | K.S min. tensile strength: 360 kgf | DY avg. tensile strength: 480 kgf | Max. allowable load: 65 kgf | Approx. weight: 0.14 kg/m | Box packing: 480 links (3.0 m) | Standard: KS B 1407
DY 25-2Chain size: DY 25 | Pitch: 6.35 mm (1/4") | Strands: 2 | K.S min. tensile strength: 720 kgf | DY avg. tensile strength: 960 kgf | Max. allowable load: 110 kgf | Approx. weight: 0.27 kg/m | Box packing: 480 links (3.0 m) | Standard: KS B 1407
DY 35-1Chain size: DY 35 | Pitch: 9.525 mm (3/8") | Strands: 1 | K.S min. tensile strength: 800 kgf | DY avg. tensile strength: 1,150 kgf | Max. allowable load: 220 kgf | Approx. weight: 0.33 kg/m | Box packing: 320 links (3.0 m) | Standard: KS B 1407
DY 35-2Chain size: DY 35 | Pitch: 9.525 mm (3/8") | Strands: 2 | K.S min. tensile strength: 1,600 kgf | DY avg. tensile strength: 2,300 kgf | Max. allowable load: 370 kgf | Approx. weight: 0.69 kg/m | Box packing: 320 links (3.0 m) | Standard: KS B 1407
DY 35-3Chain size: DY 35 | Pitch: 9.525 mm (3/8") | Strands: 3 | K.S min. tensile strength: 2,400 kgf | DY avg. tensile strength: 3,450 kgf | Max. allowable load: 550 kgf | Approx. weight: 1.05 kg/m | Box packing: 320 links (3.0 m) | Standard: KS B 1407
DY 40-1Chain size: DY 40 | Pitch: 12.7 mm (1/2") | Strands: 1 | K.S min. tensile strength: 1,420 kgf | DY avg. tensile strength: 1,950 kgf | Max. allowable load: 370 kgf | Approx. weight: 0.64 kg/m | Box packing: 240 links (3.0 m) | Standard: KS B 1407
DY 40-2Chain size: DY 40 | Pitch: 12.7 mm (1/2") | Strands: 2 | K.S min. tensile strength: 2,840 kgf | DY avg. tensile strength: 3,900 kgf | Max. allowable load: 630 kgf | Approx. weight: 1.27 kg/m | Box packing: 240 links (3.0 m) | Standard: KS B 1407
DY 40-3Chain size: DY 40 | Pitch: 12.7 mm (1/2") | Strands: 3 | K.S min. tensile strength: 4,260 kgf | DY avg. tensile strength: 5,850 kgf | Max. allowable load: 930 kgf | Approx. weight: 1.90 kg/m | Box packing: 240 links (3.0 m) | Standard: KS B 1407
DY 40-4Chain size: DY 40 | Pitch: 12.7 mm (1/2") | Strands: 4 | K.S min. tensile strength: 5,680 kgf | DY avg. tensile strength: 7,800 kgf | Max. allowable load: 1,220 kgf | Approx. weight: 2.53 kg/m | Box packing: 240 links (3.0 m) | Standard: KS B 1407
DY 50-1Chain size: DY 50 | Pitch: 15.875 mm (5/8") | Strands: 1 | K.S min. tensile strength: 2,210 kgf | DY avg. tensile strength: 3,200 kgf | Max. allowable load: 650 kgf | Approx. weight: 1.04 kg/m | Box packing: 192 links (3.0 m) | Standard: KS B 1407
DY 50-2Chain size: DY 50 | Pitch: 15.875 mm (5/8") | Strands: 2 | K.S min. tensile strength: 4,420 kgf | DY avg. tensile strength: 6,400 kgf | Max. allowable load: 1,100 kgf | Approx. weight: 2.07 kg/m | Box packing: 192 links (3.0 m) | Standard: KS B 1407
DY 50-3Chain size: DY 50 | Pitch: 15.875 mm (5/8") | Strands: 3 | K.S min. tensile strength: 6,630 kgf | DY avg. tensile strength: 9,600 kgf | Max. allowable load: 1,630 kgf | Approx. weight: 3.09 kg/m | Box packing: 192 links (3.0 m) | Standard: KS B 1407
DY 50-4Chain size: DY 50 | Pitch: 15.875 mm (5/8") | Strands: 4 | K.S min. tensile strength: 8,840 kgf | DY avg. tensile strength: 12,800 kgf | Max. allowable load: 2,150 kgf | Approx. weight: 4.11 kg/m | Box packing: 192 links (3.0 m) | Standard: KS B 1407
DY 60-1Chain size: DY 60 | Pitch: 19.05 mm (3/4") | Strands: 1 | K.S min. tensile strength: 3,200 kgf | DY avg. tensile strength: 4,500 kgf | Max. allowable load: 900 kgf | Approx. weight: 1.53 kg/m | Box packing: 160 links (3.0 m) | Standard: KS B 1407
DY 60-2Chain size: DY 60 | Pitch: 19.05 mm (3/4") | Strands: 2 | K.S min. tensile strength: 6,400 kgf | DY avg. tensile strength: 9,000 kgf | Max. allowable load: 1,530 kgf | Approx. weight: 3.04 kg/m | Box packing: 160 links (3.0 m) | Standard: KS B 1407
DY 60-3Chain size: DY 60 | Pitch: 19.05 mm (3/4") | Strands: 3 | K.S min. tensile strength: 9,600 kgf | DY avg. tensile strength: 13,500 kgf | Max. allowable load: 2,250 kgf | Approx. weight: 4.54 kg/m | Box packing: 160 links (3.0 m) | Standard: KS B 1407
DY 60-4Chain size: DY 60 | Pitch: 19.05 mm (3/4") | Strands: 4 | K.S min. tensile strength: 12,800 kgf | DY avg. tensile strength: 18,000 kgf | Max. allowable load: 2,970 kgf | Approx. weight: 6.04 kg/m | Box packing: 160 links (3.0 m) | Standard: KS B 1407
DY 80-1Chain size: DY 80 | Pitch: 25.4 mm (1") | Strands: 1 | K.S min. tensile strength: 5,650 kgf | DY avg. tensile strength: 8,000 kgf | Max. allowable load: 1,500 kgf | Approx. weight: 2.66 kg/m | Box packing: 120 links (3.0 m) | Standard: KS B 1407
DY 80-2Chain size: DY 80 | Pitch: 25.4 mm (1") | Strands: 2 | K.S min. tensile strength: 11,300 kgf | DY avg. tensile strength: 16,000 kgf | Max. allowable load: 2,550 kgf | Approx. weight: 5.27 kg/m | Box packing: 120 links (3.0 m) | Standard: KS B 1407
DY 80-3Chain size: DY 80 | Pitch: 25.4 mm (1") | Strands: 3 | K.S min. tensile strength: 16,950 kgf | DY avg. tensile strength: 24,000 kgf | Max. allowable load: 3,750 kgf | Approx. weight: 7.89 kg/m | Box packing: 120 links (3.0 m) | Standard: KS B 1407
DY 80-4Chain size: DY 80 | Pitch: 25.4 mm (1") | Strands: 4 | K.S min. tensile strength: 22,600 kgf | DY avg. tensile strength: 32,000 kgf | Max. allowable load: 4,950 kgf | Approx. weight: 10.50 kg/m | Box packing: 120 links (3.0 m) | Standard: KS B 1407
DY 100-1Chain size: DY 100 | Pitch: 31.75 mm (1-1/4") | Strands: 1 | K.S min. tensile strength: 8,850 kgf | DY avg. tensile strength: 12,000 kgf | Max. allowable load: 2,300 kgf | Approx. weight: 3.99 kg/m | Box packing: 96 links (3.0 m) | Standard: KS B 1407
DY 100-2Chain size: DY 100 | Pitch: 31.75 mm (1-1/4") | Strands: 2 | K.S min. tensile strength: 17,700 kgf | DY avg. tensile strength: 24,000 kgf | Max. allowable load: 3,910 kgf | Approx. weight: 7.85 kg/m | Box packing: 96 links (3.0 m) | Standard: KS B 1407
DY 100-3Chain size: DY 100 | Pitch: 31.75 mm (1-1/4") | Strands: 3 | K.S min. tensile strength: 26,550 kgf | DY avg. tensile strength: 36,000 kgf | Max. allowable load: 5,750 kgf | Approx. weight: 11.77 kg/m | Box packing: 96 links (3.0 m) | Standard: KS B 1407
DY 100-4Chain size: DY 100 | Pitch: 31.75 mm (1-1/4") | Strands: 4 | K.S min. tensile strength: 35,400 kgf | DY avg. tensile strength: 48,000 kgf | Max. allowable load: 7,590 kgf | Approx. weight: 15.70 kg/m | Box packing: 96 links (3.0 m) | Standard: KS B 1407
DY 120-1Chain size: DY 120 | Pitch: 38.1 mm (1-1/2") | Strands: 1 | K.S min. tensile strength: 12,800 kgf | DY avg. tensile strength: 17,000 kgf | Max. allowable load: 3,100 kgf | Approx. weight: 5.93 kg/m | Box packing: 80 links (3.0 m) | Standard: KS B 1407
DY 120-2Chain size: DY 120 | Pitch: 38.1 mm (1-1/2") | Strands: 2 | K.S min. tensile strength: 25,600 kgf | DY avg. tensile strength: 32,600 kgf | Max. allowable load: 5,270 kgf | Approx. weight: 11.70 kg/m | Box packing: 80 links (3.0 m) | Standard: KS B 1407
DY 120-3Chain size: DY 120 | Pitch: 38.1 mm (1-1/2") | Strands: 3 | K.S min. tensile strength: 38,400 kgf | DY avg. tensile strength: 48,900 kgf | Max. allowable load: 7,750 kgf | Approx. weight: 17.53 kg/m | Box packing: 40 links (1.5 m) | Standard: KS B 1407
DY 120-4Chain size: DY 120 | Pitch: 38.1 mm (1-1/2") | Strands: 4 | K.S min. tensile strength: 51,200 kgf | DY avg. tensile strength: 65,200 kgf | Max. allowable load: 10,230 kgf | Approx. weight: 23.36 kg/m | Box packing: 40 links (1.5 m) | Standard: KS B 1407
DY 140-1Chain size: DY 140 | Pitch: 44.45 mm (1-3/4") | Strands: 1 | K.S min. tensile strength: 17,400 kgf | DY avg. tensile strength: 22,000 kgf | Max. allowable load: 4,100 kgf | Approx. weight: 7.49 kg/m | Box packing: 68 links (3.0 m) | Standard: KS B 1407
DY 140-2Chain size: DY 140 | Pitch: 44.45 mm (1-3/4") | Strands: 2 | K.S min. tensile strength: 34,800 kgf | DY avg. tensile strength: 42,800 kgf | Max. allowable load: 6,970 kgf | Approx. weight: 14.83 kg/m | Box packing: 34 links (1.5 m) | Standard: KS B 1407
DY 140-3Chain size: DY 140 | Pitch: 44.45 mm (1-3/4") | Strands: 3 | K.S min. tensile strength: 52,200 kgf | DY avg. tensile strength: 64,200 kgf | Max. allowable load: 10,250 kgf | Approx. weight: 22.20 kg/m | Box packing: 34 links (1.5 m) | Standard: KS B 1407
DY 140-4Chain size: DY 140 | Pitch: 44.45 mm (1-3/4") | Strands: 4 | K.S min. tensile strength: 69,600 kgf | DY avg. tensile strength: 85,600 kgf | Max. allowable load: 13,530 kgf | Approx. weight: 28.52 kg/m | Box packing: 34 links (1.5 m) | Standard: KS B 1407
DY 160-1Chain size: DY 160 | Pitch: 50.8 mm (2") | Strands: 1 | K.S min. tensile strength: 22,700 kgf | DY avg. tensile strength: 27,500 kgf | Max. allowable load: 5,400 kgf | Approx. weight: 10.10 kg/m | Box packing: 30 links (1.5 m) | Standard: KS B 1407
DY 160-2Chain size: DY 160 | Pitch: 50.8 mm (2") | Strands: 2 | K.S min. tensile strength: 45,400 kgf | DY avg. tensile strength: 54,000 kgf | Max. allowable load: 9,180 kgf | Approx. weight: 20.04 kg/m | Box packing: 30 links (1.5 m) | Standard: KS B 1407
DY 160-3Chain size: DY 160 | Pitch: 50.8 mm (2") | Strands: 3 | K.S min. tensile strength: 68,100 kgf | DY avg. tensile strength: 81,000 kgf | Max. allowable load: 13,500 kgf | Approx. weight: 30.02 kg/m | Box packing: 30 links (1.5 m) | Standard: KS B 1407
DY 160-4Chain size: DY 160 | Pitch: 50.8 mm (2") | Strands: 4 | K.S min. tensile strength: 90,800 kgf | DY avg. tensile strength: 108,000 kgf | Max. allowable load: 17,820 kgf | Approx. weight: 40.06 kg/m | Box packing: 30 links (1.5 m) | Standard: KS B 1407
DY 180-1Chain size: DY 180 | Pitch: 57.15 mm (2-1/4") | Strands: 1 | K.S min. tensile strength: 28,700 kgf | DY avg. tensile strength: 36,500 kgf | Max. allowable load: 6,200 kgf | Approx. weight: 13.45 kg/m | Box packing: 28 links (1.6 m) | Standard: KS B 1407
DY 180-2Chain size: DY 180 | Pitch: 57.15 mm (2-1/4") | Strands: 2 | K.S min. tensile strength: 57,400 kgf | DY avg. tensile strength: 73,000 kgf | Max. allowable load: 10,540 kgf | Approx. weight: 26.52 kg/m | Box packing: 28 links (1.6 m) | Standard: KS B 1407
DY 180-3Chain size: DY 180 | Pitch: 57.15 mm (2-1/4") | Strands: 3 | K.S min. tensile strength: 86,110 kgf | DY avg. tensile strength: 109,500 kgf | Max. allowable load: 15,500 kgf | Approx. weight: 38.22 kg/m | Box packing: 28 links (1.6 m) | Standard: KS B 1407
DY 180-4Chain size: DY 180 | Pitch: 57.15 mm (2-1/4") | Strands: 4 | K.S min. tensile strength: 114,815 kgf | DY avg. tensile strength: 146,000 kgf | Max. allowable load: 20,460 kgf | Approx. weight: 50.90 kg/m | Box packing: 28 links (1.6 m) | Standard: KS B 1407
DY 200-1Chain size: DY 200 | Pitch: 63.5 mm (2-1/2") | Strands: 1 | K.S min. tensile strength: 35,400 kgf | DY avg. tensile strength: 47,000 kgf | Max. allowable load: 7,300 kgf | Approx. weight: 16.49 kg/m | Box packing: 24 links (1.5 m) | Standard: KS B 1407
DY 200-2Chain size: DY 200 | Pitch: 63.5 mm (2-1/2") | Strands: 2 | K.S min. tensile strength: 70,800 kgf | DY avg. tensile strength: 94,000 kgf | Max. allowable load: 12,410 kgf | Approx. weight: 32.63 kg/m | Box packing: 24 links (1.5 m) | Standard: KS B 1407
DY 200-3Chain size: DY 200 | Pitch: 63.5 mm (2-1/2") | Strands: 3 | K.S min. tensile strength: 106,200 kgf | DY avg. tensile strength: 141,000 kgf | Max. allowable load: 18,250 kgf | Approx. weight: 49.02 kg/m | Box packing: 24 links (1.5 m) | Standard: KS B 1407
DY 200-4Chain size: DY 200 | Pitch: 63.5 mm (2-1/2") | Strands: 4 | K.S min. tensile strength: 141,600 kgf | DY avg. tensile strength: 188,000 kgf | Max. allowable load: 24,090 kgf | Approx. weight: 65.16 kg/m | Box packing: 24 links (1.5 m) | Standard: KS B 1407
DY 240-1Chain size: DY 240 | Pitch: 76.2 mm (3") | Strands: 1 | K.S min. tensile strength: 51,100 kgf | DY avg. tensile strength: 69,000 kgf | Max. allowable load: 10,100 kgf | Approx. weight: 24.5 kg/m | Box packing: 20 links (1.5 m) | Standard: KS B 1407
DY 240-2Chain size: DY 240 | Pitch: 76.2 mm (3") | Strands: 2 | K.S min. tensile strength: 102,200 kgf | DY avg. tensile strength: 138,000 kgf | Max. allowable load: 17,170 kgf | Approx. weight: 48.1 kg/m | Box packing: 20 links (1.5 m) | Standard: KS B 1407
DY 240-3Chain size: DY 240 | Pitch: 76.2 mm (3") | Strands: 3 | K.S min. tensile strength: 153,300 kgf | DY avg. tensile strength: 207,000 kgf | Max. allowable load: 25,250 kgf | Approx. weight: 71.6 kg/m | Box packing: 20 links (1.5 m) | Standard: KS B 1407
DY 240-4Chain size: DY 240 | Pitch: 76.2 mm (3") | Strands: 4 | K.S min. tensile strength: 204,400 kgf | DY avg. tensile strength: 276,000 kgf | Max. allowable load: 33,330 kgf | Approx. weight: 95.1 kg/m | Box packing: 20 links (1.5 m) | Standard: KS B 1407

Need a different model, or a part not listed here? Send us your parts list →
