• Dongyang Chain Sugar Mill Intermediate Carrier Chain
1 1

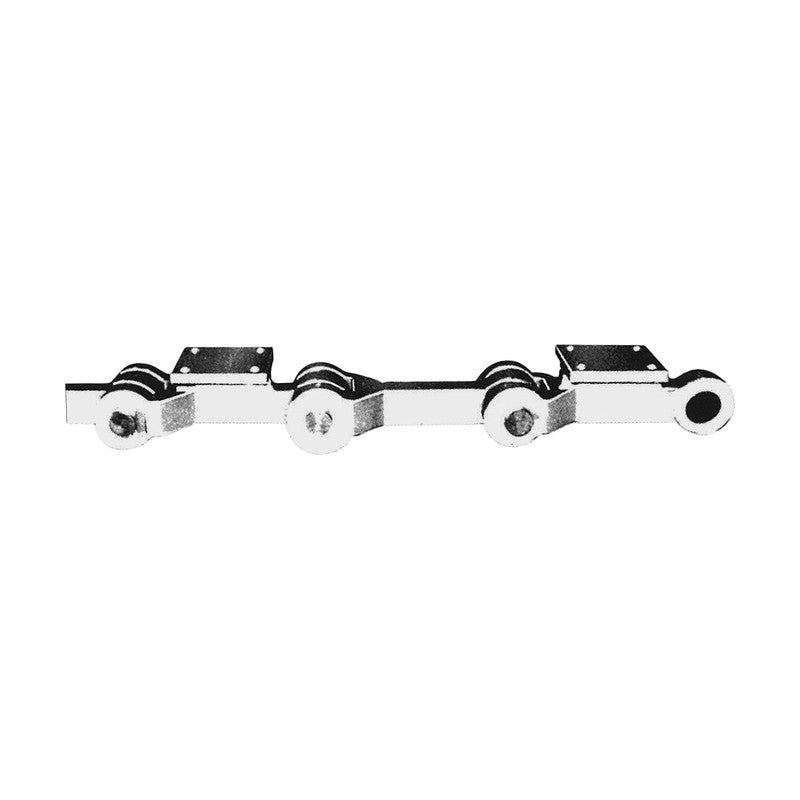

Dongyang Chain Sugar Mill Intermediate Carrier Chain

Dongyang Chain Sugar Mill Intermediate Carrier Chain

Intermediate carrier chain for sugar mills with high-strength cast steel links, heat-treated high-class steel pins and renewable bushings.

Key features

  • High-strength cast steel links
  • Heat-treated steel pins
  • Renewable bushings
DY42228 Pitch (mm): 228.6 | Avg ultimate strength (kg): 42,600 | A/B/C (mm): 44/47/27 | Pin D (mm): 31.75 | E/F/G (mm): 100/70/67 | H/J (mm): 76.2/50 | K/L/M (mm): 76/125/115 | R (mm): 15
DY88304 Pitch (mm): 304.8 | Avg ultimate strength (kg): 88,000 | A/B/C (mm): 50.8/54/36.5 | Pin D (mm): 44.5 | E/F/G (mm): 127/82.6/76.2 | H/J (mm): 100/63.5 | K/L/M (mm): 108/158/152.4 | R (mm): 17.5
Sugar Mill ChainsDongyang Chain
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain Sugar Mill Intermediate Carrier Chain

Brand Dongyang Chain·Sugar Mill Chains

Available part numbers (2)

DY42228, DY88304

How to order

Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DY42228Pitch (mm): 228.6 | Avg ultimate strength (kg): 42,600 | A/B/C (mm): 44/47/27 | Pin D (mm): 31.75 | E/F/G (mm): 100/70/67 | H/J (mm): 76.2/50 | K/L/M (mm): 76/125/115 | R (mm): 15
DY88304Pitch (mm): 304.8 | Avg ultimate strength (kg): 88,000 | A/B/C (mm): 50.8/54/36.5 | Pin D (mm): 44.5 | E/F/G (mm): 127/82.6/76.2 | H/J (mm): 100/63.5 | K/L/M (mm): 108/158/152.4 | R (mm): 17.5

Need a different model, or a part not listed here? Send us your parts list →
