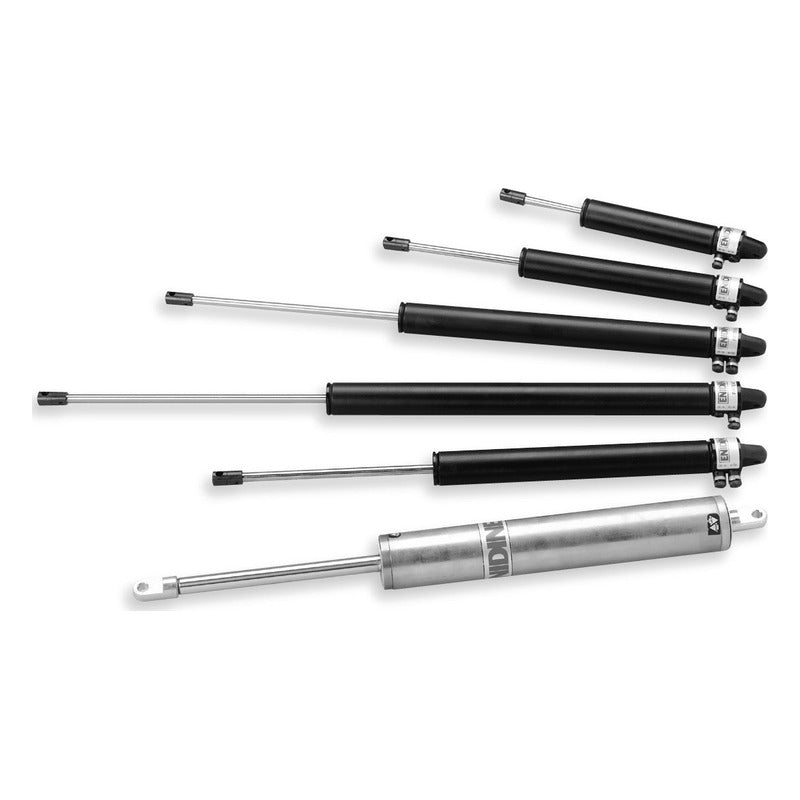

ENIDINE ADA Series Adjustable Hydraulic Rate Control

ENIDINE ADA Series Adjustable Hydraulic Rate Control

Adjustable hydraulic rate controls (speed regulators) that provide constant damping over the full stroke in tension, compression or both.

Key features

  • Damping direction selectable: tension (T), compression (C) or both
  • Constant damping effect over the entire stroke
  • Adjustment dial set to operating speed and propelling force
  • ADA 505-515: compression/tension changed by swapping the adjustment cartridge
  • Free-flow option (P) in either direction

Specifications

Type Adjustable hydraulic rate control (dashpot)
Ordering Quantity, model, tension mode (T adjustable / P free flow), compression mode (C adjustable / P free flow)
Operating temperature -10 to 80 C (standard oil); -30 to 100 C (special oil)
ADA 505M Bore: 16.0 mm | Stroke: 50.0 mm | Max. propelling force tension/compression: 2000/2000 N | Max. energy per hour: 73450 Nm/h | Damping direction: T, C or T and C | Weight: 300 g
ADA 510M Bore: 16.0 mm | Stroke: 100.0 mm | Max. propelling force tension/compression: 2000/1670 N | Max. energy per hour: 96050 Nm/h | Damping direction: T, C or T and C | Weight: 372 g
ADA 515M Bore: 16.0 mm | Stroke: 150.0 mm | Max. propelling force tension/compression: 2000/1335 N | Max. energy per hour: 118650 Nm/h | Damping direction: T, C or T and C | Weight: 445 g
ADA 520M Bore: 16.0 mm | Stroke: 200.0 mm | Max. propelling force tension/compression: 2000/900 N | Max. energy per hour: 141250 Nm/h | Damping direction: T, C or T and C | Weight: 520 g
ADA 525M Bore: 16.0 mm | Stroke: 250.0 mm | Max. propelling force tension/compression: 2000/550 N | Max. energy per hour: 163850 Nm/h | Damping direction: T, C or T and C | Weight: 590 g
ADA 705M Bore: 25.0 mm | Stroke: 50.0 mm | Max. propelling force tension/compression: 11000/11000 N | Max. energy per hour: 129000 Nm/h | Damping direction: T, C or T and C | Weight: 1.6 kg
ADA 710M Bore: 25.0 mm | Stroke: 100.0 mm | Max. propelling force tension/compression: 11000/11000 N | Max. energy per hour: 168000 Nm/h | Damping direction: T, C or T and C | Weight: 2.0 kg
ADA 715M Bore: 25.0 mm | Stroke: 150.0 mm | Max. propelling force tension/compression: 11000/11000 N | Max. energy per hour: 206000 Nm/h | Damping direction: T, C or T and C | Weight: 2.3 kg
ADA 720M Bore: 25.0 mm | Stroke: 200.0 mm | Max. propelling force tension/compression: 11000/11000 N | Max. energy per hour: 247000 Nm/h | Damping direction: T, C or T and C | Weight: 2.6 kg
ADA 725M Bore: 25.0 mm | Stroke: 250.0 mm | Max. propelling force tension/compression: 11000/11000 N | Max. energy per hour: 286000 Nm/h | Damping direction: T, C or T and C | Weight: 2.9 kg
ADA 730M Bore: 25.0 mm | Stroke: 300.0 mm | Max. propelling force tension/compression: 11000/11000 N | Max. energy per hour: 326000 Nm/h | Damping direction: T, C or T and C | Weight: 3.2 kg
ADA 735M Bore: 25.0 mm | Stroke: 350.0 mm | Max. propelling force tension/compression: 11000/11000 N | Max. energy per hour: 366000 Nm/h | Damping direction: T, C or T and C | Weight: 3.6 kg
ADA 740M Bore: 25.0 mm | Stroke: 400.0 mm | Max. propelling force tension/compression: 11000/11000 N | Max. energy per hour: 405000 Nm/h | Damping direction: T, C or T and C | Weight: 3.9 kg
ADA 745M Bore: 25.0 mm | Stroke: 450.0 mm | Max. propelling force tension/compression: 11000/8800 N | Max. energy per hour: 444000 Nm/h | Damping direction: T, C or T and C | Weight: 4.2 kg
ADA 750M Bore: 25.0 mm | Stroke: 500.0 mm | Max. propelling force tension/compression: 11000/7500 N | Max. energy per hour: 484000 Nm/h | Damping direction: T, C or T and C | Weight: 4.5 kg
ADA 755M Bore: 25.0 mm | Stroke: 550.0 mm | Max. propelling force tension/compression: 11000/6200 N | Max. energy per hour: 524000 Nm/h | Damping direction: T, C or T and C | Weight: 4.8 kg
ADA 760M Bore: 25.0 mm | Stroke: 600.0 mm | Max. propelling force tension/compression: 11000/5300 N | Max. energy per hour: 563000 Nm/h | Damping direction: T, C or T and C | Weight: 5.2 kg
ADA 765M Bore: 25.0 mm | Stroke: 650.0 mm | Max. propelling force tension/compression: 11000/4500 N | Max. energy per hour: 603000 Nm/h | Damping direction: T, C or T and C | Weight: 5.5 kg
ADA 770M Bore: 25.0 mm | Stroke: 700.0 mm | Max. propelling force tension/compression: 11000/4000 N | Max. energy per hour: 642000 Nm/h | Damping direction: T, C or T and C | Weight: 5.8 kg
ADA 775M Bore: 25.0 mm | Stroke: 750.0 mm | Max. propelling force tension/compression: 11000/3500 N | Max. energy per hour: 681000 Nm/h | Damping direction: T, C or T and C | Weight: 6.1 kg
ADA 780M Bore: 25.0 mm | Stroke: 800.0 mm | Max. propelling force tension/compression: 11000/3100 N | Max. energy per hour: 721000 Nm/h | Damping direction: T, C or T and C | Weight: 6.5 kg
