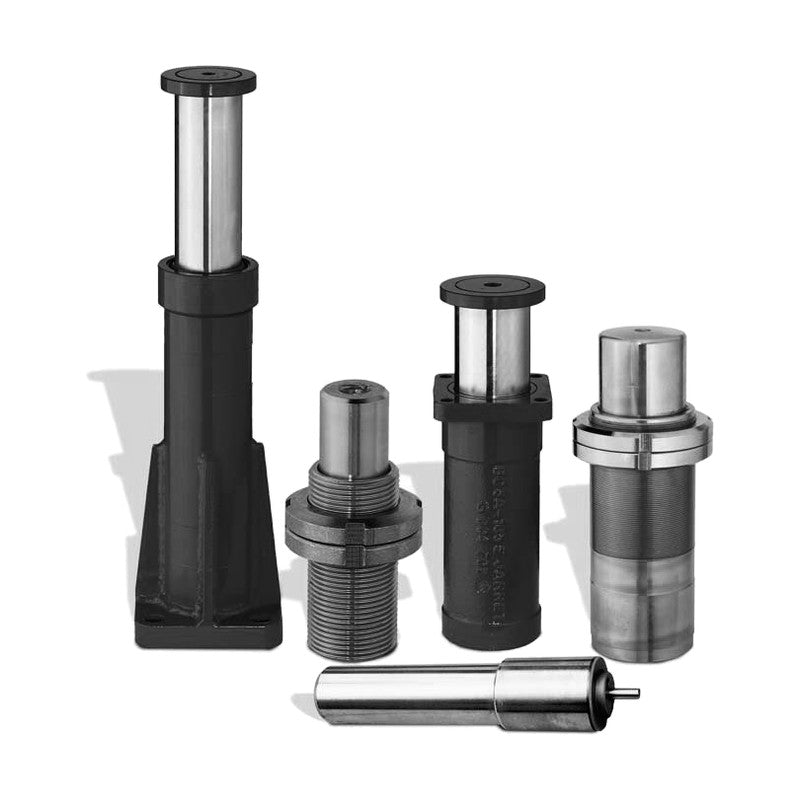

ENIDINE BC1N Series Jarret Elastomer Spring Shock Absorber

ENIDINE BC1N Series Jarret Elastomer Spring Shock Absorber

Compact Jarret visco-elastic (compressible elastomer) shock absorbers combining spring and damping functions, with threaded body or flange mounting.

Key features

  • Silicone-based compressible fluid gives high energy capacity
  • Combined spring return and shock absorbing functions
  • Suited to high speed, high temperature and high propelling force
  • Threaded body (Fc) or rear flange (Fa) mounting; -M versions with metric mounting thread

Specifications

Technology Jarret visco-elastic (preloaded compressible fluid)
Operating temperature -10 to +70 C (consult factory for wide ranges)
ENIDINE BC1N Series Jarret Elastomer Spring Shock Absorber
BC1ZN Energy capacity: 0.1 kJ | Stroke: 12 mm | Return force ext./comp.: 0.94/5.4 kN | Max. shock force: 11 kN | Thread: M25x1.5 | Length L1: 75 mm | Mass: 0.3 kg
BC1BN Energy capacity: 0.43 kJ | Stroke: 22 mm | Return force ext./comp.: 2.5/14.0 kN | Max. shock force: 27 kN | Thread: M35x1.5 | Length L1: 120 mm | Mass: 0.7 kg
BC1BN-M Energy capacity: 0.43 kJ | Stroke: 22 mm | Return force ext./comp.: 2.5/14.0 kN | Max. shock force: 27 kN | Thread: M40x1.5 | Length L1: 120 mm | Mass: 0.8 kg
BC1DN-70 Energy capacity: 1.5 kJ | Stroke: 35 mm | Return force ext./comp.: 5.2/28.8 kN | Max. shock force: 60 kN | Thread: M50x1.5 | Length L1: 175 mm | Mass: 1.9 kg
BC1DN-85 Energy capacity: 1.5 kJ | Stroke: 35 mm | Return force ext./comp.: 5.2/28.8 kN | Max. shock force: 60 kN | Thread: M50x1.5 | Length L1: 175 mm | Mass: 2 kg
BC1DN-M Energy capacity: 1.5 kJ | Stroke: 35 mm | Return force ext./comp.: 5.2/28.8 kN | Max. shock force: 60 kN | Thread: M60x2 | Length L1: 175 mm | Mass: 2 kg
BC1EN Energy capacity: 3.4 kJ | Stroke: 45 mm | Return force ext./comp.: 7.8/43.0 kN | Max. shock force: 100 kN | Thread: M75x2 | Length L1: 213 mm | Mass: 5 kg
BC1FN Energy capacity: 7 kJ | Stroke: 60 mm | Return force ext./comp.: 13.6/76.6 kN | Max. shock force: 150 kN | Thread: M90x2 | Length L1: 270 mm | Mass: 10.5 kg
BC1GN Energy capacity: 14 kJ | Stroke: 80 mm | Return force ext./comp.: 19.0/130.0 kN | Max. shock force: 230 kN | Thread: M110x2 | Length L1: 337 mm | Mass: 17 kg
Shock AbsorbersENIDINE
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENIDINE BC1N Series Jarret Elastomer Spring Shock Absorber

Brand ENIDINE·Shock Absorbers

Available part numbers (9)

BC1ZN, BC1BN, BC1BN-M, BC1DN-70, BC1DN-85, BC1DN-M, BC1EN, BC1FN, BC1GN

How to order

Send the ENIDINE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
ENIDINE BC1N Series Jarret Elastomer Spring Shock Absorber
0 selected
RFQ List (0)
Product codeSpec
BC1ZNEnergy capacity: 0.1 kJ | Stroke: 12 mm | Return force ext./comp.: 0.94/5.4 kN | Max. shock force: 11 kN | Thread: M25x1.5 | Length L1: 75 mm | Mass: 0.3 kg
BC1BNEnergy capacity: 0.43 kJ | Stroke: 22 mm | Return force ext./comp.: 2.5/14.0 kN | Max. shock force: 27 kN | Thread: M35x1.5 | Length L1: 120 mm | Mass: 0.7 kg
BC1BN-MEnergy capacity: 0.43 kJ | Stroke: 22 mm | Return force ext./comp.: 2.5/14.0 kN | Max. shock force: 27 kN | Thread: M40x1.5 | Length L1: 120 mm | Mass: 0.8 kg
BC1DN-70Energy capacity: 1.5 kJ | Stroke: 35 mm | Return force ext./comp.: 5.2/28.8 kN | Max. shock force: 60 kN | Thread: M50x1.5 | Length L1: 175 mm | Mass: 1.9 kg
BC1DN-85Energy capacity: 1.5 kJ | Stroke: 35 mm | Return force ext./comp.: 5.2/28.8 kN | Max. shock force: 60 kN | Thread: M50x1.5 | Length L1: 175 mm | Mass: 2 kg
BC1DN-MEnergy capacity: 1.5 kJ | Stroke: 35 mm | Return force ext./comp.: 5.2/28.8 kN | Max. shock force: 60 kN | Thread: M60x2 | Length L1: 175 mm | Mass: 2 kg
BC1ENEnergy capacity: 3.4 kJ | Stroke: 45 mm | Return force ext./comp.: 7.8/43.0 kN | Max. shock force: 100 kN | Thread: M75x2 | Length L1: 213 mm | Mass: 5 kg
BC1FNEnergy capacity: 7 kJ | Stroke: 60 mm | Return force ext./comp.: 13.6/76.6 kN | Max. shock force: 150 kN | Thread: M90x2 | Length L1: 270 mm | Mass: 10.5 kg
BC1GNEnergy capacity: 14 kJ | Stroke: 80 mm | Return force ext./comp.: 19.0/130.0 kN | Max. shock force: 230 kN | Thread: M110x2 | Length L1: 337 mm | Mass: 17 kg
