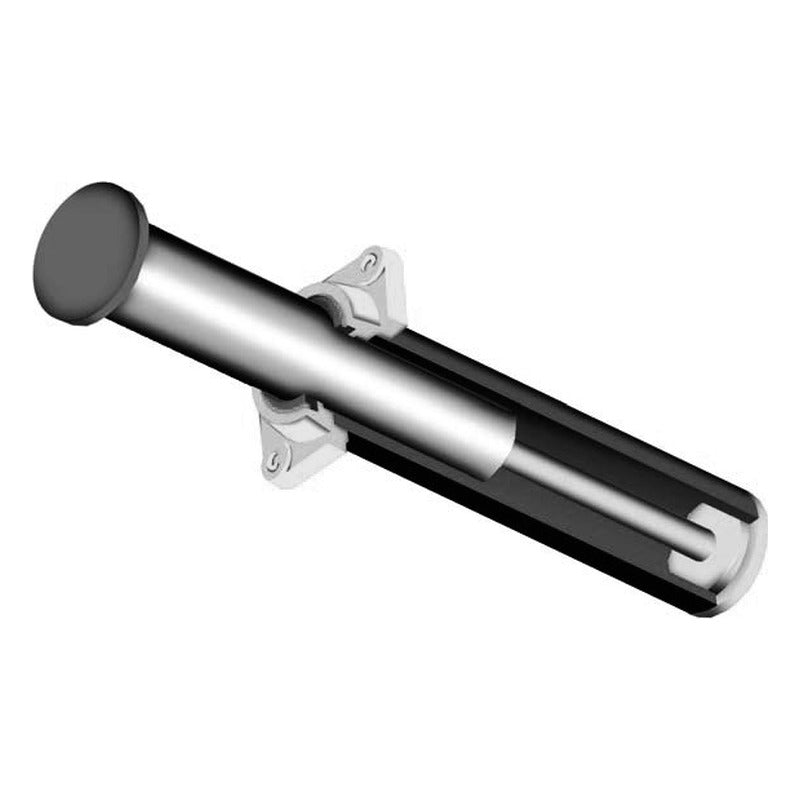

ENIDINE BC5 Series Jarret Heavy-Duty Elastomer Shock Absorber

ENIDINE BC5 Series Jarret Heavy-Duty Elastomer Shock Absorber

Jarret visco-elastic shock absorbers for heavy loads, with rear or front flange mounting and energy capacities of 25-150 kJ.

Key features

  • Compressible silicone fluid provides spring return and damping
  • Designed for impact velocities up to 4 m/s
  • Rear flange (Fa) or front flange (Fc) mounting
  • For material handling, steel industry, civil engineering, railways and defense

Specifications

Technology Jarret visco-elastic
Max. impact velocity 4 m/s
Operating temperature -10 to +70 C
ENIDINE BC5 Series Jarret Heavy-Duty Elastomer Shock Absorber
BC5A-105 Energy capacity: 25 kJ | Stroke: 105 mm | Return force ext./comp.: 18.5/140.7 kN | Max. shock force: 310 kN | Length L1: 415 mm | Mass: 25 kg
BC5B-130 Energy capacity: 50 kJ | Stroke: 120 mm | Return force ext./comp.: 58.0/259.9 kN | Max. shock force: 540 kN | Length L1: 500 mm | Mass: 40 kg
BC5C-140 Energy capacity: 75 kJ | Stroke: 140 mm | Return force ext./comp.: 49.0/328.4 kN | Max. shock force: 700 kN | Length L1: 520 mm | Mass: 45 kg
BC5D-160 Energy capacity: 100 kJ | Stroke: 160 mm | Return force ext./comp.: 59.5/380.0 kN | Max. shock force: 820 kN | Length L1: 585 mm | Mass: 73 kg
BC5E-180 Energy capacity: 150 kJ | Stroke: 180 mm | Return force ext./comp.: 117.0/546 kN | Max. shock force: 1100 kN | Length L1: 670 mm | Mass: 117 kg
Industrial BuffersENIDINE
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENIDINE BC5 Series Jarret Heavy-Duty Elastomer Shock Absorber

Brand ENIDINE·Industrial Buffers

Available part numbers (5)

BC5A-105, BC5B-130, BC5C-140, BC5D-160, BC5E-180

How to order

Send the ENIDINE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
ENIDINE BC5 Series Jarret Heavy-Duty Elastomer Shock Absorber
0 selected
RFQ List (0)
Product codeSpec
BC5A-105Energy capacity: 25 kJ | Stroke: 105 mm | Return force ext./comp.: 18.5/140.7 kN | Max. shock force: 310 kN | Length L1: 415 mm | Mass: 25 kg
BC5B-130Energy capacity: 50 kJ | Stroke: 120 mm | Return force ext./comp.: 58.0/259.9 kN | Max. shock force: 540 kN | Length L1: 500 mm | Mass: 40 kg
BC5C-140Energy capacity: 75 kJ | Stroke: 140 mm | Return force ext./comp.: 49.0/328.4 kN | Max. shock force: 700 kN | Length L1: 520 mm | Mass: 45 kg
BC5D-160Energy capacity: 100 kJ | Stroke: 160 mm | Return force ext./comp.: 59.5/380.0 kN | Max. shock force: 820 kN | Length L1: 585 mm | Mass: 73 kg
BC5E-180Energy capacity: 150 kJ | Stroke: 180 mm | Return force ext./comp.: 117.0/546 kN | Max. shock force: 1100 kN | Length L1: 670 mm | Mass: 117 kg
