ENIDINE BCLR Series Jarret Large Long-Stroke Elastomer Shock Absorber

ENIDINE BCLR Series Jarret Large Long-Stroke Elastomer Shock Absorber

Large long-stroke Jarret visco-elastic buffers with front flange mounting for very high energies of 100-1000 kJ.

Key features

  • Compressible silicone fluid provides spring return and damping
  • Designed for impact velocities up to 2 m/s

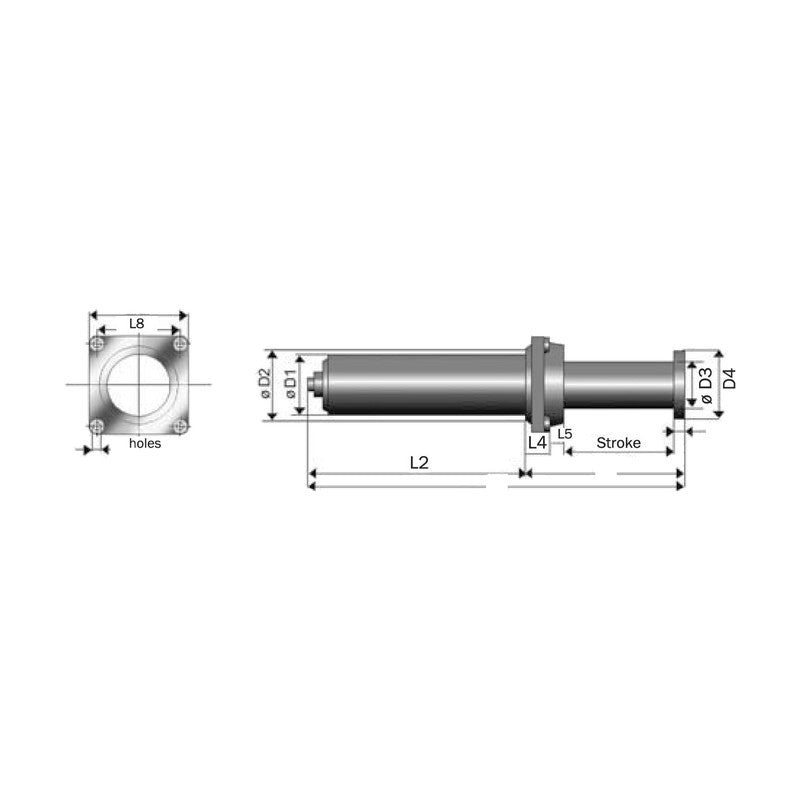

  • Front flange (Fc) mounting; rear flange (Fa) on request

Specifications

Technology Jarret visco-elastic
Max. impact velocity 2 m/s
Operating temperature -10 to +70 C
BCLR-100 Energy capacity: 100 kJ | Stroke: 400 mm | Return force ext./comp.: 30.0/161.9 kN | Max. shock force: 310 kN | Length L1: 1120 mm | Mass: 63 kg
BCLR-150 Energy capacity: 150 kJ | Stroke: 500 mm | Return force ext./comp.: 41.5/201.4 kN | Max. shock force: 380 kN | Length L1: 1350 mm | Mass: 90 kg
BCLR-220S Energy capacity: 220 kJ | Stroke: 400 mm | Return force ext./comp.: 45.0/270.0 kN | Max. shock force: 685 kN | Length L1: 1258 mm | Mass: 110 kg
BCLR-250 Energy capacity: 250 kJ | Stroke: 650 mm | Return force ext./comp.: 45.0/253.0 kN | Max. shock force: 490 kN | Length L1: 1750 mm | Mass: 135 kg
BCLR-400 Energy capacity: 400 kJ | Stroke: 850 mm | Return force ext./comp.: 49.6/307.9 kN | Max. shock force: 600 kN | Length L1: 2185 mm | Mass: 218 kg
BCLR-600 Energy capacity: 600 kJ | Stroke: 1050 mm | Return force ext./comp.: 47.5/351.5 kN | Max. shock force: 740 kN | Length L1: 2555 mm | Mass: 295 kg
BCLR-800 Energy capacity: 800 kJ | Stroke: 1200 mm | Return force ext./comp.: 64.2/441.0 kN | Max. shock force: 860 kN | Length L1: 2935 mm | Mass: 420 kg
BCLR-1000 Energy capacity: 1000 kJ | Stroke: 1300 mm | Return force ext./comp.: 85.0/534.0 kN | Max. shock force: 1000 kN | Length L1: 3225 mm | Mass: 470 kg
Industrial BuffersENIDINE
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENIDINE BCLR Series Jarret Large Long-Stroke Elastomer Shock Absorber

Brand ENIDINE·Industrial Buffers

Available part numbers (8)

BCLR-100, BCLR-150, BCLR-220S, BCLR-250, BCLR-400, BCLR-600, BCLR-800, BCLR-1000

How to order

Send the ENIDINE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BCLR-100Energy capacity: 100 kJ | Stroke: 400 mm | Return force ext./comp.: 30.0/161.9 kN | Max. shock force: 310 kN | Length L1: 1120 mm | Mass: 63 kg
BCLR-150Energy capacity: 150 kJ | Stroke: 500 mm | Return force ext./comp.: 41.5/201.4 kN | Max. shock force: 380 kN | Length L1: 1350 mm | Mass: 90 kg
BCLR-220SEnergy capacity: 220 kJ | Stroke: 400 mm | Return force ext./comp.: 45.0/270.0 kN | Max. shock force: 685 kN | Length L1: 1258 mm | Mass: 110 kg
BCLR-250Energy capacity: 250 kJ | Stroke: 650 mm | Return force ext./comp.: 45.0/253.0 kN | Max. shock force: 490 kN | Length L1: 1750 mm | Mass: 135 kg
BCLR-400Energy capacity: 400 kJ | Stroke: 850 mm | Return force ext./comp.: 49.6/307.9 kN | Max. shock force: 600 kN | Length L1: 2185 mm | Mass: 218 kg
BCLR-600Energy capacity: 600 kJ | Stroke: 1050 mm | Return force ext./comp.: 47.5/351.5 kN | Max. shock force: 740 kN | Length L1: 2555 mm | Mass: 295 kg
BCLR-800Energy capacity: 800 kJ | Stroke: 1200 mm | Return force ext./comp.: 64.2/441.0 kN | Max. shock force: 860 kN | Length L1: 2935 mm | Mass: 420 kg
BCLR-1000Energy capacity: 1000 kJ | Stroke: 1300 mm | Return force ext./comp.: 85.0/534.0 kN | Max. shock force: 1000 kN | Length L1: 3225 mm | Mass: 470 kg
