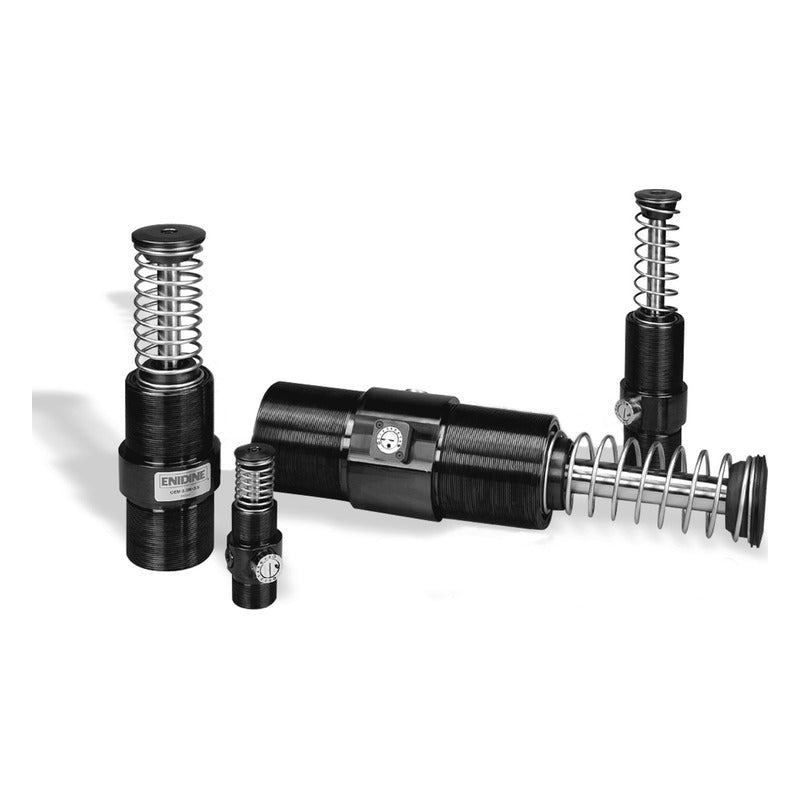

ENIDINE ECO OEM Series Adjustable Hydraulic Shock Absorber, Small Bore
ENIDINE ECO OEM Series Adjustable Hydraulic Shock Absorber, Small Bore
Adjustable small-bore hydraulic shock absorbers with eco-friendly materials and oil, offered in standard and low-velocity (LROEM) versions for general automation.
Key features
- Damping adjustable to the impact velocity via an adjustment knob with setscrew locking
- Anodized aluminium body reduces weight by about 35%; Enicote II finish, copper-free and RoHS compliant
- Energy and energy-per-hour ratings at least 10% higher than the previous series
- Passes 300-hour salt spray test; environmentally friendly oil
- Threaded body for easy mounting and heat dissipation
- Standard oil -10 to 80 C; special oil -30 to 100 C
Specifications
| Type | Adjustable hydraulic, spring return |
|---|---|
| Standard color | Black (other colors available) |
| Operating temperature | -10 to 80 C (standard oil); -30 to 100 C (special oil) |
| Selection note | Operates correctly above 5% of maximum energy; otherwise choose a smaller model |
| Side load | Max. 30 degrees with side load adaptor |
| ECO OEM 0.1M | Stroke: 7.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 7.0 Nm | Max. energy per hour: 13600 Nm/h | Max. reaction force: 1220 N | Max. propelling force: 350 N | Body thread: M10x1.0 | Weight: 28 g | |
| ECO OEM .15M | Stroke: 10.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 7.0 Nm | Max. energy per hour: 20900 Nm/h | Max. reaction force: 890 N | Max. propelling force: 350 N | Body thread: M12x1.0 | Weight: 56 g | |
| ECO OEM .25 | Stroke: 10.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 7.0 Nm | Max. energy per hour: 22000 Nm/h | Max. reaction force: 890 N | Max. propelling force: 350 N | Body thread: 1/2-20 UNF | Weight: 56 g | |
| ECO OEM .25M | Stroke: 10.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 7.0 Nm | Max. energy per hour: 22000 Nm/h | Max. reaction force: 890 N | Max. propelling force: 350 N | Body thread: M14x1.5 | Weight: 56 g | |
| ECO LROEM .25 | Stroke: 10.0 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 7.0 Nm | Max. energy per hour: 22000 Nm/h | Max. reaction force: 890 N | Max. propelling force: 440 N | Body thread: 1/2-20 UNF | Weight: 56 g | |
| ECO LROEM .25M | Stroke: 10.0 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 7.0 Nm | Max. energy per hour: 22000 Nm/h | Max. reaction force: 890 N | Max. propelling force: 440 N | Body thread: M14x1.5 | Weight: 56 g | |
| ECO OEM .35 | Stroke: 12.7 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 19.0 Nm | Max. energy per hour: 37400 Nm/h | Max. reaction force: 2000 N | Max. propelling force: 530 N | Body thread: 9/16-18 UNF | Weight: 85 g | |
| ECO OEM .35M | Stroke: 12.7 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 19.0 Nm | Max. energy per hour: 37400 Nm/h | Max. reaction force: 2000 N | Max. propelling force: 530 N | Body thread: M16x1.5 | Weight: 85 g | |
| ECO LROEM .35 | Stroke: 12.7 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 19.0 Nm | Max. energy per hour: 37400 Nm/h | Max. reaction force: 2000 N | Max. propelling force: 890 N | Body thread: 9/16-18 UNF | Weight: 85 g | |
| ECO LROEM .35M | Stroke: 12.7 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 19.0 Nm | Max. energy per hour: 37400 Nm/h | Max. reaction force: 2000 N | Max. propelling force: 890 N | Body thread: M16x1.5 | Weight: 85 g | |
| ECO OEM .5 | Stroke: 12.0 mm | Velocity range: 0.3-4.50 m/s | Max. energy per cycle: 31.0 Nm | Max. energy per hour: 35200 Nm/h | Max. reaction force: 3500 N | Max. propelling force: 670 N | Body thread: 3/4-16 UNF | Weight: 141 g | |
| ECO OEM .5M | Stroke: 12.0 mm | Velocity range: 0.3-4.50 m/s | Max. energy per cycle: 31.0 Nm | Max. energy per hour: 35200 Nm/h | Max. reaction force: 3500 N | Max. propelling force: 670 N | Body thread: M20x1.5 | Weight: 141 g | |
| ECO LROEM .5 | Stroke: 12.0 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 31.0 Nm | Max. energy per hour: 35200 Nm/h | Max. reaction force: 3500 N | Max. propelling force: 1120 N | Body thread: 3/4-16 UNF | Weight: 141 g | |
| ECO LROEM .5M | Stroke: 12.0 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 31.0 Nm | Max. energy per hour: 35200 Nm/h | Max. reaction force: 3500 N | Max. propelling force: 1120 N | Body thread: M20x1.5 | Weight: 141 g | |
| ECO OEM 1.0 | Stroke: 25.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 81.0 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 4400 N | Max. propelling force: 1330 N | Body thread: 1-12 UNF | Weight: 285 g | |
| ECO OEM 1.0M | Stroke: 25.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 81.0 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 4400 N | Max. propelling force: 1330 N | Body thread: M27x3.0 | Weight: 285 g | |
| ECO OEM 1.0MF | Stroke: 25.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 81.0 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 4400 N | Max. propelling force: 1330 N | Body thread: M25x1.5 | Weight: 285 g | |
| ECO LROEM 1.0 | Stroke: 25.0 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 81.0 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 4400 N | Max. propelling force: 2016 N | Body thread: 1-12 UNF | Weight: 285 g | |
| ECO LROEM 1.0M | Stroke: 25.0 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 81.0 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 4400 N | Max. propelling force: 2016 N | Body thread: M27x3.0 | Weight: 285 g | |
| ECO LROEM 1.0MF | Stroke: 25.0 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 81.0 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 4400 N | Max. propelling force: 2016 N | Body thread: M25x1.5 | Weight: 285 g | |
| ECO OEM 1.15 x 1 | Stroke: 25.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 215.0 Nm | Max. energy per hour: 83300 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 2220 N | Body thread: 1 1/4-12 UNF | Weight: 482 g | |
| ECO OEM 1.15M x 1 | Stroke: 25.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 215.0 Nm | Max. energy per hour: 83300 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 2220 N | Body thread: M33x1.5 | Weight: 482 g | |
| ECO LROEM 1.15 x 1 | Stroke: 25.0 mm | Velocity range: 0.08-2.0 m/s | Max. energy per cycle: 215.0 Nm | Max. energy per hour: 83300 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3335 N | Body thread: 1 1/4-12 UNF | Weight: 482 g | |
| ECO LROEM 1.15M x 1 | Stroke: 25.0 mm | Velocity range: 0.08-2.0 m/s | Max. energy per cycle: 215.0 Nm | Max. energy per hour: 83300 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3335 N | Body thread: M33x1.5 | Weight: 482 g | |
| ECO OEM 1.15 x 2 | Stroke: 50.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 424.0 Nm | Max. energy per hour: 108800 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 2220 N | Body thread: 1 1/4-12 UNF | Weight: 708 g | |
| ECO OEM 1.15M x 2 | Stroke: 50.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 424.0 Nm | Max. energy per hour: 108800 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 2220 N | Body thread: M33x1.5 | Weight: 708 g | |
| ECO LROEM 1.15 x 2 | Stroke: 50.0 mm | Velocity range: 0.08-2.0 m/s | Max. energy per cycle: 424.0 Nm | Max. energy per hour: 108800 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3335 N | Body thread: 1 1/4-12 UNF | Weight: 708 g | |
| ECO LROEM 1.15M x 2 | Stroke: 50.0 mm | Velocity range: 0.08-2.0 m/s | Max. energy per cycle: 424.0 Nm | Max. energy per hour: 108800 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3335 N | Body thread: M33x1.5 | Weight: 708 g | |
| ECO OEM 1.25 x 1 | Stroke: 25.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 215.0 Nm | Max. energy per hour: 100100 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 2220 N | Body thread: 1 3/8-12 UNF | Weight: 38.0 g | |
| ECO OEM 1.25M x 1 | Stroke: 25.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 215.0 Nm | Max. energy per hour: 100100 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 2220 N | Body thread: M36x1.5 | Weight: 38.0 g | |
| ECO LROEM 1.25 x 1 | Stroke: 25.0 mm | Velocity range: 0.08-2.0 m/s | Max. energy per cycle: 215.0 Nm | Max. energy per hour: 100100 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3335 N | Body thread: 1 3/8-12 UNF | Weight: 38.0 g | |
| ECO LROEM 1.25M x 1 | Stroke: 25.0 mm | Velocity range: 0.08-2.0 m/s | Max. energy per cycle: 215.0 Nm | Max. energy per hour: 100100 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3335 N | Body thread: M36x1.5 | Weight: 38.0 g | |
| ECO OEM 1.25 x 2 | Stroke: 50.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 424.0 Nm | Max. energy per hour: 122500 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 2220 N | Body thread: 1 3/8-12 UNF | Weight: 737 g | |
| ECO OEM 1.25M x 2 | Stroke: 50.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 424.0 Nm | Max. energy per hour: 122500 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 2220 N | Body thread: M36x1.5 | Weight: 737 g | |
| ECO LROEM 1.25 x 2 | Stroke: 50.0 mm | Velocity range: 0.08-2.0 m/s | Max. energy per cycle: 424.0 Nm | Max. energy per hour: 122500 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3335 N | Body thread: 1 3/8-12 UNF | Weight: 737 g | |
| ECO LROEM 1.25M x 2 | Stroke: 50.0 mm | Velocity range: 0.08-2.0 m/s | Max. energy per cycle: 424.0 Nm | Max. energy per hour: 122500 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3335 N | Body thread: M36x1.5 | Weight: 737 g |
Shock AbsorbersENIDINE
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
ENIDINE ECO OEM Series Adjustable Hydraulic Shock Absorber, Small Bore
Available part numbers (36)
ECO OEM 0.1M, ECO OEM .15M, ECO OEM .25, ECO OEM .25M, ECO LROEM .25, ECO LROEM .25M, ECO OEM .35, ECO OEM .35M, ECO LROEM .35, ECO LROEM .35M + 26 more — see full table ↓
How to order
Send the ENIDINE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
ENIDINE
Shock Absorbers
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| ECO OEM 0.1M | Stroke: 7.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 7.0 Nm | Max. energy per hour: 13600 Nm/h | Max. reaction force: 1220 N | Max. propelling force: 350 N | Body thread: M10x1.0 | Weight: 28 g | ||
| ECO OEM .15M | Stroke: 10.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 7.0 Nm | Max. energy per hour: 20900 Nm/h | Max. reaction force: 890 N | Max. propelling force: 350 N | Body thread: M12x1.0 | Weight: 56 g | ||
| ECO OEM .25 | Stroke: 10.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 7.0 Nm | Max. energy per hour: 22000 Nm/h | Max. reaction force: 890 N | Max. propelling force: 350 N | Body thread: 1/2-20 UNF | Weight: 56 g | ||
| ECO OEM .25M | Stroke: 10.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 7.0 Nm | Max. energy per hour: 22000 Nm/h | Max. reaction force: 890 N | Max. propelling force: 350 N | Body thread: M14x1.5 | Weight: 56 g | ||
| ECO LROEM .25 | Stroke: 10.0 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 7.0 Nm | Max. energy per hour: 22000 Nm/h | Max. reaction force: 890 N | Max. propelling force: 440 N | Body thread: 1/2-20 UNF | Weight: 56 g | ||
| ECO LROEM .25M | Stroke: 10.0 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 7.0 Nm | Max. energy per hour: 22000 Nm/h | Max. reaction force: 890 N | Max. propelling force: 440 N | Body thread: M14x1.5 | Weight: 56 g | ||
| ECO OEM .35 | Stroke: 12.7 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 19.0 Nm | Max. energy per hour: 37400 Nm/h | Max. reaction force: 2000 N | Max. propelling force: 530 N | Body thread: 9/16-18 UNF | Weight: 85 g | ||
| ECO OEM .35M | Stroke: 12.7 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 19.0 Nm | Max. energy per hour: 37400 Nm/h | Max. reaction force: 2000 N | Max. propelling force: 530 N | Body thread: M16x1.5 | Weight: 85 g | ||
| ECO LROEM .35 | Stroke: 12.7 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 19.0 Nm | Max. energy per hour: 37400 Nm/h | Max. reaction force: 2000 N | Max. propelling force: 890 N | Body thread: 9/16-18 UNF | Weight: 85 g | ||
| ECO LROEM .35M | Stroke: 12.7 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 19.0 Nm | Max. energy per hour: 37400 Nm/h | Max. reaction force: 2000 N | Max. propelling force: 890 N | Body thread: M16x1.5 | Weight: 85 g | ||
| ECO OEM .5 | Stroke: 12.0 mm | Velocity range: 0.3-4.50 m/s | Max. energy per cycle: 31.0 Nm | Max. energy per hour: 35200 Nm/h | Max. reaction force: 3500 N | Max. propelling force: 670 N | Body thread: 3/4-16 UNF | Weight: 141 g | ||
| ECO OEM .5M | Stroke: 12.0 mm | Velocity range: 0.3-4.50 m/s | Max. energy per cycle: 31.0 Nm | Max. energy per hour: 35200 Nm/h | Max. reaction force: 3500 N | Max. propelling force: 670 N | Body thread: M20x1.5 | Weight: 141 g | ||
| ECO LROEM .5 | Stroke: 12.0 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 31.0 Nm | Max. energy per hour: 35200 Nm/h | Max. reaction force: 3500 N | Max. propelling force: 1120 N | Body thread: 3/4-16 UNF | Weight: 141 g | ||
| ECO LROEM .5M | Stroke: 12.0 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 31.0 Nm | Max. energy per hour: 35200 Nm/h | Max. reaction force: 3500 N | Max. propelling force: 1120 N | Body thread: M20x1.5 | Weight: 141 g | ||
| ECO OEM 1.0 | Stroke: 25.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 81.0 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 4400 N | Max. propelling force: 1330 N | Body thread: 1-12 UNF | Weight: 285 g | ||
| ECO OEM 1.0M | Stroke: 25.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 81.0 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 4400 N | Max. propelling force: 1330 N | Body thread: M27x3.0 | Weight: 285 g | ||
| ECO OEM 1.0MF | Stroke: 25.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 81.0 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 4400 N | Max. propelling force: 1330 N | Body thread: M25x1.5 | Weight: 285 g | ||
| ECO LROEM 1.0 | Stroke: 25.0 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 81.0 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 4400 N | Max. propelling force: 2016 N | Body thread: 1-12 UNF | Weight: 285 g | ||
| ECO LROEM 1.0M | Stroke: 25.0 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 81.0 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 4400 N | Max. propelling force: 2016 N | Body thread: M27x3.0 | Weight: 285 g | ||
| ECO LROEM 1.0MF | Stroke: 25.0 mm | Velocity range: 0.08-1.30 m/s | Max. energy per cycle: 81.0 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 4400 N | Max. propelling force: 2016 N | Body thread: M25x1.5 | Weight: 285 g | ||
| ECO OEM 1.15 x 1 | Stroke: 25.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 215.0 Nm | Max. energy per hour: 83300 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 2220 N | Body thread: 1 1/4-12 UNF | Weight: 482 g | ||
| ECO OEM 1.15M x 1 | Stroke: 25.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 215.0 Nm | Max. energy per hour: 83300 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 2220 N | Body thread: M33x1.5 | Weight: 482 g | ||
| ECO LROEM 1.15 x 1 | Stroke: 25.0 mm | Velocity range: 0.08-2.0 m/s | Max. energy per cycle: 215.0 Nm | Max. energy per hour: 83300 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3335 N | Body thread: 1 1/4-12 UNF | Weight: 482 g | ||
| ECO LROEM 1.15M x 1 | Stroke: 25.0 mm | Velocity range: 0.08-2.0 m/s | Max. energy per cycle: 215.0 Nm | Max. energy per hour: 83300 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3335 N | Body thread: M33x1.5 | Weight: 482 g | ||
| ECO OEM 1.15 x 2 | Stroke: 50.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 424.0 Nm | Max. energy per hour: 108800 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 2220 N | Body thread: 1 1/4-12 UNF | Weight: 708 g | ||
| ECO OEM 1.15M x 2 | Stroke: 50.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 424.0 Nm | Max. energy per hour: 108800 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 2220 N | Body thread: M33x1.5 | Weight: 708 g | ||
| ECO LROEM 1.15 x 2 | Stroke: 50.0 mm | Velocity range: 0.08-2.0 m/s | Max. energy per cycle: 424.0 Nm | Max. energy per hour: 108800 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3335 N | Body thread: 1 1/4-12 UNF | Weight: 708 g | ||
| ECO LROEM 1.15M x 2 | Stroke: 50.0 mm | Velocity range: 0.08-2.0 m/s | Max. energy per cycle: 424.0 Nm | Max. energy per hour: 108800 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3335 N | Body thread: M33x1.5 | Weight: 708 g | ||
| ECO OEM 1.25 x 1 | Stroke: 25.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 215.0 Nm | Max. energy per hour: 100100 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 2220 N | Body thread: 1 3/8-12 UNF | Weight: 38.0 g | ||
| ECO OEM 1.25M x 1 | Stroke: 25.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 215.0 Nm | Max. energy per hour: 100100 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 2220 N | Body thread: M36x1.5 | Weight: 38.0 g | ||
| ECO LROEM 1.25 x 1 | Stroke: 25.0 mm | Velocity range: 0.08-2.0 m/s | Max. energy per cycle: 215.0 Nm | Max. energy per hour: 100100 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3335 N | Body thread: 1 3/8-12 UNF | Weight: 38.0 g | ||
| ECO LROEM 1.25M x 1 | Stroke: 25.0 mm | Velocity range: 0.08-2.0 m/s | Max. energy per cycle: 215.0 Nm | Max. energy per hour: 100100 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3335 N | Body thread: M36x1.5 | Weight: 38.0 g | ||
| ECO OEM 1.25 x 2 | Stroke: 50.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 424.0 Nm | Max. energy per hour: 122500 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 2220 N | Body thread: 1 3/8-12 UNF | Weight: 737 g | ||
| ECO OEM 1.25M x 2 | Stroke: 50.0 mm | Velocity range: 0.3-3.30 m/s | Max. energy per cycle: 424.0 Nm | Max. energy per hour: 122500 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 2220 N | Body thread: M36x1.5 | Weight: 737 g | ||
| ECO LROEM 1.25 x 2 | Stroke: 50.0 mm | Velocity range: 0.08-2.0 m/s | Max. energy per cycle: 424.0 Nm | Max. energy per hour: 122500 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3335 N | Body thread: 1 3/8-12 UNF | Weight: 737 g | ||
| ECO LROEM 1.25M x 2 | Stroke: 50.0 mm | Velocity range: 0.08-2.0 m/s | Max. energy per cycle: 424.0 Nm | Max. energy per hour: 122500 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3335 N | Body thread: M36x1.5 | Weight: 737 g |
Need a different model, or a part not listed here? Send us your parts list →
