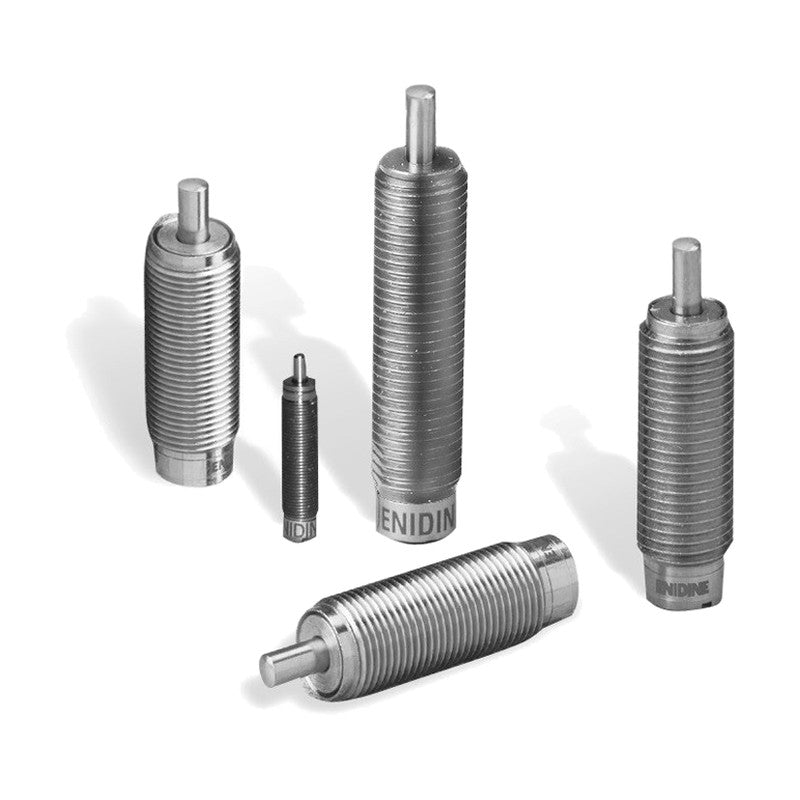

ENIDINE ECO Series Non-Adjustable Hydraulic Shock Absorber

ENIDINE ECO Series Non-Adjustable Hydraulic Shock Absorber

Self-compensating non-adjustable hydraulic shock absorbers with eco-friendly aluminium body, selected by damping constant; replacement for PM/PRO series.

Key features

  • Anodized aluminium body, about 35% lighter; Enicote II finish
  • RoHS compliant, copper-free, environmentally friendly oil
  • Passes 300-hour salt spray test
  • Damping constant (-1 to -4) chosen by impact velocity; minimum impact velocity 0.1 m/s
  • Imperial (IF/IC) and metric (MF/MC) thread versions
  • Interchange list provided for PM/PRO models

Specifications

Type Non-adjustable, self-compensating hydraulic
Thread code IF/IC = imperial fine/coarse, MF/MC = metric fine/coarse
Emergency energy ETE values apply only for emergency use (1-5 cycles)
ENIDINE ECO Series Non-Adjustable Hydraulic Shock Absorber
ECO 8 IF Stroke: 6.4 mm | Max. energy per cycle: 4.0 Nm | Max. energy per hour: 6215 Nm/h | Max. reaction force: 890 N | Max. propelling force: 200 N | Body thread: 3/8-32 UNEF | Damping constant: -1,-2,-3
ECO 8 MF Stroke: 6.4 mm | Max. energy per cycle: 4.0 Nm | Max. energy per hour: 6215 Nm/h | Max. reaction force: 890 N | Max. propelling force: 200 N | Body thread: M8x0.75 | Damping constant: -1,-2,-3
ECO 8 MC Stroke: 6.4 mm | Max. energy per cycle: 4.0 Nm | Max. energy per hour: 6215 Nm/h | Max. reaction force: 890 N | Max. propelling force: 200 N | Body thread: M8x1.0 | Damping constant: -1,-2,-3
ECO 10 IF Stroke: 7.0 mm | Max. energy per cycle: 7.0 Nm | Max. energy per hour: 13640 Nm/h | Max. reaction force: 1600 N | Max. propelling force: 350 N | Body thread: 7/16-28 UNEF | Damping constant: -1,-2,-3
ECO 10 MF Stroke: 7.0 mm | Max. energy per cycle: 7.0 Nm | Max. energy per hour: 13640 Nm/h | Max. reaction force: 1600 N | Max. propelling force: 350 N | Body thread: M10x1.0 | Damping constant: -1,-2,-3
ECO 15 IF Stroke: 10.4 mm | Max. energy per cycle: 12.0 Nm | Emergency energy per cycle: 25 Nm | Max. energy per hour: 31020 Nm/h | Max. reaction force: 2000 N | Max. propelling force: 220 N | Body thread: 7/16-28 UNEF | Damping constant: -1,-2,-3,-4
ECO 15 MF Stroke: 10.4 mm | Max. energy per cycle: 12.0 Nm | Emergency energy per cycle: 25 Nm | Max. energy per hour: 31020 Nm/h | Max. reaction force: 2000 N | Max. propelling force: 220 N | Body thread: M12x1.0 | Damping constant: -1,-2,-3,-4
ECO 15 IC Stroke: 10.4 mm | Max. energy per cycle: 12.0 Nm | Emergency energy per cycle: 25 Nm | Max. energy per hour: 31020 Nm/h | Max. reaction force: 2000 N | Max. propelling force: 220 N | Body thread: 1/2-20 UNEF | Damping constant: -1,-2,-3,-4
ECO S 25 MF Stroke: 12.7 mm | Max. energy per cycle: 24.0 Nm | Emergency energy per cycle: 44 Nm | Max. energy per hour: 37400 Nm/h | Max. reaction force: 2800 N | Max. propelling force: 890 N | Body thread: M14x1.0 | Damping constant: -1,-2,-3
ECO S 25 IC Stroke: 12.7 mm | Max. energy per cycle: 24.0 Nm | Emergency energy per cycle: 44 Nm | Max. energy per hour: 37400 Nm/h | Max. reaction force: 2800 N | Max. propelling force: 890 N | Body thread: 9/16-18 UNF | Damping constant: -1,-2,-3
ECO S 25 MC Stroke: 12.7 mm | Max. energy per cycle: 24.0 Nm | Emergency energy per cycle: 44 Nm | Max. energy per hour: 37400 Nm/h | Max. reaction force: 2800 N | Max. propelling force: 890 N | Body thread: M14x1.5 | Damping constant: -1,-2,-3
ECO 25 IF Stroke: 16.0 mm | Max. energy per cycle: 30.0 Nm | Emergency energy per cycle: 56 Nm | Max. energy per hour: 44000 Nm/h | Max. reaction force: 2800 N | Max. propelling force: 890 N | Body thread: 1/2-20 UNF | Damping constant: -1,-2,-3,-4
ECO 25 MF Stroke: 16.0 mm | Max. energy per cycle: 30.0 Nm | Emergency energy per cycle: 56 Nm | Max. energy per hour: 44000 Nm/h | Max. reaction force: 2800 N | Max. propelling force: 890 N | Body thread: M14x1.0 | Damping constant: -1,-2,-3,-4
ECO 25 IC Stroke: 16.0 mm | Max. energy per cycle: 30.0 Nm | Emergency energy per cycle: 56 Nm | Max. energy per hour: 44000 Nm/h | Max. reaction force: 2800 N | Max. propelling force: 890 N | Body thread: 9/16-18 UNF | Damping constant: -1,-2,-3,-4
ECO 25 MC Stroke: 16.0 mm | Max. energy per cycle: 30.0 Nm | Emergency energy per cycle: 56 Nm | Max. energy per hour: 44000 Nm/h | Max. reaction force: 2800 N | Max. propelling force: 890 N | Body thread: M14x1.5 | Damping constant: -1,-2,-3,-4
ECO S 50 IF Stroke: 12.7 mm | Max. energy per cycle: 32.0 Nm | Emergency energy per cycle: 63 Nm | Max. energy per hour: 49720 Nm/h | Max. reaction force: 3750 N | Max. propelling force: 1600 N | Body thread: 3/4-16 UNF | Damping constant: -1,-2,-3
ECO S 50 MC Stroke: 12.7 mm | Max. energy per cycle: 32.0 Nm | Emergency energy per cycle: 63 Nm | Max. energy per hour: 49720 Nm/h | Max. reaction force: 3750 N | Max. propelling force: 1600 N | Body thread: M20x1.5 | Damping constant: -1,-2,-3
ECO 50 IF Stroke: 22.0 mm | Max. energy per cycle: 62.0 Nm | Emergency energy per cycle: 110 Nm | Max. energy per hour: 59070 Nm/h | Max. reaction force: 3750 N | Max. propelling force: 1600 N | Body thread: 3/4-16 UNF | Damping constant: -1,-2,-3,-4
ECO 50 MC Stroke: 22.0 mm | Max. energy per cycle: 62.0 Nm | Emergency energy per cycle: 110 Nm | Max. energy per hour: 59070 Nm/h | Max. reaction force: 3750 N | Max. propelling force: 1600 N | Body thread: M20x1.5 | Damping constant: -1,-2,-3,-4
ECO 100 IF Stroke: 25.0 mm | Max. energy per cycle: 105.0 Nm | Emergency energy per cycle: 250 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 5500 N | Max. propelling force: 2200 N | Body thread: 1-12 UNF | Damping constant: -1,-2,-3,-4
ECO 100 MF Stroke: 25.0 mm | Max. energy per cycle: 105.0 Nm | Emergency energy per cycle: 250 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 5500 N | Max. propelling force: 2200 N | Body thread: M25x1.5 | Damping constant: -1,-2,-3,-4
ECO 100 MC Stroke: 25.0 mm | Max. energy per cycle: 105.0 Nm | Emergency energy per cycle: 250 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 5500 N | Max. propelling force: 2200 N | Body thread: M27x3.0 | Damping constant: -1,-2,-3,-4
ECO 110 IF Stroke: 40.0 mm | Max. energy per cycle: 210.0 Nm | Max. energy per hour: 84000 Nm/h | Max. reaction force: 7500 N | Max. propelling force: 2220 N | Body thread: 1-12 UNF | Damping constant: -1,-2,-3
ECO 110 MF Stroke: 40.0 mm | Max. energy per cycle: 210.0 Nm | Max. energy per hour: 84000 Nm/h | Max. reaction force: 7500 N | Max. propelling force: 2220 N | Body thread: M25x1.5 | Damping constant: -1,-2,-3
ECO 110 MC Stroke: 40.0 mm | Max. energy per cycle: 210.0 Nm | Max. energy per hour: 84000 Nm/h | Max. reaction force: 7500 N | Max. propelling force: 2220 N | Body thread: M25x1.5 | Damping constant: -1,-2,-3
ECO 120 IF Stroke: 25.0 mm | Max. energy per cycle: 185.0 Nm | Emergency energy per cycle: 500 Nm | Max. energy per hour: 84000 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3100 N | Body thread: 1 1/4-12 UNF | Damping constant: -1,-2,-3
ECO 120 MF Stroke: 25.0 mm | Max. energy per cycle: 185.0 Nm | Emergency energy per cycle: 500 Nm | Max. energy per hour: 84000 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3100 N | Body thread: M33x1.5 | Damping constant: -1,-2,-3
ECO 125 IF Stroke: 25.0 mm | Max. energy per cycle: 185.0 Nm | Emergency energy per cycle: 500 Nm | Max. energy per hour: 104000 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3100 N | Body thread: 1 3/8-12 UNF | Damping constant: -1,-2,-3
ECO 125 MF Stroke: 25.0 mm | Max. energy per cycle: 185.0 Nm | Emergency energy per cycle: 500 Nm | Max. energy per hour: 104000 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3100 N | Body thread: M36x1.5 | Damping constant: -1,-2,-3
ECO 220 IF Stroke: 50.0 mm | Max. energy per cycle: 350.0 Nm | Emergency energy per cycle: 1000 Nm | Max. energy per hour: 103000 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3100 N | Body thread: 1 1/4-12 UNF | Damping constant: -1,-2,-3
ECO 220 MF Stroke: 50.0 mm | Max. energy per cycle: 350.0 Nm | Emergency energy per cycle: 1000 Nm | Max. energy per hour: 103000 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3100 N | Body thread: M33x1.5 | Damping constant: -1,-2,-3
ECO 225 IF Stroke: 50.0 mm | Max. energy per cycle: 350.0 Nm | Emergency energy per cycle: 1000 Nm | Max. energy per hour: 127000 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3100 N | Body thread: 1 3/8-12 UNF | Damping constant: -1,-2,-3
ECO 225 MF Stroke: 50.0 mm | Max. energy per cycle: 350.0 Nm | Emergency energy per cycle: 1000 Nm | Max. energy per hour: 127000 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3100 N | Body thread: M36x1.5 | Damping constant: -1,-2,-3
Shock AbsorbersENIDINE
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENIDINE ECO Series Non-Adjustable Hydraulic Shock Absorber

Brand ENIDINE·Shock Absorbers

Available part numbers (33)

ECO 8 IF, ECO 8 MF, ECO 8 MC, ECO 10 IF, ECO 10 MF, ECO 15 IF, ECO 15 MF, ECO 15 IC, ECO S 25 MF, ECO S 25 IC + 23 more — see full table ↓

How to order

Send the ENIDINE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
ENIDINE ECO Series Non-Adjustable Hydraulic Shock Absorber
0 selected
RFQ List (0)
Product codeSpec
ECO 8 IFStroke: 6.4 mm | Max. energy per cycle: 4.0 Nm | Max. energy per hour: 6215 Nm/h | Max. reaction force: 890 N | Max. propelling force: 200 N | Body thread: 3/8-32 UNEF | Damping constant: -1,-2,-3
ECO 8 MFStroke: 6.4 mm | Max. energy per cycle: 4.0 Nm | Max. energy per hour: 6215 Nm/h | Max. reaction force: 890 N | Max. propelling force: 200 N | Body thread: M8x0.75 | Damping constant: -1,-2,-3
ECO 8 MCStroke: 6.4 mm | Max. energy per cycle: 4.0 Nm | Max. energy per hour: 6215 Nm/h | Max. reaction force: 890 N | Max. propelling force: 200 N | Body thread: M8x1.0 | Damping constant: -1,-2,-3
ECO 10 IFStroke: 7.0 mm | Max. energy per cycle: 7.0 Nm | Max. energy per hour: 13640 Nm/h | Max. reaction force: 1600 N | Max. propelling force: 350 N | Body thread: 7/16-28 UNEF | Damping constant: -1,-2,-3
ECO 10 MFStroke: 7.0 mm | Max. energy per cycle: 7.0 Nm | Max. energy per hour: 13640 Nm/h | Max. reaction force: 1600 N | Max. propelling force: 350 N | Body thread: M10x1.0 | Damping constant: -1,-2,-3
ECO 15 IFStroke: 10.4 mm | Max. energy per cycle: 12.0 Nm | Emergency energy per cycle: 25 Nm | Max. energy per hour: 31020 Nm/h | Max. reaction force: 2000 N | Max. propelling force: 220 N | Body thread: 7/16-28 UNEF | Damping constant: -1,-2,-3,-4
ECO 15 MFStroke: 10.4 mm | Max. energy per cycle: 12.0 Nm | Emergency energy per cycle: 25 Nm | Max. energy per hour: 31020 Nm/h | Max. reaction force: 2000 N | Max. propelling force: 220 N | Body thread: M12x1.0 | Damping constant: -1,-2,-3,-4
ECO 15 ICStroke: 10.4 mm | Max. energy per cycle: 12.0 Nm | Emergency energy per cycle: 25 Nm | Max. energy per hour: 31020 Nm/h | Max. reaction force: 2000 N | Max. propelling force: 220 N | Body thread: 1/2-20 UNEF | Damping constant: -1,-2,-3,-4
ECO S 25 MFStroke: 12.7 mm | Max. energy per cycle: 24.0 Nm | Emergency energy per cycle: 44 Nm | Max. energy per hour: 37400 Nm/h | Max. reaction force: 2800 N | Max. propelling force: 890 N | Body thread: M14x1.0 | Damping constant: -1,-2,-3
ECO S 25 ICStroke: 12.7 mm | Max. energy per cycle: 24.0 Nm | Emergency energy per cycle: 44 Nm | Max. energy per hour: 37400 Nm/h | Max. reaction force: 2800 N | Max. propelling force: 890 N | Body thread: 9/16-18 UNF | Damping constant: -1,-2,-3
ECO S 25 MCStroke: 12.7 mm | Max. energy per cycle: 24.0 Nm | Emergency energy per cycle: 44 Nm | Max. energy per hour: 37400 Nm/h | Max. reaction force: 2800 N | Max. propelling force: 890 N | Body thread: M14x1.5 | Damping constant: -1,-2,-3
ECO 25 IFStroke: 16.0 mm | Max. energy per cycle: 30.0 Nm | Emergency energy per cycle: 56 Nm | Max. energy per hour: 44000 Nm/h | Max. reaction force: 2800 N | Max. propelling force: 890 N | Body thread: 1/2-20 UNF | Damping constant: -1,-2,-3,-4
ECO 25 MFStroke: 16.0 mm | Max. energy per cycle: 30.0 Nm | Emergency energy per cycle: 56 Nm | Max. energy per hour: 44000 Nm/h | Max. reaction force: 2800 N | Max. propelling force: 890 N | Body thread: M14x1.0 | Damping constant: -1,-2,-3,-4
ECO 25 ICStroke: 16.0 mm | Max. energy per cycle: 30.0 Nm | Emergency energy per cycle: 56 Nm | Max. energy per hour: 44000 Nm/h | Max. reaction force: 2800 N | Max. propelling force: 890 N | Body thread: 9/16-18 UNF | Damping constant: -1,-2,-3,-4
ECO 25 MCStroke: 16.0 mm | Max. energy per cycle: 30.0 Nm | Emergency energy per cycle: 56 Nm | Max. energy per hour: 44000 Nm/h | Max. reaction force: 2800 N | Max. propelling force: 890 N | Body thread: M14x1.5 | Damping constant: -1,-2,-3,-4
ECO S 50 IFStroke: 12.7 mm | Max. energy per cycle: 32.0 Nm | Emergency energy per cycle: 63 Nm | Max. energy per hour: 49720 Nm/h | Max. reaction force: 3750 N | Max. propelling force: 1600 N | Body thread: 3/4-16 UNF | Damping constant: -1,-2,-3
ECO S 50 MCStroke: 12.7 mm | Max. energy per cycle: 32.0 Nm | Emergency energy per cycle: 63 Nm | Max. energy per hour: 49720 Nm/h | Max. reaction force: 3750 N | Max. propelling force: 1600 N | Body thread: M20x1.5 | Damping constant: -1,-2,-3
ECO 50 IFStroke: 22.0 mm | Max. energy per cycle: 62.0 Nm | Emergency energy per cycle: 110 Nm | Max. energy per hour: 59070 Nm/h | Max. reaction force: 3750 N | Max. propelling force: 1600 N | Body thread: 3/4-16 UNF | Damping constant: -1,-2,-3,-4
ECO 50 MCStroke: 22.0 mm | Max. energy per cycle: 62.0 Nm | Emergency energy per cycle: 110 Nm | Max. energy per hour: 59070 Nm/h | Max. reaction force: 3750 N | Max. propelling force: 1600 N | Body thread: M20x1.5 | Damping constant: -1,-2,-3,-4
ECO 100 IFStroke: 25.0 mm | Max. energy per cycle: 105.0 Nm | Emergency energy per cycle: 250 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 5500 N | Max. propelling force: 2200 N | Body thread: 1-12 UNF | Damping constant: -1,-2,-3,-4
ECO 100 MFStroke: 25.0 mm | Max. energy per cycle: 105.0 Nm | Emergency energy per cycle: 250 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 5500 N | Max. propelling force: 2200 N | Body thread: M25x1.5 | Damping constant: -1,-2,-3,-4
ECO 100 MCStroke: 25.0 mm | Max. energy per cycle: 105.0 Nm | Emergency energy per cycle: 250 Nm | Max. energy per hour: 77000 Nm/h | Max. reaction force: 5500 N | Max. propelling force: 2200 N | Body thread: M27x3.0 | Damping constant: -1,-2,-3,-4
ECO 110 IFStroke: 40.0 mm | Max. energy per cycle: 210.0 Nm | Max. energy per hour: 84000 Nm/h | Max. reaction force: 7500 N | Max. propelling force: 2220 N | Body thread: 1-12 UNF | Damping constant: -1,-2,-3
ECO 110 MFStroke: 40.0 mm | Max. energy per cycle: 210.0 Nm | Max. energy per hour: 84000 Nm/h | Max. reaction force: 7500 N | Max. propelling force: 2220 N | Body thread: M25x1.5 | Damping constant: -1,-2,-3
ECO 110 MCStroke: 40.0 mm | Max. energy per cycle: 210.0 Nm | Max. energy per hour: 84000 Nm/h | Max. reaction force: 7500 N | Max. propelling force: 2220 N | Body thread: M25x1.5 | Damping constant: -1,-2,-3
ECO 120 IFStroke: 25.0 mm | Max. energy per cycle: 185.0 Nm | Emergency energy per cycle: 500 Nm | Max. energy per hour: 84000 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3100 N | Body thread: 1 1/4-12 UNF | Damping constant: -1,-2,-3
ECO 120 MFStroke: 25.0 mm | Max. energy per cycle: 185.0 Nm | Emergency energy per cycle: 500 Nm | Max. energy per hour: 84000 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3100 N | Body thread: M33x1.5 | Damping constant: -1,-2,-3
ECO 125 IFStroke: 25.0 mm | Max. energy per cycle: 185.0 Nm | Emergency energy per cycle: 500 Nm | Max. energy per hour: 104000 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3100 N | Body thread: 1 3/8-12 UNF | Damping constant: -1,-2,-3
ECO 125 MFStroke: 25.0 mm | Max. energy per cycle: 185.0 Nm | Emergency energy per cycle: 500 Nm | Max. energy per hour: 104000 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3100 N | Body thread: M36x1.5 | Damping constant: -1,-2,-3
ECO 220 IFStroke: 50.0 mm | Max. energy per cycle: 350.0 Nm | Emergency energy per cycle: 1000 Nm | Max. energy per hour: 103000 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3100 N | Body thread: 1 1/4-12 UNF | Damping constant: -1,-2,-3
ECO 220 MFStroke: 50.0 mm | Max. energy per cycle: 350.0 Nm | Emergency energy per cycle: 1000 Nm | Max. energy per hour: 103000 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3100 N | Body thread: M33x1.5 | Damping constant: -1,-2,-3
ECO 225 IFStroke: 50.0 mm | Max. energy per cycle: 350.0 Nm | Emergency energy per cycle: 1000 Nm | Max. energy per hour: 127000 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3100 N | Body thread: 1 3/8-12 UNF | Damping constant: -1,-2,-3
ECO 225 MFStroke: 50.0 mm | Max. energy per cycle: 350.0 Nm | Emergency energy per cycle: 1000 Nm | Max. energy per hour: 127000 Nm/h | Max. reaction force: 11120 N | Max. propelling force: 3100 N | Body thread: M36x1.5 | Damping constant: -1,-2,-3
