• ENIDINE FM Series Shock Absorber Foot Mounts
1 1

ENIDINE FM Series Shock Absorber Foot Mounts

ENIDINE FM Series Shock Absorber Foot Mounts

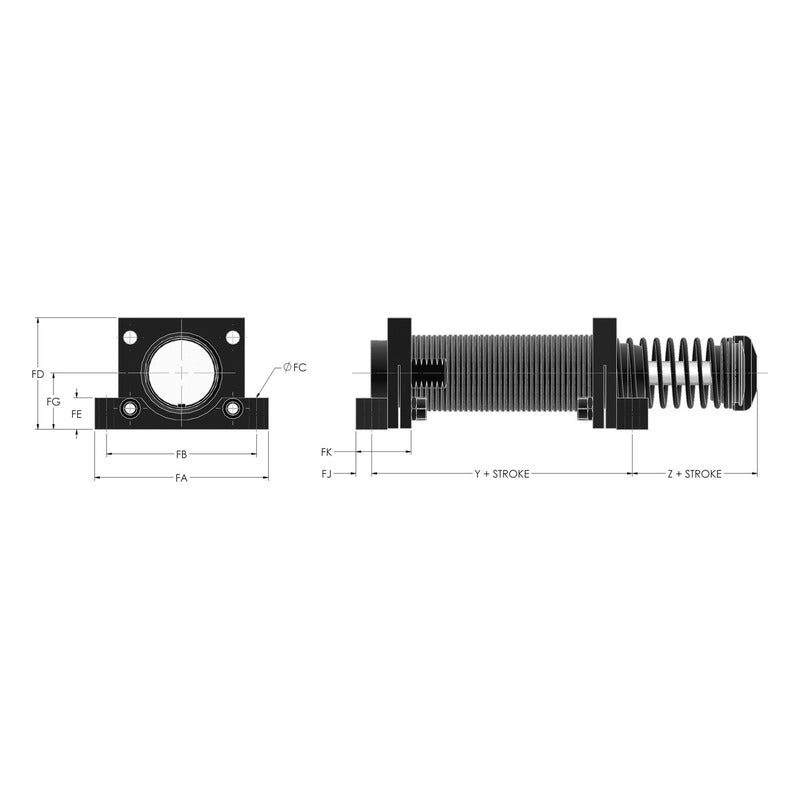

Flange foot mounts for base-mounting threaded-body shock absorbers.

Specifications

For series ECO OEM, OEMXT, OEM, TK, STH, ECO, PMXT, HP
2F21049305 Catalog No.: FM 1 1/4-12 | Type: Flange foot mount | Size/thread: 1 1/4-12 | Fits: ECO (LR)OEM 1.15, ECO 120/220
2F21293305 Catalog No.: FM 1 3/8-12 | Type: Flange foot mount | Size/thread: 1 3/8-12 | Fits: ECO (LR)OEM 1.25, ECO 125/225
2F21049306 Catalog No.: FM M33 x 1,5 | Type: Flange foot mount | Size/thread: M33 x 1.5 | Fits: ECO (LR)OEM 1.15M, ECO 120/220M
2F21293306 Catalog No.: FM M36 x 1,5 | Type: Flange foot mount | Size/thread: M36 x 1.5 | Fits: ECO (LR)OEM 1.25M, ECO 125/225M
2FE2940 Catalog No.: FM 1 3/4-12 | Type: Flange foot mount | Size/thread: 1 3/4-12 | Fits: (LR)OEM 3/4
2F2940 Catalog No.: FM M42 x 1.5 | Type: Flange foot mount | Size/thread: M42 x 1.5 | Fits: (LR)OEM 1.5M
2FE3010 Catalog No.: FM 2 1/2-12 | Type: Flange foot mount | Size/thread: 2 1/2-12 | Fits: (LR)OEM 1 1/8, PMXT 2000 Series
2F3010 Catalog No.: FM M64 x 2 | Type: Flange foot mount | Size/thread: M64 x 2 | Fits: (LR)OEM 2.0M, PMXT 2000M Series
2F3330 Catalog No.: FM M85 x 2 | Type: Flange foot mount | Size/thread: M85 x 2 | Fits: OEM 3.0M
2F3720 Catalog No.: FM M115 x 2 | Type: Flange foot mount | Size/thread: M115 x 2 | Fits: OEM 4.0M
2FE2740 Catalog No.: FM 1 3/4-12 | Type: Flange foot mount | Size/thread: 1 3/4-12 | Fits: PMXT 1500 Series
2F8637 Catalog No.: FM M45 x 1,5 | Type: Flange foot mount | Size/thread: M45 x 1.5 | Fits: PMXT 1500M Series
Shock Absorber AccessoriesENIDINE
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENIDINE FM Series Shock Absorber Foot Mounts

Brand ENIDINE·Shock Absorber Accessories

Available part numbers (12)

2F21049305, 2F21293305, 2F21049306, 2F21293306, 2FE2940, 2F2940, 2FE3010, 2F3010, 2F3330, 2F3720 + 2 more — see full table ↓

How to order

Send the ENIDINE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2F21049305Catalog No.: FM 1 1/4-12 | Type: Flange foot mount | Size/thread: 1 1/4-12 | Fits: ECO (LR)OEM 1.15, ECO 120/220
2F21293305Catalog No.: FM 1 3/8-12 | Type: Flange foot mount | Size/thread: 1 3/8-12 | Fits: ECO (LR)OEM 1.25, ECO 125/225
2F21049306Catalog No.: FM M33 x 1,5 | Type: Flange foot mount | Size/thread: M33 x 1.5 | Fits: ECO (LR)OEM 1.15M, ECO 120/220M
2F21293306Catalog No.: FM M36 x 1,5 | Type: Flange foot mount | Size/thread: M36 x 1.5 | Fits: ECO (LR)OEM 1.25M, ECO 125/225M
2FE2940Catalog No.: FM 1 3/4-12 | Type: Flange foot mount | Size/thread: 1 3/4-12 | Fits: (LR)OEM 3/4
2F2940Catalog No.: FM M42 x 1.5 | Type: Flange foot mount | Size/thread: M42 x 1.5 | Fits: (LR)OEM 1.5M
2FE3010Catalog No.: FM 2 1/2-12 | Type: Flange foot mount | Size/thread: 2 1/2-12 | Fits: (LR)OEM 1 1/8, PMXT 2000 Series
2F3010Catalog No.: FM M64 x 2 | Type: Flange foot mount | Size/thread: M64 x 2 | Fits: (LR)OEM 2.0M, PMXT 2000M Series
2F3330Catalog No.: FM M85 x 2 | Type: Flange foot mount | Size/thread: M85 x 2 | Fits: OEM 3.0M
2F3720Catalog No.: FM M115 x 2 | Type: Flange foot mount | Size/thread: M115 x 2 | Fits: OEM 4.0M
2FE2740Catalog No.: FM 1 3/4-12 | Type: Flange foot mount | Size/thread: 1 3/4-12 | Fits: PMXT 1500 Series
2F8637Catalog No.: FM M45 x 1,5 | Type: Flange foot mount | Size/thread: M45 x 1.5 | Fits: PMXT 1500M Series

Need a different model, or a part not listed here? Send us your parts list →
