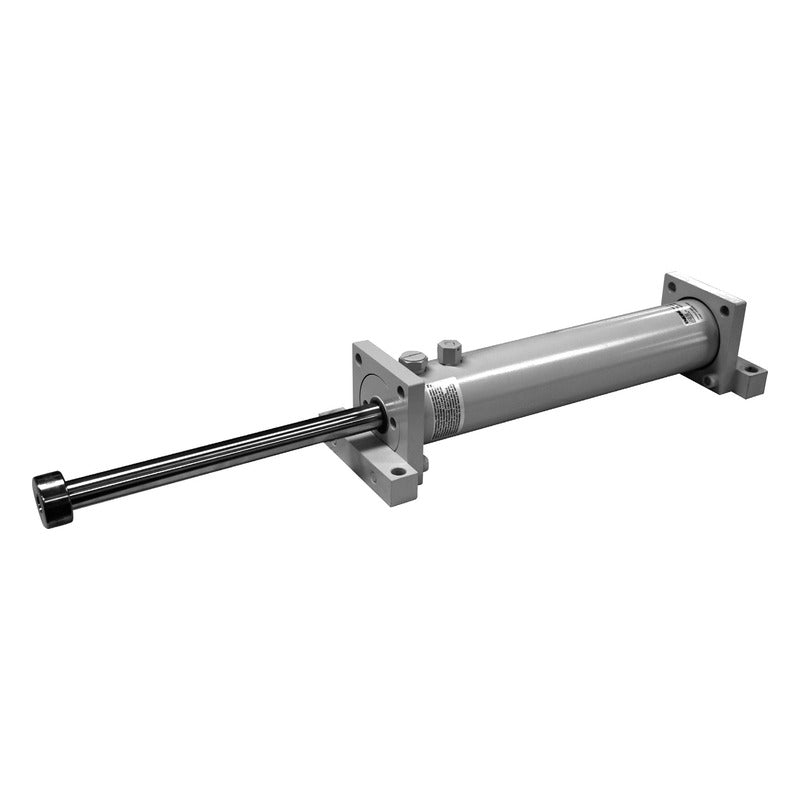

ENIDINE HDN 1.5 Series Heavy Duty Hydraulic Shock Absorber

ENIDINE HDN 1.5 Series Heavy Duty Hydraulic Shock Absorber

Custom-orificed non-adjustable heavy duty shock absorbers with 1.5 in bore for overhead cranes, automated warehouses and other heavy industrial equipment.

Key features

  • Compact design decelerates loads smoothly; up to 330,000 Nm per cycle
  • Internal air/oil accumulator replaces the spring for shorter length and lower weight
  • Optional bladder accumulator (BA) for high cycle rates
  • Meets OSHA, AISE, CMAA, DIN and FEM requirements
  • Orifice designed by computer to customer requirements; field repairable
  • Options: bellows, clevis mount, safety cable, piston rod return sensor

Specifications

Type Non-adjustable, custom-orificed hydraulic, air/oil accumulator return
Max. cycles 60 per hour (30 per hour without bladder accumulator)
Mounting TM, FM, TF, FF, FR (rear flange not for strokes over 300 mm), CM clevis
Options Bladder accumulator (BA), sensor cable (C), sensor plug (P), safety cable (SC), urethane cap
Operating temperature -10 to 60 C standard; -35 to 100 C with optional fluid and seals
Bore 38 mm (1.5 in)
HDN 1.5 x 2 Bore: 38 mm (1.5 in) | Stroke: 50 mm | Max. energy per cycle: 3200 Nm | Max. energy per hour: 189000 Nm/h | Max. shock force: 70060 N | Return force with/without BA: 220/320 N | Weight: 10 kg
HDN 1.5 x 4 Bore: 38 mm (1.5 in) | Stroke: 100 mm | Max. energy per cycle: 6100 Nm | Max. energy per hour: 368000 Nm/h | Max. shock force: 70060 N | Return force with/without BA: 220/410 N | Weight: 12 kg
HDN 1.5 x 6 Bore: 38 mm (1.5 in) | Stroke: 150 mm | Max. energy per cycle: 9100 Nm | Max. energy per hour: 546700 Nm/h | Max. shock force: 70060 N | Return force with/without BA: 220/450 N | Weight: 12 kg
HDN 1.5 x 8 Bore: 38 mm (1.5 in) | Stroke: 200 mm | Max. energy per cycle: 12200 Nm | Max. energy per hour: 732500 Nm/h | Max. shock force: 70060 N | Return force with/without BA: 220/525 N | Weight: 13 kg
HDN 1.5 x 10 Bore: 38 mm (1.5 in) | Stroke: 250 mm | Max. energy per cycle: 15200 Nm | Max. energy per hour: 781000 Nm/h | Max. shock force: 70060 N | Return force with/without BA: 220/600 N | Weight: 14 kg
HDN 1.5 x 12 Bore: 38 mm (1.5 in) | Stroke: 300 mm | Max. energy per cycle: 18300 Nm | Max. energy per hour: 877.900 Nm/h | Max. shock force: 70060 N | Return force with/without BA: 220/920 N | Weight: 16 kg
HDN 1.5 x 14 Bore: 38 mm (1.5 in) | Stroke: 350 mm | Max. energy per cycle: 20900 Nm | Max. energy per hour: 972.900 Nm/h | Max. shock force: 70060 N | Return force with/without BA: 220/1120 N | Weight: 17 kg
HDN 1.5 x 16 Bore: 38 mm (1.5 in) | Stroke: 400 mm | Max. energy per cycle: 23300 Nm | Max. energy per hour: 1069800 Nm/h | Max. shock force: 60060 N | Return force with/without BA: 220/1120 N | Weight: 18 kg
HDN 1.5 x 18 Bore: 38 mm (1.5 in) | Stroke: 450 mm | Max. energy per cycle: 25300 Nm | Max. energy per hour: 1166700 Nm/h | Max. shock force: 47820 N | Return force with/without BA: 220/1120 N | Weight: 19 kg
HDN 1.5 x 20 Bore: 38 mm (1.5 in) | Stroke: 500 mm | Max. energy per cycle: 27200 Nm | Max. energy per hour: 1263600 Nm/h | Max. shock force: 38920 N | Return force with/without BA: 220/1120 N | Weight: 20 kg
HDN 1.5 x 24 Bore: 38 mm (1.5 in) | Stroke: 600 mm | Max. energy per cycle: 30500 Nm | Max. energy per hour: 1457400 Nm/h | Max. shock force: 27800 N | Return force with/without BA: 220/1120 N | Weight: 23 kg
HDN 1.5 x 28 Bore: 38 mm (1.5 in) | Stroke: 713 mm | Max. energy per cycle: 33600 Nm | Max. energy per hour: 1649300 Nm/h | Max. shock force: 21.130 N | Return force with/without BA: 220/1120 N | Weight: 20 kg
HDN 1.5 x 32 Bore: 38 mm (1.5 in) | Stroke: 813 mm | Max. energy per cycle: 36500 Nm | Max. energy per hour: 1839300 Nm/h | Max. shock force: 16460 N | Return force with/without BA: 220/1120 N | Weight: 23 kg
Industrial BuffersENIDINE
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENIDINE HDN 1.5 Series Heavy Duty Hydraulic Shock Absorber

Brand ENIDINE·Industrial Buffers

Available part numbers (13)

HDN 1.5 x 2, HDN 1.5 x 4, HDN 1.5 x 6, HDN 1.5 x 8, HDN 1.5 x 10, HDN 1.5 x 12, HDN 1.5 x 14, HDN 1.5 x 16, HDN 1.5 x 18, HDN 1.5 x 20 + 3 more — see full table ↓

How to order

Send the ENIDINE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HDN 1.5 x 2Bore: 38 mm (1.5 in) | Stroke: 50 mm | Max. energy per cycle: 3200 Nm | Max. energy per hour: 189000 Nm/h | Max. shock force: 70060 N | Return force with/without BA: 220/320 N | Weight: 10 kg
HDN 1.5 x 4Bore: 38 mm (1.5 in) | Stroke: 100 mm | Max. energy per cycle: 6100 Nm | Max. energy per hour: 368000 Nm/h | Max. shock force: 70060 N | Return force with/without BA: 220/410 N | Weight: 12 kg
HDN 1.5 x 6Bore: 38 mm (1.5 in) | Stroke: 150 mm | Max. energy per cycle: 9100 Nm | Max. energy per hour: 546700 Nm/h | Max. shock force: 70060 N | Return force with/without BA: 220/450 N | Weight: 12 kg
HDN 1.5 x 8Bore: 38 mm (1.5 in) | Stroke: 200 mm | Max. energy per cycle: 12200 Nm | Max. energy per hour: 732500 Nm/h | Max. shock force: 70060 N | Return force with/without BA: 220/525 N | Weight: 13 kg
HDN 1.5 x 10Bore: 38 mm (1.5 in) | Stroke: 250 mm | Max. energy per cycle: 15200 Nm | Max. energy per hour: 781000 Nm/h | Max. shock force: 70060 N | Return force with/without BA: 220/600 N | Weight: 14 kg
HDN 1.5 x 12Bore: 38 mm (1.5 in) | Stroke: 300 mm | Max. energy per cycle: 18300 Nm | Max. energy per hour: 877.900 Nm/h | Max. shock force: 70060 N | Return force with/without BA: 220/920 N | Weight: 16 kg
HDN 1.5 x 14Bore: 38 mm (1.5 in) | Stroke: 350 mm | Max. energy per cycle: 20900 Nm | Max. energy per hour: 972.900 Nm/h | Max. shock force: 70060 N | Return force with/without BA: 220/1120 N | Weight: 17 kg
HDN 1.5 x 16Bore: 38 mm (1.5 in) | Stroke: 400 mm | Max. energy per cycle: 23300 Nm | Max. energy per hour: 1069800 Nm/h | Max. shock force: 60060 N | Return force with/without BA: 220/1120 N | Weight: 18 kg
HDN 1.5 x 18Bore: 38 mm (1.5 in) | Stroke: 450 mm | Max. energy per cycle: 25300 Nm | Max. energy per hour: 1166700 Nm/h | Max. shock force: 47820 N | Return force with/without BA: 220/1120 N | Weight: 19 kg
HDN 1.5 x 20Bore: 38 mm (1.5 in) | Stroke: 500 mm | Max. energy per cycle: 27200 Nm | Max. energy per hour: 1263600 Nm/h | Max. shock force: 38920 N | Return force with/without BA: 220/1120 N | Weight: 20 kg
HDN 1.5 x 24Bore: 38 mm (1.5 in) | Stroke: 600 mm | Max. energy per cycle: 30500 Nm | Max. energy per hour: 1457400 Nm/h | Max. shock force: 27800 N | Return force with/without BA: 220/1120 N | Weight: 23 kg
HDN 1.5 x 28Bore: 38 mm (1.5 in) | Stroke: 713 mm | Max. energy per cycle: 33600 Nm | Max. energy per hour: 1649300 Nm/h | Max. shock force: 21.130 N | Return force with/without BA: 220/1120 N | Weight: 20 kg
HDN 1.5 x 32Bore: 38 mm (1.5 in) | Stroke: 813 mm | Max. energy per cycle: 36500 Nm | Max. energy per hour: 1839300 Nm/h | Max. shock force: 16460 N | Return force with/without BA: 220/1120 N | Weight: 23 kg
