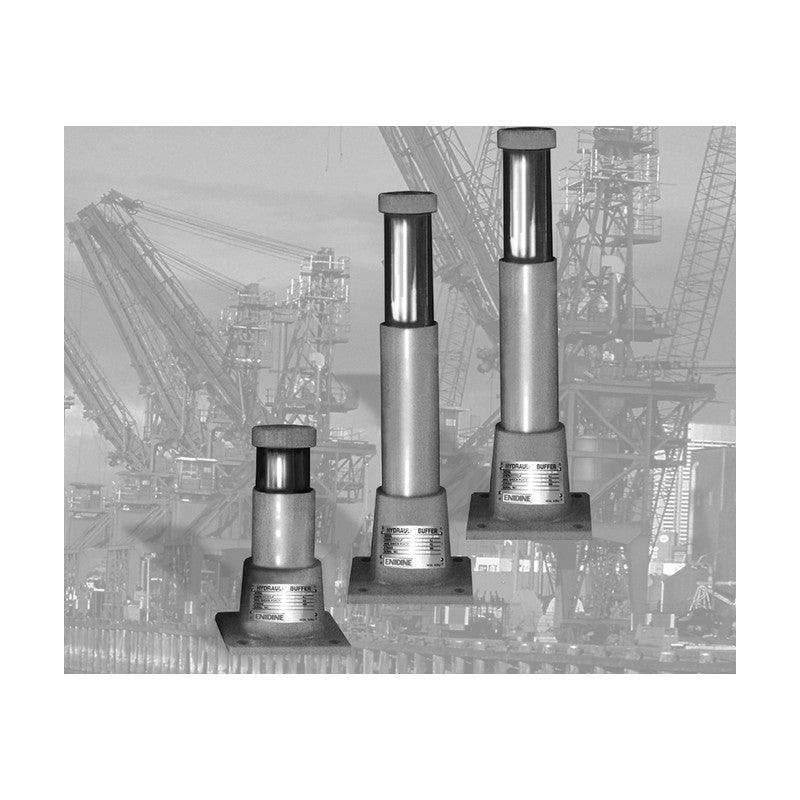

ENIDINE HI Series Heavy Industry Hydraulic Buffer
ENIDINE HI Series Heavy Industry Hydraulic Buffer
Heavy industry hydraulic buffers for harbor and container cranes, transportation, foundries and steel mills, with strokes from 50 to 1000 mm.
Key features
- Wide range of sizes and energy absorption capacities
- High shock reduction over the full stroke
- Meets OSHA, AISE and CMAA standards
- Standardized adjustable models and custom non-adjustable models built to operating conditions
Specifications
| Type | Hydraulic buffer, gas/oil return |
|---|---|
| Body sizes | HI 50, 80, 100, 120, 130, 150 |
| HI 50 x 50 | Body size: 50 | Stroke: 50 mm | Max. energy per cycle: 3000 Nm | Max. shock force: 70 kN | Return force ext./comp.: 0.5/3.2 kN | Weight: 5 kg | Bolt size: M14 | |
| HI 50 x 100 | Body size: 50 | Stroke: 100 mm | Max. energy per cycle: 6200 Nm | Max. shock force: 70 kN | Return force ext./comp.: 0.3/0.6 kN | Weight: 9 kg | Bolt size: M14 | |
| HI 80 x 50 | Body size: 80 | Stroke: 50 mm | Max. energy per cycle: 6800 Nm | Max. shock force: 160 kN | Return force ext./comp.: 1.0/1.9 kN | Weight: 16 kg | Bolt size: M18 | |
| HI 80 x 100 | Body size: 80 | Stroke: 100 mm | Max. energy per cycle: 13600 Nm | Max. shock force: 160 kN | Return force ext./comp.: 1.0/8.0 kN | Weight: 22 kg | Bolt size: M18 | |
| HI 100 x 50 | Body size: 100 | Stroke: 50 mm | Max. energy per cycle: 10000 Nm | Max. shock force: 235 kN | Return force ext./comp.: 1.65/18.0 kN | Weight: 16 kg | Bolt size: M16 | |
| HI 100 x 100 | Body size: 100 | Stroke: 100 mm | Max. energy per cycle: 20000 Nm | Max. shock force: 235 kN | Return force ext./comp.: 1.65/18.0 kN | Weight: 22 kg | Bolt size: M16 | |
| HI 100 x 150 | Body size: 100 | Stroke: 150 mm | Max. energy per cycle: 30000 Nm | Max. shock force: 235 kN | Return force ext./comp.: 1.65/18.0 kN | Weight: 28 kg | Bolt size: M16 | |
| HI 100 x 200 | Body size: 100 | Stroke: 200 mm | Max. energy per cycle: 40000 Nm | Max. shock force: 235 kN | Return force ext./comp.: 1.65/18.0 kN | Weight: 32 kg | Bolt size: M16 | |
| HI 100 x 400 | Body size: 100 | Stroke: 400 mm | Max. energy per cycle: 80000 Nm | Max. shock force: 235 kN | Return force ext./comp.: 1.65/18.0 kN | Weight: 46 kg | Bolt size: M16 | |
| HI 100 x 500 | Body size: 100 | Stroke: 500 mm | Max. energy per cycle: 94000 Nm | Max. shock force: 235 kN | Return force ext./comp.: 1.65/18.0 kN | Weight: 52 kg | Bolt size: M16 | |
| HI 100 x 600 | Body size: 100 | Stroke: 600 mm | Max. energy per cycle: 112000 Nm | Max. shock force: 220 kN | Return force ext./comp.: 1.65/18.0 kN | Weight: 58 kg | Bolt size: M16 | |
| HI 100 x 800 | Body size: 100 | Stroke: 800 mm | Max. energy per cycle: 136000 Nm | Max. shock force: 200 kN | Return force ext./comp.: 1.65/18.0 kN | Weight: 69 kg | Bolt size: M16 | |
| HI 120 x 100 | Body size: 120 | Stroke: 100 mm | Max. energy per cycle: 32000 Nm | Max. shock force: 375 kN | Return force ext./comp.: 2.8/50.0 kN | Weight: 34 kg | Bolt size: M24 | |
| HI 120 x 150 | Body size: 120 | Stroke: 150 mm | Max. energy per cycle: 48000 Nm | Max. shock force: 375 kN | Return force ext./comp.: 2.8/50.0 kN | Weight: 39 kg | Bolt size: M24 | |
| HI 120 x 200 | Body size: 120 | Stroke: 200 mm | Max. energy per cycle: 64000 Nm | Max. shock force: 375 kN | Return force ext./comp.: 2.8/50.0 kN | Weight: 43 kg | Bolt size: M24 | |
| HI 120 x 300 | Body size: 120 | Stroke: 300 mm | Max. energy per cycle: 94000 Nm | Max. shock force: 375 kN | Return force ext./comp.: 2.8/50.0 kN | Weight: 53 kg | Bolt size: M24 | |
| HI 120 x 400 | Body size: 120 | Stroke: 400 mm | Max. energy per cycle: 125000 Nm | Max. shock force: 375 kN | Return force ext./comp.: 2.8/50.0 kN | Weight: 87 kg | Bolt size: M24 | |
| HI 120 x 600 | Body size: 120 | Stroke: 600 mm | Max. energy per cycle: 188000 Nm | Max. shock force: 375 kN | Return force ext./comp.: 2.8/50.0 kN | Weight: 105 kg | Bolt size: M24 | |
| HI 120 x 800 | Body size: 120 | Stroke: 800 mm | Max. energy per cycle: 225000 Nm | Max. shock force: 330 kN | Return force ext./comp.: 2.8/50.0 kN | Weight: 110 kg | Bolt size: M24 | |
| HI 120 x 1000 | Body size: 120 | Stroke: 1000 mm | Max. energy per cycle: 260000 Nm | Max. shock force: 300 kN | Return force ext./comp.: 2.8/50.0 kN | Weight: 116 kg | Bolt size: M24 | |
| HI 130 x 250 | Body size: 130 | Stroke: 250 mm | Max. energy per cycle: 100000 Nm | Max. shock force: 475 kN | Return force ext./comp.: 3.2/50.0 kN | Weight: 72 kg | Bolt size: M24 | |
| HI 130 x 300 | Body size: 130 | Stroke: 300 mm | Max. energy per cycle: 120000 Nm | Max. shock force: 475 kN | Return force ext./comp.: 3.2/50.0 kN | Weight: 79 kg | Bolt size: M24 | |
| HI 130 x 400 | Body size: 130 | Stroke: 400 mm | Max. energy per cycle: 160000 Nm | Max. shock force: 475 kN | Return force ext./comp.: 3.2/50.0 kN | Weight: 90 kg | Bolt size: M24 | |
| HI 130 x 600 | Body size: 130 | Stroke: 600 mm | Max. energy per cycle: 210000 Nm | Max. shock force: 400 kN | Return force ext./comp.: 3.2/45.0 kN | Weight: 119 kg | Bolt size: M24 | |
| HI 130 x 800 | Body size: 130 | Stroke: 800 mm | Max. energy per cycle: 270000 Nm | Max. shock force: 400 kN | Return force ext./comp.: 3.2/45.0 kN | Weight: 140 kg | Bolt size: M24 | |
| HI 150 x 115 | Body size: 150 | Stroke: 115 mm | Max. energy per cycle: 62000 Nm | Max. shock force: 645 kN | Return force ext./comp.: 5.0/65.7 kN | Weight: 56 kg | Bolt size: M24 | |
| HI 150 x 150 | Body size: 150 | Stroke: 150 mm | Max. energy per cycle: 82000 Nm | Max. shock force: 645 kN | Return force ext./comp.: 5.0/65.7 kN | Weight: 59 kg | Bolt size: M24 | |
| HI 150 x 400 | Body size: 150 | Stroke: 400 mm | Max. energy per cycle: 220000 Nm | Max. shock force: 645 kN | Return force ext./comp.: 5.0/62.4 kN | Weight: 98 kg | Bolt size: M24 | |
| HI 150 x 500 | Body size: 150 | Stroke: 500 mm | Max. energy per cycle: 275000 Nm | Max. shock force: 645 kN | Return force ext./comp.: 5.0/75.5 kN | Weight: 110 kg | Bolt size: M24 | |
| HI 150 x 600 | Body size: 150 | Stroke: 600 mm | Max. energy per cycle: 330000 Nm | Max. shock force: 645 kN | Return force ext./comp.: 5.0/75.5 kN | Weight: 120 kg | Bolt size: M24 | |
| HI 150 x 800 | Body size: 150 | Stroke: 800 mm | Max. energy per cycle: 448000 Nm | Max. shock force: 640 kN | Return force ext./comp.: 5.0/68.0 kN | Weight: 165 kg | Bolt size: M24 | |
| HI 150 x 1000 | Body size: 150 | Stroke: 1000 mm | Max. energy per cycle: 510000 Nm | Max. shock force: 600 kN | Return force ext./comp.: 5.0/61.0 kN | Weight: 180 kg | Bolt size: M24 |
Industrial BuffersENIDINE
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
ENIDINE HI Series Heavy Industry Hydraulic Buffer
Available part numbers (32)
HI 50 x 50, HI 50 x 100, HI 80 x 50, HI 80 x 100, HI 100 x 50, HI 100 x 100, HI 100 x 150, HI 100 x 200, HI 100 x 400, HI 100 x 500 + 22 more — see full table ↓
How to order
Send the ENIDINE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
ENIDINE
Industrial Buffers
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| HI 50 x 50 | Body size: 50 | Stroke: 50 mm | Max. energy per cycle: 3000 Nm | Max. shock force: 70 kN | Return force ext./comp.: 0.5/3.2 kN | Weight: 5 kg | Bolt size: M14 | ||
| HI 50 x 100 | Body size: 50 | Stroke: 100 mm | Max. energy per cycle: 6200 Nm | Max. shock force: 70 kN | Return force ext./comp.: 0.3/0.6 kN | Weight: 9 kg | Bolt size: M14 | ||
| HI 80 x 50 | Body size: 80 | Stroke: 50 mm | Max. energy per cycle: 6800 Nm | Max. shock force: 160 kN | Return force ext./comp.: 1.0/1.9 kN | Weight: 16 kg | Bolt size: M18 | ||
| HI 80 x 100 | Body size: 80 | Stroke: 100 mm | Max. energy per cycle: 13600 Nm | Max. shock force: 160 kN | Return force ext./comp.: 1.0/8.0 kN | Weight: 22 kg | Bolt size: M18 | ||
| HI 100 x 50 | Body size: 100 | Stroke: 50 mm | Max. energy per cycle: 10000 Nm | Max. shock force: 235 kN | Return force ext./comp.: 1.65/18.0 kN | Weight: 16 kg | Bolt size: M16 | ||
| HI 100 x 100 | Body size: 100 | Stroke: 100 mm | Max. energy per cycle: 20000 Nm | Max. shock force: 235 kN | Return force ext./comp.: 1.65/18.0 kN | Weight: 22 kg | Bolt size: M16 | ||
| HI 100 x 150 | Body size: 100 | Stroke: 150 mm | Max. energy per cycle: 30000 Nm | Max. shock force: 235 kN | Return force ext./comp.: 1.65/18.0 kN | Weight: 28 kg | Bolt size: M16 | ||
| HI 100 x 200 | Body size: 100 | Stroke: 200 mm | Max. energy per cycle: 40000 Nm | Max. shock force: 235 kN | Return force ext./comp.: 1.65/18.0 kN | Weight: 32 kg | Bolt size: M16 | ||
| HI 100 x 400 | Body size: 100 | Stroke: 400 mm | Max. energy per cycle: 80000 Nm | Max. shock force: 235 kN | Return force ext./comp.: 1.65/18.0 kN | Weight: 46 kg | Bolt size: M16 | ||
| HI 100 x 500 | Body size: 100 | Stroke: 500 mm | Max. energy per cycle: 94000 Nm | Max. shock force: 235 kN | Return force ext./comp.: 1.65/18.0 kN | Weight: 52 kg | Bolt size: M16 | ||
| HI 100 x 600 | Body size: 100 | Stroke: 600 mm | Max. energy per cycle: 112000 Nm | Max. shock force: 220 kN | Return force ext./comp.: 1.65/18.0 kN | Weight: 58 kg | Bolt size: M16 | ||
| HI 100 x 800 | Body size: 100 | Stroke: 800 mm | Max. energy per cycle: 136000 Nm | Max. shock force: 200 kN | Return force ext./comp.: 1.65/18.0 kN | Weight: 69 kg | Bolt size: M16 | ||
| HI 120 x 100 | Body size: 120 | Stroke: 100 mm | Max. energy per cycle: 32000 Nm | Max. shock force: 375 kN | Return force ext./comp.: 2.8/50.0 kN | Weight: 34 kg | Bolt size: M24 | ||
| HI 120 x 150 | Body size: 120 | Stroke: 150 mm | Max. energy per cycle: 48000 Nm | Max. shock force: 375 kN | Return force ext./comp.: 2.8/50.0 kN | Weight: 39 kg | Bolt size: M24 | ||
| HI 120 x 200 | Body size: 120 | Stroke: 200 mm | Max. energy per cycle: 64000 Nm | Max. shock force: 375 kN | Return force ext./comp.: 2.8/50.0 kN | Weight: 43 kg | Bolt size: M24 | ||
| HI 120 x 300 | Body size: 120 | Stroke: 300 mm | Max. energy per cycle: 94000 Nm | Max. shock force: 375 kN | Return force ext./comp.: 2.8/50.0 kN | Weight: 53 kg | Bolt size: M24 | ||
| HI 120 x 400 | Body size: 120 | Stroke: 400 mm | Max. energy per cycle: 125000 Nm | Max. shock force: 375 kN | Return force ext./comp.: 2.8/50.0 kN | Weight: 87 kg | Bolt size: M24 | ||
| HI 120 x 600 | Body size: 120 | Stroke: 600 mm | Max. energy per cycle: 188000 Nm | Max. shock force: 375 kN | Return force ext./comp.: 2.8/50.0 kN | Weight: 105 kg | Bolt size: M24 | ||
| HI 120 x 800 | Body size: 120 | Stroke: 800 mm | Max. energy per cycle: 225000 Nm | Max. shock force: 330 kN | Return force ext./comp.: 2.8/50.0 kN | Weight: 110 kg | Bolt size: M24 | ||
| HI 120 x 1000 | Body size: 120 | Stroke: 1000 mm | Max. energy per cycle: 260000 Nm | Max. shock force: 300 kN | Return force ext./comp.: 2.8/50.0 kN | Weight: 116 kg | Bolt size: M24 | ||
| HI 130 x 250 | Body size: 130 | Stroke: 250 mm | Max. energy per cycle: 100000 Nm | Max. shock force: 475 kN | Return force ext./comp.: 3.2/50.0 kN | Weight: 72 kg | Bolt size: M24 | ||
| HI 130 x 300 | Body size: 130 | Stroke: 300 mm | Max. energy per cycle: 120000 Nm | Max. shock force: 475 kN | Return force ext./comp.: 3.2/50.0 kN | Weight: 79 kg | Bolt size: M24 | ||
| HI 130 x 400 | Body size: 130 | Stroke: 400 mm | Max. energy per cycle: 160000 Nm | Max. shock force: 475 kN | Return force ext./comp.: 3.2/50.0 kN | Weight: 90 kg | Bolt size: M24 | ||
| HI 130 x 600 | Body size: 130 | Stroke: 600 mm | Max. energy per cycle: 210000 Nm | Max. shock force: 400 kN | Return force ext./comp.: 3.2/45.0 kN | Weight: 119 kg | Bolt size: M24 | ||
| HI 130 x 800 | Body size: 130 | Stroke: 800 mm | Max. energy per cycle: 270000 Nm | Max. shock force: 400 kN | Return force ext./comp.: 3.2/45.0 kN | Weight: 140 kg | Bolt size: M24 | ||
| HI 150 x 115 | Body size: 150 | Stroke: 115 mm | Max. energy per cycle: 62000 Nm | Max. shock force: 645 kN | Return force ext./comp.: 5.0/65.7 kN | Weight: 56 kg | Bolt size: M24 | ||
| HI 150 x 150 | Body size: 150 | Stroke: 150 mm | Max. energy per cycle: 82000 Nm | Max. shock force: 645 kN | Return force ext./comp.: 5.0/65.7 kN | Weight: 59 kg | Bolt size: M24 | ||
| HI 150 x 400 | Body size: 150 | Stroke: 400 mm | Max. energy per cycle: 220000 Nm | Max. shock force: 645 kN | Return force ext./comp.: 5.0/62.4 kN | Weight: 98 kg | Bolt size: M24 | ||
| HI 150 x 500 | Body size: 150 | Stroke: 500 mm | Max. energy per cycle: 275000 Nm | Max. shock force: 645 kN | Return force ext./comp.: 5.0/75.5 kN | Weight: 110 kg | Bolt size: M24 | ||
| HI 150 x 600 | Body size: 150 | Stroke: 600 mm | Max. energy per cycle: 330000 Nm | Max. shock force: 645 kN | Return force ext./comp.: 5.0/75.5 kN | Weight: 120 kg | Bolt size: M24 | ||
| HI 150 x 800 | Body size: 150 | Stroke: 800 mm | Max. energy per cycle: 448000 Nm | Max. shock force: 640 kN | Return force ext./comp.: 5.0/68.0 kN | Weight: 165 kg | Bolt size: M24 | ||
| HI 150 x 1000 | Body size: 150 | Stroke: 1000 mm | Max. energy per cycle: 510000 Nm | Max. shock force: 600 kN | Return force ext./comp.: 5.0/61.0 kN | Weight: 180 kg | Bolt size: M24 |
Need a different model, or a part not listed here? Send us your parts list →
