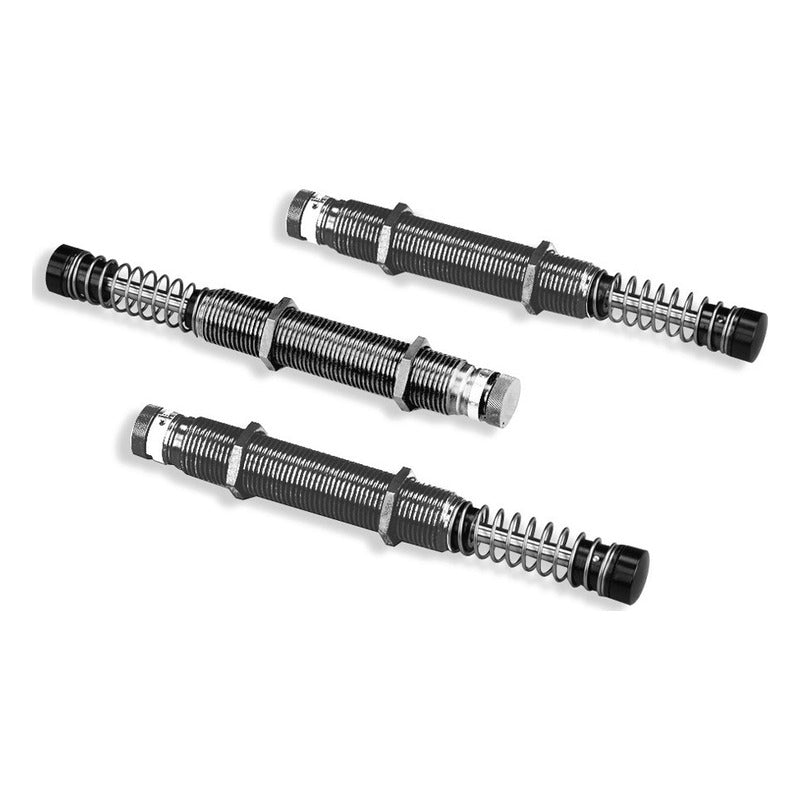

ENIDINE OEM Series Adjustable Hydraulic Shock Absorber, Large Bore
ENIDINE OEM Series Adjustable Hydraulic Shock Absorber, Large Bore
Large-bore adjustable hydraulic shock absorbers (OEM 3.0M and 4.0M) for heavy loads with strokes up to 250 mm.
Key features
- 180-degree adjustment with setscrew locking
- High energy capacity per cycle and per hour
- Threaded body (M85x2 or M115x2) for mounting and heat dissipation
- Accessories: clevis mount, foot mount, stop collar, lock ring, square/rectangular flange, urethane striker cap
Specifications
| Type | Adjustable hydraulic, spring return |
|---|---|
| Velocity range | 0.3-4.3 m/s |
| OEM 3.0M x 2 | Stroke: 50 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 2300 Nm | Max. energy per hour: 372000 Nm/h | Max. reaction force: 67000 N | Max. propelling force: 12000 N | Body thread: M85x2 | Weight: 7.0 kg | |
| OEM 3.0M x 3.5 | Stroke: 90 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 4000 Nm | Max. energy per hour: 652000 Nm/h | Max. reaction force: 67000 N | Max. propelling force: 12000 N | Body thread: M85x2 | Weight: 9.1 kg | |
| OEM 3.0M x 5 | Stroke: 125 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 5700 Nm | Max. energy per hour: 933000 Nm/h | Max. reaction force: 67000 N | Max. propelling force: 12000 N | Body thread: M85x2 | Weight: 10.9 kg | |
| OEM 3.0M x 6.5 | Stroke: 165 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 7300 Nm | Max. energy per hour: 1215000 Nm/h | Max. reaction force: 67000 N | Max. propelling force: 12000 N | Body thread: M85x2 | Weight: 13.6 kg | |
| OEM 4.0M x 2 | Stroke: 50 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 3800 Nm | Max. energy per hour: 1503000 Nm/h | Max. reaction force: 111000 N | Max. propelling force: 21000 N | Body thread: M115x2 | Weight: 15.0 kg | |
| OEM 4.0M x 4 | Stroke: 100 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 7700 Nm | Max. energy per hour: 1808000 Nm/h | Max. reaction force: 111000 N | Max. propelling force: 21000 N | Body thread: M115x2 | Weight: 18.2 kg | |
| OEM 4.0M x 6 | Stroke: 150 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 11500 Nm | Max. energy per hour: 2102000 Nm/h | Max. reaction force: 111000 N | Max. propelling force: 21000 N | Body thread: M115x2 | Weight: 20.0 kg | |
| OEM 4.0M x 8 | Stroke: 200 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 15400 Nm | Max. energy per hour: 2407000 Nm/h | Max. reaction force: 111000 N | Max. propelling force: 21000 N | Body thread: M115x2 | Weight: 30.0 kg | |
| OEM 4.0M x 10 | Stroke: 250 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 19200 Nm | Max. energy per hour: 2712000 Nm/h | Max. reaction force: 111000 N | Max. propelling force: 21000 N | Body thread: M115x2 | Weight: 33.0 kg |
Shock AbsorbersENIDINE
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
ENIDINE OEM Series Adjustable Hydraulic Shock Absorber, Large Bore
Available part numbers (9)
OEM 3.0M x 2, OEM 3.0M x 3.5, OEM 3.0M x 5, OEM 3.0M x 6.5, OEM 4.0M x 2, OEM 4.0M x 4, OEM 4.0M x 6, OEM 4.0M x 8, OEM 4.0M x 10
How to order
Send the ENIDINE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
ENIDINE
Shock Absorbers
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| OEM 3.0M x 2 | Stroke: 50 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 2300 Nm | Max. energy per hour: 372000 Nm/h | Max. reaction force: 67000 N | Max. propelling force: 12000 N | Body thread: M85x2 | Weight: 7.0 kg | ||
| OEM 3.0M x 3.5 | Stroke: 90 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 4000 Nm | Max. energy per hour: 652000 Nm/h | Max. reaction force: 67000 N | Max. propelling force: 12000 N | Body thread: M85x2 | Weight: 9.1 kg | ||
| OEM 3.0M x 5 | Stroke: 125 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 5700 Nm | Max. energy per hour: 933000 Nm/h | Max. reaction force: 67000 N | Max. propelling force: 12000 N | Body thread: M85x2 | Weight: 10.9 kg | ||
| OEM 3.0M x 6.5 | Stroke: 165 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 7300 Nm | Max. energy per hour: 1215000 Nm/h | Max. reaction force: 67000 N | Max. propelling force: 12000 N | Body thread: M85x2 | Weight: 13.6 kg | ||
| OEM 4.0M x 2 | Stroke: 50 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 3800 Nm | Max. energy per hour: 1503000 Nm/h | Max. reaction force: 111000 N | Max. propelling force: 21000 N | Body thread: M115x2 | Weight: 15.0 kg | ||
| OEM 4.0M x 4 | Stroke: 100 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 7700 Nm | Max. energy per hour: 1808000 Nm/h | Max. reaction force: 111000 N | Max. propelling force: 21000 N | Body thread: M115x2 | Weight: 18.2 kg | ||
| OEM 4.0M x 6 | Stroke: 150 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 11500 Nm | Max. energy per hour: 2102000 Nm/h | Max. reaction force: 111000 N | Max. propelling force: 21000 N | Body thread: M115x2 | Weight: 20.0 kg | ||
| OEM 4.0M x 8 | Stroke: 200 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 15400 Nm | Max. energy per hour: 2407000 Nm/h | Max. reaction force: 111000 N | Max. propelling force: 21000 N | Body thread: M115x2 | Weight: 30.0 kg | ||
| OEM 4.0M x 10 | Stroke: 250 mm | Velocity range: 0.3-4.3 m/s | Max. energy per cycle: 19200 Nm | Max. energy per hour: 2712000 Nm/h | Max. reaction force: 111000 N | Max. propelling force: 21000 N | Body thread: M115x2 | Weight: 33.0 kg |
