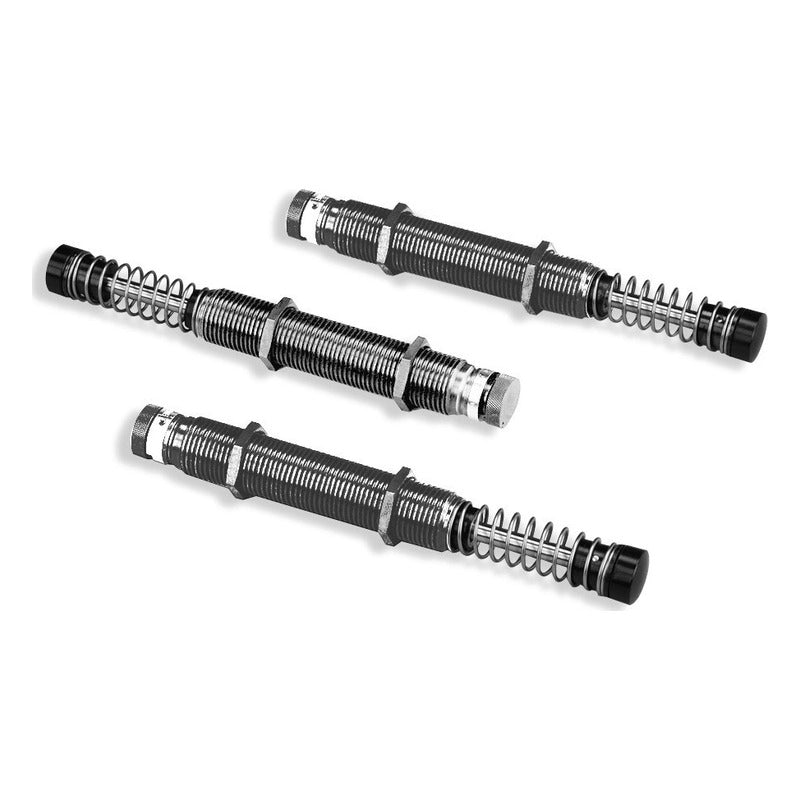

ENIDINE OEMXT Series Adjustable Hydraulic Shock Absorber, Mid Bore
ENIDINE OEMXT Series Adjustable Hydraulic Shock Absorber, Mid Bore
Mid-bore adjustable hydraulic shock absorbers in imperial (3/4, 1 1/8) and metric (1.5M, 2.0M) sizes, with low-velocity LROEMXT versions.
Key features
- 360-degree adjustment with setscrew locking
- Constant deceleration force over the full stroke
- Threaded body for easy mounting and heat dissipation
- Standard oil -10 to 80 C; special oil -30 to 100 C
- Accessories: clevis mount, foot mount, stop collar, lock ring, flanges, urethane striker cap
Specifications
| Type | Adjustable hydraulic, spring return |
|---|---|
| Operating temperature | -10 to 80 C (standard oil); -30 to 100 C (special oil) |
| OEMXT 3/4 x 1 | Stroke: 1 in (25.4 mm) | Velocity range: 12-140 in/s | Max. energy per cycle: 3,750 in-lbs (424 Nm) | Max. energy per hour: 1,120,000 in-lbs/h | Max. reaction force: 4,500 lbs | Max. propelling force: 650 lbs | Body thread: 1 3/4-12 UN | Weight: 2.7 lbs | |
| LROEMXT 3/4 x 1 | Stroke: 1 in (25.4 mm) | Velocity range: 3-55 in/s | Max. energy per cycle: 3,750 in-lbs (424 Nm) | Max. energy per hour: 1,120,000 in-lbs/h | Max. reaction force: 4,500 lbs | Max. propelling force: 1,500 lbs | Body thread: 1 3/4-12 UN | Weight: 2.7 lbs | |
| OEMXT 3/4 x 2 | Stroke: 2 in (50.8 mm) | Velocity range: 12-140 in/s | Max. energy per cycle: 7,500 in-lbs (848 Nm) | Max. energy per hour: 1,475,000 in-lbs/h | Max. reaction force: 4,500 lbs | Max. propelling force: 650 lbs | Body thread: 1 3/4-12 UN | Weight: 3.7 lbs | |
| LROEMXT 3/4 x 2 | Stroke: 2 in (50.8 mm) | Velocity range: 3-55 in/s | Max. energy per cycle: 7,500 in-lbs (848 Nm) | Max. energy per hour: 1,475,000 in-lbs/h | Max. reaction force: 4,500 lbs | Max. propelling force: 1,500 lbs | Body thread: 1 3/4-12 UN | Weight: 3.7 lbs | |
| OEMXT 3/4 x 3 | Stroke: 3 in (76.2 mm) | Velocity range: 12-140 in/s | Max. energy per cycle: 11,500 in-lbs (1300 Nm) | Max. energy per hour: 1,775,000 in-lbs/h | Max. reaction force: 4,500 lbs | Max. propelling force: 650 lbs | Body thread: 1 3/4-12 UN | Weight: 4.6 lbs | |
| LROEMXT 1 1/8 x 1 | Stroke: 1 in (25.4 mm) | Velocity range: 3-30 in/s | Max. energy per cycle: 10,000 in-lbs (1130 Nm) | Max. energy per hour: 2,000,000 in-lbs/h | Max. reaction force: 11,500 lbs | Max. propelling force: 4,000 lbs | Body thread: 2 1/2-12 UN | Weight: 4.5 lbs | |
| OEMXT 1 1/8 x 2 | Stroke: 2 in (50.8 mm) | Velocity range: 12-140 in/s | Max. energy per cycle: 20,000 in-lbs (2260 Nm) | Max. energy per hour: 2,400,000 in-lbs/h | Max. reaction force: 11,500 lbs | Max. propelling force: 1,500 lbs | Body thread: 2 1/2-12 UN | Weight: 7.9 lbs | |
| LROEMXT 1 1/8 x 2 | Stroke: 2 in (50.8 mm) | Velocity range: 3-30 in/s | Max. energy per cycle: 20,000 in-lbs (2260 Nm) | Max. energy per hour: 2,400,000 in-lbs/h | Max. reaction force: 11,500 lbs | Max. propelling force: 4,000 lbs | Body thread: 2 1/2-12 UN | Weight: 7.9 lbs | |
| OEMXT 1 1/8 x 4 | Stroke: 4 in (101.6 mm) | Velocity range: 12-140 in/s | Max. energy per cycle: 40,000 in-lbs (4520 Nm) | Max. energy per hour: 3,200,000 in-lbs/h | Max. reaction force: 11,500 lbs | Max. propelling force: 1,500 lbs | Body thread: 2 1/2-12 UN | Weight: 10.8 lbs | |
| OEMXT 1 1/8 x 6 | Stroke: 6 in (152.4 mm) | Velocity range: 12-140 in/s | Max. energy per cycle: 60,000 in-lbs (6780 Nm) | Max. energy per hour: 3,730,000 in-lbs/h | Max. reaction force: 11,500 lbs | Max. propelling force: 1,500 lbs | Body thread: 2 1/2-12 UN | Weight: 14.1 lbs | |
| OEMXT 1.5M x 1 | Stroke: 25.0 mm | Velocity range: 0.3-5 m/s | Max. energy per cycle: 425 Nm | Max. energy per hour: 126000 Nm/h | Max. reaction force: 20000 N | Max. propelling force: 2890 N | Body thread: M42x1.5 | Weight: 1.2 kg | |
| LROEMXT 1.5M x 1 | Stroke: 25.0 mm | Velocity range: 0.08-1.3 m/s | Max. energy per cycle: 425 Nm | Max. energy per hour: 126000 Nm/h | Max. reaction force: 20000 N | Max. propelling force: 6660 N | Body thread: M42x1.5 | Weight: 1.2 kg | |
| OEMXT 1.5M x 2 | Stroke: 50.0 mm | Velocity range: 0.3-3.5 m/s | Max. energy per cycle: 850 Nm | Max. energy per hour: 167000 Nm/h | Max. reaction force: 20000 N | Max. propelling force: 2890 N | Body thread: M42x1.5 | Weight: 1.7 kg | |
| LROEMXT 1.5M x 2 | Stroke: 50.0 mm | Velocity range: 0.08-1.3 m/s | Max. energy per cycle: 850 Nm | Max. energy per hour: 167000 Nm/h | Max. reaction force: 20000 N | Max. propelling force: 6660 N | Body thread: M42x1.5 | Weight: 1.7 kg | |
| OEMXT 1.5M x 3 | Stroke: 75.0 mm | Velocity range: 0.3-3.5 m/s | Max. energy per cycle: 1300 Nm | Max. energy per hour: 201000 Nm/h | Max. reaction force: 20000 N | Max. propelling force: 2890 N | Body thread: M42x1.5 | Weight: 2.1 kg | |
| LROEMXT 2.0M x 1 | Stroke: 25.0 mm | Velocity range: 0.08-1.35 m/s | Max. energy per cycle: 1130 Nm | Max. energy per hour: 226000 Nm/h | Max. reaction force: 51000 N | Max. propelling force: 17760 N | Body thread: M64x2.0 | Weight: 2.1 kg | |
| OEMXT 2.0M x 2 | Stroke: 50.0 mm | Velocity range: 0.3-3.5 m/s | Max. energy per cycle: 2260 Nm | Max. energy per hour: 271000 Nm/h | Max. reaction force: 51000 N | Max. propelling force: 6660 N | Body thread: M64x2.0 | Weight: 3.6 kg | |
| LROEMXT 2.0M x 2 | Stroke: 50.0 mm | Velocity range: 0.08-1.35 m/s | Max. energy per cycle: 2260 Nm | Max. energy per hour: 271000 Nm/h | Max. reaction force: 51000 N | Max. propelling force: 17760 N | Body thread: M64x2.0 | Weight: 3.6 kg | |
| OEMXT 2.0M x 4 | Stroke: 100.0 mm | Velocity range: 0.3-3.5 m/s | Max. energy per cycle: 4520 Nm | Max. energy per hour: 362000 Nm/h | Max. reaction force: 51000 N | Max. propelling force: 6660 N | Body thread: M64x2.0 | Weight: 4.9 kg | |
| OEMXT 2.0M x 6 | Stroke: 150.0 mm | Velocity range: 0.3-3.5 m/s | Max. energy per cycle: 6780 Nm | Max. energy per hour: 421000 Nm/h | Max. reaction force: 51000 N | Max. propelling force: 6660 N | Body thread: M64x2.0 | Weight: 6.4 kg |
Shock AbsorbersENIDINE
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
ENIDINE OEMXT Series Adjustable Hydraulic Shock Absorber, Mid Bore
Available part numbers (20)
OEMXT 3/4 x 1, LROEMXT 3/4 x 1, OEMXT 3/4 x 2, LROEMXT 3/4 x 2, OEMXT 3/4 x 3, LROEMXT 1 1/8 x 1, OEMXT 1 1/8 x 2, LROEMXT 1 1/8 x 2, OEMXT 1 1/8 x 4, OEMXT 1 1/8 x 6 + 10 more — see full table ↓
How to order
Send the ENIDINE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
ENIDINE
Shock Absorbers
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| OEMXT 3/4 x 1 | Stroke: 1 in (25.4 mm) | Velocity range: 12-140 in/s | Max. energy per cycle: 3,750 in-lbs (424 Nm) | Max. energy per hour: 1,120,000 in-lbs/h | Max. reaction force: 4,500 lbs | Max. propelling force: 650 lbs | Body thread: 1 3/4-12 UN | Weight: 2.7 lbs | ||
| LROEMXT 3/4 x 1 | Stroke: 1 in (25.4 mm) | Velocity range: 3-55 in/s | Max. energy per cycle: 3,750 in-lbs (424 Nm) | Max. energy per hour: 1,120,000 in-lbs/h | Max. reaction force: 4,500 lbs | Max. propelling force: 1,500 lbs | Body thread: 1 3/4-12 UN | Weight: 2.7 lbs | ||
| OEMXT 3/4 x 2 | Stroke: 2 in (50.8 mm) | Velocity range: 12-140 in/s | Max. energy per cycle: 7,500 in-lbs (848 Nm) | Max. energy per hour: 1,475,000 in-lbs/h | Max. reaction force: 4,500 lbs | Max. propelling force: 650 lbs | Body thread: 1 3/4-12 UN | Weight: 3.7 lbs | ||
| LROEMXT 3/4 x 2 | Stroke: 2 in (50.8 mm) | Velocity range: 3-55 in/s | Max. energy per cycle: 7,500 in-lbs (848 Nm) | Max. energy per hour: 1,475,000 in-lbs/h | Max. reaction force: 4,500 lbs | Max. propelling force: 1,500 lbs | Body thread: 1 3/4-12 UN | Weight: 3.7 lbs | ||
| OEMXT 3/4 x 3 | Stroke: 3 in (76.2 mm) | Velocity range: 12-140 in/s | Max. energy per cycle: 11,500 in-lbs (1300 Nm) | Max. energy per hour: 1,775,000 in-lbs/h | Max. reaction force: 4,500 lbs | Max. propelling force: 650 lbs | Body thread: 1 3/4-12 UN | Weight: 4.6 lbs | ||
| LROEMXT 1 1/8 x 1 | Stroke: 1 in (25.4 mm) | Velocity range: 3-30 in/s | Max. energy per cycle: 10,000 in-lbs (1130 Nm) | Max. energy per hour: 2,000,000 in-lbs/h | Max. reaction force: 11,500 lbs | Max. propelling force: 4,000 lbs | Body thread: 2 1/2-12 UN | Weight: 4.5 lbs | ||
| OEMXT 1 1/8 x 2 | Stroke: 2 in (50.8 mm) | Velocity range: 12-140 in/s | Max. energy per cycle: 20,000 in-lbs (2260 Nm) | Max. energy per hour: 2,400,000 in-lbs/h | Max. reaction force: 11,500 lbs | Max. propelling force: 1,500 lbs | Body thread: 2 1/2-12 UN | Weight: 7.9 lbs | ||
| LROEMXT 1 1/8 x 2 | Stroke: 2 in (50.8 mm) | Velocity range: 3-30 in/s | Max. energy per cycle: 20,000 in-lbs (2260 Nm) | Max. energy per hour: 2,400,000 in-lbs/h | Max. reaction force: 11,500 lbs | Max. propelling force: 4,000 lbs | Body thread: 2 1/2-12 UN | Weight: 7.9 lbs | ||
| OEMXT 1 1/8 x 4 | Stroke: 4 in (101.6 mm) | Velocity range: 12-140 in/s | Max. energy per cycle: 40,000 in-lbs (4520 Nm) | Max. energy per hour: 3,200,000 in-lbs/h | Max. reaction force: 11,500 lbs | Max. propelling force: 1,500 lbs | Body thread: 2 1/2-12 UN | Weight: 10.8 lbs | ||
| OEMXT 1 1/8 x 6 | Stroke: 6 in (152.4 mm) | Velocity range: 12-140 in/s | Max. energy per cycle: 60,000 in-lbs (6780 Nm) | Max. energy per hour: 3,730,000 in-lbs/h | Max. reaction force: 11,500 lbs | Max. propelling force: 1,500 lbs | Body thread: 2 1/2-12 UN | Weight: 14.1 lbs | ||
| OEMXT 1.5M x 1 | Stroke: 25.0 mm | Velocity range: 0.3-5 m/s | Max. energy per cycle: 425 Nm | Max. energy per hour: 126000 Nm/h | Max. reaction force: 20000 N | Max. propelling force: 2890 N | Body thread: M42x1.5 | Weight: 1.2 kg | ||
| LROEMXT 1.5M x 1 | Stroke: 25.0 mm | Velocity range: 0.08-1.3 m/s | Max. energy per cycle: 425 Nm | Max. energy per hour: 126000 Nm/h | Max. reaction force: 20000 N | Max. propelling force: 6660 N | Body thread: M42x1.5 | Weight: 1.2 kg | ||
| OEMXT 1.5M x 2 | Stroke: 50.0 mm | Velocity range: 0.3-3.5 m/s | Max. energy per cycle: 850 Nm | Max. energy per hour: 167000 Nm/h | Max. reaction force: 20000 N | Max. propelling force: 2890 N | Body thread: M42x1.5 | Weight: 1.7 kg | ||
| LROEMXT 1.5M x 2 | Stroke: 50.0 mm | Velocity range: 0.08-1.3 m/s | Max. energy per cycle: 850 Nm | Max. energy per hour: 167000 Nm/h | Max. reaction force: 20000 N | Max. propelling force: 6660 N | Body thread: M42x1.5 | Weight: 1.7 kg | ||
| OEMXT 1.5M x 3 | Stroke: 75.0 mm | Velocity range: 0.3-3.5 m/s | Max. energy per cycle: 1300 Nm | Max. energy per hour: 201000 Nm/h | Max. reaction force: 20000 N | Max. propelling force: 2890 N | Body thread: M42x1.5 | Weight: 2.1 kg | ||
| LROEMXT 2.0M x 1 | Stroke: 25.0 mm | Velocity range: 0.08-1.35 m/s | Max. energy per cycle: 1130 Nm | Max. energy per hour: 226000 Nm/h | Max. reaction force: 51000 N | Max. propelling force: 17760 N | Body thread: M64x2.0 | Weight: 2.1 kg | ||
| OEMXT 2.0M x 2 | Stroke: 50.0 mm | Velocity range: 0.3-3.5 m/s | Max. energy per cycle: 2260 Nm | Max. energy per hour: 271000 Nm/h | Max. reaction force: 51000 N | Max. propelling force: 6660 N | Body thread: M64x2.0 | Weight: 3.6 kg | ||
| LROEMXT 2.0M x 2 | Stroke: 50.0 mm | Velocity range: 0.08-1.35 m/s | Max. energy per cycle: 2260 Nm | Max. energy per hour: 271000 Nm/h | Max. reaction force: 51000 N | Max. propelling force: 17760 N | Body thread: M64x2.0 | Weight: 3.6 kg | ||
| OEMXT 2.0M x 4 | Stroke: 100.0 mm | Velocity range: 0.3-3.5 m/s | Max. energy per cycle: 4520 Nm | Max. energy per hour: 362000 Nm/h | Max. reaction force: 51000 N | Max. propelling force: 6660 N | Body thread: M64x2.0 | Weight: 4.9 kg | ||
| OEMXT 2.0M x 6 | Stroke: 150.0 mm | Velocity range: 0.3-3.5 m/s | Max. energy per cycle: 6780 Nm | Max. energy per hour: 421000 Nm/h | Max. reaction force: 51000 N | Max. propelling force: 6660 N | Body thread: M64x2.0 | Weight: 6.4 kg |
