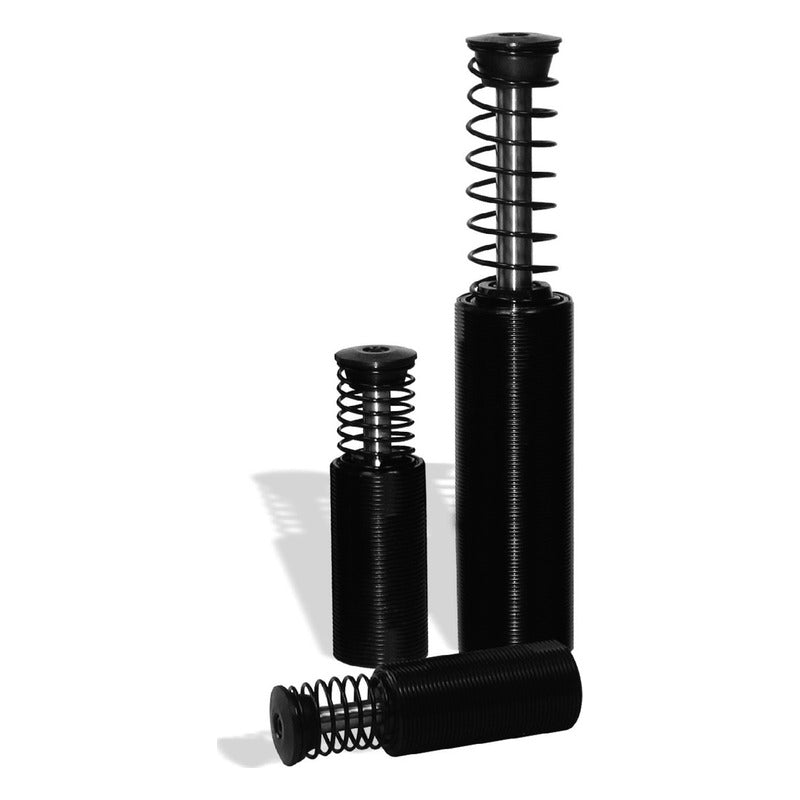

ENIDINE PMXT Series Non-Adjustable Mid-Bore Shock Absorber
ENIDINE PMXT Series Non-Adjustable Mid-Bore Shock Absorber
Self-compensating non-adjustable mid-bore hydraulic shock absorbers suited to low velocity and high propelling force.
Key features
- Self-compensating damping for low speed and high propelling force
- Damping constant -1, -2 or -3
- Imperial (IF) and metric (MF) thread versions
- Accessories: clevis mount, foot mount, stop collar, lock ring, flanges, urethane striker cap
Specifications
| Type | Non-adjustable, self-compensating hydraulic |
|---|---|
| Min. impact velocity | 0.1 m/s |
| PMXT 1525 IF | Stroke: 25.0 mm | Max. energy per cycle: 367.0 Nm | Max. energy per hour: 126000 Nm/h | Max. reaction force: 29000 N | Max. propelling force: 6700 N | Body thread: 1 3/4-12 UN | Damping constant: -1,-2,-3 | Weight: 1.0 kg | |
| PMXT 1525 MF | Stroke: 25.0 mm | Max. energy per cycle: 367.0 Nm | Max. energy per hour: 126000 Nm/h | Max. reaction force: 29000 N | Max. propelling force: 6700 N | Body thread: M45x1.5 | Damping constant: -1,-2,-3 | Weight: 1.0 kg | |
| PMXT 1550 IF | Stroke: 50.0 mm | Max. energy per cycle: 735.0 Nm | Max. energy per hour: 167000 Nm/h | Max. reaction force: 29000 N | Max. propelling force: 6700 N | Body thread: 1 3/4-12 UN | Damping constant: -1,-2,-3 | Weight: 1.1 kg | |
| PMXT 1550 MF | Stroke: 50.0 mm | Max. energy per cycle: 735.0 Nm | Max. energy per hour: 167000 Nm/h | Max. reaction force: 29000 N | Max. propelling force: 6700 N | Body thread: M45x1.5 | Damping constant: -1,-2,-3 | Weight: 1.1 kg | |
| PMXT 1575 IF | Stroke: 75.0 mm | Max. energy per cycle: 1130.0 Nm | Max. energy per hour: 201000 Nm/h | Max. reaction force: 29000 N | Max. propelling force: 6700 N | Body thread: 1 3/4-12 UN | Damping constant: -1,-2,-3 | Weight: 1.3 kg | |
| PMXT 1575 MF | Stroke: 75.0 mm | Max. energy per cycle: 1130.0 Nm | Max. energy per hour: 201000 Nm/h | Max. reaction force: 29000 N | Max. propelling force: 6700 N | Body thread: M45x1.5 | Damping constant: -1,-2,-3 | Weight: 1.3 kg | |
| PMXT 2050 IF | Stroke: 50.0 mm | Max. energy per cycle: 1865.0 Nm | Max. energy per hour: 271000 Nm/h | Max. reaction force: 60500 N | Max. propelling force: 17800 N | Body thread: 2 1/2-12 UN | Damping constant: -1,-2,-3 | Weight: 2.7 kg | |
| PMXT 2050 MF | Stroke: 50.0 mm | Max. energy per cycle: 1865.0 Nm | Max. energy per hour: 271000 Nm/h | Max. reaction force: 60500 N | Max. propelling force: 17800 N | Body thread: M64x2.0 | Damping constant: -1,-2,-3 | Weight: 2.7 kg | |
| PMXT 2100 IF | Stroke: 100.0 mm | Max. energy per cycle: 3729.0 Nm | Max. energy per hour: 362000 Nm/h | Max. reaction force: 60500 N | Max. propelling force: 17800 N | Body thread: 2 1/2-12 UN | Damping constant: -1,-2,-3 | Weight: 3.3 kg | |
| PMXT 2100 MF | Stroke: 100.0 mm | Max. energy per cycle: 3729.0 Nm | Max. energy per hour: 362000 Nm/h | Max. reaction force: 60500 N | Max. propelling force: 17800 N | Body thread: M64x2.0 | Damping constant: -1,-2,-3 | Weight: 3.3 kg | |
| PMXT 2150 IF | Stroke: 150.0 mm | Max. energy per cycle: 5650.0 Nm | Max. energy per hour: 421000 Nm/h | Max. reaction force: 60500 N | Max. propelling force: 17800 N | Body thread: 2 1/2-12 UN | Damping constant: -1,-2,-3 | Weight: 4.2 kg | |
| PMXT 2150 MF | Stroke: 150.0 mm | Max. energy per cycle: 5650.0 Nm | Max. energy per hour: 421000 Nm/h | Max. reaction force: 60500 N | Max. propelling force: 17800 N | Body thread: M64x2.0 | Damping constant: -1,-2,-3 | Weight: 4.2 kg |
Shock AbsorbersENIDINE
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
ENIDINE PMXT Series Non-Adjustable Mid-Bore Shock Absorber
Available part numbers (12)
PMXT 1525 IF, PMXT 1525 MF, PMXT 1550 IF, PMXT 1550 MF, PMXT 1575 IF, PMXT 1575 MF, PMXT 2050 IF, PMXT 2050 MF, PMXT 2100 IF, PMXT 2100 MF + 2 more — see full table ↓
How to order
Send the ENIDINE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
ENIDINE
Shock Absorbers
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| PMXT 1525 IF | Stroke: 25.0 mm | Max. energy per cycle: 367.0 Nm | Max. energy per hour: 126000 Nm/h | Max. reaction force: 29000 N | Max. propelling force: 6700 N | Body thread: 1 3/4-12 UN | Damping constant: -1,-2,-3 | Weight: 1.0 kg | ||
| PMXT 1525 MF | Stroke: 25.0 mm | Max. energy per cycle: 367.0 Nm | Max. energy per hour: 126000 Nm/h | Max. reaction force: 29000 N | Max. propelling force: 6700 N | Body thread: M45x1.5 | Damping constant: -1,-2,-3 | Weight: 1.0 kg | ||
| PMXT 1550 IF | Stroke: 50.0 mm | Max. energy per cycle: 735.0 Nm | Max. energy per hour: 167000 Nm/h | Max. reaction force: 29000 N | Max. propelling force: 6700 N | Body thread: 1 3/4-12 UN | Damping constant: -1,-2,-3 | Weight: 1.1 kg | ||
| PMXT 1550 MF | Stroke: 50.0 mm | Max. energy per cycle: 735.0 Nm | Max. energy per hour: 167000 Nm/h | Max. reaction force: 29000 N | Max. propelling force: 6700 N | Body thread: M45x1.5 | Damping constant: -1,-2,-3 | Weight: 1.1 kg | ||
| PMXT 1575 IF | Stroke: 75.0 mm | Max. energy per cycle: 1130.0 Nm | Max. energy per hour: 201000 Nm/h | Max. reaction force: 29000 N | Max. propelling force: 6700 N | Body thread: 1 3/4-12 UN | Damping constant: -1,-2,-3 | Weight: 1.3 kg | ||
| PMXT 1575 MF | Stroke: 75.0 mm | Max. energy per cycle: 1130.0 Nm | Max. energy per hour: 201000 Nm/h | Max. reaction force: 29000 N | Max. propelling force: 6700 N | Body thread: M45x1.5 | Damping constant: -1,-2,-3 | Weight: 1.3 kg | ||
| PMXT 2050 IF | Stroke: 50.0 mm | Max. energy per cycle: 1865.0 Nm | Max. energy per hour: 271000 Nm/h | Max. reaction force: 60500 N | Max. propelling force: 17800 N | Body thread: 2 1/2-12 UN | Damping constant: -1,-2,-3 | Weight: 2.7 kg | ||
| PMXT 2050 MF | Stroke: 50.0 mm | Max. energy per cycle: 1865.0 Nm | Max. energy per hour: 271000 Nm/h | Max. reaction force: 60500 N | Max. propelling force: 17800 N | Body thread: M64x2.0 | Damping constant: -1,-2,-3 | Weight: 2.7 kg | ||
| PMXT 2100 IF | Stroke: 100.0 mm | Max. energy per cycle: 3729.0 Nm | Max. energy per hour: 362000 Nm/h | Max. reaction force: 60500 N | Max. propelling force: 17800 N | Body thread: 2 1/2-12 UN | Damping constant: -1,-2,-3 | Weight: 3.3 kg | ||
| PMXT 2100 MF | Stroke: 100.0 mm | Max. energy per cycle: 3729.0 Nm | Max. energy per hour: 362000 Nm/h | Max. reaction force: 60500 N | Max. propelling force: 17800 N | Body thread: M64x2.0 | Damping constant: -1,-2,-3 | Weight: 3.3 kg | ||
| PMXT 2150 IF | Stroke: 150.0 mm | Max. energy per cycle: 5650.0 Nm | Max. energy per hour: 421000 Nm/h | Max. reaction force: 60500 N | Max. propelling force: 17800 N | Body thread: 2 1/2-12 UN | Damping constant: -1,-2,-3 | Weight: 4.2 kg | ||
| PMXT 2150 MF | Stroke: 150.0 mm | Max. energy per cycle: 5650.0 Nm | Max. energy per hour: 421000 Nm/h | Max. reaction force: 60500 N | Max. propelling force: 17800 N | Body thread: M64x2.0 | Damping constant: -1,-2,-3 | Weight: 4.2 kg |
Need a different model, or a part not listed here? Send us your parts list →
