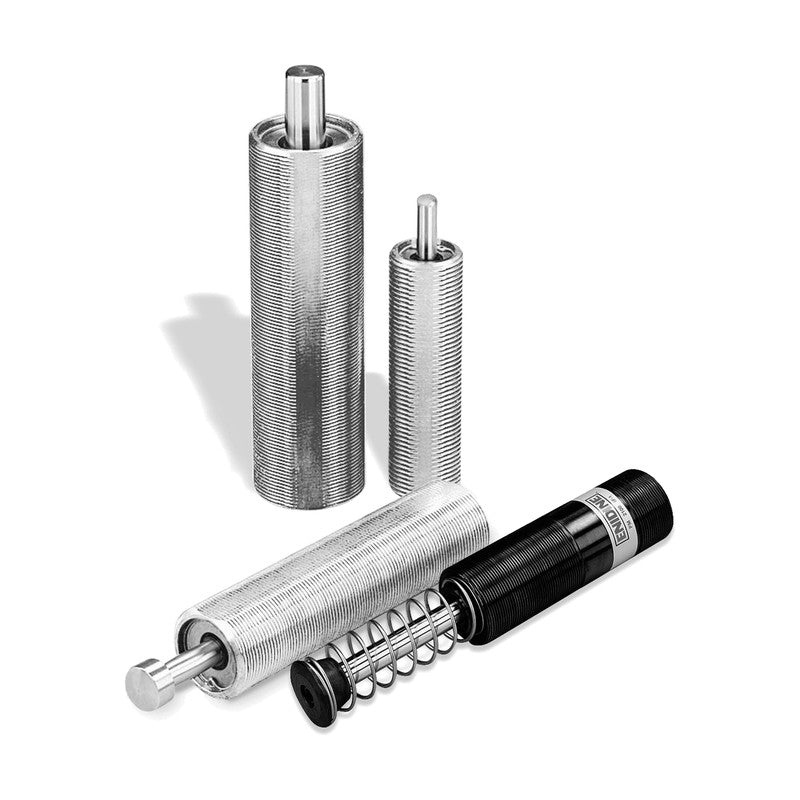

ENIDINE STH Series Custom-Orificed Small-Bore Shock Absorber

ENIDINE STH Series Custom-Orificed Small-Bore Shock Absorber

Non-adjustable small-bore hydraulic shock absorbers with custom orifice for high propelling force and low-velocity applications.

Key features

  • Orifice custom-made to customer requirements
  • Suited to low speed and high propelling force
  • Accessories: jam nut, lock ring, square and rectangular flange (STH 1.5)

Specifications

Type Non-adjustable, custom-orificed hydraulic
ENIDINE STH Series Custom-Orificed Small-Bore Shock Absorber
STH .25M Stroke: 6.0 mm | Max. energy per cycle: 11 Nm | Max. energy per hour: 4420 Nm/h | Max. shock force: 2730 N | Body thread: M14x1.0 | Weight: 79 g
STH .5M Stroke: 12.5 mm | Max. energy per cycle: 65 Nm | Max. energy per hour: 44200 Nm/h | Max. shock force: 8000 N | Body thread: M22x1.5 | Weight: 218 g
STH .75M Stroke: 19.0 mm | Max. energy per cycle: 245 Nm | Max. energy per hour: 88400 Nm/h | Max. shock force: 19600 N | Body thread: M30x2.0 | Weight: 500 g
STH 1.0M Stroke: 25.0 mm | Max. energy per cycle: 500 Nm | Max. energy per hour: 147000 Nm/h | Max. shock force: 29800 N | Body thread: M36x1.5 | Weight: 726 g
STH 1.0M x 2 Stroke: 50.0 mm | Max. energy per cycle: 1000 Nm | Max. energy per hour: 235000 Nm/h | Max. shock force: 29800 N | Body thread: M36x1.5 | Weight: 862 g
STH 1.5M x 1 Stroke: 25.0 mm | Max. energy per cycle: 1150 Nm | Max. energy per hour: 250000 Nm/h | Max. shock force: 65000 N | Body thread: M45x1.5 | Weight: 1400 g
STH 1.5M x 2 Stroke: 50.0 mm | Max. energy per cycle: 2300 Nm | Max. energy per hour: 360000 Nm/h | Max. shock force: 65000 N | Body thread: M45x1.5 | Weight: 1800 g
Shock AbsorbersENIDINE
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENIDINE STH Series Custom-Orificed Small-Bore Shock Absorber

Brand ENIDINE·Shock Absorbers

Available part numbers (7)

STH .25M, STH .5M, STH .75M, STH 1.0M, STH 1.0M x 2, STH 1.5M x 1, STH 1.5M x 2

How to order

Send the ENIDINE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
ENIDINE STH Series Custom-Orificed Small-Bore Shock Absorber
0 selected
RFQ List (0)
Product codeSpec
STH .25MStroke: 6.0 mm | Max. energy per cycle: 11 Nm | Max. energy per hour: 4420 Nm/h | Max. shock force: 2730 N | Body thread: M14x1.0 | Weight: 79 g
STH .5MStroke: 12.5 mm | Max. energy per cycle: 65 Nm | Max. energy per hour: 44200 Nm/h | Max. shock force: 8000 N | Body thread: M22x1.5 | Weight: 218 g
STH .75MStroke: 19.0 mm | Max. energy per cycle: 245 Nm | Max. energy per hour: 88400 Nm/h | Max. shock force: 19600 N | Body thread: M30x2.0 | Weight: 500 g
STH 1.0MStroke: 25.0 mm | Max. energy per cycle: 500 Nm | Max. energy per hour: 147000 Nm/h | Max. shock force: 29800 N | Body thread: M36x1.5 | Weight: 726 g
STH 1.0M x 2Stroke: 50.0 mm | Max. energy per cycle: 1000 Nm | Max. energy per hour: 235000 Nm/h | Max. shock force: 29800 N | Body thread: M36x1.5 | Weight: 862 g
STH 1.5M x 1Stroke: 25.0 mm | Max. energy per cycle: 1150 Nm | Max. energy per hour: 250000 Nm/h | Max. shock force: 65000 N | Body thread: M45x1.5 | Weight: 1400 g
STH 1.5M x 2Stroke: 50.0 mm | Max. energy per cycle: 2300 Nm | Max. energy per hour: 360000 Nm/h | Max. shock force: 65000 N | Body thread: M45x1.5 | Weight: 1800 g
