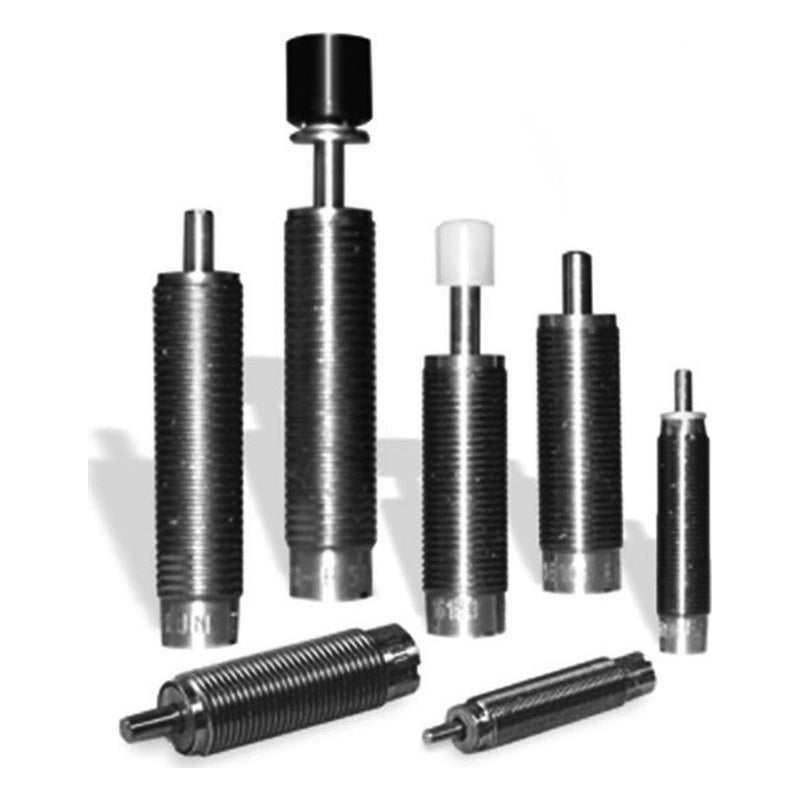

ENIDINE TK Series Non-Adjustable Micro-Bore Shock Absorber

ENIDINE TK Series Non-Adjustable Micro-Bore Shock Absorber

Miniature non-adjustable self-compensating hydraulic shock absorbers with progressive damping for very small, light loads.

Key features

  • Progressive damping with self-compensation
  • Damping constant selected by suffix (-1, -2, -3; TK 10M -1 to -9)
  • Threaded body for easy mounting
  • Accessories: jam nut, side load adaptor, universal retaining flange

Specifications

Type Non-adjustable, self-compensating hydraulic
ENIDINE TK Series Non-Adjustable Micro-Bore Shock Absorber
TK 6M Stroke: 4.0 mm | Max. energy per cycle: 1.0 Nm | Max. energy per hour: 3600 Nm/h | Max. shock force: 360 N | Body thread: M6x0.5 | Damping constant: -1, -2, -3 | Weight: 4 g
TK 8M Stroke: 4.0 mm | Max. energy per cycle: 1.0 Nm | Max. energy per hour: 4800 Nm/h | Max. shock force: 360 N | Body thread: M8x1.0 | Damping constant: -1, -2, -3 | Weight: 6 g
TK 10M Stroke: 6.4 mm | Max. energy per cycle: 6.0 Nm | Max. energy per hour: 13000 Nm/h | Max. shock force: 1400 N | Body thread: M10x1.0 | Damping constant: -1 to -9 | Weight: 17 g
TK 21 Stroke: 6.4 mm | Max. energy per cycle: 2.2 Nm | Max. energy per hour: 4100 Nm/h | Max. shock force: 700 N | Body thread: 3/8-32 UNEF | Damping constant: -1, -2, -3 | Weight: 12 g
TK 21M Stroke: 6.4 mm | Max. energy per cycle: 2.2 Nm | Max. energy per hour: 4100 Nm/h | Max. shock force: 700 N | Body thread: M10x1.0 | Damping constant: -1, -2, -3 | Weight: 12 g
Shock AbsorbersENIDINE
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENIDINE TK Series Non-Adjustable Micro-Bore Shock Absorber

Brand ENIDINE·Shock Absorbers

Available part numbers (5)

TK 6M, TK 8M, TK 10M, TK 21, TK 21M

How to order

Send the ENIDINE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
ENIDINE TK Series Non-Adjustable Micro-Bore Shock Absorber
0 selected
RFQ List (0)
Product codeSpec
TK 6MStroke: 4.0 mm | Max. energy per cycle: 1.0 Nm | Max. energy per hour: 3600 Nm/h | Max. shock force: 360 N | Body thread: M6x0.5 | Damping constant: -1, -2, -3 | Weight: 4 g
TK 8MStroke: 4.0 mm | Max. energy per cycle: 1.0 Nm | Max. energy per hour: 4800 Nm/h | Max. shock force: 360 N | Body thread: M8x1.0 | Damping constant: -1, -2, -3 | Weight: 6 g
TK 10MStroke: 6.4 mm | Max. energy per cycle: 6.0 Nm | Max. energy per hour: 13000 Nm/h | Max. shock force: 1400 N | Body thread: M10x1.0 | Damping constant: -1 to -9 | Weight: 17 g
TK 21Stroke: 6.4 mm | Max. energy per cycle: 2.2 Nm | Max. energy per hour: 4100 Nm/h | Max. shock force: 700 N | Body thread: 3/8-32 UNEF | Damping constant: -1, -2, -3 | Weight: 12 g
TK 21MStroke: 6.4 mm | Max. energy per cycle: 2.2 Nm | Max. energy per hour: 4100 Nm/h | Max. shock force: 700 N | Body thread: M10x1.0 | Damping constant: -1, -2, -3 | Weight: 12 g
