ENIDINE XLR Series Jarret Long-Stroke Elastomer Shock Absorber

ENIDINE XLR Series Jarret Long-Stroke Elastomer Shock Absorber

Long-stroke Jarret visco-elastic shock absorbers with front flange mounting for cranes and heavy handling equipment, 6-150 kJ.

Key features

  • Compressible silicone fluid provides spring return and damping
  • Designed for impact velocities up to 2 m/s

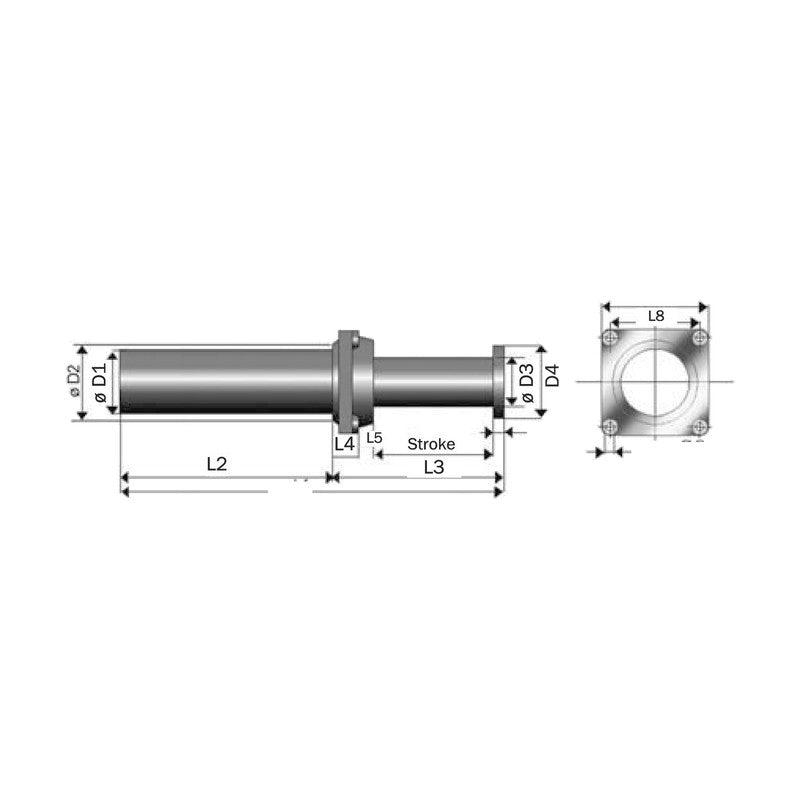

  • Front flange (Fc) mounting; rear flange (Fa) on request

Specifications

Technology Jarret visco-elastic
Max. impact velocity 2 m/s
Operating temperature -10 to +70 C
XLR6-150 Energy capacity: 6 kJ | Stroke: 150 mm | Return force ext./comp.: 2.9/20.5 kN | Max. shock force: 50 kN | Length L1: 410 mm | Mass: 4.2 kg
XLR12-150 Energy capacity: 12 kJ | Stroke: 150 mm | Return force ext./comp.: 8.3/38.5 kN | Max. shock force: 100 kN | Length L1: 480 mm | Mass: 11 kg
XLR12-200 Energy capacity: 12 kJ | Stroke: 200 mm | Return force ext./comp.: 5.6/30.0 kN | Max. shock force: 78 kN | Length L1: 530 mm | Mass: 11 kg
XLR25-200 Energy capacity: 25 kJ | Stroke: 200 mm | Return force ext./comp.: 13.4/74.4 kN | Max. shock force: 150 kN | Length L1: 620 mm | Mass: 20 kg
XLR25-270 Energy capacity: 25 kJ | Stroke: 270 mm | Return force ext./comp.: 11.1/51.4 kN | Max. shock force: 112 kN | Length L1: 690 mm | Mass: 25 kg
XLR50-275 Energy capacity: 50 kJ | Stroke: 275 mm | Return force ext./comp.: 19.7/130.0 kN | Max. shock force: 230 kN | Length L1: 855 mm | Mass: 40 kg
XLR50-400 Energy capacity: 50 kJ | Stroke: 400 mm | Return force ext./comp.: 12.9/83.8 kN | Max. shock force: 150 kN | Length L1: 980 mm | Mass: 40 kg
XLR100-400 Energy capacity: 100 kJ | Stroke: 400 mm | Return force ext./comp.: 25.0/162.5 kN | Max. shock force: 320 kN | Length L1: 1370 mm | Mass: 65 kg
XLR100-600 Energy capacity: 100 kJ | Stroke: 600 mm | Return force ext./comp.: 11.6/132.4 kN | Max. shock force: 230 kN | Length L1: 1570 mm | Mass: 65 kg
XLR150-800 Energy capacity: 150 kJ | Stroke: 800 mm | Return force ext./comp.: 23.2/152.2 kN | Max. shock force: 250 kN | Length L1: 2640 mm | Mass: 115 kg
Industrial BuffersENIDINE
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENIDINE XLR Series Jarret Long-Stroke Elastomer Shock Absorber

Brand ENIDINE·Industrial Buffers

Available part numbers (10)

XLR6-150, XLR12-150, XLR12-200, XLR25-200, XLR25-270, XLR50-275, XLR50-400, XLR100-400, XLR100-600, XLR150-800

How to order

Send the ENIDINE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XLR6-150Energy capacity: 6 kJ | Stroke: 150 mm | Return force ext./comp.: 2.9/20.5 kN | Max. shock force: 50 kN | Length L1: 410 mm | Mass: 4.2 kg
XLR12-150Energy capacity: 12 kJ | Stroke: 150 mm | Return force ext./comp.: 8.3/38.5 kN | Max. shock force: 100 kN | Length L1: 480 mm | Mass: 11 kg
XLR12-200Energy capacity: 12 kJ | Stroke: 200 mm | Return force ext./comp.: 5.6/30.0 kN | Max. shock force: 78 kN | Length L1: 530 mm | Mass: 11 kg
XLR25-200Energy capacity: 25 kJ | Stroke: 200 mm | Return force ext./comp.: 13.4/74.4 kN | Max. shock force: 150 kN | Length L1: 620 mm | Mass: 20 kg
XLR25-270Energy capacity: 25 kJ | Stroke: 270 mm | Return force ext./comp.: 11.1/51.4 kN | Max. shock force: 112 kN | Length L1: 690 mm | Mass: 25 kg
XLR50-275Energy capacity: 50 kJ | Stroke: 275 mm | Return force ext./comp.: 19.7/130.0 kN | Max. shock force: 230 kN | Length L1: 855 mm | Mass: 40 kg
XLR50-400Energy capacity: 50 kJ | Stroke: 400 mm | Return force ext./comp.: 12.9/83.8 kN | Max. shock force: 150 kN | Length L1: 980 mm | Mass: 40 kg
XLR100-400Energy capacity: 100 kJ | Stroke: 400 mm | Return force ext./comp.: 25.0/162.5 kN | Max. shock force: 320 kN | Length L1: 1370 mm | Mass: 65 kg
XLR100-600Energy capacity: 100 kJ | Stroke: 600 mm | Return force ext./comp.: 11.6/132.4 kN | Max. shock force: 230 kN | Length L1: 1570 mm | Mass: 65 kg
XLR150-800Energy capacity: 150 kJ | Stroke: 800 mm | Return force ext./comp.: 23.2/152.2 kN | Max. shock force: 250 kN | Length L1: 2640 mm | Mass: 115 kg
