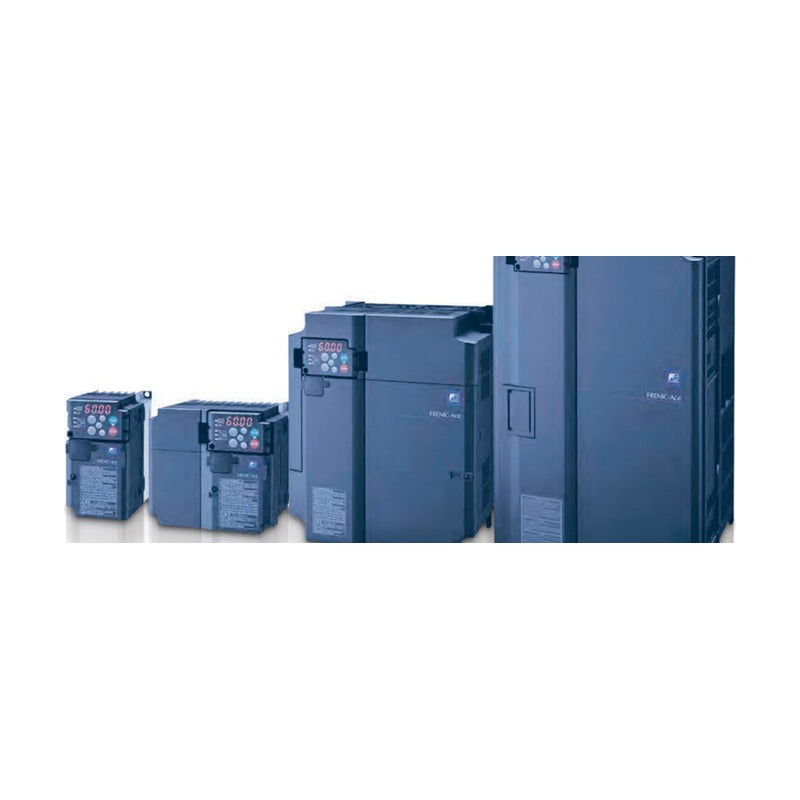

• Fuji Electric FRENIC-Ace (E2) High-Performance Inverters (0.1-315 kW)
1 1

Fuji Electric FRENIC-Ace (E2) High-Performance Inverters (0.1-315 kW)

Fuji Electric FRENIC-Ace (E2) High-Performance Inverters (0.1-315 kW)

FRENIC-Ace E2 high-performance compact inverters from 0.1 to 315 kW with quadruple rating (ND/HD/HND/HHD) for loads from fans and pumps to winders and printing machines.

Key features

  • Quadruple rating: ND, HD, HND and HHD duty selection
  • Customizer logic programming up to 200 steps
  • Option cards: CC-Link, DeviceNet, PROFIBUS-DP, EtherNet/IP, PROFINET-RT, CANopen, PG
  • EMC filter built-in version (E) for 400V class
  • Multi-function keypad TP-A1-E2C option
  • DC reactor and braking resistor options

Specifications

Series FRENIC-Ace (E2)
Overload HHD 150 % 1 min, 200 % 0.5 s
Overload HD 150 % 1 min
Overload ND/HND 120 % 1 min
Order suffix Origin code: GA, GB, C, A, E, U or K (specify)
Structure S = standard (E = EMC filter type, 400V)
Source Fuji Electric FRENIC Series inverter catalogue (KR ed.), p. 25-30
FRN0002E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 0.4 kW / 1.5 A | Max. rating motor / current: ND 0.75 kW / 2.1 A
FRN0004E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 0.75 kW / 2.5 A | Max. rating motor / current: ND 1.5 kW / 4.1 A
FRN0006E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 1.5 kW / 4.2 A | Max. rating motor / current: ND 2.2 kW / 5.5 A
FRN0007E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 2.2 kW / 5.5 A | Max. rating motor / current: ND 3 kW / 6.9 A
FRN0012E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 3.7 kW / 9 A | Max. rating motor / current: ND 5.5 kW / 12 A
FRN0022E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 5.5 kW / 13 A | Max. rating motor / current: ND 11 kW / 21.5 A
FRN0029E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 7.5 kW / 18 A | Max. rating motor / current: ND 15 kW / 28.5 A
FRN0037E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 11 kW / 24 A | Max. rating motor / current: ND 18.5 kW / 37 A
FRN0044E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 15 kW / 30 A | Max. rating motor / current: ND 22 kW / 44 A
FRN0059E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 18.5 kW / 39 A | Max. rating motor / current: ND 30 kW / 59 A
FRN0072E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 22 kW / 45 A | Max. rating motor / current: ND 37 kW / 72 A
FRN0085E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 30 kW / 60 A | Max. rating motor / current: ND 45 kW / 85 A
FRN0105E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 37 kW / 75 A | Max. rating motor / current: ND 55 kW / 105 A
FRN0139E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 45 kW / 91 A | Max. rating motor / current: ND 75 kW / 139 A
FRN0168E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 55 kW / 112 A | Max. rating motor / current: ND 90 kW / 168 A
FRN0203E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 75 kW / 150 A | Max. rating motor / current: ND 110 kW / 203 A
FRN0240E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 90 kW / 176 A | Max. rating motor / current: ND 132 kW / 240 A
FRN0290E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 110 kW / 210 A | Max. rating motor / current: ND 160 kW / 290 A
FRN0361E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 132 kW / 253 A | Max. rating motor / current: ND 200 kW / 361 A
FRN0415E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 160 kW / 304 A | Max. rating motor / current: ND 220 kW / 415 A
FRN0520E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 200 kW / 377 A | Max. rating motor / current: ND 280 kW / 520 A
FRN0590E2S-4 Power supply: 3-ph 380-480V | HHD motor / current: 220 kW / 415 A | Max. rating motor / current: ND 315 kW / 590 A
FRN0001E2S-2 Power supply: 3-ph 200-240V | HHD motor / current: 0.1 kW / 0.8 A | Max. rating motor / current: HND 0.2 kW / 1.3 A
FRN0002E2S-2 Power supply: 3-ph 200-240V | HHD motor / current: 0.2 kW / 1.6 A | Max. rating motor / current: HND 0.4 kW / 2 A
FRN0004E2S-2 Power supply: 3-ph 200-240V | HHD motor / current: 0.4 kW / 3 A | Max. rating motor / current: HND 0.75 kW / 3.5 A
FRN0006E2S-2 Power supply: 3-ph 200-240V | HHD motor / current: 0.75 kW / 5 A | Max. rating motor / current: HND 1.1 kW / 6 A
FRN0010E2S-2 Power supply: 3-ph 200-240V | HHD motor / current: 1.5 kW / 8 A | Max. rating motor / current: HND 2.2 kW / 9.6 A
FRN0012E2S-2 Power supply: 3-ph 200-240V | HHD motor / current: 2.2 kW / 11 A | Max. rating motor / current: HND 3 kW / 12 A
FRN0020E2S-2 Power supply: 3-ph 200-240V | HHD motor / current: 3.7 kW / 17.5 A | Max. rating motor / current: HND 5.5 kW / 19.6 A
FRN0030E2S-2 Power supply: 3-ph 200-240V | HHD motor / current: 5.5 kW / 25 A | Max. rating motor / current: HND 7.5 kW / 30 A
FRN0040E2S-2 Power supply: 3-ph 200-240V | HHD motor / current: 7.5 kW / 33 A | Max. rating motor / current: HND 11 kW / 40 A
FRN0056E2S-2 Power supply: 3-ph 200-240V | HHD motor / current: 11 kW / 47 A | Max. rating motor / current: HND 15 kW / 56 A
FRN0069E2S-2 Power supply: 3-ph 200-240V | HHD motor / current: 15 kW / 60 A | Max. rating motor / current: HND 18.5 kW / 69 A
FRN0088E2S-2 Power supply: 3-ph 200-240V | HHD motor / current: 18.5 kW / 76 A | Max. rating motor / current: HND 22 kW / 88 A
FRN0115E2S-2 Power supply: 3-ph 200-240V | HHD motor / current: 22 kW / 90 A | Max. rating motor / current: HND 30 kW / 115 A
FRN0001E2S-7 Power supply: 1-ph 200-240V | HHD motor / current: 0.1 kW / 0.8 A | Max. rating motor / current: HHD only
FRN0002E2S-7 Power supply: 1-ph 200-240V | HHD motor / current: 0.2 kW / 1.6 A | Max. rating motor / current: HHD only
FRN0003E2S-7 Power supply: 1-ph 200-240V | HHD motor / current: 0.4 kW / 3 A | Max. rating motor / current: HHD only
FRN0005E2S-7 Power supply: 1-ph 200-240V | HHD motor / current: 0.75 kW / 5 A | Max. rating motor / current: HHD only
FRN0008E2S-7 Power supply: 1-ph 200-240V | HHD motor / current: 1.5 kW / 8 A | Max. rating motor / current: HHD only
FRN0011E2S-7 Power supply: 1-ph 200-240V | HHD motor / current: 2.2 kW / 11 A | Max. rating motor / current: HHD only
InvertersFuji Electric
41 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric FRENIC-Ace (E2) High-Performance Inverters (0.1-315 kW)

Brand Fuji Electric·Inverters

Available part numbers (41)

FRN0002E2S-4, FRN0004E2S-4, FRN0006E2S-4, FRN0007E2S-4, FRN0012E2S-4, FRN0022E2S-4, FRN0029E2S-4, FRN0037E2S-4, FRN0044E2S-4, FRN0059E2S-4 + 31 more — see full table ↓
