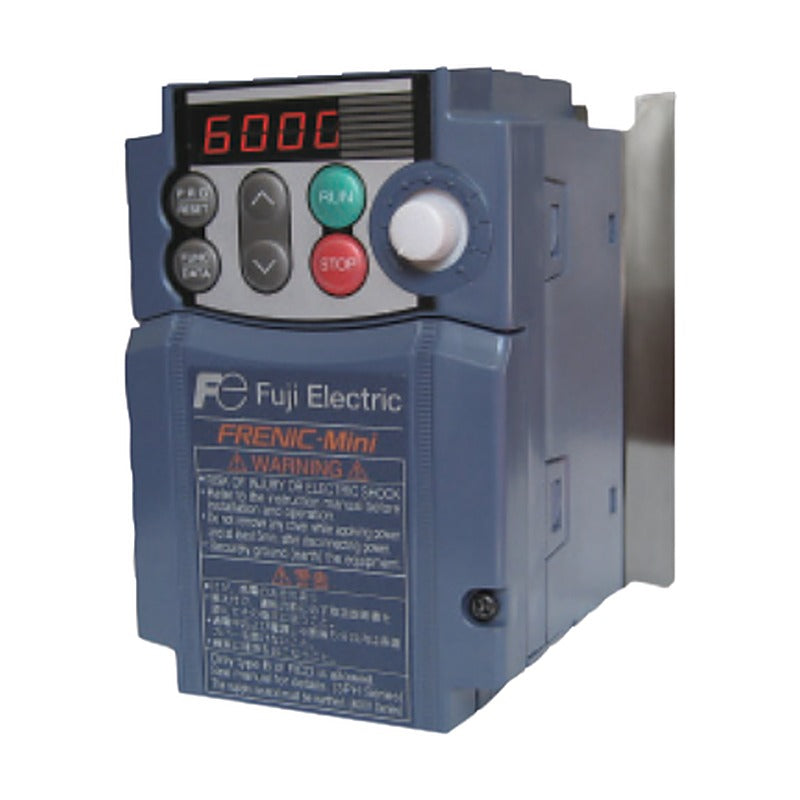

Fuji Electric FRENIC-Mini (C2) Compact Inverters (0.1-15 kW)

Fuji Electric FRENIC-Mini (C2) Compact Inverters (0.1-15 kW)

FRENIC-Mini C2 compact general-purpose inverters for 3-phase 200V/400V and single-phase 200V/100V supplies, 0.1 to 15 kW, IP20 enclosed design.

Key features

  • Higher performance with full compatibility with the previous model
  • Simple operation and improved maintainability
  • Energy-saving operation; RS-485 network as standard
  • V/f control with slip compensation and auto torque boost
  • Built-in braking transistor (except 1-ph 100V 0.1-0.4 kW / 1-ph 200V 0.1-0.2 kW)
  • Overload 150 % 1 min, 200 % 0.5 s

Specifications

Series FRENIC-Mini (C2)
Enclosure IP20 closed type, UL open type
Output frequency 25-400 Hz
Carrier frequency 0.75-16 kHz
Overload rating 150 % 1 min, 200 % 0.5 s
Code suffix -2/-4/-7/-6 = voltage, K = Korea origin
Rated current note At carrier 3 kHz or less
Source Fuji Electric FRENIC Series inverter catalogue (KR ed.), p. 5-7, 11
FRN0.4C2S-2K Power supply: 3-ph 200-240V | Motor: 0.4 kW | Capacity: 1.1 kVA | Rated current: 3 A | Mass: 0.7 kg
FRN0.75C2S-2K Power supply: 3-ph 200-240V | Motor: 0.75 kW | Capacity: 1.9 kVA | Rated current: 5 A | Mass: 0.8 kg
FRN1.5C2S-2K Power supply: 3-ph 200-240V | Motor: 1.5 kW | Capacity: 3 kVA | Rated current: 8 A | Mass: 1.7 kg
FRN2.2C2S-2K Power supply: 3-ph 200-240V | Motor: 2.2 kW | Capacity: 4.2 kVA | Rated current: 11 A | Mass: 1.7 kg
FRN3.7C2S-2K Power supply: 3-ph 200-240V | Motor: 3.7 kW | Capacity: 6.5 kVA | Rated current: 17 A | Mass: 2.5 kg
FRN5.5C2S-2K Power supply: 3-ph 200-240V | Motor: 5.5 kW | Capacity: 9.5 kVA | Rated current: 25 A | Mass: 3.1 kg
FRN7.5C2S-2K Power supply: 3-ph 200-240V | Motor: 7.5 kW | Capacity: 12 kVA | Rated current: 33 A | Mass: 3.1 kg
FRN11C2S-2K Power supply: 3-ph 200-240V | Motor: 11 kW | Capacity: 17 kVA | Rated current: 47 A | Mass: 4.5 kg
FRN15C2S-2K Power supply: 3-ph 200-240V | Motor: 15 kW | Capacity: 22 kVA | Rated current: 60 A | Mass: 4.5 kg
FRN0.4C2S-4K Power supply: 3-ph 380-480V | Motor: 0.4 kW | Capacity: 1.1 kVA | Rated current: 1.5 A | Mass: 1.2 kg
FRN0.75C2S-4K Power supply: 3-ph 380-480V | Motor: 0.75 kW | Capacity: 1.9 kVA | Rated current: 2.5 A | Mass: 1.3 kg
FRN1.5C2S-4K Power supply: 3-ph 380-480V | Motor: 1.5 kW | Capacity: 2.8 kVA | Rated current: 3.7 A | Mass: 1.7 kg
FRN2.2C2S-4K Power supply: 3-ph 380-480V | Motor: 2.2 kW | Capacity: 4.1 kVA | Rated current: 5.5 A | Mass: 1.7 kg
FRN3.7C2S-4K Power supply: 3-ph 380-480V | Motor: 3.7 kW | Capacity: 6.8 kVA | Rated current: 9 A | Mass: 2.5 kg
FRN5.5C2S-4K Power supply: 3-ph 380-480V | Motor: 5.5 kW | Capacity: 9.9 kVA | Rated current: 13 A | Mass: 3.1 kg
FRN7.5C2S-4K Power supply: 3-ph 380-480V | Motor: 7.5 kW | Capacity: 13 kVA | Rated current: 18 A | Mass: 3.1 kg
FRN11C2S-4K Power supply: 3-ph 380-480V | Motor: 11 kW | Capacity: 18 kVA | Rated current: 24 A | Mass: 4.5 kg
FRN15C2S-4K Power supply: 3-ph 380-480V | Motor: 15 kW | Capacity: 22 kVA | Rated current: 30 A | Mass: 4.5 kg
FRN0.1C2S-7K Power supply: 1-ph 200-240V | Motor: 0.1 kW | Capacity: 0.3 kVA | Rated current: 0.8 A | Mass: 0.6 kg
FRN0.2C2S-7K Power supply: 1-ph 200-240V | Motor: 0.2 kW | Capacity: 0.57 kVA | Rated current: 1.5 A | Mass: 0.6 kg
FRN0.4C2S-7K Power supply: 1-ph 200-240V | Motor: 0.4 kW | Capacity: 1.1 kVA | Rated current: 3 A | Mass: 0.7 kg
FRN0.75C2S-7K Power supply: 1-ph 200-240V | Motor: 0.75 kW | Capacity: 1.9 kVA | Rated current: 5 A | Mass: 0.9 kg
FRN1.5C2S-7K Power supply: 1-ph 200-240V | Motor: 1.5 kW | Capacity: 3 kVA | Rated current: 8 A | Mass: 1.8 kg
FRN2.2C2S-7K Power supply: 1-ph 200-240V | Motor: 2.2 kW | Capacity: 4.1 kVA | Rated current: 11 A | Mass: 2.5 kg
FRN0.1C2S-6K Power supply: 1-ph 100-120V | Motor: 0.1 kW | Capacity: 0.26 kVA | Rated current: 0.7 A | Mass: 0.7 kg
FRN0.2C2S-6K Power supply: 1-ph 100-120V | Motor: 0.2 kW | Capacity: 0.53 kVA | Rated current: 1.4 A | Mass: 0.7 kg
FRN0.4C2S-6K Power supply: 1-ph 100-120V | Motor: 0.4 kW | Capacity: 0.95 kVA | Rated current: 2.5 A | Mass: 0.8 kg
FRN0.75C2S-6K Power supply: 1-ph 100-120V | Motor: 0.75 kW | Capacity: 1.6 kVA | Rated current: 4.2 A | Mass: 1.3 kg
InvertersFuji Electric
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric FRENIC-Mini (C2) Compact Inverters (0.1-15 kW)

Brand Fuji Electric·Inverters

Available part numbers (28)

FRN0.4C2S-2K, FRN0.75C2S-2K, FRN1.5C2S-2K, FRN2.2C2S-2K, FRN3.7C2S-2K, FRN5.5C2S-2K, FRN7.5C2S-2K, FRN11C2S-2K, FRN15C2S-2K, FRN0.4C2S-4K + 18 more — see full table ↓

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FRN0.4C2S-2KPower supply: 3-ph 200-240V | Motor: 0.4 kW | Capacity: 1.1 kVA | Rated current: 3 A | Mass: 0.7 kg
FRN0.75C2S-2KPower supply: 3-ph 200-240V | Motor: 0.75 kW | Capacity: 1.9 kVA | Rated current: 5 A | Mass: 0.8 kg
FRN1.5C2S-2KPower supply: 3-ph 200-240V | Motor: 1.5 kW | Capacity: 3 kVA | Rated current: 8 A | Mass: 1.7 kg
FRN2.2C2S-2KPower supply: 3-ph 200-240V | Motor: 2.2 kW | Capacity: 4.2 kVA | Rated current: 11 A | Mass: 1.7 kg
FRN3.7C2S-2KPower supply: 3-ph 200-240V | Motor: 3.7 kW | Capacity: 6.5 kVA | Rated current: 17 A | Mass: 2.5 kg
FRN5.5C2S-2KPower supply: 3-ph 200-240V | Motor: 5.5 kW | Capacity: 9.5 kVA | Rated current: 25 A | Mass: 3.1 kg
FRN7.5C2S-2KPower supply: 3-ph 200-240V | Motor: 7.5 kW | Capacity: 12 kVA | Rated current: 33 A | Mass: 3.1 kg
FRN11C2S-2KPower supply: 3-ph 200-240V | Motor: 11 kW | Capacity: 17 kVA | Rated current: 47 A | Mass: 4.5 kg
FRN15C2S-2KPower supply: 3-ph 200-240V | Motor: 15 kW | Capacity: 22 kVA | Rated current: 60 A | Mass: 4.5 kg
FRN0.4C2S-4KPower supply: 3-ph 380-480V | Motor: 0.4 kW | Capacity: 1.1 kVA | Rated current: 1.5 A | Mass: 1.2 kg
FRN0.75C2S-4KPower supply: 3-ph 380-480V | Motor: 0.75 kW | Capacity: 1.9 kVA | Rated current: 2.5 A | Mass: 1.3 kg
FRN1.5C2S-4KPower supply: 3-ph 380-480V | Motor: 1.5 kW | Capacity: 2.8 kVA | Rated current: 3.7 A | Mass: 1.7 kg
FRN2.2C2S-4KPower supply: 3-ph 380-480V | Motor: 2.2 kW | Capacity: 4.1 kVA | Rated current: 5.5 A | Mass: 1.7 kg
FRN3.7C2S-4KPower supply: 3-ph 380-480V | Motor: 3.7 kW | Capacity: 6.8 kVA | Rated current: 9 A | Mass: 2.5 kg
FRN5.5C2S-4KPower supply: 3-ph 380-480V | Motor: 5.5 kW | Capacity: 9.9 kVA | Rated current: 13 A | Mass: 3.1 kg
FRN7.5C2S-4KPower supply: 3-ph 380-480V | Motor: 7.5 kW | Capacity: 13 kVA | Rated current: 18 A | Mass: 3.1 kg
FRN11C2S-4KPower supply: 3-ph 380-480V | Motor: 11 kW | Capacity: 18 kVA | Rated current: 24 A | Mass: 4.5 kg
FRN15C2S-4KPower supply: 3-ph 380-480V | Motor: 15 kW | Capacity: 22 kVA | Rated current: 30 A | Mass: 4.5 kg
FRN0.1C2S-7KPower supply: 1-ph 200-240V | Motor: 0.1 kW | Capacity: 0.3 kVA | Rated current: 0.8 A | Mass: 0.6 kg
FRN0.2C2S-7KPower supply: 1-ph 200-240V | Motor: 0.2 kW | Capacity: 0.57 kVA | Rated current: 1.5 A | Mass: 0.6 kg
FRN0.4C2S-7KPower supply: 1-ph 200-240V | Motor: 0.4 kW | Capacity: 1.1 kVA | Rated current: 3 A | Mass: 0.7 kg
FRN0.75C2S-7KPower supply: 1-ph 200-240V | Motor: 0.75 kW | Capacity: 1.9 kVA | Rated current: 5 A | Mass: 0.9 kg
FRN1.5C2S-7KPower supply: 1-ph 200-240V | Motor: 1.5 kW | Capacity: 3 kVA | Rated current: 8 A | Mass: 1.8 kg
FRN2.2C2S-7KPower supply: 1-ph 200-240V | Motor: 2.2 kW | Capacity: 4.1 kVA | Rated current: 11 A | Mass: 2.5 kg
FRN0.1C2S-6KPower supply: 1-ph 100-120V | Motor: 0.1 kW | Capacity: 0.26 kVA | Rated current: 0.7 A | Mass: 0.7 kg
FRN0.2C2S-6KPower supply: 1-ph 100-120V | Motor: 0.2 kW | Capacity: 0.53 kVA | Rated current: 1.4 A | Mass: 0.7 kg
FRN0.4C2S-6KPower supply: 1-ph 100-120V | Motor: 0.4 kW | Capacity: 0.95 kVA | Rated current: 2.5 A | Mass: 0.8 kg
FRN0.75C2S-6KPower supply: 1-ph 100-120V | Motor: 0.75 kW | Capacity: 1.6 kVA | Rated current: 4.2 A | Mass: 1.3 kg
