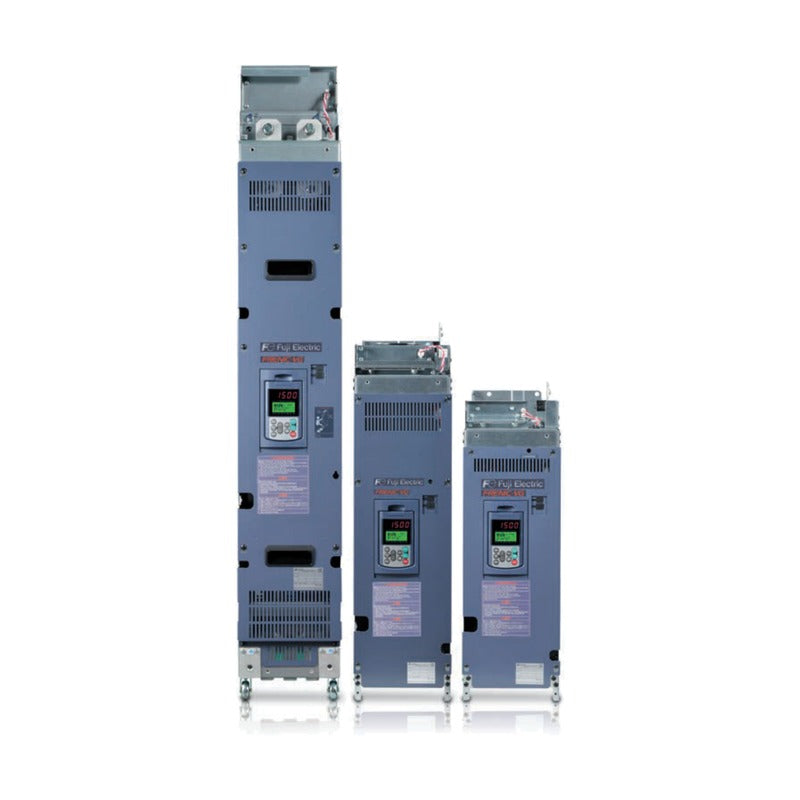

Fuji Electric FRENIC-VG (VG1) Vector Control Inverters, Stack Type

Fuji Electric FRENIC-VG (VG1) Vector Control Inverters, Stack Type

FRENIC-VG stack-type vector control inverters for 400V (30-800 kW MD) and 690V (90-450 kW MD) systems, supplied from a diode rectifier or PWM converter DC bus; parallel connection extends capacity.

Key features

  • DC-input stack design for large drive systems
  • Phase-separated (B) stacks for 630-800 kW
  • Direct parallel connection up to 2400 kW (MD) / 3000 kW (LD)
  • MD rating 150 % 1 min, LD rating 110 % 1 min
  • Used with RHC-D PWM converters or RHD-D diode rectifiers

Specifications

Series FRENIC-VG (VG1) stack
Main power DC input (diode rectifier or PWM converter)
Protection IP00 open type
Carrier frequency 2 kHz
Order suffix (400V) Manual language J/E/C (specify)
Source Fuji Electric FRENIC Series inverter catalogue (KR ed.), p. 73-74, 86-87
FRN30SVG1S-4 Power supply: 3-ph 400V | Form: Stack | MD motor / current: 30 kW / 60 A | LD motor: 37 kW
FRN37SVG1S-4 Power supply: 3-ph 400V | Form: Stack | MD motor / current: 37 kW / 75 A | LD motor: 45 kW
FRN45SVG1S-4 Power supply: 3-ph 400V | Form: Stack | MD motor / current: 45 kW / 91 A | LD motor: 55 kW
FRN55SVG1S-4 Power supply: 3-ph 400V | Form: Stack | MD motor / current: 55 kW / 112 A | LD motor: 75 kW
FRN75SVG1S-4 Power supply: 3-ph 400V | Form: Stack | MD motor / current: 75 kW / 150 A | LD motor: 90 kW
FRN90SVG1S-4 Power supply: 3-ph 400V | Form: Stack | MD motor / current: 90 kW / 176 A | LD motor: 110 kW
FRN110SVG1S-4 Power supply: 3-ph 400V | Form: Stack | MD motor / current: 110 kW / 210 A | LD motor: 132 kW
FRN132SVG1S-4 Power supply: 3-ph 400V | Form: Stack | MD motor / current: 132 kW / 253 A | LD motor: 160 kW
FRN160SVG1S-4 Power supply: 3-ph 400V | Form: Stack | MD motor / current: 160 kW / 304 A | LD motor: 200 kW
FRN200SVG1S-4 Power supply: 3-ph 400V | Form: Stack | MD motor / current: 200 kW / 377 A | LD motor: 220 kW
FRN220SVG1S-4 Power supply: 3-ph 400V | Form: Stack | MD motor / current: 220 kW / 415 A | LD motor: 250 kW
FRN250SVG1S-4 Power supply: 3-ph 400V | Form: Stack | MD motor / current: 250 kW / 468 A | LD motor: 280 kW
FRN280SVG1S-4 Power supply: 3-ph 400V | Form: Stack | MD motor / current: 280 kW / 520 A | LD motor: 315 kW
FRN315SVG1S-4 Power supply: 3-ph 400V | Form: Stack | MD motor / current: 315 kW / 585 A | LD motor: 355 kW
FRN630BVG1S-4 Power supply: 3-ph 400V | Form: Phase-separated stack | MD motor / current: 630 kW / 1170 A | LD motor: 710 kW
FRN710BVG1S-4 Power supply: 3-ph 400V | Form: Phase-separated stack | MD motor / current: 710 kW / 1370 A | LD motor: 800 kW
FRN800BVG1S-4 Power supply: 3-ph 400V | Form: Phase-separated stack | MD motor / current: 800 kW / 1480 A | LD motor: 1000 kW
FRN90SVG1S-69J Power supply: 3-ph 690V | Form: Stack | MD motor / current: 90 kW / 100 A | LD motor: 110 kW
FRN110SVG1S-69J Power supply: 3-ph 690V | Form: Stack | MD motor / current: 110 kW / 130 A | LD motor: 132 kW
FRN132SVG1S-69J Power supply: 3-ph 690V | Form: Stack | MD motor / current: 132 kW / 140 A | LD motor: 160 kW
FRN160SVG1S-69J Power supply: 3-ph 690V | Form: Stack | MD motor / current: 160 kW / 161 A | LD motor: 200 kW
FRN200SVG1S-69J Power supply: 3-ph 690V | Form: Stack | MD motor / current: 200 kW / 216 A | LD motor: 220 kW
FRN250SVG1S-69J Power supply: 3-ph 690V | Form: Stack | MD motor / current: 250 kW / 265 A | LD motor: 280 kW
FRN280SVG1S-69J Power supply: 3-ph 690V | Form: Stack | MD motor / current: 280 kW / 295 A | LD motor: 315 kW
FRN315SVG1S-69J Power supply: 3-ph 690V | Form: Stack | MD motor / current: 315 kW / 330 A | LD motor: 355 kW
FRN355SVG1S-69J Power supply: 3-ph 690V | Form: Stack | MD motor / current: 355 kW / 365 A | LD motor: 400 kW
FRN400SVG1S-69J Power supply: 3-ph 690V | Form: Stack | MD motor / current: 400 kW / 410 A | LD motor: 450 kW
FRN450SVG1S-69J Power supply: 3-ph 690V | Form: Stack | MD motor / current: 450 kW / 460 A | LD motor: -
InvertersFuji Electric
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric FRENIC-VG (VG1) Vector Control Inverters, Stack Type

Brand Fuji Electric·Inverters

Available part numbers (28)

FRN30SVG1S-4, FRN37SVG1S-4, FRN45SVG1S-4, FRN55SVG1S-4, FRN75SVG1S-4, FRN90SVG1S-4, FRN110SVG1S-4, FRN132SVG1S-4, FRN160SVG1S-4, FRN200SVG1S-4 + 18 more — see full table ↓

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FRN30SVG1S-4Power supply: 3-ph 400V | Form: Stack | MD motor / current: 30 kW / 60 A | LD motor: 37 kW
FRN37SVG1S-4Power supply: 3-ph 400V | Form: Stack | MD motor / current: 37 kW / 75 A | LD motor: 45 kW
FRN45SVG1S-4Power supply: 3-ph 400V | Form: Stack | MD motor / current: 45 kW / 91 A | LD motor: 55 kW
FRN55SVG1S-4Power supply: 3-ph 400V | Form: Stack | MD motor / current: 55 kW / 112 A | LD motor: 75 kW
FRN75SVG1S-4Power supply: 3-ph 400V | Form: Stack | MD motor / current: 75 kW / 150 A | LD motor: 90 kW
FRN90SVG1S-4Power supply: 3-ph 400V | Form: Stack | MD motor / current: 90 kW / 176 A | LD motor: 110 kW
FRN110SVG1S-4Power supply: 3-ph 400V | Form: Stack | MD motor / current: 110 kW / 210 A | LD motor: 132 kW
FRN132SVG1S-4Power supply: 3-ph 400V | Form: Stack | MD motor / current: 132 kW / 253 A | LD motor: 160 kW
FRN160SVG1S-4Power supply: 3-ph 400V | Form: Stack | MD motor / current: 160 kW / 304 A | LD motor: 200 kW
FRN200SVG1S-4Power supply: 3-ph 400V | Form: Stack | MD motor / current: 200 kW / 377 A | LD motor: 220 kW
FRN220SVG1S-4Power supply: 3-ph 400V | Form: Stack | MD motor / current: 220 kW / 415 A | LD motor: 250 kW
FRN250SVG1S-4Power supply: 3-ph 400V | Form: Stack | MD motor / current: 250 kW / 468 A | LD motor: 280 kW
FRN280SVG1S-4Power supply: 3-ph 400V | Form: Stack | MD motor / current: 280 kW / 520 A | LD motor: 315 kW
FRN315SVG1S-4Power supply: 3-ph 400V | Form: Stack | MD motor / current: 315 kW / 585 A | LD motor: 355 kW
FRN630BVG1S-4Power supply: 3-ph 400V | Form: Phase-separated stack | MD motor / current: 630 kW / 1170 A | LD motor: 710 kW
FRN710BVG1S-4Power supply: 3-ph 400V | Form: Phase-separated stack | MD motor / current: 710 kW / 1370 A | LD motor: 800 kW
FRN800BVG1S-4Power supply: 3-ph 400V | Form: Phase-separated stack | MD motor / current: 800 kW / 1480 A | LD motor: 1000 kW
FRN90SVG1S-69JPower supply: 3-ph 690V | Form: Stack | MD motor / current: 90 kW / 100 A | LD motor: 110 kW
FRN110SVG1S-69JPower supply: 3-ph 690V | Form: Stack | MD motor / current: 110 kW / 130 A | LD motor: 132 kW
FRN132SVG1S-69JPower supply: 3-ph 690V | Form: Stack | MD motor / current: 132 kW / 140 A | LD motor: 160 kW
FRN160SVG1S-69JPower supply: 3-ph 690V | Form: Stack | MD motor / current: 160 kW / 161 A | LD motor: 200 kW
FRN200SVG1S-69JPower supply: 3-ph 690V | Form: Stack | MD motor / current: 200 kW / 216 A | LD motor: 220 kW
FRN250SVG1S-69JPower supply: 3-ph 690V | Form: Stack | MD motor / current: 250 kW / 265 A | LD motor: 280 kW
FRN280SVG1S-69JPower supply: 3-ph 690V | Form: Stack | MD motor / current: 280 kW / 295 A | LD motor: 315 kW
FRN315SVG1S-69JPower supply: 3-ph 690V | Form: Stack | MD motor / current: 315 kW / 330 A | LD motor: 355 kW
FRN355SVG1S-69JPower supply: 3-ph 690V | Form: Stack | MD motor / current: 355 kW / 365 A | LD motor: 400 kW
FRN400SVG1S-69JPower supply: 3-ph 690V | Form: Stack | MD motor / current: 400 kW / 410 A | LD motor: 450 kW
FRN450SVG1S-69JPower supply: 3-ph 690V | Form: Stack | MD motor / current: 450 kW / 460 A | LD motor: -
