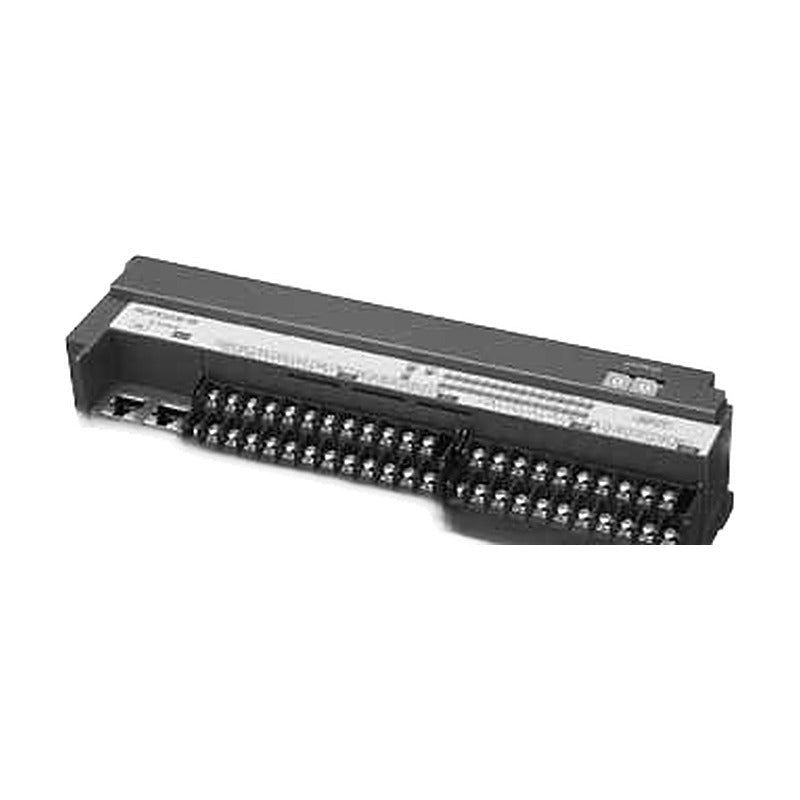

Fuji Electric MICREX-SX E-SX Bus Remote I/O Units (NU2)

Fuji Electric MICREX-SX E-SX Bus Remote I/O Units (NU2)

Separately installed I/O units that connect directly to the 100 Mbps E-SX bus of the MICREX-SX SPH3000MM, plus the E-SX aggregated interface module and power auxiliary unit.

Key features

  • Direct connection to the 100 Mbps E-SX bus
  • Digital 32-point input and output units
  • High-speed 15-bit analog input/output with 25 us conversion
  • 4 Mbps high-speed counter unit
  • DIN-rail mounting, removable M3 screw terminals

Specifications

Series MICREX-SX E-SX bus
Host CPU SPH3000MM (NP1PU2)
Bus cable NU1C-xx
Station distance Up to 100 m
Mounting DIN rail, separately installed
Source Fuji Electric MICREX-SX SPH catalogue (KR ed.), p. 26-28, 122
NP1L-RU1 Type: Interface module | Specification: E-SX bus aggregated interface module | Connection: -
NU2X3206-W Type: Digital input unit | Specification: DC24V, 32 points, 7 mA, 0-100 ms filter | Connection: Screw terminal
NU2Y32T09P6 Type: Digital output unit | Specification: Tr sink DC12-24V, 32 pts, 0.6 A/pt | Connection: Screw terminal
NU2AXH2-MR Type: Analog input unit | Specification: Multi-range 2ch, 15-bit, 25 us | Connection: Screw terminal
NU2AYH2V-MR Type: Analog output unit | Specification: Multi-range 2ch voltage, 15-bit, 25 us | Connection: Screw terminal
NU2F-HC2 Type: High-speed counter unit | Specification: 4 Mbps line drv / 1 Mbps open coll. | Connection: -
NU2V-PA1 Type: Power auxiliary unit | Specification: Supplies DC24V within the E-SX bus | Connection: -
PLC ModulesFuji Electric
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric MICREX-SX E-SX Bus Remote I/O Units (NU2)

Brand Fuji Electric·PLC Modules

Available part numbers (7)

NP1L-RU1, NU2X3206-W, NU2Y32T09P6, NU2AXH2-MR, NU2AYH2V-MR, NU2F-HC2, NU2V-PA1

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NP1L-RU1Type: Interface module | Specification: E-SX bus aggregated interface module | Connection: -
NU2X3206-WType: Digital input unit | Specification: DC24V, 32 points, 7 mA, 0-100 ms filter | Connection: Screw terminal
NU2Y32T09P6Type: Digital output unit | Specification: Tr sink DC12-24V, 32 pts, 0.6 A/pt | Connection: Screw terminal
NU2AXH2-MRType: Analog input unit | Specification: Multi-range 2ch, 15-bit, 25 us | Connection: Screw terminal
NU2AYH2V-MRType: Analog output unit | Specification: Multi-range 2ch voltage, 15-bit, 25 us | Connection: Screw terminal
NU2F-HC2Type: High-speed counter unit | Specification: 4 Mbps line drv / 1 Mbps open coll. | Connection: -
NU2V-PA1Type: Power auxiliary unit | Specification: Supplies DC24V within the E-SX bus | Connection: -
