Fuji Electric MICREX-SX PCI Bus CPU & Interface Boards

Fuji Electric MICREX-SX PCI Bus CPU & Interface Boards

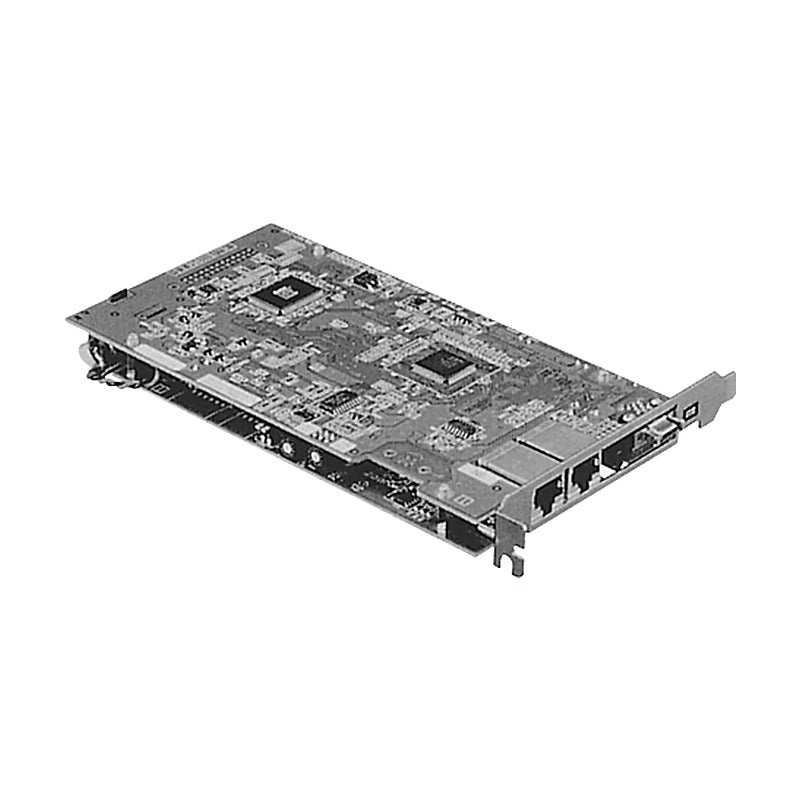

PCI-bus boards that bring MICREX-SX functions into a PC: SPH300-equivalent CPU boards with SX bus expansion connector, and FL-net and LE-net loop 2 interface boards.

Key features

  • CPU boards equivalent to NP1PS-32R / NP1PS-74R modules
  • SX bus expansion connector to drive displays, remote I/O, servos
  • 8K-word dual-port memory for fast PC data exchange
  • Programmable with Expert (D300win) installed on the PC
  • FL-net (OPCN-2) Ver 2.0 and LE-net loop 2 interface boards

Specifications

Series MICREX-SX
Bus PCI
Supplied with Driver CD (CPU boards also battery, 2 SX bus plugs, mode key)
PC programming Expert (D300win)
Data exchange 8K-word dual-port memory (CPU boards)
Source Fuji Electric MICREX-SX SPH catalogue (KR ed.), p. 100-102, 125
NP3PS-SX1PCS32 Type: SPH300 CPU board | Specification: 32K steps | Equivalent module: NP1PS-32R
NP3PS-SX1PCS74 Type: SPH300 CPU board | Specification: 74K steps | Equivalent module: NP1PS-74R
NP3L-LL2PCS Type: LE-net loop 2 board | Specification: PCI interface board | Equivalent module: NP1L-LL2
NP3L-FL3PCS Type: FL-net (OPCN-2) Ver 2.0 board | Specification: 10/100 Mbps | Equivalent module: NP1L-FL3
PLC ModulesFuji Electric
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric MICREX-SX PCI Bus CPU & Interface Boards

Brand Fuji Electric·PLC Modules

Available part numbers (4)

NP3PS-SX1PCS32, NP3PS-SX1PCS74, NP3L-LL2PCS, NP3L-FL3PCS

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NP3PS-SX1PCS32Type: SPH300 CPU board | Specification: 32K steps | Equivalent module: NP1PS-32R
NP3PS-SX1PCS74Type: SPH300 CPU board | Specification: 74K steps | Equivalent module: NP1PS-74R
NP3L-LL2PCSType: LE-net loop 2 board | Specification: PCI interface board | Equivalent module: NP1L-LL2
NP3L-FL3PCSType: FL-net (OPCN-2) Ver 2.0 board | Specification: 10/100 Mbps | Equivalent module: NP1L-FL3
