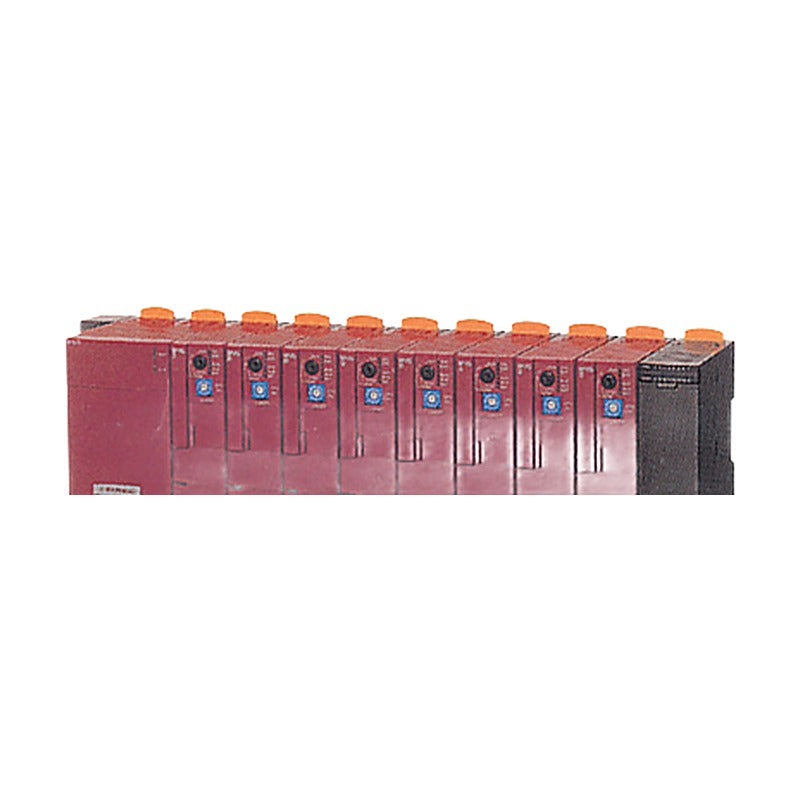

Fuji Electric MICREX-SX SPH Analog I/O Modules (NP1AX / NP1AY / NP1AW)

Fuji Electric MICREX-SX SPH Analog I/O Modules (NP1AX / NP1AY / NP1AW)

Analog input, output and mixed modules for MICREX-SX SPH, including multi-range voltage/current, RTD, thermocouple and distributor inputs with up to 16-bit resolution.

Key features

  • Multi-range voltage/current inputs, 4 or 8 channels
  • High-speed 14-bit and channel-isolated 16-bit types
  • RTD (Pt100/JPt100) and thermocouple input modules (JIS, IEC, ASTM, DIN)
  • Distributor module for 2-wire 4-20 mA transmitters
  • Analog outputs 2-8 channels incl. redundancy type
  • Screw terminal connection

Specifications

Series MICREX-SX SPH
Mounting NP1B base board
Terminal Screw terminal block
Standards CE / UL / LR / NK per model
Operating temperature 0 to +55 C
Source Fuji Electric MICREX-SX SPH catalogue (KR ed.), p. 34-40, 123
NP1AX04-MR Type: Analog input | Channels: 4 | Resolution / accuracy: 10-bit | Signal: Multi-range | Feature: Standard
NP1AXH4-MR Type: Analog input | Channels: 4 | Resolution / accuracy: 14-bit | Signal: Multi-range | Feature: High-speed
NP1AX08V-MR Type: Analog input | Channels: 8 | Resolution / accuracy: 10-bit | Signal: Multi-range voltage | Feature: Standard
NP1AX08I-MR Type: Analog input | Channels: 8 | Resolution / accuracy: 10-bit | Signal: Multi-range current | Feature: Standard
NP1AXH8V-MR Type: Analog input | Channels: 8 | Resolution / accuracy: 14-bit | Signal: Multi-range voltage | Feature: High-speed
NP1AXH8I-MR Type: Analog input | Channels: 8 | Resolution / accuracy: 14-bit | Signal: Multi-range current | Feature: High-speed
NP1AXH8VG-MR Type: Analog input | Channels: 8 | Resolution / accuracy: 16-bit | Signal: Multi-range voltage | Feature: Channel isolated
NP1AXH8IG-MR Type: Analog input | Channels: 8 | Resolution / accuracy: 16-bit | Signal: Multi-range current | Feature: Channel isolated
NP1AXH4-PT Type: RTD input | Channels: 4 | Resolution / accuracy: +/-0.3 % (18-28 C) | Signal: Pt100 / JPt100 | Feature: Standard
NP1AXH6G-PT Type: RTD input | Channels: 6 | Resolution / accuracy: +/-0.05-0.07 % (18-28 C) | Signal: Pt100 / JPt100 | Feature: High accuracy
NP1AXH4-TC Type: Thermocouple input | Channels: 4 | Resolution / accuracy: +/-0.3 % (18-28 C) | Signal: Thermocouple | Feature: Standard
NP1AXH8G-TC Type: Thermocouple input | Channels: 8 | Resolution / accuracy: +/-0.05-0.26 % (18-28 C) | Signal: Thermocouple | Feature: High accuracy
NP1AXH4DG-MR Type: Distributor input | Channels: 4 | Resolution / accuracy: 16-bit, +/-0.1 % F.S. | Signal: 2-wire transmitter | Feature: Channel isolated, high withstand
NP1AY02-MR Type: Analog output | Channels: 2 | Resolution / accuracy: 10-bit | Signal: Multi-range | Feature: Standard
NP1AYH2-MR Type: Analog output | Channels: 2 | Resolution / accuracy: 14-bit | Signal: Multi-range | Feature: High-speed
NP1AYH4V-MR Type: Analog output | Channels: 4 | Resolution / accuracy: 14-bit | Signal: Multi-range voltage | Feature: High-speed
NP1AYH4I-MR Type: Analog output | Channels: 4 | Resolution / accuracy: 14-bit | Signal: Multi-range current | Feature: High-speed
NP1AYH4VG-MR Type: Analog output | Channels: 4 | Resolution / accuracy: 14-bit | Signal: Multi-range voltage | Feature: Channel isolated
NP1AYH4IG-MR Type: Analog output | Channels: 4 | Resolution / accuracy: 14-bit | Signal: Multi-range current | Feature: Channel isolated
NP1AYH8V-MR Type: Analog output | Channels: 8 | Resolution / accuracy: 14-bit | Signal: Multi-range voltage | Feature: High-speed
NP1AYH8I-MR Type: Analog output | Channels: 8 | Resolution / accuracy: 14-bit | Signal: Multi-range current | Feature: High-speed
NP1AYH8VHR-MR Type: Analog output | Channels: 8 | Resolution / accuracy: 14-bit | Signal: Multi-range voltage | Feature: Redundancy
NP1AWH6-MR Type: Analog input/output | Channels: 4 in + 2 out | Resolution / accuracy: 14-bit | Signal: Multi-range | Feature: High-speed
