• Fuji Electric MICREX-SX SPH Communication Modules (NP1L / NP2L)
1 1

Fuji Electric MICREX-SX SPH Communication Modules (NP1L / NP2L)

Fuji Electric MICREX-SX SPH Communication Modules (NP1L / NP2L)

Computer-, controller- and device-level communication modules for MICREX-SX SPH: Ethernet/Web, FL-net, LonWorks, P/PE-link, LE-net, RS-232C/485, OPCN-1, DeviceNet, T-link, PROFIBUS-DP, AS-i, S-LINK and SX bus extension units.

Key features

  • Ethernet and Web server modules for remote monitoring
  • FL-net (OPCN-2) Ver 2.0 controller network
  • Masters, slaves and interface modules for OPCN-1, DeviceNet, T-link, PROFIBUS-DP
  • General-purpose RS-232C/RS-485 modules with extended FB protocols
  • Bit-level AS-i, S-LINK and UNI-WIRE/AnyWire masters
  • SX bus optical converters, repeater and duplex units

Specifications

Series MICREX-SX SPH
Mounting NP1B base board (NP2L/FNC: separate units)
Standards CE / UL per model
Operating temperature 0 to +55 C
Accessories Connectors / terminators supplied per model
Source Fuji Electric MICREX-SX SPH catalogue (KR ed.), p. 46-72, 103, 124

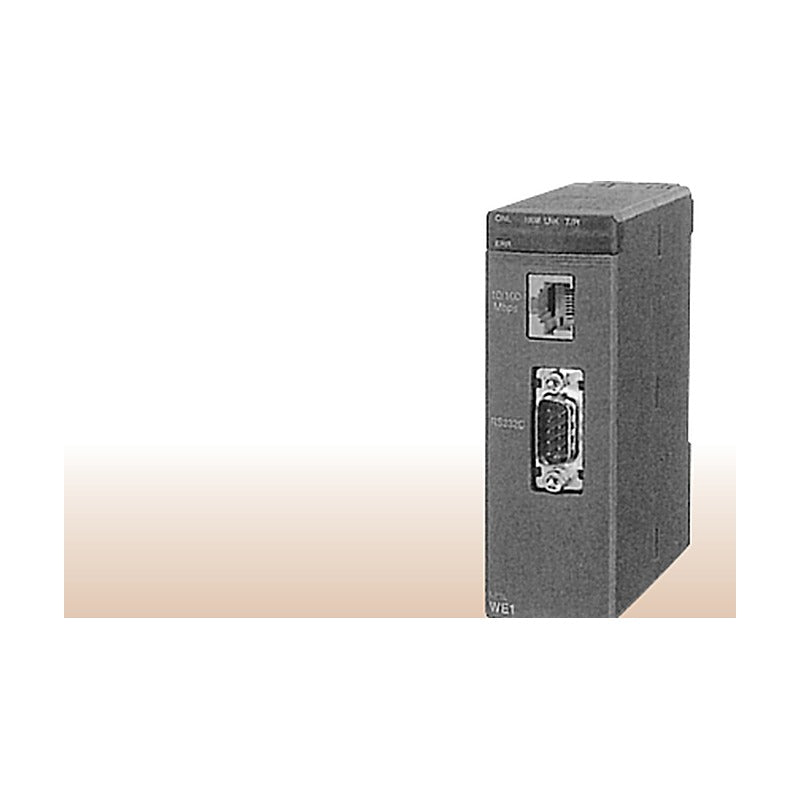

NP1L-WE1 Network: Ethernet (Web) | Role: Web module | Detail: 10BASE-T/100BASE-TX, web server
NP1L-ET1 Network: Ethernet | Role: Interface module | Detail: 10BASE-T/100BASE-TX
NP1L-FL3 Network: FL-net (OPCN-2) Ver 2.0 | Role: Interface module | Detail: 10/100 Mbps
NP1L-LW1 Network: LonWorks | Role: Interface module | Detail: 1 channel, 78 kbps
NP1L-PL1 Network: P-link | Role: Link module | Detail: With P/PE link connector
NP1L-PE1 Network: PE-link | Role: Link module | Detail: With P/PE link connector
NP1L-LE1 Network: LE-net | Role: Link module | Detail: -
NP1L-LL2 Network: LE-net loop 2 | Role: Link module | Detail: -
NP1L-RS1 Network: RS-232C + RS-485 | Role: General-purpose comm. | Detail: 1 ch each, connectors
NP1L-RS2 Network: RS-232C | Role: General-purpose comm. | Detail: 1 ch, connector
NP1L-RS3 Network: RS-232C | Role: General-purpose comm. | Detail: 2 ch
NP1L-RS4 Network: RS-485 | Role: General-purpose comm. | Detail: 1 ch, connector
NP1L-RS5 Network: RS-485 | Role: General-purpose comm. | Detail: 2 ch, screw terminal
NP1L-JP1 Network: OPCN-1 | Role: Master | Detail: With connector, 2 terminators
NP1L-JS1 Network: OPCN-1 | Role: Slave | Detail: With connector
NP1L-RJ1 Network: OPCN-1 | Role: Interface module | Detail: With connector, 2 SX bus plugs
NP1L-DN1 Network: DeviceNet | Role: Master | Detail: With screw connector
NP1L-DS1 Network: DeviceNet | Role: Slave | Detail: 1 ch, screw connector
NP1L-RD1 Network: DeviceNet | Role: Interface module | Detail: 1 ch, 2 SX bus plugs
NP1L-TL1 Network: T-link | Role: Master | Detail: With connector, terminator
NP1L-RT1 Network: T-link | Role: Interface module | Detail: With connector, 2 SX bus plugs
NP1L-TS1 Network: T-link | Role: Slave | Detail: With connector
NP1L-PD1 Network: PROFIBUS-DP | Role: Master | Detail: IEC 61158, EN 50171, DIN 19245
NP1L-PS1 Network: PROFIBUS-DP | Role: Slave | Detail: IEC 61158, EN 50171, DIN 19245
NP1L-RP1 Network: PROFIBUS-DP | Role: Interface module | Detail: IEC 61158, EN 50171, DIN 19245
NP1L-AS2 Network: AS-i V2.1 | Role: Master | Detail: With screw connector
NP1L-SL1 Network: S-LINK | Role: Master | Detail: 1 channel
NP1L-RM1 Network: Remote terminal RM20/RM21 | Role: Master / slave | Detail: Signal multiplex transmission
NP1L-AW1 Network: UNI-WIRE / AnyWire | Role: Master | Detail: Up to 2560 points, 1 km
NP1L-OL1 Network: SX bus optical | Role: Electric-optical converter | Detail: PCF cable, with SX bus plug
NP1L-OL2 Network: SX bus optical | Role: Electric-optical converter | Detail: Quartz cable, with SX bus plug
NP2L-OE1 Network: SX bus optical | Role: Optical converter unit | Detail: With SX bus plug
NP2L-RP1 Network: SX bus | Role: Electric repeater unit | Detail: With SX bus plug
NP2L-BH1 Network: SX bus | Role: Duplex connection unit | Detail: SX bus cable redundancy
FNC160A-C20 Network: T-link optical | Role: Optical converter | Detail: Order code NH5F-OCHTL17
FNC360A-C20 Network: P/PE-link optical | Role: Optical converter | Detail: Order code NH5F-OCHPE17
PLC ModulesFuji Electric
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
