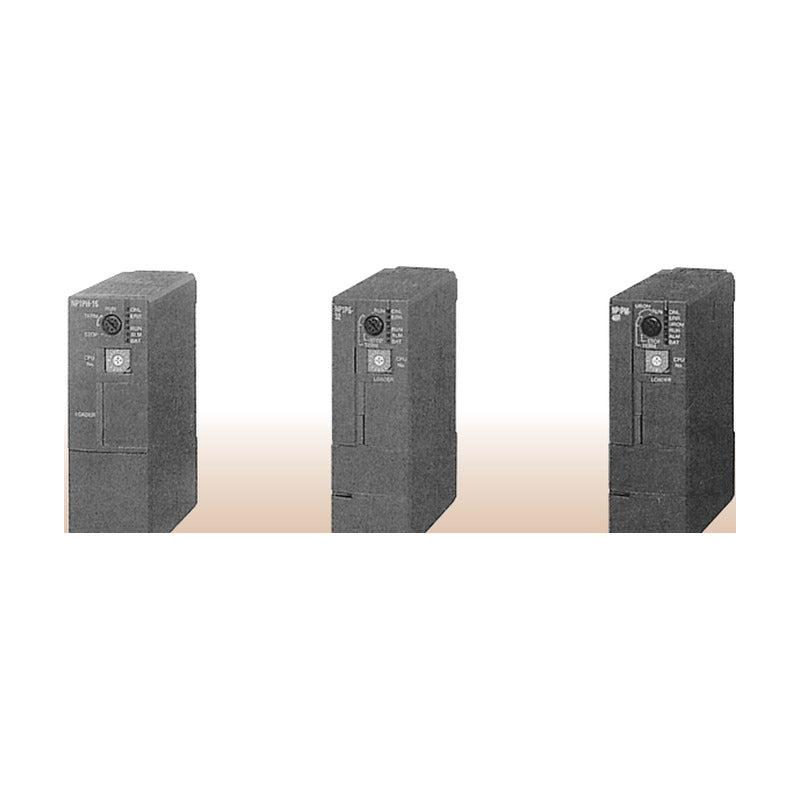

Fuji Electric MICREX-SX SPH CPU Modules (SPH200 to SPH3000MM)

Fuji Electric MICREX-SX SPH CPU Modules (SPH200 to SPH3000MM)

CPU modules of the Fuji Electric MICREX-SX SPH series programmable controllers, from the SPH200 to the E-SX bus SPH3000MM, with program memory from 8K to 256K steps.

Key features

  • Basic instruction speed down to 9 ns (SPH3000/3000MM)
  • Up to 8-CPU multi-CPU systems
  • 1:1 warm standby and N:1 cold standby redundancy (SPH300/SPH2000)
  • User ROM card, USB and Ethernet loader ports on R/E models
  • IEC 61131-3 languages: IL, ST, LD, FBD, SFC
  • SPH3000MM drives the 100 Mbps E-SX bus (max 139,264 I/O)

Specifications

Series MICREX-SX SPH
Supplied with Backup battery (built-in), 2 SX bus plugs, CPU setting driver
Programming Expert (D300win), Standard
Operating temperature 0 to +55 C
Standards CE, UL/cUL (most models), LR, NK per model
Source Fuji Electric MICREX-SX SPH catalogue (KR ed.), p. 16-20, 122
NP1PH-08 CPU class: SPH200 | Program memory: 8K steps | Interfaces: - | Max. I/O points: 8,192 | Basic instruction: 70 ns
NP1PH-16 CPU class: SPH200 | Program memory: 16K steps | Interfaces: - | Max. I/O points: 8,192 | Basic instruction: 70 ns
NP1PS-32 CPU class: SPH300 | Program memory: 32K steps | Interfaces: - | Max. I/O points: 8,192 | Basic instruction: 20 ns
NP1PS-32R CPU class: SPH300 | Program memory: 32K steps | Interfaces: User ROM, USB | Max. I/O points: 8,192 | Basic instruction: 20 ns
NP1PS-74R CPU class: SPH300 | Program memory: 74K steps | Interfaces: User ROM, USB | Max. I/O points: 8,192 | Basic instruction: 20 ns
NP1PS-117R CPU class: SPH300 | Program memory: 117K steps | Interfaces: User ROM, USB | Max. I/O points: 8,192 | Basic instruction: 20 ns
NP1PS-245R CPU class: SPH300 | Program memory: 245K steps | Interfaces: User ROM, USB | Max. I/O points: 8,192 | Basic instruction: 20 ns
NP1PS-74D CPU class: SPH300EX | Program memory: 74K steps x2 | Interfaces: User ROM, USB | Max. I/O points: 8,192 x2 | Basic instruction: 20 ns
NP1PM-48R CPU class: SPH2000 | Program memory: 48K steps | Interfaces: User ROM, USB | Max. I/O points: 8,192 | Basic instruction: 30 ns
NP1PM-48E CPU class: SPH2000 | Program memory: 48K steps | Interfaces: User ROM, USB, Ethernet | Max. I/O points: 8,192 | Basic instruction: 30 ns
NP1PM-256E CPU class: SPH2000 | Program memory: 256K steps | Interfaces: User ROM, USB, Ethernet | Max. I/O points: 8,192 | Basic instruction: 30 ns
NP1PM-256H CPU class: SPH2000 | Program memory: 256K steps, redundancy | Interfaces: User ROM, USB | Max. I/O points: 8,192 | Basic instruction: 30 ns
NP1PU-048E CPU class: SPH3000 | Program memory: 48K steps | Interfaces: User ROM, USB, Ethernet | Max. I/O points: 8,192 | Basic instruction: 9 ns
NP1PU-256E CPU class: SPH3000 | Program memory: 256K steps | Interfaces: User ROM, USB, Ethernet | Max. I/O points: 8,192 | Basic instruction: 9 ns
NP1PU2-048E CPU class: SPH3000MM (E-SX bus) | Program memory: 48K steps | Interfaces: User ROM, USB, Ethernet | Max. I/O points: 139,264 | Basic instruction: 9 ns
NP1PU2-256E CPU class: SPH3000MM (E-SX bus) | Program memory: 256K steps | Interfaces: User ROM, USB, Ethernet | Max. I/O points: 139,264 | Basic instruction: 9 ns
PLCsFuji Electric
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric MICREX-SX SPH CPU Modules (SPH200 to SPH3000MM)

Brand Fuji Electric·PLCs

Available part numbers (16)

NP1PH-08, NP1PH-16, NP1PS-32, NP1PS-32R, NP1PS-74R, NP1PS-117R, NP1PS-245R, NP1PS-74D, NP1PM-48R, NP1PM-48E + 6 more — see full table ↓

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NP1PH-08CPU class: SPH200 | Program memory: 8K steps | Interfaces: - | Max. I/O points: 8,192 | Basic instruction: 70 ns
NP1PH-16CPU class: SPH200 | Program memory: 16K steps | Interfaces: - | Max. I/O points: 8,192 | Basic instruction: 70 ns
NP1PS-32CPU class: SPH300 | Program memory: 32K steps | Interfaces: - | Max. I/O points: 8,192 | Basic instruction: 20 ns
NP1PS-32RCPU class: SPH300 | Program memory: 32K steps | Interfaces: User ROM, USB | Max. I/O points: 8,192 | Basic instruction: 20 ns
NP1PS-74RCPU class: SPH300 | Program memory: 74K steps | Interfaces: User ROM, USB | Max. I/O points: 8,192 | Basic instruction: 20 ns
NP1PS-117RCPU class: SPH300 | Program memory: 117K steps | Interfaces: User ROM, USB | Max. I/O points: 8,192 | Basic instruction: 20 ns
NP1PS-245RCPU class: SPH300 | Program memory: 245K steps | Interfaces: User ROM, USB | Max. I/O points: 8,192 | Basic instruction: 20 ns
NP1PS-74DCPU class: SPH300EX | Program memory: 74K steps x2 | Interfaces: User ROM, USB | Max. I/O points: 8,192 x2 | Basic instruction: 20 ns
NP1PM-48RCPU class: SPH2000 | Program memory: 48K steps | Interfaces: User ROM, USB | Max. I/O points: 8,192 | Basic instruction: 30 ns
NP1PM-48ECPU class: SPH2000 | Program memory: 48K steps | Interfaces: User ROM, USB, Ethernet | Max. I/O points: 8,192 | Basic instruction: 30 ns
NP1PM-256ECPU class: SPH2000 | Program memory: 256K steps | Interfaces: User ROM, USB, Ethernet | Max. I/O points: 8,192 | Basic instruction: 30 ns
NP1PM-256HCPU class: SPH2000 | Program memory: 256K steps, redundancy | Interfaces: User ROM, USB | Max. I/O points: 8,192 | Basic instruction: 30 ns
NP1PU-048ECPU class: SPH3000 | Program memory: 48K steps | Interfaces: User ROM, USB, Ethernet | Max. I/O points: 8,192 | Basic instruction: 9 ns
NP1PU-256ECPU class: SPH3000 | Program memory: 256K steps | Interfaces: User ROM, USB, Ethernet | Max. I/O points: 8,192 | Basic instruction: 9 ns
NP1PU2-048ECPU class: SPH3000MM (E-SX bus) | Program memory: 48K steps | Interfaces: User ROM, USB, Ethernet | Max. I/O points: 139,264 | Basic instruction: 9 ns
NP1PU2-256ECPU class: SPH3000MM (E-SX bus) | Program memory: 256K steps | Interfaces: User ROM, USB, Ethernet | Max. I/O points: 139,264 | Basic instruction: 9 ns
