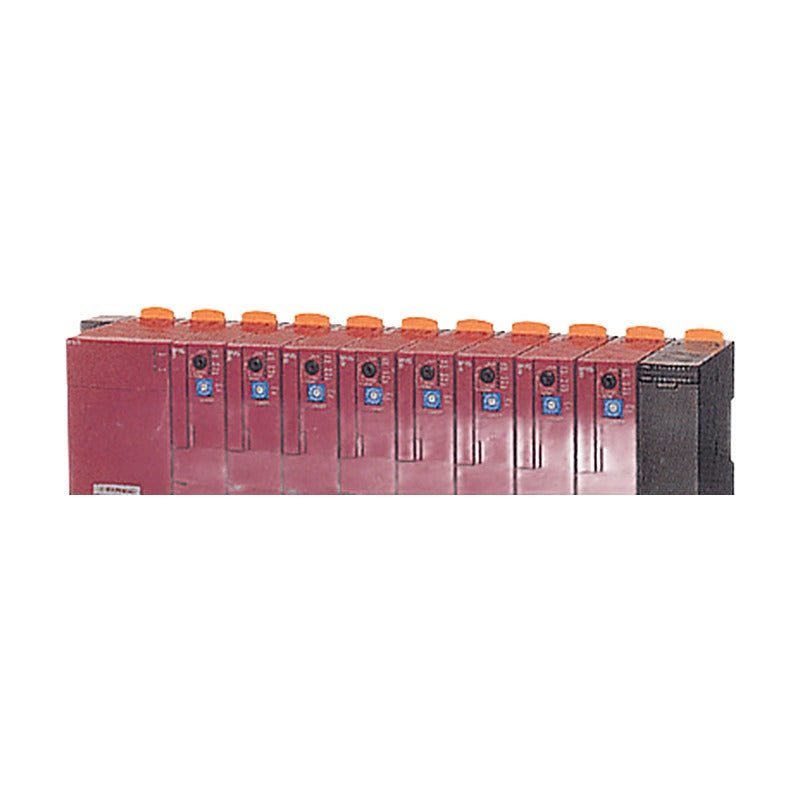

Fuji Electric MICREX-SX SPH Digital I/O Modules (NP1X / NP1Y / NP1W)

Fuji Electric MICREX-SX SPH Digital I/O Modules (NP1X / NP1Y / NP1W)

Digital input (NP1X), output (NP1Y) and mixed I/O (NP1W) modules for MICREX-SX SPH base boards, from 8 to 64 points, DC/AC input and transistor, SSR or relay output.

Key features

  • DC24V, DC48V, DC5/12V and AC100/200V input types
  • Adjustable input filter 1-100 ms; pulse catch type NP1X3206-A
  • Transistor sink/source, SSR and relay outputs
  • Pulse output 20 kHz x 4ch on NP1Y32T09P1-A
  • Screw terminal or connector types (connector sold separately: NP8V-CN)

Specifications

Series MICREX-SX SPH
Mounting NP1B base board
Connector (connector types) NP8V-CN (FCN-361J040-AU + cover)
Standards CE / UL / LR / NK per model
Operating temperature 0 to +55 C
Source Fuji Electric MICREX-SX SPH catalogue (KR ed.), p. 30-33, 123
NP1X1606-W Type: DC input | Rating: DC24V, 7 mA | Points: 16 | Detail: 1-100 ms variable | Terminal: Screw
NP1X3206-W Type: DC input | Rating: DC24V, 4 mA | Points: 32 | Detail: 1-100 ms variable | Terminal: Connector
NP1X3202-W Type: DC input | Rating: DC5V/12V, 3/9 mA | Points: 32 | Detail: 1-100 ms variable | Terminal: Connector
NP1X3206-A Type: DC input | Rating: DC24V, 4 mA | Points: 32 | Detail: 0.1-100 ms, pulse catch 20 kHz | Terminal: Connector
NP1X6406-W Type: DC input | Rating: DC24V, 4 mA | Points: 64 | Detail: 1-100 ms variable | Terminal: Connector
NP1X1607-W Type: DC input | Rating: DC48V, 5 mA | Points: 16 | Detail: 1-100 ms variable | Terminal: Screw
NP1X0810 Type: AC input | Rating: AC100-120V, 10 mA | Points: 8 | Detail: 10 ms | Terminal: Screw
NP1X1610 Type: AC input | Rating: AC100-120V, 10 mA | Points: 16 | Detail: 10 ms | Terminal: Screw
NP1X0811 Type: AC input | Rating: AC200-240V, 10 mA | Points: 8 | Detail: 10 ms | Terminal: Screw
NP1X1611-RI Type: AC input | Rating: AC200-240V, 7 mA | Points: 16 | Detail: 10 ms | Terminal: Screw
NP1Y08T0902 Type: Tr sink output | Rating: DC12-24V, 2.4 A/pt | Points: 8 | Detail: 8 A/common | Terminal: Screw
NP1Y16T09P6 Type: Tr sink output | Rating: DC12-24V, 0.6 A/pt | Points: 16 | Detail: 4 A/common | Terminal: Screw
NP1Y32T09P1-A Type: Tr sink output | Rating: DC24V, 0.12 A/pt | Points: 32 | Detail: 3.2 A/com, pulse out 20 kHz x4ch | Terminal: Connector
NP1Y32T09P1 Type: Tr sink output | Rating: DC12-24V, 0.12 A/pt | Points: 32 | Detail: 3.2 A/common | Terminal: Connector
NP1Y64T09P1 Type: Tr sink output | Rating: DC12-24V, 0.12 A/pt | Points: 64 | Detail: 3.2 A/common | Terminal: Connector
NP1Y16T10P2 Type: Tr sink output | Rating: DC48V, 0.2 A/pt | Points: 16 | Detail: 1.6 A/common | Terminal: Screw
NP1Y08U0902 Type: Tr source output | Rating: DC12-24V, 2.4 A/pt | Points: 8 | Detail: 8 A/common | Terminal: Screw
NP1Y16U09P6 Type: Tr source output | Rating: DC12-24V, 0.6 A/pt | Points: 16 | Detail: 4 A/common | Terminal: Screw
NP1Y32U09P1 Type: Tr source output | Rating: DC12-24V, 0.12 A/pt | Points: 32 | Detail: 3.2 A/common | Terminal: Connector
NP1Y64U09P1 Type: Tr source output | Rating: DC12-24V, 0.12 A/pt | Points: 64 | Detail: 3.2 A/common | Terminal: Connector
NP1Y08S Type: SSR output | Rating: AC100-240V, 2.2 A/pt | Points: 8 | Detail: All points independent | Terminal: Screw
NP1Y08R-04 Type: Relay output | Rating: DC30V/AC264V, 2.2 A/pt | Points: 8 | Detail: 4 A/common | Terminal: Screw
NP1Y16R-08 Type: Relay output | Rating: DC30V/AC264V, 2.2 A/pt | Points: 16 | Detail: 8 A/common | Terminal: Screw
NP1Y08R-00 Type: Relay output | Rating: DC30V/AC264V, 2.2 A/pt | Points: 8 | Detail: All points independent | Terminal: Screw
NP1W1606T Type: DC I/O mixed | Rating: DC24V in / DC12-24V out | Points: 8 in + 8 out | Detail: Source in, Tr sink out | Terminal: Screw
NP1W1606U Type: DC I/O mixed | Rating: DC24V in / DC12-24V out | Points: 8 in + 8 out | Detail: Sink in, Tr source out | Terminal: Screw
NP1W3206T Type: DC I/O mixed | Rating: DC24V in / DC12-24V out | Points: 16 in + 16 out | Detail: Source in, Tr sink out | Terminal: Connector
NP1W3206U Type: DC I/O mixed | Rating: DC24V in / DC12-24V out | Points: 16 in + 16 out | Detail: Sink in, Tr source out | Terminal: Connector
NP1W6406T Type: DC I/O mixed | Rating: DC24V in / DC12-24V out | Points: 32 in + 32 out | Detail: Bidirectional in, Tr sink out | Terminal: Connector
NP1W6406U Type: DC I/O mixed | Rating: DC24V in / DC12-24V out | Points: 32 in + 32 out | Detail: Bidirectional in, Tr source out | Terminal: Connector
