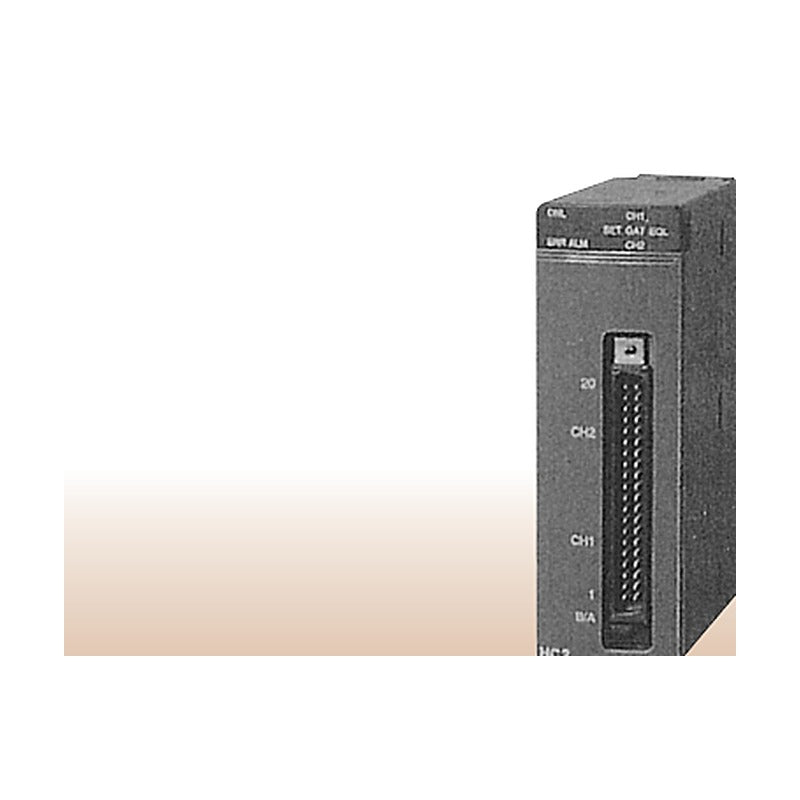

Fuji Electric MICREX-SX SPH Positioning & Function Modules (NP1F)

NP1F function and positioning modules for MICREX-SX SPH: high-speed counters, pulse-train and analog positioning, memory card interface, multi-use communication, flowmeter and frequency measurement.

Key features

High-speed counters up to 500 kHz, 2 or 8 channels
2-axis pulse-train (250 kHz) and analog positioning modules
Positioning extension FBs for flying shear and other controls
Memory card interface for program management
Multi-use RS-232C/RS-485 module with user protocols
Frequency measurement with 5 ns resolution

Specifications

Series	MICREX-SX SPH
Mounting	NP1B base board
Connector	Sold separately (NP8V-CN) for connector types
Operating temperature	0 to +55 C
Extension FB	Positioning extension FBs available
Source	Fuji Electric MICREX-SX SPH catalogue (KR ed.), p. 74-81, 104, 124

NP1F-HC2		Type: High-speed counter \| Channels: 2 ch \| Specification: 500 kHz, input DC5V, connector
NP1F-HC2MR		Type: High-speed counter \| Channels: 2 ch \| Specification: 200 kHz, input DC5/12/24V, connector
NP1F-HC2MR1		Type: High-speed counter \| Channels: 2 ch \| Specification: 50 kHz, input DC5/12/24V, connector
NP1F-HC8		Type: High-speed counter \| Channels: 8 ch \| Specification: 50 kHz, input DC5V, connector
NP1F-HP2		Type: Pulse train output positioning \| Channels: 2 axes \| Specification: Pulse command 250 kHz, connector
NP1F-MP2		Type: Pulse train combined positioning \| Channels: 2 axes \| Specification: Out 250 kHz, feedback 500 kHz
NP1F-MA2		Type: Analog combined positioning \| Channels: 2 axes \| Specification: Analog speed command, feedback 500 kHz
NP1F-MM1		Type: Memory card interface \| Channels: 1 slot \| Specification: PC card (PCMCIA), with dummy card
NP1F-DMY		Type: Dummy module \| Channels: - \| Specification: Placeholder for future modules
NP1F-MU1		Type: Multi-use communication \| Channels: 2 ports \| Specification: RS-232C x1, RS-485 x1, user protocol
NP1F-PI4		Type: Flowmeter F/AD conversion \| Channels: 4 ch \| Specification: 10 kHz, channel isolated
NP1F-FM1		Type: Frequency measurement \| Channels: 2 ch \| Specification: 0.1 Hz-500 kHz, speed/acceleration
