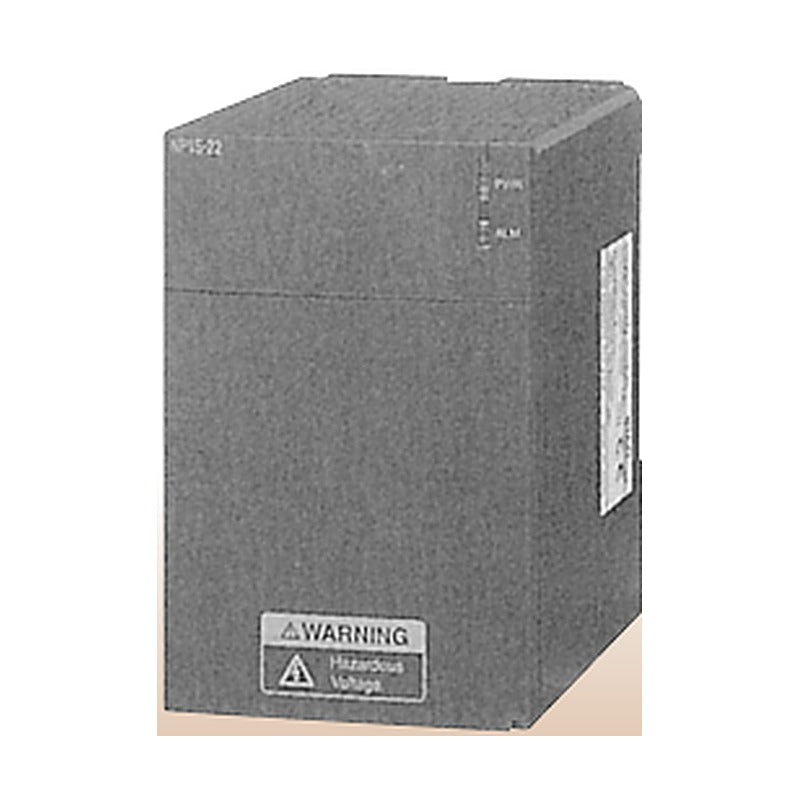

Fuji Electric MICREX-SX SPH Power Supply Modules (NP1S)

Fuji Electric MICREX-SX SPH Power Supply Modules (NP1S)

NP1S power supply modules for MICREX-SX SPH base boards, for AC100-240V or DC24V input with 15 W or 35 W output.

Key features

  • AC100-120/200-240V or DC24V input versions
  • 35 W output for NP1S-22 / NP1S-42
  • 15 W single-slot modules NP1S-91 / NP1S-81
  • Redundant power supply possible with NP1S-22 / NP1S-42 (up to 3)
  • ALM contact connector supplied with NP1S-22 / -42

Specifications

Series MICREX-SX SPH
Mounting Base board power slot
Operating temperature 0 to +55 C
Redundancy NP1S-22 / NP1S-42, up to 3 modules
Standards CE; UL/cUL, LR, NK per model
Source Fuji Electric MICREX-SX SPH catalogue (KR ed.), p. 15, 122
NP1S-22 Input: AC100-120V / AC200-240V | Output: 35 W | Accessories: ALM connector, voltage link
NP1S-91 Input: AC100-120V | Output: 15 W (1 slot) | Accessories: -
NP1S-81 Input: AC200-240V | Output: 15 W (1 slot) | Accessories: -
NP1S-42 Input: DC24V | Output: 35 W | Accessories: ALM connector
PLC ModulesFuji Electric
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric MICREX-SX SPH Power Supply Modules (NP1S)

Brand Fuji Electric·PLC Modules

Available part numbers (4)

NP1S-22, NP1S-91, NP1S-81, NP1S-42

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NP1S-22Input: AC100-120V / AC200-240V | Output: 35 W | Accessories: ALM connector, voltage link
NP1S-91Input: AC100-120V | Output: 15 W (1 slot) | Accessories: -
NP1S-81Input: AC200-240V | Output: 15 W (1 slot) | Accessories: -
NP1S-42Input: DC24V | Output: 35 W | Accessories: ALM connector
