• Fuji Electric MICREX-SX SPM PLC CPU, Base & Power Modules
1 1

Fuji Electric MICREX-SX SPM PLC CPU, Base & Power Modules

Fuji Electric MICREX-SX SPM PLC CPU, Base & Power Modules

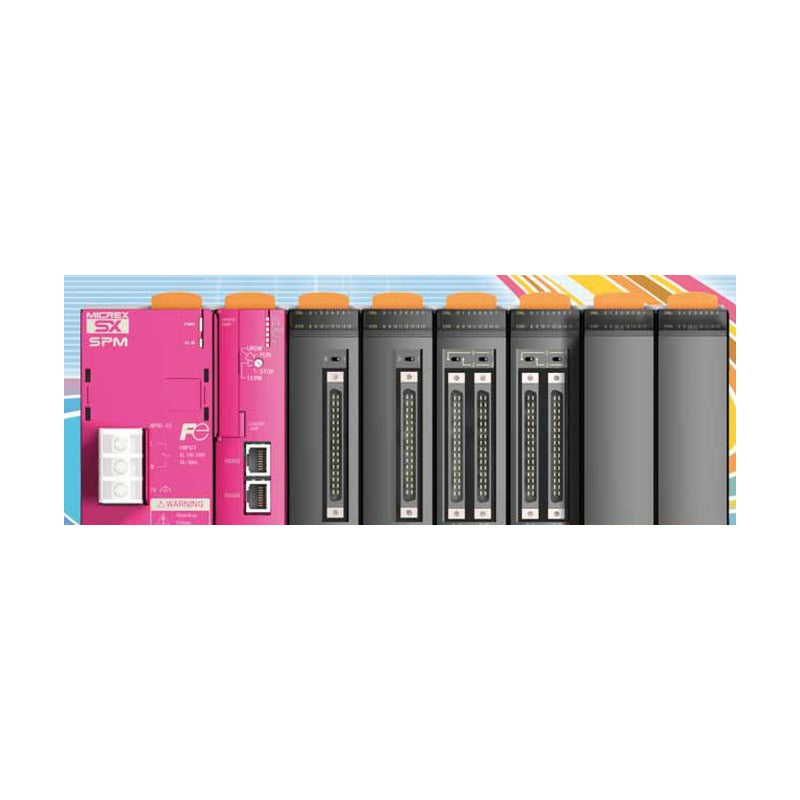

Integrated MICREX-SX SPM programmable controller system components: SPM3000/SPM2000 CPU modules with 48K-step memory, 6/8/11-slot base boards and AC power supply modules.

Key features

  • High-performance CPU with 48K-step program memory
  • RS-485/RS-422 and MODBUS communication
  • Programming by Expert (D300win) or Standard (IEC 61131-3)
  • Compact base boards for 6, 8 or 11 slots
  • 100-240V AC power supplies in 2-slot or 1-slot size

Specifications

Series MICREX-SX SPM
Programming NP4H-SEDBV3 / NW4H-SWN
Mounting accessory NP8B-ST base mounting stud
Communication RS-485 / RS-422, MODBUS
Applications Spinning, wiredrawing, take-up machines
Catalogue no. 22B1-E-0001
Source Fuji Electric MICREX-SX SPM catalogue (2014), p. 9-10, 27
NP0PU-048RS Category: CPU module | Model: SPM3000 | Specification: Program memory 48K steps
NP0PM-048RS Category: CPU module | Model: SPM2000 | Specification: Program memory 48K steps
NP0BS-06 Category: Base board | Model: - | Specification: 6 slots
NP0BS-08 Category: Base board | Model: - | Specification: 8 slots
NP0BS-11 Category: Base board | Model: - | Specification: 11 slots (under development)
NP0S-22 Category: Power supply module | Model: - | Specification: 100-240V AC, 2-slot size (1 slot used)
NP0S-81 Category: Power supply module | Model: - | Specification: 100-240V AC, 1-slot size
PLCsFuji Electric
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric MICREX-SX SPM PLC CPU, Base & Power Modules

Brand Fuji Electric·PLCs

Available part numbers (7)

NP0PU-048RS, NP0PM-048RS, NP0BS-06, NP0BS-08, NP0BS-11, NP0S-22, NP0S-81

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NP0PU-048RSCategory: CPU module | Model: SPM3000 | Specification: Program memory 48K steps
NP0PM-048RSCategory: CPU module | Model: SPM2000 | Specification: Program memory 48K steps
NP0BS-06Category: Base board | Model: - | Specification: 6 slots
NP0BS-08Category: Base board | Model: - | Specification: 8 slots
NP0BS-11Category: Base board | Model: - | Specification: 11 slots (under development)
NP0S-22Category: Power supply module | Model: - | Specification: 100-240V AC, 2-slot size (1 slot used)
NP0S-81Category: Power supply module | Model: - | Specification: 100-240V AC, 1-slot size
